Spears® Super Sourcebook

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

PVC Schedule 80 Fittings

PRODUCT

Contact Spears^® for any Information not found.

Page 3

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Tees

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee
Socket x Socket x Socket

801-002MSRP = 20.48	1/4	50	300	080
801-003MSRP = 20.48	3/8	25	150	080
801-005MSRP = 20.48	1/2	25	200	080
801-007MSRP = 21.47	3/4	15	120	080
801-010MSRP = 26.87	1	25	0	080
801-012MSRP = 73.85	1-1/4	10	0	080
801-015MSRP = 73.85	1-1/2	10	0	080
801-020MSRP = 92.35	2	10	0	080
801-025MSRP = 100.38	2-1/2	10	0	080
801-030MSRP = 125.47	3	5	0	080
801-040MSRP = 145.38	4	5	0	080
801-050MSRP = 354.62	5	5	0	080
801-050FMSRP = 828.85	5	1	4	083
801-060MSRP = 496.38	6	2	0	080
801-080MSRP = 1151.25	8	2	0	080
801-080FMSRP = 1085.91	8	1	0	083
801-100MSRP = 3803.47	10	1	0	081
801-100FMSRP = 1929.79	10	1	0	083
801-120MSRP = 5371.57	12	1	0	081
801-120FMSRP = 2719.17	12	1	0	083
801-140MSRP = 6762.75	14	1	0	082
801-140FMSRP = 5704.69	14	1	0	083
801-160FMSRP = 7417.85	16	1	0	083
801-180FMSRP = 8836.33	18	1	0	083
801-200FMSRP = 11392.17	20	1	0	083
801-240FMSRP = 15140.53	24	1	0	083

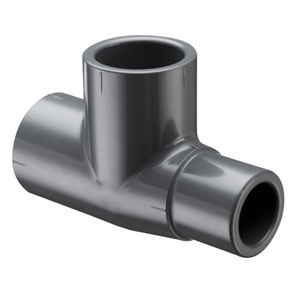

Tee - Reducing
Socket x Socket x Socket

801-101MSRP = 15.73	3/4X1/2	15	120	080
801-130MSRP = 22.69	1X1/2	15	0	080
801-131MSRP = 22.69	1X3/4	15	0	080
801-157MSRP = 37.48	1-1/4X1X3/4	15	0	080
801-158MSRP = 37.48	1-1/4X1X1	15	0	080
801-159MSRP = 37.48	1-1/4X1X1-1/4	15	0	080
801-1661MSRP = 62.65	1-1/4X1/2	10	0	080
801-167MSRP = 49.29	1-1/4X3/4	10	0	080
801-168MSRP = 49.29	1-1/4X1	15	0	080
801-202MSRP = 49.29	1-1/2X1-1/4X1	10	0	080
801-209MSRP = 49.29	1-1/2X1/2	10	0	080
801-210MSRP = 49.29	1-1/2X3/4	15	0	080
801-211MSRP = 49.29	1-1/2X1	10	0	080
801-212MSRP = 49.29	1-1/2X1-1/4	10	0	080
801-247MSRP = 62.44	2X1/2	10	0	080
801-248MSRP = 62.44	2X3/4	10	0	080
801-249MSRP = 62.44	2X1	10	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Reducing (continued)
Socket x Socket x Socket

801-250MSRP = 62.44	2X1-1/4	10	0	080
801-251MSRP = 62.44	2X1-1/2	10	0	080
801-2541MSRP = 436.23	2X2X4	5	0	080
801-287MSRP = 95.46	2-1/2X1/2	10	0	080
801-288MSRP = 95.46	2-1/2X3/4	10	0	080
801-289MSRP = 81.47	2-1/2X1	10	0	080
801-290MSRP = 81.47	2-1/2X1-1/4	10	0	080
801-291MSRP = 81.47	2-1/2X1-1/2	10	0	080
801-292MSRP = 81.47	2-1/2X2	10	0	080
801-3331MSRP = 114.49	3X1/2	5	0	080
801-334MSRP = 129.23	3X3/4	6	0	080
801-335MSRP = 114.49	3X1	5	0	080
801-3361MSRP = 114.49	3X1-1/4	5	0	080
801-337MSRP = 114.49	3X1-1/2	5	0	080
801-338MSRP = 114.49	3X2	5	0	080
801-339MSRP = 114.49	3X2-1/2	6	0	080
801-4151MSRP = 226.44	4X1/2	5	0	080
801-4161MSRP = 226.44	4X3/4	5	0	080
801-417MSRP = 226.44	4X1	5	0	080
801-4181MSRP = 226.44	4X1-1/4	5	0	080
801-419MSRP = 185.03	4X1-1/2	5	0	080
801-420MSRP = 185.03	4X2	5	0	080
801-4211MSRP = 333.07	4X2-1/2	5	0	080
801-422MSRP = 185.03	4X3	5	0	080
801-4261MSRP = 906.77	4X6	4	0	080
801-4821MSRP = 733.61	5X1-1/4	4	0	080
801-482FMSRP = 490.51	5X1-1/4	1	5	083
801-4841MSRP = 799.77	5X1-1/2	4	0	080
801-484FMSRP = 499.77	5X1-1/2	1	5	083
801-4861MSRP = 695.88	5X2	4	0	080
801-486FMSRP = 499.77	5X2	1	5	083
801-4871MSRP = 809.54	5X2-1/2	4	0	080
801-487FMSRP = 569.87	5X2-1/2	1	4	083
801-4881MSRP = 695.88	5X3	4	0	080
801-488FMSRP = 588.52	5X3	1	4	083
801-4901MSRP = 551.97	5X4	4	0	080
801-490FMSRP = 628.27	5X4	1	4	083
801-5231MSRP = 481.20	6X1/2	4	0	080
801-5241MSRP = 481.20	6X3/4	6	0	080
801-525MSRP = 369.71	6X1	6	0	080
801-525F1MSRP = 427.67	6X1	4	0	083
801-5261MSRP = 481.20	6X1-1/4	4	0	080
801-5271MSRP = 481.20	6X1-1/2	4	0	080
801-527FMSRP = 499.77	6X1-1/2	1	4	083
801-528MSRP = 369.71	6X2	6	0	080
801-5291MSRP = 480.78	6X2-1/2	4	0	080
801-530MSRP = 369.71	6X3	5	0	080
801-530FMSRP = 546.56	6X3	1	3	083
801-532MSRP = 496.38	6X4	5	0	080
801-533FMSRP = 1044.86	6X5	1	3	083
801-537FMSRP = 4066.93	6X10	1	0	083
801-539FMSRP = 4515.64	6X12	1	0	083
801-5731MSRP = 1412.63	8X1/2	2	0	080
801-5751MSRP = 1413.47	8X1	2	0	080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 4

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Tees

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Reducing (continued)
Socket x Socket x Socket

801-5781MSRP = 1344.03	8X2	2	0	080
801-578FMSRP = 921.94	8X2	1	2	083
801-5791MSRP = 1478.82	8X2-1/2	2	0	080
801-579FMSRP = 930.48	8X2-1/2	1	2	083
801-5801MSRP = 1344.03	8X3	2	0	080
801-580FMSRP = 940.94	8X3	1	2	083
801-582MSRP = 1344.03	8X4	2	0	080
801-582FMSRP = 989.39	8X4	1	2	083
801-583FMSRP = 1337.55	8X5	1	0	083
801-585MSRP = 1151.25	8X6	2	0	080
801-5911MSRP = 8212.81	8X12	1	0	081
801-621FMSRP = 1384.92	10X2	1	2	083
801-622FMSRP = 1446.46	10X2-1/2	1	0	083
801-6231MSRP = 3543.71	10X3	1	0	081
801-623FMSRP = 1485.29	10X3	1	0	083
801-6241MSRP = 3543.71	10X4	1	0	081
801-624FMSRP = 1538.75	10X4	1	0	083
801-625FMSRP = 1654.75	10X5	1	0	083
801-626MSRP = 3347.06	10X6	1	0	081
801-626FMSRP = 1740.22	10X6	1	0	083
801-6281MSRP = 3939.04	10X8	1	0	081
801-628FMSRP = 1952.25	10X8	1	0	083
801-632FMSRP = 4809.02	10X12	1	0	083
801-661FMSRP = 1790.83	12X2	1	0	083
801-662FMSRP = 1868.12	12X2-1/2	1	0	083
801-663FMSRP = 1929.08	12X3	1	0	083
801-6641MSRP = 6424.86	12X4	1	0	081
801-664FMSRP = 2046.40	12X4	1	0	083
801-665FMSRP = 2144.48	12X5	1	0	083
801-6661MSRP = 6061.71	12X6	1	0	081
801-666FMSRP = 2259.62	12X6	1	0	083
801-668MSRP = 4979.46	12X8	1	0	081
801-668FMSRP = 2424.29	12X8	1	0	083
801-6701MSRP = 6668.19	12X10	1	0	081
801-670FMSRP = 2693.88	12X10	1	0	083
801-678FMSRP = 12007.88	12X18	1	0	083
801-691FMSRP = 2243.91	14X2	1	0	083
801-692FMSRP = 2357.35	14X2-1/2	1	0	083
801-693FMSRP = 2754.91	14X3	1	0	083
801-694FMSRP = 3035.87	14X4	1	0	083
801-696FMSRP = 3277.23	14X6	1	0	083
801-6981MSRP = 7714.73	14X8	1	0	082
801-698FMSRP = 3446.20	14X8	1	0	083
801-7001MSRP = 5478.61	14X10	1	0	082
801-700FMSRP = 3681.68	14X10	1	0	083
801-702MSRP = 6377.54	14X12	1	0	082
801-702FMSRP = 3887.61	14X12	1	0	083
801-706FMSRP = 9353.22	14X16	1	0	083
801-751FMSRP = 2877.45	16X2	1	0	083
801-752FMSRP = 3060.55	16X2-1/2	1	0	083
801-753FMSRP = 3104.42	16X3	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Reducing (continued)
Socket x Socket x Socket

801-620FMSRP = 3416.18	10X1-1/2	1	083
801-754FMSRP = 3396.31	16X4	1	083
801-756FMSRP = 3613.14	16X6	1	083
801-758FMSRP = 4013.17	16X8	1	083
801-760FMSRP = 4350.32	16X10	1	083
801-762FMSRP = 4794.14	16X12	1	083
801-764FMSRP = 5528.03	16X14	1	083
801-781FMSRP = 3307.81	18X2	1	083
801-783FMSRP = 4027.40	18X3	1	083
801-784FMSRP = 6185.05	18X4	1	083
801-786FMSRP = 6699.01	18X6	1	083
801-788FMSRP = 6985.86	18X8	1	083
801-790FMSRP = 7483.99	18X10	1	083
801-792FMSRP = 7909.07	18X12	1	083
801-794FMSRP = 8405.37	18X14	1	083
801-796FMSRP = 8512.76	18X16	1	083
801-814FMSRP = 7585.59	20X4	1	083
801-816FMSRP = 8009.59	20X6	1	083
801-818FMSRP = 8255.78	20X8	1	083
801-820FMSRP = 8596.96	20X10	1	083
801-822FMSRP = 9218.13	20X12	1	083
801-824FMSRP = 9885.19	20X14	1	083
801-826FMSRP = 10595.12	20X16	1	083
801-828FMSRP = 11136.33	20X18	1	083
801-904FMSRP = 9445.05	24X4	1	083
801-906FMSRP = 9806.80	24X6	1	083
801-908FMSRP = 10061.79	24X8	1	083
801-910FMSRP = 10681.02	24X10	1	083
801-912FMSRP = 11075.13	24X12	1	083
801-914FMSRP = 11532.14	24X14	1	083
801-916FMSRP = 12064.15	24X16	1	083
801-918FMSRP = 14592.27	24X18	1	083
801-920FMSRP = 14869.47	24X20	1	083

¹ Sized with Bushing

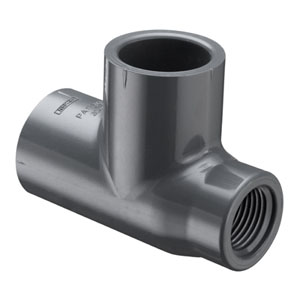

Tee
Socket x Socket x Fipt

802-002MSRP = 47.39	1/4	25	150	080
802-005MSRP = 32.43	1/2	20	160	080
802-007MSRP = 41.94	3/4	20	160	080
802-010MSRP = 49.08	1	15	0	080
802-012MSRP = 52.44	1-1/4	15	0	080
802-015MSRP = 61.66	1-1/2	10	0	080
802-020MSRP = 76.06	2	10	0	080
802-025MSRP = 151.14	2-1/2	5	0	080
802-030MSRP = 162.29	3	5	0	080
802-040MSRP = 304.92	4	5	0	080
802-060FMSRP = 627.93	6	2	0	083
802-080FMSRP = 1344.67	8	1	2	084

Page 5

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Tees

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Reducing
Socket x Socket x Fipt

802-101MSRP = 29.78	3/4X1/2	15	120	080
802-130MSRP = 30.95	1X1/2	50	0	080
802-131MSRP = 39.77	1X3/4	15	0	080
802-166MSRP = 50.60	1-1/4X1/2	25	0	080
802-1671MSRP = 50.60	1-1/4X3/4	15	0	080
802-168MSRP = 100.44	1-1/4X1	10	0	080
802-209MSRP = 62.65	1-1/2X1/2	25	0	080
802-2101MSRP = 62.65	1-1/2X3/4	20	0	080
802-211MSRP = 62.65	1-1/2X1	10	0	080
802-212MSRP = 62.65	1-1/2X1-1/4	10	0	080
802-247MSRP = 71.57	2X1/2	10	0	080
802-248MSRP = 71.57	2X3/4	10	0	080
802-249MSRP = 95.22	2X1	10	0	080
802-2501MSRP = 95.22	2X1-1/4	10	0	080
802-2511MSRP = 132.78	2X1-1/2	10	0	080
802-287MSRP = 164.78	2-1/2X1/2	10	0	080
802-2881MSRP = 164.78	2-1/2X3/4	10	0	080
802-2891MSRP = 164.78	2-1/2X1	10	0	080
802-2901MSRP = 164.78	2-1/2X1-1/4	10	0	080
802-2911MSRP = 164.78	2-1/2X1-1/2	10	0	080
802-2921MSRP = 183.98	2-1/2X2	10	0	080
802-3331MSRP = 129.23	3X1/2	5	0	080
802-3341MSRP = 129.23	3X3/4	5	0	080
802-3351MSRP = 155.43	3X1	5	0	080
802-3361MSRP = 155.43	3X1-1/4	5	0	080
802-3371MSRP = 155.43	3X1-1/2	5	0	080
802-3381MSRP = 198.46	3X2	5	0	080
802-3391MSRP = 279.13	3X2-1/2	5	0	080
802-4151MSRP = 227.40	4X1/2	5	0	080
802-4161MSRP = 227.40	4X3/4	5	0	080
802-4171MSRP = 227.40	4X1	5	0	080
802-4181MSRP = 227.40	4X1-1/4	5	0	080
802-4191MSRP = 227.40	4X1-1/2	5	0	080
802-4201MSRP = 339.89	4X2	5	0	080
802-4211MSRP = 339.89	4X2-1/2	5	0	080
802-4221MSRP = 380.51	4X3	5	0	080
802-5251MSRP = 529.12	6X1	4	0	080
802-5261MSRP = 529.12	6X1-1/4	4	0	080
802-5271MSRP = 529.12	6X1-1/2	4	0	080
802-5281MSRP = 529.12	6X2	4	0	080
802-528F2MSRP = 963.58	6X2	1	3	083
802-5291MSRP = 529.12	6X2-1/2	4	0	080
802-5301MSRP = 738.64	6X3	4	0	080
802-5321MSRP = 773.91	6X4	2	0	080
802-532F2MSRP = 1194.07	6X4	1	4	083
802-5781MSRP = 1442.13	8X2	2	0	080
802-578FMSRP = 1290.46	8X2	1	2	083
802-5801MSRP = 1442.13	8X3	2	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Reducing (continued)
Socket x Socket x Fipt

802-580FMSRP = 1290.46	8X3	1	2	083
802-5821MSRP = 1442.13	8X4	2	0	080
802-582F2MSRP = 1430.33	8X4	1	2	083
802-6211MSRP = 3682.82	10X2	1	0	081
802-621FMSRP = 1567.01	10X2	1	0	083
802-6231MSRP = 3682.82	10X3	1	0	080
802-623FMSRP = 1693.87	10X3	1	0	083
802-6241MSRP = 3682.82	10X4	1	0	081
802-624F2MSRP = 1881.81	10X4	1	0	083
802-6611MSRP = 5835.35	12X2	1	0	081
802-661FMSRP = 1990.44	12X2	1	0	083
802-6631MSRP = 5835.35	12X3	1	0	081
802-663FMSRP = 2159.80	12X3	1	0	083
802-6641MSRP = 5835.35	12X4	1	0	081
802-664FMSRP = 2383.88	12X4	1	0	083

¹ Sized with Bushing
² Fiberglass reinforced

Tee - Special Reinforced
Socket x Socket x SR Fipt - Stainless Steel Collar

802-005SRMSRP = 17.72	1/2	50	0	086
802-007SRMSRP = 25.07	3/4	15	120	086
802-010SRMSRP = 29.43	1	15	0	086
802-012SRMSRP = 35.05	1-1/4	25	0	086
802-015SRMSRP = 37.02	1-1/2	10	0	086
802-020SRMSRP = 72.43	2	10	0	086
802-030SRMSRP = 156.54	3	5	0	086
802-040SRMSRP = 293.54	4	5	0	086

Tee - Special Reinforced Reducing
Socket x Socket x SR Fipt - Stainless Steel Collar

802-072SRMSRP = 17.72	1/2X1/4	25	150	086
802-098SRMSRP = 23.03	3/4X1/4	25	100	086
802-101SRMSRP = 23.03	3/4X1/2	50	0	086
802-128SR1MSRP = 54.53	1X1/4	10	80	086
802-130SRMSRP = 28.41	1X1/2	50	0	086
802-131SRMSRP = 54.53	1X3/4	15	0	086
802-164SR1MSRP = 58.13	1-1/4X1/4	5	40	086
802-166SRMSRP = 38.54	1-1/4X1/2	25	0	086
802-168SRMSRP = 39.31	1-1/4X1	10	0	086
802-207SR1MSRP = 67.83	1-1/2X1/4	10	0	086
802-211SRMSRP = 42.57	1-1/2X1	10	0	086
802-212SRMSRP = 42.57	1-1/2X1-1/4	10	0	086
802-245SR1MSRP = 78.34	2X1/4	10	0	086
802-247SRMSRP = 78.34	2X1/2	10	0	086
802-248SRMSRP = 78.34	2X3/4	10	0	086
802-287SRMSRP = 57.75	2-1/2X1/2	10	0	086
802-331SR1MSRP = 149.58	3X1/4	5	0	086
802-333SR1MSRP = 153.93	3X1/2	5	0	086

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 6

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Tees

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee - Special Reinforced Reducing (continued)
Socket x Socket x SR Fipt - Stainless Steel Collar

802-413SR1MSRP = 205.99	4X1/4	5	0	086
802-415SR1MSRP = 223.87	4X1/2	5	0	086

¹ Sized with Bushing

Tee - Brass Transition
Socket x Socket x Fipt With Brass Thread Insert

802-005BRMSRP = 72.41	1/2	20	120	086
802-007BRMSRP = 145.09	3/4	20	80	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Tee - Brass Transition Reducing
Socket x Socket x Fipt With Brass Thread Insert

802-072BRMSRP = 78.04	1/2X1/4	20	120	086
802-101BRMSRP = 90.36	3/4X1/2	50	0	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Tee - Reducing
Socket x Fipt x Socket

803-095MSRP = 27.91

3/4X1/2X3/4

080

Tee - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar x Socket
(See also Gauge & Instrument Fittings for additional configurations)

803-095SRMSRP = 29.01

3/4X1/2X3/4

086

Tee
Fipt x Fipt x Fipt

805-002MSRP = 23.71	1/4	25	150	080
805-003MSRP = 23.71	3/8	25	150	080
805-005MSRP = 23.71	1/2	20	240	080
805-007MSRP = 26.36	3/4	15	120	080
805-010MSRP = 58.21	1	15	0	080
805-012MSRP = 61.72	1-1/4	10	0	080
805-015MSRP = 74.82	1-1/2	10	0	080
805-020MSRP = 80.43	2	10	0	080
805-025MSRP = 292.91	2-1/2	5	0	080
805-030MSRP = 305.89	3	5	0	080
805-040MSRP = 497.09	4	5	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tee (continued)
Fipt x Fipt x Fipt

805-060FMSRP = 1072.73	6	1	2	080
805-080FMSRP = 2112.83	8	1	0	080

Tee - Special Reinforced
SR Fipt x SR Fipt x SR Fipt - Stainless Steel Collar

805-002SRMSRP = 20.65	1/4	25	150	086
805-003SRMSRP = 20.65	3/8	25	150	086
805-005SRMSRP = 21.29	1/2	25	150	086
805-007SRMSRP = 23.40	3/4	25	100	086
805-010SRMSRP = 55.60	1	15	0	086
805-015SRMSRP = 65.12	1-1/2	10	0	086
805-020SRMSRP = 68.44	2	10	0	086

Tee - Street
Spigot x Socket x Socket

844-005MSRP = 25.62	1/2	25	200	080
844-007MSRP = 26.87	3/4	15	120	080
844-010MSRP = 33.60	1	15	0	080
844-012MSRP = 92.35	1-1/4	10	0	080
844-015MSRP = 92.35	1-1/2	10	0	080
844-020MSRP = 115.39	2	10	0	080

90� Ells

90� Ell
Socket x Socket

806-002MSRP = 7.24	1/4	50	300	080
806-003MSRP = 7.24	3/8	25	150	080
806-005MSRP = 7.24	1/2	20	240	080
806-007MSRP = 9.28	3/4	20	160	080
806-010MSRP = 14.97	1	25	0	080
806-012MSRP = 20.04	1-1/4	10	0	080
806-015MSRP = 21.45	1-1/2	25	0	080
806-020MSRP = 25.92	2	25	0	080
806-025MSRP = 60.67	2-1/2	5	0	080
806-030MSRP = 68.21	3	6	0	080
806-040MSRP = 103.73	4	5	0	080
806-045FMSRP = 476.92	4-1/2	1	2	083
806-050MSRP = 265.93	5	4	0	080
806-050FMSRP = 532.51	5	1	4	083
806-060MSRP = 295.17	6	4	0	080
806-080MSRP = 813.58	8	2	0	080
806-080FMSRP = 817.41	8	1	2	083
806-100MSRP = 3641.01	10	1	0	081
806-100FMSRP = 1453.06	10	1	0	083
806-120MSRP = 4746.33	12	1	0	081
806-120FMSRP = 2375.08	12	1	0	083

Page 7

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

90� Ells

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

90� Ell (continued)
Socket x Socket

806-140MSRP = 5321.67	14	1	082
806-140FMSRP = 3029.69	14	1	083
806-160FMSRP = 3767.98	16	1	083
806-180FMSRP = 5384.95	18	1	083
806-200FMSRP = 6430.77	20	1	083
806-240FMSRP = 9875.25	24	1	083
806-3381MSRP = 167.20	3X2	5	080
806-4221MSRP = 249.76	4X3	5	080

¹ Sized with Bushing

90� Ell Sweep
Socket x Socket

806-005SMSRP = 18.13	1/2	25	150	080
806-007SMSRP = 23.45	3/4	25	100	080
806-010SMSRP = 37.80	1	20	0	080
806-012SMSRP = 50.03	1-1/4	25	0	080
806-015SMSRP = 53.73	1-1/2	20	0	080
806-020SMSRP = 65.12	2	25	0	080

90� Ell - Long Sweep
Socket x Socket

806-005LSFMSRP = 62.84	1/2	25	200	083
806-007LSFMSRP = 70.54	3/4	25	0	083
806-010LSFMSRP = 78.86	1	25	0	083
806-012LSFMSRP = 133.35	1-1/4	25	0	083
806-015LSFMSRP = 135.05	1-1/2	1	25	083
806-020LSFMSRP = 145.99	2	1	10	083
806-025LSFMSRP = 250.69	2-1/2	1	7	083
806-030LSFMSRP = 273.48	3	1	5	083
806-040LSFMSRP = 306.67	4	1	4	083
806-060LSFMSRP = 469.76	6	1	2	083
806-080LSFMSRP = 984.48	8	1	0	083
806-100LSFMSRP = 1675.08	10	1	0	083

Not Listed for Electrical Conduit Use

90� Ell
Socket x Fipt

807-002MSRP = 28.59	1/4	25	450	080
807-003MSRP = 28.59	3/8	25	150	080
807-005MSRP = 28.59	1/2	20	240	080
807-007MSRP = 33.64	3/4	20	240	080
807-010MSRP = 36.40	1	20	0	080
807-012MSRP = 41.94	1-1/4	10	40	080
807-015MSRP = 50.06	1-1/2	10	0	080
807-020MSRP = 64.80	2	10	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

90� Ell (continued)
Socket x Fipt

807-030MSRP = 154.82	3	5	080
807-040MSRP = 291.98	4	5	080
807-0601MSRP = 677.46	6	3	080

¹ Thread outlet sized with Female Adapter

90� Ell - Reducing
Socket x Fipt

807-101MSRP = 17.34	3/4X1/2	10	60	080
807-1301MSRP = 27.66	1X1/2	10	80	080
807-1311MSRP = 27.66	1X3/4	10	60	080

¹ Sized with Bushing

90� Ell - Special Reinforced
Socket x SR Fipt - Stainless Steel Collar

807-005SRMSRP = 16.99	1/2	20	240	086
807-007SRMSRP = 20.19	3/4	75	0	086
807-010SRMSRP = 20.41	1	50	0	086
807-012SRMSRP = 27.46	1-1/4	25	0	086
807-015SRMSRP = 33.91	1-1/2	10	0	086
807-020SRMSRP = 38.87	2	10	0	086
807-030SRMSRP = 98.76	3	5	0	086
807-040SRMSRP = 174.48	4	5	0	086

90� Ell - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar

807-101SRMSRP = 20.13	3/4X1/2	50	0	086
807-130SRMSRP = 22.61	1X1/2	50	0	086

90� Ell - Brass Transition
Socket x Fipt With Brass Thread Insert

807-005BRMSRP = 63.62	1/2	20	240	086
807-007BRMSRP = 112.62	3/4	20	160	086

Not intended to convey or dispense water for human consumption through drinking or cooking

90� Ell - Brass Transition Reducing
Socket x Fipt With Brass Thread Insert

807-101BRMSRP = 79.37

3/4X1/2

120

086

Not intended to convey or dispense water for human consumption through drinking or cooking

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 8

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

90� Ells

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

90� Ell
Fipt x Fipt

808-002MSRP = 18.02	1/4	25	450	080
808-003MSRP = 18.02	3/8	25	150	080
808-005MSRP = 16.82	1/2	20	120	080
808-007MSRP = 20.98	3/4	20	240	080
808-010MSRP = 26.36	1	15	120	080
808-012MSRP = 28.41	1-1/4	10	40	080
808-015MSRP = 40.29	1-1/2	10	0	080
808-020MSRP = 45.39	2	10	0	080
808-025MSRP = 176.78	2-1/2	5	0	080
808-030MSRP = 285.09	3	5	0	080
808-040MSRP = 501.61	4	5	0	080

90� Ell - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar

808-003SRMSRP = 9.93	3/8	25	150	086
808-005SRMSRP = 9.93	1/2	20	120	086
808-007SRMSRP = 12.48	3/4	20	120	086
808-010SRMSRP = 14.55	1	50	0	086
808-012SRMSRP = 15.51	1-1/4	25	0	086
808-015SRMSRP = 24.20	1-1/2	10	0	086
808-020SRMSRP = 27.24	2	10	0	086

90� Street Ell
Spigot x Socket

809-005MSRP = 9.13	1/2	50	200	080
809-007MSRP = 11.62	3/4	50	0	080
809-010MSRP = 18.74	1	50	0	080
809-012MSRP = 25.07	1-1/4	25	0	080
809-015MSRP = 26.87	1-1/2	10	0	080
809-020MSRP = 32.44	2	25	0	080
809-0251MSRP = 76.87	2-1/2	5	0	080
809-030MSRP = 91.01	3	5	0	080
809-040MSRP = 138.29	4	4	0	080
809-0601MSRP = 393.57	6	1	0	080
809-0801MSRP = 1084.77	8	2	0	080
809-1001MSRP = 4853.35	10	1	0	081
809-100FMSRP = 1937.48	10	1	0	083
809-1201MSRP = 6326.49	12	1	0	081
809-120FMSRP = 3166.80	12	1	0	083
809-1401MSRP = 7171.07	14	1	0	082
809-140FMSRP = 3870.24	14	1	0	083
809-160FMSRP = 4186.69	16	1	0	083
809-180FMSRP = 5896.29	18	1	0	083
809-200FMSRP = 10071.87	20	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

90� Street Ell (continued)
Spigot x Socket

809-240FMSRP = 15650.15

083

1 = Assembled with Molded Components

90� Street Ell
Mipt x Fipt

812-002MSRP = 38.80	1/4	50	300	080
812-005MSRP = 32.20	1/2	25	150	080
812-007MSRP = 36.57	3/4	25	150	080
812-010MSRP = 49.73	1	50	0	080
812-0121MSRP = 57.14	1-1/4	10	0	080
812-0151MSRP = 93.60	1-1/2	10	0	080

¹ Sized with Adapter

Non 90� Ells

11-1/4� Ell
Socket x Socket

811-005FMSRP = 58.83	1/2	1	52	083
811-007FMSRP = 59.24	3/4	1	20	083
811-010FMSRP = 64.80	1	1	50	083
811-012FMSRP = 70.20	1-1/4	1	26	083
811-015MSRP = 58.67	1-1/2	25	0	080
811-020MSRP = 71.93	2	10	0	080
811-025FMSRP = 86.01	2-1/2	1	25	083
811-030MSRP = 184.41	3	10	0	080
811-040MSRP = 331.41	4	4	0	080
811-045FMSRP = 187.38	4-1/2	1	18	083
811-050FMSRP = 224.74	5	1	4	083
811-060FMSRP = 229.99	6	1	10	083
811-080FMSRP = 376.46	8	1	4	083
811-100FMSRP = 667.20	10	1	2	083
811-120FMSRP = 975.16	12	1	2	083
811-140FMSRP = 1492.87	14	1	0	083
811-160FMSRP = 1995.58	16	1	0	083
811-180FMSRP = 2576.15	18	1	0	083
811-200FMSRP = 4444.44	20	1	0	083
811-240FMSRP = 5302.62	24	1	0	083

30� Ell
Socket x Socket

815-005FMSRP = 58.83	1/2	1	25	083
815-007FMSRP = 59.24	3/4	1	25	083
815-010FMSRP = 64.80	1	1	30	083
815-012FMSRP = 70.20	1-1/4	1	15	083
815-015FMSRP = 71.17	1-1/2	1	25	083
815-020FMSRP = 77.61	2	1	25	083
815-025FMSRP = 86.01	2-1/2	1	18	083

Page 9

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Non 90� Ells

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

30� Ell (continued)
Socket x Socket

815-030FMSRP = 93.81	3	1	20	083
815-040FMSRP = 122.99	4	1	6	083
815-045FMSRP = 187.38	4-1/2	1	18	083
815-050FMSRP = 224.74	5	1	4	083
815-060MSRP = 417.24	6	5	0	080
815-080FMSRP = 376.46	8	1	3	083
815-100FMSRP = 667.20	10	1	2	083
815-120FMSRP = 975.16	12	1	2	083
815-140FMSRP = 1492.87	14	1	0	083
815-160FMSRP = 1995.58	16	1	0	083
815-180FMSRP = 3065.61	18	1	0	083
815-200FMSRP = 4444.44	20	1	0	083
815-240FMSRP = 5302.62	24	1	0	083

22-1/2� Ell
Socket x Socket

816-005MSRP = 16.15	1/2	20	240	080
816-007MSRP = 24.62	3/4	20	240	080
816-010MSRP = 36.91	1	20	160	080
816-010FMSRP = 35.60	1	1	25	083
816-015FMSRP = 62.07	1-1/2	1	25	083
816-012MSRP = 46.98	1-1/4	20	0	080
816-015MSRP = 55.55	1-1/2	20	0	080
816-020MSRP = 71.93	2	20	0	080
816-025MSRP = 147.82	2-1/2	5	0	080
816-025FMSRP = 86.01	2-1/2	1	18	083
816-030MSRP = 184.41	3	5	0	080
816-040MSRP = 331.41	4	4	0	080
816-045FMSRP = 187.38	4-1/2	1	18	083
816-050FMSRP = 224.74	5	1	8	083
816-060MSRP = 417.24	6	4	0	080
816-060FMSRP = 229.99	6	1	8	083
816-080MSRP = 904.84	8	4	0	080
816-080FMSRP = 376.46	8	1	4	083
816-100FMSRP = 667.20	10	1	2	083
816-120FMSRP = 975.16	12	1	2	083
816-140FMSRP = 1492.87	14	1	0	083
816-160FMSRP = 1995.58	16	1	0	083
816-180FMSRP = 2576.15	18	1	0	083
816-200FMSRP = 4444.44	20	1	0	083
816-240FMSRP = 5302.62	24	1	0	083

45� Ell
Socket x Socket

817-002MSRP = 26.11	1/4	25	450	080
817-003MSRP = 26.11	3/8	50	300	080
817-005MSRP = 13.66	1/2	20	240	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

45� Ell (continued)
Socket x Socket

817-007MSRP = 20.92	3/4	20	240	080
817-010MSRP = 31.34	1	15	120	080
817-012MSRP = 39.92	1-1/4	10	80	080
817-015MSRP = 47.20	1-1/2	10	0	080
817-020MSRP = 61.20	2	10	0	080
817-025MSRP = 128.51	2-1/2	5	0	080
817-030MSRP = 156.44	3	5	0	080
817-040MSRP = 281.65	4	5	0	080
817-045FMSRP = 195.13	4-1/2	1	2	083
817-050MSRP = 336.98	5	4	0	080
817-050FMSRP = 266.27	5	1	4	083
817-060MSRP = 354.71	6	4	0	080
817-080MSRP = 769.05	8	2	0	080
817-100MSRP = 2421.26	10	1	0	081
817-100FMSRP = 1021.85	10	1	2	083
817-120MSRP = 3123.26	12	1	0	081
817-120FMSRP = 1437.60	12	1	0	083
817-140MSRP = 3667.20	14	1	0	082
817-140FMSRP = 2343.24	14	1	0	083
817-160FMSRP = 2868.69	16	1	0	083
817-180FMSRP = 3491.65	18	1	0	083
817-200FMSRP = 4795.98	20	1	0	083
817-240FMSRP = 5940.59	24	1	0	083

15� Ell
Socket x Socket

818-005FMSRP = 58.83	1/2	1	25	083
818-007FMSRP = 59.24	3/4	1	23	083
818-010FMSRP = 64.80	1	1	20	083
818-015FMSRP = 71.17	1-1/2	1	25	083
818-020FMSRP = 77.61	2	1	25	083
818-025FMSRP = 253.36	2-1/2	1	18	083
818-030FMSRP = 93.81	3	1	35	083
818-040FMSRP = 122.99	4	1	20	083
818-045FMSRP = 187.38	4-1/2	1	18	083
818-050FMSRP = 224.74	5	1	4	083
818-060FMSRP = 229.99	6	1	8	083
818-080FMSRP = 376.46	8	1	4	083
818-100FMSRP = 667.20	10	1	2	083
818-120FMSRP = 975.16	12	1	2	083
818-140FMSRP = 1492.87	14	1	0	083
818-160FMSRP = 1995.58	16	1	0	083
818-180FMSRP = 2576.15	18	1	0	083
818-200FMSRP = 4444.44	20	1	0	083
818-240FMSRP = 5302.62	24	1	0	083

45� Ell
Fipt x Fipt

819-002MSRP = 29.64

1/4

450

080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 10

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Non 90� Ells

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

45� Ell (continued)
Fipt x Fipt

819-003MSRP = 29.64	3/8	25	150	080
819-005MSRP = 27.03	1/2	25	150	080
819-007MSRP = 29.03	3/4	10	60	080
819-010MSRP = 36.43	1	10	60	080
819-012MSRP = 55.56	1-1/4	10	80	080
819-015MSRP = 69.85	1-1/2	10	0	080
819-020MSRP = 103.57	2	10	0	080
819-025MSRP = 204.92	2-1/2	5	0	080
819-030MSRP = 329.61	3	5	0	080
819-040MSRP = 472.95	4	5	0	080

45� Ell - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar

819-005SRMSRP = 15.60	1/2	25	150	086
819-007SRMSRP = 17.07	3/4	25	300	086
819-010SRMSRP = 28.23	1	10	60	086

60� Ell
Socket x Socket

824-005FMSRP = 163.28	1/2	1	7	083
824-007FMSRP = 192.78	3/4	1	25	083
824-010FMSRP = 209.75	1	1	25	083
824-012FMSRP = 213.86	1-1/4	1	16	083
824-015FMSRP = 228.44	1-1/2	1	16	083
824-020FMSRP = 289.80	2	1	16	083
824-025FMSRP = 341.17	2-1/2	1	10	083
824-030FMSRP = 341.82	3	1	4	083
824-040FMSRP = 439.19	4	1	4	083
824-060FMSRP = 784.40	6	1	2	083
824-080FMSRP = 950.69	8	1	2	083
824-100FMSRP = 1624.33	10	1	2	083
824-120FMSRP = 2121.60	12	1	0	083
824-140FMSRP = 2641.85	14	1	0	083
824-160FMSRP = 2985.01	16	1	0	083
824-180FMSRP = 5286.20	18	1	0	083
824-200FMSRP = 5832.13	20	1	0	083
824-240FMSRP = 9725.34	24	1	0	083

45� Street Ell
Spigot x Socket

827-005MSRP = 13.66	1/2	50	400	080
827-007MSRP = 20.92	3/4	50	0	080
827-010MSRP = 31.34	1	50	0	080
827-012MSRP = 39.92	1-1/4	25	0	080
827-015MSRP = 47.20	1-1/2	25	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

45� Street Ell (continued)
Spigot x Socket

827-020MSRP = 61.20	2	10	0	080
827-0251MSRP = 80.71	2-1/2	12	0	080
827-030MSRP = 156.44	3	10	0	080
827-040MSRP = 281.65	4	5	0	080
827-050FMSRP = 340.76	5	1	2	083
827-060MSRP = 417.24	6	4	0	080
827-080MSRP = 904.84	8	2	0	080
827-1001MSRP = 2848.64	10	1	0	081
827-1201MSRP = 3674.44	12	1	0	081
827-140FMSRP = 2162.76	14	1	0	083
827-160FMSRP = 3469.35	16	1	0	083
827-180FMSRP = 3878.38	18	1	0	083
827-200FMSRP = 5102.27	20	1	0	083
827-240FMSRP = 8113.02	24	1	0	083

1 = Assembled with Molded Components

22-1/2� Street Ell
Spigot x Socket

842-005MSRP = 16.75	1/2	50	400	080
842-007MSRP = 25.78	3/4	50	0	080
842-010MSRP = 40.48	1	50	0	080
842-012MSRP = 50.42	1-1/4	20	0	080
842-015MSRP = 57.14	1-1/2	25	0	080
842-020MSRP = 71.93	2	20	0	080
842-025MSRP = 187.82	2-1/2	5	0	080
842-030MSRP = 206.19	3	5	0	080
842-040MSRP = 362.59	4	4	0	080
842-040FMSRP = 231.01	4	1	5	084
842-060MSRP = 515.35	6	6	0	080
842-060FMSRP = 289.80	6	1	6	083
842-080MSRP = 1114.19	8	1	2	080
842-080FMSRP = 382.46	8	1	4	083
842-100FMSRP = 781.65	10	1	0	083
842-120FMSRP = 1018.49	12	1	2	084

Crosses

Cross
Socket x Socket x Socket x Socket

820-002MSRP = 101.08	1/4	25	150	080
820-005MSRP = 101.08	1/2	50	0	080
820-007MSRP = 106.35	3/4	50	0	080
820-010MSRP = 124.54	1	50	0	080
820-012MSRP = 149.43	1-1/4	25	0	080
820-015MSRP = 161.07	1-1/2	25	0	080
820-020MSRP = 199.46	2	10	0	080
820-025MSRP = 271.96	2-1/2	10	0	080
820-030MSRP = 339.19	3	5	0	080
820-040MSRP = 590.17	4	3	0	080

Page 11

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Crosses

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Cross (continued)
Socket x Socket x Socket x Socket

820-060FMSRP = 1418.15	6	1	083
820-080FMSRP = 2073.62	8	1	083
820-100FMSRP = 3344.56	10	1	083
820-120FMSRP = 4709.92	12	1	083
820-140FMSRP = 7569.64	14	1	083
820-160FMSRP = 8578.77	16	1	083
820-180FMSRP = 8998.31	18	1	083
820-200FMSRP = 13102.38	20	1	083
820-240FMSRP = 19688.99	24	1	083

Cross - Reducing
Socket x Socket x Socket x Socket

820-1011MSRP = 117.15	3/4X1/2	50	0	080
820-1301MSRP = 151.78	1X1/2	25	0	080
820-131MSRP = 151.78	1X3/4	20	0	080
820-1661MSRP = 145.78	1-1/4X1/2	25	0	080
820-167MSRP = 134.52	1-1/4X3/4	25	0	080
820-1681MSRP = 191.68	1-1/4X1	25	0	080
820-2091MSRP = 217.40	1-1/2X1/2	20	0	080
820-210MSRP = 217.40	1-1/2X3/4	15	0	080
820-2111MSRP = 217.40	1-1/2X1	25	0	080
820-2121MSRP = 217.40	1-1/2X1-1/4	25	0	080
820-2471MSRP = 278.87	2X1/2	10	0	080
820-2481MSRP = 278.87	2X3/4	10	0	080
820-2491MSRP = 278.87	2X1	10	0	080
820-2501MSRP = 278.87	2X1-1/4	10	0	080
820-2511MSRP = 278.87	2X1-1/2	10	0	080
820-289MSRP = 278.87	2-1/2X1	15	0	080
820-2901MSRP = 408.54	2-1/2X1-1/4	10	0	080
820-2911MSRP = 408.54	2-1/2X1-1/2	10	0	080
820-2921MSRP = 408.54	2-1/2X2	4	0	080
820-3351MSRP = 554.00	3X1	4	0	080
820-3361MSRP = 554.00	3X1-1/4	4	0	080
820-3371MSRP = 554.00	3X1-1/2	4	0	080
820-3381MSRP = 554.00	3X2	4	0	080
820-3391MSRP = 554.00	3X2-1/2	4	0	080
820-4201MSRP = 890.08	4X2	3	0	080
820-420FMSRP = 869.25	4X2	1	4	083
820-4221MSRP = 890.08	4X3	3	0	080
820-527FMSRP = 1031.43	6X1-1/2	1	2	083
820-528FMSRP = 1100.59	6X2	1	4	083
820-530FMSRP = 1157.07	6X3	1	2	083
820-532FMSRP = 1379.14	6X4	1	2	083
820-533FMSRP = 1635.09	6X5	1	2	083
820-578FMSRP = 1420.20	8X2	1	2	083
820-580FMSRP = 1495.04	8X3	1	0	083
820-582FMSRP = 1544.06	8X4	1	0	083
820-585FMSRP = 1668.56	8X6	1	0	083
820-621FMSRP = 1890.56	10X2	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Cross - Reducing (continued)
Socket x Socket x Socket x Socket

820-622FMSRP = 1943.52	10X2-1/2	1	083
820-623FMSRP = 2049.92	10X3	1	083
820-624FMSRP = 2127.83	10X4	1	083
820-626FMSRP = 2226.77	10X6	1	083
820-628FMSRP = 2863.72	10X8	1	083
820-661FMSRP = 2115.18	12X2	1	083
820-663FMSRP = 2278.84	12X3	1	083
820-664FMSRP = 2425.34	12X4	1	083
820-666FMSRP = 2816.44	12X6	1	083
820-668FMSRP = 3364.41	12X8	1	083
820-670FMSRP = 2288.19	12X10	1	083
820-691FMSRP = 3035.06	14X2	1	083
820-693FMSRP = 3266.35	14X3	1	083
820-694FMSRP = 3586.35	14X4	1	083
820-696FMSRP = 3961.18	14X6	1	083
820-698FMSRP = 4506.08	14X8	1	083
820-700FMSRP = 5206.33	14X10	1	083
820-702FMSRP = 5888.81	14X12	1	083
820-751FMSRP = 3796.95	16X2	1	083
820-753FMSRP = 4089.02	16X3	1	083
820-754FMSRP = 4536.08	16X4	1	083
820-756FMSRP = 4905.91	16X6	1	083
820-758FMSRP = 5487.20	16X8	1	083
820-760FMSRP = 5979.40	16X10	1	083
820-762FMSRP = 6715.89	16X12	1	083
820-764FMSRP = 8410.65	16X14	1	083
820-784FMSRP = 6403.12	18X4	1	083
820-786FMSRP = 6683.15	18X6	1	083
820-788FMSRP = 7172.24	18X8	1	083
820-790FMSRP = 7661.02	18X10	1	083
820-792FMSRP = 8022.23	18X12	1	083
820-794FMSRP = 8499.87	18X14	1	083
820-796FMSRP = 8856.81	18X16	1	083
820-814FMSRP = 8028.94	20X4	1	083
820-816FMSRP = 9248.20	20X6	1	083
820-818FMSRP = 9352.08	20X8	1	083
820-820FMSRP = 9998.11	20X10	1	083
820-822FMSRP = 10720.61	20X12	1	083
820-824FMSRP = 11970.57	20X14	1	083
820-826FMSRP = 12203.99	20X16	1	083
820-828FMSRP = 12863.22	20X18	1	083
820-904FMSRP = 9585.39	24X4	1	083
820-906FMSRP = 10188.55	24X6	1	083
820-908FMSRP = 10586.42	24X8	1	083
820-910FMSRP = 10737.65	24X10	1	083
820-912FMSRP = 11228.15	24X12	1	083
820-914FMSRP = 13359.98	24X14	1	083
820-916FMSRP = 14267.05	24X16	1	083
820-918FMSRP = 16370.06	24X18	1	083
820-920FMSRP = 19573.89	24X20	1	083

¹ Sized with Bushing

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 12

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Couplings

Part Number

Size

Gasket to Gasket - L1

Std Pk

Mstr
Ctn

Prod
Code

Repair Coupling- Fabricated
Gasket x Gasket

828-020FMSRP = 180.73	2	6	1	15	083
828-030FMSRP = 230.23	3	11- 3/4	1	10	083
828-040FMSRP = 286.93	4	15	1	4	083
828-060FMSRP = 332.39	6	18-1/4	1	2	083
828-080FMSRP = 437.02	8	19	1	2	083
828-100FMSRP = 782.46	10	21-1/4	1	0	083
828-120FMSRP = 996.73	12	21-3/8	1	0	083
828-140FMSRP = 2284.87	14	21	1	0	083
828-160FMSRP = 2726.57	16	22-1/4	1	0	083
828-180FMSRP = 4705.45	18	22-5/8	1	0	083
828-200FMSRP = 5081.93	20	23-1/2	1	0	083
828-240FMSRP = 6974.49	24	23-1/2	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - No Stop
Socket x Socket - No Pipe Stop

829-007NSMSRP = 53.46	3/4	25	080
829-010NSMSRP = 56.74	1	25	080
829-012NSMSRP = 86.56	1-1/4	10	080
829-015NSMSRP = 90.19	1-1/2	10	080
829-020NSMSRP = 96.80	2	20	080
829-025NSMSRP = 238.25	2-1/2	10	080
829-030NSMSRP = 273.68	3	6	080
829-040NSMSRP = 342.71	4	5	080
829-050NSMSRP = 239.61	5	5	080
829-060NSMSRP = 404.07	6	4	080
829-080NSMSRP = 514.71	8	4	080
829-100NSMSRP = 1165.25	10	1	081
829-120NSMSRP = 1431.65	12	1	081

Coupling
Socket x Socket

829-002MSRP = 21.06	1/4	25	450	080
829-003MSRP = 21.06	3/8	25	150	080
829-005MSRP = 13.15	1/2	25	150	080
829-007MSRP = 17.80	3/4	25	300	080
829-010MSRP = 18.33	1	25	200	080
829-012MSRP = 27.88	1-1/4	10	60	080
829-015MSRP = 30.07	1-1/2	10	80	080
829-020MSRP = 32.28	2	20	0	080
829-025MSRP = 79.45	2-1/2	10	0	080
829-030MSRP = 91.22	3	5	0	080
829-040MSRP = 114.23	4	5	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling (continued)
Socket x Socket

829-050MSRP = 226.53	5	5	0	080
829-050FMSRP = 141.36	5	1	5	083
829-060MSRP = 245.82	6	4	0	080
829-080MSRP = 334.55	8	4	0	080
829-100MSRP = 1148.22	10	1	0	081
829-100FMSRP = 386.69	10	1	0	083
829-120MSRP = 1323.33	12	1	0	081
829-120FMSRP = 445.75	12	1	0	083
829-140MSRP = 1683.68	14	1	0	082
829-140FMSRP = 891.31	14	1	0	083
829-160FMSRP = 1059.68	16	1	0	083
829-180FMSRP = 1316.00	18	1	0	083
829-200FMSRP = 1736.47	20	1	0	083
829-240FMSRP = 2730.15	24	1	0	083

Coupling - Reducer
Socket x Socket

829-101MSRP = 16.13	3/4X1/2	50	400	080
829-130MSRP = 22.51	1X1/2	25	200	080
829-131MSRP = 23.45	1X3/4	25	200	080
829-166MSRP = 47.64	1-1/4X1/2	25	0	080
829-167MSRP = 47.64	1-1/4X3/4	25	0	080
829-168MSRP = 47.64	1-1/4X1	25	0	080
829-209MSRP = 49.88	1-1/2X1/2	25	0	080
829-210MSRP = 49.88	1-1/2X3/4	25	0	080
829-211MSRP = 49.88	1-1/2X1	25	0	080
829-212MSRP = 49.88	1-1/2X1-1/4	25	0	080
829-247MSRP = 56.28	2X1/2	25	0	080
829-248MSRP = 56.28	2X3/4	10	80	080
829-249MSRP = 56.28	2X1	25	0	080
829-250MSRP = 56.28	2X1-1/4	10	40	080
829-251MSRP = 56.28	2X1-1/2	10	40	080
829-2901MSRP = 106.32	2-1/2X1-1/4	10	0	080
829-291MSRP = 75.05	2-1/2X1-1/2	10	0	080
829-292MSRP = 75.05	2-1/2X2	10	0	080
829-3351MSRP = 171.61	3X1	8	0	080
829-3361MSRP = 171.61	3X1-1/4	6	0	080
829-337MSRP = 171.61	3X1-1/2	8	0	080
829-338MSRP = 138.20	3X2	10	0	080
829-339MSRP = 197.06	3X2-1/2	10	0	080
829-339FMSRP = 240.35	3X2-1/2	1	9	083
829-4161MSRP = 285.41	4X3/4	6	0	080
829-4171MSRP = 285.41	4X1	6	0	080
829-4191MSRP = 285.41	4X1-1/2	6	0	080
829-420MSRP = 263.49	4X2	6	0	080
829-421MSRP = 263.49	4X2-1/2	4	0	080
829-422MSRP = 260.38	4X3	4	0	080
829-460FMSRP = 281.90	4-1/2X4	1	20	083
829-487F1MSRP = 255.89	5X2-1/2	1	6	083
829-488F1MSRP = 248.11	5X3	1	6	083
829-490FMSRP = 133.83	5X4	1	8	083

Page 13

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Couplings

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - Reducer (continued)
Socket x Socket

829-491FMSRP = 188.92	5X4-1/2	1	10	083
829-5281MSRP = 651.93	6X2	6	0	080
829-5291MSRP = 781.81	6X2-1/2	4	0	080
829-5301MSRP = 658.62	6X3	10	0	080
829-530F1MSRP = 245.79	6X3	1	10	083
829-532MSRP = 531.06	6X4	4	0	080
829-534FMSRP = 214.84	6X4-1/2	1	5	083
829-533FMSRP = 225.29	6X5	1	5	083
829-579F1,2MSRP = 850.41	8X2-1/2	1	6	083
829-580F1,2MSRP = 623.33	8X3	1	6	083
829-582MSRP = 1608.46	8X4	2	0	080
829-582F2MSRP = 581.67	8X4	1	6	083
829-583F2MSRP = 639.39	8X5	1	4	083
829-585MSRP = 1608.46	8X6	2	0	080
829-621F1,3MSRP = 1003.35	10X2	1	2	083
829-623F1,3MSRP = 939.34	10X3	1	2	083
829-624F3MSRP = 886.52	10X4	1	2	083
829-625F3MSRP = 806.08	10X5	1	4	083
829-626MSRP = 1883.05	10X6	1	0	081
829-626F2MSRP = 726.48	10X6	1	4	083
829-628MSRP = 1883.05	10X8	1	0	081
829-628FMSRP = 378.08	10X8	1	4	083
829-663F1,4MSRP = 1448.27	12X3	1	2	083
829-664F4MSRP = 1237.18	12X4	1	2	083
829-665F4MSRP = 1147.79	12X5	1	2	083
829-666F3MSRP = 1070.20	12X6	1	0	083
829-668MSRP = 2142.75	12X8	1	0	081
829-668F2MSRP = 828.64	12X8	1	0	083
829-670FMSRP = 559.78	12X10	1	0	083
829-691F1,4MSRP = 1319.38	14X2	1	0	083
829-694F4MSRP = 1425.38	14X4	1	0	083
829-696F3MSRP = 1522.57	14X6	1	0	083
829-698F2MSRP = 1393.25	14X8	1	0	083
829-700FMSRP = 1362.67	14X10	1	0	083
829-702FMSRP = 817.33	14X12	1	0	083
829-754F5MSRP = 2676.33	16X4	1	0	083
829-756F4MSRP = 2420.52	16X6	1	0	083
829-758F3MSRP = 2125.87	16X8	1	0	083
829-760F2MSRP = 1888.29	16X10	1	0	083
829-762FMSRP = 1591.66	16X12	1	0	083
829-764FMSRP = 1208.23	16X14	1	0	083
829-783F1,6MSRP = 5807.24	18X3	1	0	083
829-784F6MSRP = 5646.98	18X4	1	0	083
829-786F5MSRP = 5278.63	18X6	1	0	083
829-788F4MSRP = 4997.99	18X8	1	0	083
829-790F3MSRP = 4521.24	18X10	1	0	083
829-792F2MSRP = 3721.52	18X12	1	0	083
829-794F2MSRP = 2519.33	18X14	1	0	083
829-796FMSRP = 2150.82	18X16	1	0	083
829-814F7MSRP = 5590.57	20X4	1	0	083
829-816F6MSRP = 5147.36	20X6	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - Reducer (continued)
Socket x Socket

829-818F5MSRP = 4919.88	20X8	1	083
829-820F4MSRP = 4747.34	20X10	1	083
829-822F3MSRP = 4106.84	20X12	1	083
829-824F3MSRP = 4096.02	20X14	1	083
829-826F2MSRP = 3762.60	20X16	1	083
829-828FMSRP = 2594.60	20X18	1	083
829-904F8MSRP = 8942.62	24X4	1	083
829-906F7MSRP = 8806.46	24X6	1	083
829-908F6MSRP = 8615.62	24X8	1	083
829-910F5MSRP = 8407.80	24X10	1	083
829-912F4MSRP = 7648.57	24X12	1	083
829-914F4MSRP = 7054.80	24X14	1	083
829-916F3MSRP = 6429.46	24X16	1	083
829-918F2MSRP = 5872.85	24X18	1	083
829-920FMSRP = 5545.17	24X20	1	083

¹ Outlet Sized with Bushing

Coupling - Eccentric Reducer
Socket x Socket

829-101FEMSRP = 84.83	3/4X1/2	25	0	083
829-130FEMSRP = 59.49	1X1/2	16	0	083
829-131FEMSRP = 87.31	1X3/4	15	0	083
829-168FEMSRP = 69.18	1-1/4X1	1	12	083
829-209FE2MSRP = 109.59	1-1/2X1/2	1	25	083
829-210FE2MSRP = 113.43	1-1/2X3/4	1	25	083
829-211FEMSRP = 74.32	1-1/2X1	1	25	083
829-212FEMSRP = 71.88	1-1/2X1-1/4	1	20	083
829-249FEMSRP = 102.48	2X1	1	25	083
829-250FEMSRP = 95.22	2X1-1/4	1	25	083
829-251FEMSRP = 90.86	2X1-1/2	1	10	083
829-289FE2MSRP = 108.96	2-1/2X1	1	12	083
829-290FE2MSRP = 141.17	2-1/2X1-1/4	1	20	083
829-291FE2MSRP = 137.22	2-1/2X1-1/2	1	20	083
829-292FEMSRP = 105.98	2-1/2X2	1	10	083
829-335FE2MSRP = 139.04	3X1	1	20	083
829-336FE2MSRP = 133.89	3X1-1/4	1	10	083
829-337FE2MSRP = 128.65	3X1-1/2	1	10	083
829-338EMSRP = 138.20	3X2	15	0	080
829-338FEMSRP = 82.18	3X2	1	20	083

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 14

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Couplings

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - Eccentric Reducer (continued)
Socket x Socket

829-339FEMSRP = 266.83	3X2-1/2	1	10	083
829-417FE3MSRP = 337.94	4X1	1	18	083
829-418FE3MSRP = 331.93	4X1-1/4	1	10	083
829-419FE3MSRP = 321.38	4X1-1/2	1	12	083
829-420FE2MSRP = 224.39	4X2	1	10	083
829-421FE2MSRP = 187.13	4X2-1/2	1	6	083
829-422FEMSRP = 280.55	4X3	1	10	083
829-490FEMSRP = 225.80	5X4	1	8	083
829-528FE3MSRP = 397.71	6X2	1	6	083
829-529FE3MSRP = 362.98	6X2-1/2	1	6	083
829-530FE2MSRP = 350.33	6X3	1	6	083
829-532FEMSRP = 253.64	6X4	1	5	083
829-533FEMSRP = 233.91	6X5	1	5	083
829-575FE5MSRP = 811.29	8X1	1	0	083
829-577FE5MSRP = 904.84	8X1-1/2	1	0	083
829-578FE4MSRP = 922.57	8X2	1	4	083
829-580FE3MSRP = 537.07	8X3	1	2	083
829-582FE2MSRP = 438.72	8X4	1	2	083
829-583FE2MSRP = 437.77	8X5	1	2	083
829-585FEMSRP = 337.35	8X6	1	4	083
829-624FE3MSRP = 742.35	10X4	1	0	083
829-625FE3MSRP = 845.16	10X5	1	0	083
829-626FE2MSRP = 736.39	10X6	1	2	083
829-628FEMSRP = 582.15	10X8	1	2	083
829-664FE4MSRP = 1135.20	12X4	1	0	083
829-666FE3MSRP = 934.24	12X6	1	0	083
829-668FE2MSRP = 807.16	12X8	1	0	083
829-670FEMSRP = 515.92	12X10	1	2	083
829-696FE3MSRP = 1849.23	14X6	1	0	083
829-698FE2MSRP = 1520.72	14X8	1	0	083
829-700FEMSRP = 1261.26	14X10	1	0	083
829-702FEMSRP = 810.28	14X12	1	0	083
829-756FE4MSRP = 3416.53	16X6	1	0	083
829-758FE3MSRP = 3128.55	16X8	1	0	083
829-760FE2MSRP = 2275.94	16X10	1	0	083
829-762FE2MSRP = 2020.64	16X12	1	0	083
829-764FEMSRP = 1565.13	16X14	1	0	083
829-786FE5MSRP = 4716.21	18X6	1	0	083
829-788FE4MSRP = 4514.64	18X8	1	0	083
829-790FE3MSRP = 4218.83	18X10	1	0	083
829-792FE3MSRP = 3765.62	18X12	1	0	083
829-794FE2MSRP = 3104.54	18X14	1	0	083
829-796FEMSRP = 3029.28	18X16	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - Eccentric Reducer (continued)
Socket x Socket

Coupling
Fipt x Fipt

830-002MSRP = 15.77	1/4	25	450	080
830-003MSRP = 15.77	3/8	25	150	080
830-005MSRP = 14.69	1/2	25	150	080
830-007MSRP = 20.99	3/4	25	300	080
830-010MSRP = 22.55	1	15	90	080
830-012MSRP = 27.88	1-1/4	10	120	080
830-015MSRP = 62.00	1-1/2	10	80	080
830-020MSRP = 65.12	2	10	0	080
830-025MSRP = 155.44	2-1/2	5	0	080
830-030MSRP = 182.25	3	5	0	080
830-040MSRP = 315.61	4	5	0	080
830-060FMSRP = 397.78	6	1	8	083
830-080FMSRP = 584.94	8	1	6	083
830-100FMSRP = 795.57	10	1	2	083

Coupling - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar

830-005SRMSRP = 8.12	1/2	25	150	086
830-007SRMSRP = 11.55	3/4	25	150	086
830-010SRMSRP = 12.34	1	25	200	086
830-012SRMSRP = 15.40	1-1/4	10	120	086
830-015SRMSRP = 34.03	1-1/2	10	80	086
830-020SRMSRP = 35.67	2	10	0	086
830-030SRMSRP = 167.93	3	10	0	086

Coupling - Reducer
Fipt x Fipt

830-0721MSRP = 19.82	1/2X1/4	50	300	080
830-0731MSRP = 19.82	1/2X3/8	25	150	080
830-101MSRP = 17.49	3/4X1/2	50	200	080
830-2111MSRP = 85.35	1-1/2X1	10	40	080

¹ Sized with Bushing

Page 15

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Couplings

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Coupling - Special Reinforced Reducer
SR Fipt x SR Fipt - Stainless Steel Collar

830-101SRMSRP = 10.49	3/4X1/2	50	200	086
830-130SRMSRP = 15.58	1X1/2	50	0	086
830-131SRMSRP = 15.58	1X3/4	25	200	086
830-168SRMSRP = 33.45	1-1/4X1	25	0	086
830-210SRMSRP = 49.72	1-1/2X3/4	25	0	086
830-211SRMSRP = 49.72	1-1/2X1	10	80	086
830-212SRMSRP = 49.72	1-1/2X1-1/4	10	80	086
830-249SRMSRP = 65.89	2X1	25	0	086
830-251SRMSRP = 65.89	2X1-1/2	10	0	086

Grooved Coupling Adapter
Groove x Socket

833-012MSRP = 36.52	1-1/4	10	60	080
833-015MSRP = 40.81	1-1/2	10	80	080
833-020MSRP = 47.51	2	10	80	080
833-025MSRP = 102.51	2-1/2	5	0	080
833-030MSRP = 122.20	3	5	0	080
833-040MSRP = 138.66	4	5	0	080
833-050FMSRP = 266.19	5	1	7	084
833-060MSRP = 299.43	6	5	0	080
833-080FMSRP = 343.36	8	1	4	084
833-100FMSRP = 421.64	10	1	0	084
833-120FMSRP = 569.60	12	1	0	084

Adapters

Female Adapter
Socket x Fipt

835-002MSRP = 22.24	1/4	25	450	080
835-003MSRP = 22.24	3/8	25	400	080
835-098MSRP = 10.64	3/4X1/4	25	150	080
835-005MSRP = 12.31	1/2	25	150	080
835-007MSRP = 18.33	3/4	25	150	080
835-010MSRP = 26.96	1	15	90	080
835-012MSRP = 43.69	1-1/4	10	120	080
835-015MSRP = 53.56	1-1/2	10	80	080
835-020MSRP = 93.46	2	10	0	080
835-025MSRP = 147.54	2-1/2	5	0	080
835-030MSRP = 166.07	3	5	0	080
835-040MSRP = 285.48	4	5	0	080
835-060MSRP = 338.00	6	6	0	080
835-060FMSRP = 443.87	6	1	8	083
835-080MSRP = 635.43	8	3	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Female Adapter (continued)
Socket x Fipt

835-080FMSRP = 524.64	8	1	6	083
835-100FMSRP = 575.08	10	1	2	083
835-120FMSRP = 725.80	12	1	0	083

Female Adapter - Brass Transition
Socket x Fipt With Brass Thread Insert

835-005BRMSRP = 54.92	1/2	25	150	086
835-007BRMSRP = 78.88	3/4	15	90	086
835-010BRMSRP = 135.91	1	15	90	086
835-012BRMSRP = 223.87	1-1/4	15	60	086
835-015BRMSRP = 294.09	1-1/2	10	40	086
835-020BRMSRP = 364.25	2	8	32	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Female Adapter - Brass Transition Reducing
Socket x Fipt With Brass Thread Insert

835-101BRMSRP = 81.55	3/4X1/2	50	0	086
835-131BRMSRP = 138.60	1X3/4	50	0	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Female Adapter - Special Reinforced
Socket x SR Fipt - Stainless Steel Collar

835-002SRMSRP = 12.28	1/4	25	450	086
835-003SRMSRP = 12.28	3/8	25	300	086
835-005SRMSRP = 6.82	1/2	25	150	086
835-007SRMSRP = 9.94	3/4	25	300	086
835-010SRMSRP = 14.76	1	25	200	086
835-012SRMSRP = 23.87	1-1/4	10	60	086
835-015SRMSRP = 29.39	1-1/2	10	80	086
835-020SRMSRP = 51.31	2	10	0	086
835-025SRMSRP = 80.94	2-1/2	5	0	086
835-030SRMSRP = 91.18	3	15	0	086
835-040SRMSRP = 156.71	4	5	0	086
835-060SRMSRP = 203.61	6	6	0	086

Female Adapter - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar

835-074SRMSRP = 9.94	1/2X3/4	50	400	086
835-098SRMSRP = 30.92	3/4X1/4	25	150	086
835-101SRMSRP = 9.94	3/4X1/2	50	400	086
835-102SRMSRP = 14.76	3/4X1	50	0	086
835-130SRMSRP = 14.76	1X1/2	50	0	086
835-131SRMSRP = 14.76	1X3/4	25	200	086

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 16

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Female Adapter - Stainless Steel Transition
Socket x Fipt With 316 Stainless Steel Thread Insert
NSF_� Certified Lead Free

835-005SSMSRP = 107.64	1/2	25	150	086
835-007SSMSRP = 154.69	3/4	15	90	086
835-010SSMSRP = 263.22	1	15	90	086
835-012SSMSRP = 439.55	1-1/4	25	0	086
835-015SSMSRP = 574.20	1-1/2	10	40	086
835-020SSMSRP = 736.61	2	8	32	086

Female Adapter - Encapsulated Special Reinforced
Socket x ESR Fipt

835-002ESRMSRP = 17.80	1/4	25	450	086
835-003ESRMSRP = 17.80	3/8	25	300	086
835-005ESRMSRP = 11.03	1/2	25	300	086
835-007ESRMSRP = 16.27	3/4	25	300	086
835-010ESRMSRP = 21.58	1	25	200	086
835-012ESRMSRP = 34.82	1-1/4	10	80	086
835-015ESRMSRP = 50.31	1-1/2	10	80	086
835-020ESRMSRP = 74.80	2	10	0	086

Male Adapter
Mipt x Socket

836-053MSRP = 15.34	3/8X1/2	50	900	080
836-005MSRP = 15.40	1/2	25	150	080
836-007MSRP = 16.97	3/4	25	300	080
836-102MSRP = 36.29	3/4X1	50	0	080
836-131MSRP = 36.29	1X3/4	50	400	080
836-010MSRP = 29.36	1	20	120	080
836-012MSRP = 34.32	1-1/4	10	120	080
836-015MSRP = 49.29	1-1/2	10	80	080
836-2131MSRP = 106.32	1-1/2X2	25	0	080
836-2511MSRP = 130.72	2X1-1/2	10	0	080
836-020MSRP = 71.28	2	10	80	080
836-025MSRP = 81.05	2-1/2	10	0	080
836-030MSRP = 89.93	3	5	0	080
836-040MSRP = 160.04	4	4	0	080
836-050FMSRP = 486.55	5	1	8	083
836-060MSRP = 355.51	6	5	0	080
836-080FMSRP = 383.29	8	1	2	083
836-100FMSRP = 458.76	10	1	2	083
836-120FMSRP = 681.76	12	1	0	083

¹ Sized With Bushing or Coupling

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Male Adapter - Internal Reinforced
R Mipt x Socket - Stainless Steel Sleeve
NSF_� Certified Lead Free

836-005RMSRP = 8.43	1/2	25	150	086
836-007RMSRP = 9.27	3/4	25	300	086
836-010RMSRP = 16.23	1	10	60	086
836-012RMSRP = 30.65	1-1/4	10	120	086
836-015RMSRP = 47.39	1-1/2	10	40	086
836-020RMSRP = 67.37	2	10	0	086

Male Adapter - PVC Lined Brass Transition
Brass Mipt x Socket
NSF_� Certified Lead Free

836-005BRMSRP = 60.45	1/2	40	160	086
836-007BRMSRP = 91.16	3/4	40	160	086
836-010BRMSRP = 148.23	1	10	60	086
836-012BRMSRP = 249.71	1-1/4	10	40	086
836-015BRMSRP = 331.36	1-1/2	10	40	086
836-020BRMSRP = 411.64	2	8	32	086

Male Spigot Adapter
Spigot x Mipt

861-005MSRP = 15.45	1/2	50	300	080
861-007MSRP = 22.82	3/4	25	150	080
861-010MSRP = 33.69	1	50	0	080
861-131MSRP = 34.75	1X3/4	50	200	080
861-012MSRP = 36.52	1-1/4	25	0	080
861-015MSRP = 40.81	1-1/2	25	0	080
861-020MSRP = 47.51	2	25	0	080

Female Spigot Adapter - Brass Transition
Spigot x Fipt With Brass Thread Insert

878-005BRMSRP = 46.20	1/2	25	150	086
878-007BRMSRP = 74.81	3/4	15	90	086
878-010BRMSRP = 146.97	1	15	90	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Female Spigot Adapter - Special Reinforced
Spigot x SR Fipt - Stainless Steel Collar

878-005SRMSRP = 8.98	1/2	50	600	086
878-007SRMSRP = 10.60	3/4	25	300	086
878-010SRMSRP = 16.27	1	50	0	086
878-012SRMSRP = 25.93	1-1/4	25	0	086

Page 17

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Female Spigot Adapter - Special Reinforced (continued)
Spigot x SR Fipt - Stainless Steel Collar

878-015SRMSRP = 31.09	1-1/2	25	086
878-020SRMSRP = 51.79	2	15	086
878-030SRMSRP = 95.20	3	5	086
878-040SRMSRP = 161.65	4	5	086

Female Spigot Adapter - Special Reinforced Reducing
Spigot x SR Fipt - Stainless Steel Collar

878-072SRMSRP = 24.97	1/2X1/4	25	450	086
878-098SRMSRP = 34.39	3/4X1/4	50	400	086
878-128SRMSRP = 35.48	1X1/4	50	400	086

Female Spigot Adapter - Encapsulated Special Reinforced, Spigot
Spigot x ESR Fipt

878-005ESRMSRP = 12.23	1/2	50	600	086
878-007ESRMSRP = 16.87	3/4	25	300	086
878-010ESRMSRP = 23.16	1	50	0	086
878-012ESRMSRP = 35.62	1-1/4	25	0	086
878-015ESRMSRP = 50.57	1-1/2	25	0	086
878-020ESRMSRP = 76.23	2	15	0	086

Female Spigot Adapter - Stainless Steel Transition
Spigot x Fipt With 316 Stainless Steel Thread Insert

878-005SSMSRP = 107.64	1/2	25	150	086
878-007SSMSRP = 144.52	3/4	15	90	086
878-010SSMSRP = 186.48	1	15	90	086
878-072SSMSRP = 107.64	1/2X1/4	25	150	086

Reducer Bushing

Reducer Bushing Flush Style
Spigot x Socket

837-052MSRP = 11.62	3/8X1/4	50	450	080
837-072MSRP = 11.62	1/2X1/4	50	300	080
837-073MSRP = 11.62	1/2X3/8	50	600	080
837-101MSRP = 4.23	3/4X1/2	50	600	080
837-1291MSRP = 24.21	1X3/8	50	200	080
837-130MSRP = 12.17	1X1/2	50	300	080
837-131MSRP = 12.17	1X3/4	50	400	080
837-166MSRP = 19.03	1-1/4X1/2	25	150	080
837-167MSRP = 19.03	1-1/4X3/4	25	300	080
837-168MSRP = 19.03	1-1/4X1	25	150	080
837-209MSRP = 25.92	1-1/2X1/2	25	200	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Reducer Bushing Flush Style (continued)
Spigot x Socket

837-210MSRP = 25.92	1-1/2X3/4	25	200	080
837-211MSRP = 25.92	1-1/2X1	25	200	080
837-212MSRP = 25.92	1-1/2X1-1/4	25	200	080
837-247MSRP = 36.97	2X1/2	10	120	080
837-248MSRP = 36.97	2X3/4	10	120	080
837-249MSRP = 36.97	2X1	10	120	080
837-250MSRP = 36.97	2X1-1/4	10	120	080
837-251MSRP = 36.97	2X1-1/2	10	120	080
837-2871MSRP = 85.88	2-1/2X1/2	10	40	080
837-2881MSRP = 85.88	2-1/2X3/4	10	40	080
837-289MSRP = 85.88	2-1/2X1	10	40	080
837-290MSRP = 64.21	2-1/2X1-1/4	10	80	080
837-291MSRP = 64.21	2-1/2X1-1/2	10	40	080
837-292MSRP = 64.21	2-1/2X2	15	0	080
837-333MSRP = 118.23	3X1/2	10	0	080
837-3341MSRP = 114.44	3X3/4	10	0	080
837-335MSRP = 101.87	3X1	10	0	080
837-336MSRP = 101.87	3X1-1/4	10	0	080
837-337MSRP = 101.87	3X1-1/2	10	0	080
837-338MSRP = 101.87	3X2	10	0	080
837-339MSRP = 101.87	3X2-1/2	15	0	080
837-4151MSRP = 181.06	4X1/2	6	0	080
837-4161MSRP = 181.06	4X3/4	6	0	080
837-4171MSRP = 181.06	4X1	6	0	080
837-4181MSRP = 181.06	4X1-1/4	6	0	080
837-419MSRP = 181.06	4X1-1/2	6	0	080
837-420MSRP = 141.04	4X2	6	0	080
837-421MSRP = 141.04	4X2-1/2	6	0	080
837-422MSRP = 141.04	4X3	6	0	080
837-4861MSRP = 158.75	5X2	3	0	080
837-4881MSRP = 209.05	5X3	5	0	080
837-490MSRP = 186.33	5X4	4	0	080
837-490FMSRP = 198.69	5X4	1	4	083
837-5241MSRP = 235.41	6X3/4	5	0	080
837-5251MSRP = 223.65	6X1	5	0	080
837-5261MSRP = 235.41	6X1-1/4	5	0	080
837-5271MSRP = 235.41	6X1-1/2	5	0	080
837-528MSRP = 196.11	6X2	5	0	080
837-529MSRP = 304.07	6X2-1/2	5	0	080
837-530MSRP = 196.11	6X3	5	0	080
837-532MSRP = 196.11	6X4	5	0	080
837-533FMSRP = 638.07	6X5	1	5	083
837-534MSRP = 196.11	6X5	5	0	080
837-5771MSRP = 725.57	8X1-1/2	4	0	080
837-5781MSRP = 686.92	8X2	4	0	080
837-5801MSRP = 686.92	8X3	4	0	080
837-582MSRP = 477.08	8X4	4	0	080
837-5831MSRP = 694.07	8X5	2	0	080
837-583FMSRP = 1129.28	8X5	1	6	083
837-585MSRP = 477.08	8X6	4	0	080
837-6211MSRP = 1328.32	10X2	2	0	081
837-6221MSRP = 1447.28	10X2-1/2	2	0	081
837-6231MSRP = 1328.32	10X3	2	0	081
837-6241MSRP = 1328.32	10X4	2	0	081

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 18

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Reducer Bushing

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Reducer Bushing Flush Style (continued)
Spigot x Socket

837-625FMSRP = 1730.14	10X5	1	4	083
837-626MSRP = 1120.75	10X6	3	0	081
837-628MSRP = 1120.75	10X8	3	0	081
837-628FMSRP = 433.44	10X8	6	0	083
837-6631MSRP = 1968.43	12X3	2	0	081
837-6641MSRP = 1968.43	12X4	2	0	081
837-6661MSRP = 1808.46	12X6	1	0	081
837-666F1MSRP = 1273.25	12X6	2	0	083
837-668MSRP = 1295.20	12X8	2	0	081
837-668F1MSRP = 1231.98	12X8	2	0	083
837-670MSRP = 1295.20	12X10	2	0	081
837-670FMSRP = 493.48	12X10	3	0	083
837-694FMSRP = 2806.95	14X4	1	3	083
837-696FMSRP = 2499.26	14X6	1	0	083
837-698FMSRP = 1790.69	14X8	1	0	083
837-700FMSRP = 1117.93	14X10	3	0	083
837-702FMSRP = 479.55	14X12	3	0	083
837-754FMSRP = 3206.64	16X4	1	0	083
837-756FMSRP = 2977.65	16X6	1	0	083
837-758FMSRP = 2344.33	16X8	1	0	083
837-760FMSRP = 1699.27	16X10	1	0	083
837-762FMSRP = 1002.91	16X12	1	0	083
837-764FMSRP = 979.69	16X14	2	0	083
837-786FMSRP = 5047.98	18X6	1	0	083
837-788FMSRP = 4625.02	18X8	1	0	083
837-790FMSRP = 3796.61	18X10	1	0	083
837-792FMSRP = 2419.34	18X12	1	0	083
837-794FMSRP = 2396.28	18X14	1	0	083
837-796FMSRP = 1106.72	18X16	1	0	083
837-816FMSRP = 7042.38	20X6	1	0	083
837-818FMSRP = 6513.17	20X8	1	0	083
837-820FMSRP = 6029.33	20X10	1	0	083
837-822FMSRP = 5346.20	20X12	1	0	083
837-824FMSRP = 4395.91	20X14	1	0	083
837-826FMSRP = 3449.15	20X16	1	0	083
837-828FMSRP = 1800.57	20X18	1	0	083
837-906FMSRP = 11063.09	24X6	1	0	083
837-908FMSRP = 10726.28	24X8	1	0	083
837-910FMSRP = 9421.87	24X10	1	0	083
837-912FMSRP = 8500.65	24X12	1	0	083
837-914FMSRP = 7961.58	24X14	1	0	083
837-916FMSRP = 7531.17	24X16	1	0	083
837-918FMSRP = 6527.86	24X18	1	0	083
837-920FMSRP = 5394.91	24X20	1	0	083

¹ Sized with Bushing

Reducer Bushing Flush Style
Spigot x Fipt

838-052MSRP = 11.62

3/8X1/4

450

080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Reducer Bushing Flush Style (continued)
Spigot x Fipt

838-071MSRP = 11.62	1/2X1/8	50	600	080
838-072MSRP = 11.62	1/2X1/4	50	350	080
838-073MSRP = 11.62	1/2X3/8	50	500	080
838-098MSRP = 7.65	3/4X1/4	50	300	080
838-099MSRP = 7.65	3/4X3/8	50	600	080
838-101MSRP = 7.65	3/4X1/2	50	300	080
838-127MSRP = 12.17	1X1/8	25	150	080
838-128MSRP = 13.29	1X1/4	50	200	080
838-129MSRP = 12.17	1X3/8	50	400	080
838-130MSRP = 12.17	1X1/2	50	300	080
838-131MSRP = 12.17	1X3/4	50	400	080
838-166MSRP = 24.63	1-1/4X1/2	25	300	080
838-167MSRP = 24.63	1-1/4X3/4	25	300	080
838-168MSRP = 24.63	1-1/4X1	25	300	080
838-206MSRP = 30.88	1-1/2X1/8	25	100	080
838-207MSRP = 29.36	1-1/2X1/4	25	200	080
838-209MSRP = 30.88	1-1/2X1/2	25	200	080
838-210MSRP = 30.88	1-1/2X3/4	25	200	080
838-211MSRP = 30.88	1-1/2X1	25	200	080
838-212MSRP = 30.88	1-1/2X1-1/4	25	200	080
838-247MSRP = 37.78	2X1/2	10	60	080
838-248MSRP = 37.78	2X3/4	10	60	080
838-249MSRP = 37.78	2X1	10	120	080
838-250MSRP = 37.78	2X1-1/4	10	120	080
838-251MSRP = 37.78	2X1-1/2	10	120	080
838-287MSRP = 79.98	2-1/2X1/2	10	0	080
838-288MSRP = 79.98	2-1/2X3/4	10	40	080
838-289MSRP = 79.98	2-1/2X1	10	40	080
838-290MSRP = 79.98	2-1/2X1-1/4	10	40	080
838-291MSRP = 79.98	2-1/2X1-1/2	10	0	080
838-292MSRP = 79.98	2-1/2X2	10	40	080
838-334MSRP = 148.11	3X3/4	10	0	080
838-335MSRP = 148.11	3X1	10	0	080
838-336MSRP = 148.11	3X1-1/4	10	0	080
838-337MSRP = 148.11	3X1-1/2	10	0	080
838-338MSRP = 148.11	3X2	10	0	080
838-339MSRP = 148.11	3X2-1/2	10	0	080
838-419MSRP = 286.24	4X1-1/2	6	0	080
838-420MSRP = 227.48	4X2	6	0	080
838-421MSRP = 227.48	4X2-1/2	6	0	080
838-422MSRP = 227.48	4X3	6	0	080
838-528MSRP = 262.06	6X2	5	0	080
838-530MSRP = 262.06	6X3	5	0	080
838-532MSRP = 262.06	6X4	5	0	080

Special Reinforced Reducer Bushing Flush Style
Spigot x SR Fipt - Stainless Steel Collar

838-128SRMSRP = 7.24	1X1/4	25	150	086
838-207SRMSRP = 18.52	1-1/2X1/4	25	200	086
838-166SRMSRP = 13.26	1-1/4X1/2	25	300	086
838-209SRMSRP = 18.52	1-1/2X1/2	10	60	086

Page 19

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Reducer Bushing

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Special Reinforced Reducer Bushing Flush Style (continued)
Spigot x SR Fipt - Stainless Steel Collar

838-210SRMSRP = 18.52	1-1/2X3/4	25	200	086
838-247SRMSRP = 22.67	2X1/2	10	80	086
838-248SRMSRP = 22.67	2X3/4	10	80	086
838-249SRMSRP = 22.67	2X1	10	120	086
838-334SRMSRP = 88.85	3X3/4	10	0	086
838-335SRMSRP = 88.85	3X1	10	0	086
838-336SRMSRP = 88.85	3X1-1/4	10	0	086
838-337SRMSRP = 88.85	3X1-1/2	10	0	086
838-528SRMSRP = 157.23	6X2	5	0	086
838-530SRMSRP = 141.57	6X3	5	0	086
838-532SRMSRP = 157.23	6X4	5	0	086

Reducer Bushing (T.T.) Flush Style
Mipt x Fipt

839-041MSRP = 26.49	1/4X1/8	25	500	080
839-052MSRP = 26.49	3/8X1/4	50	450	080
839-072MSRP = 26.49	1/2X1/4	50	300	080
839-073MSRP = 26.49	1/2X3/8	50	300	080
839-098MSRP = 19.75	3/4X1/4	50	300	080
839-099MSRP = 19.75	3/4X3/8	50	300	080
839-101MSRP = 16.25	3/4X1/2	50	300	080
839-128MSRP = 31.86	1X1/4	25	150	080
839-129MSRP = 25.49	1X3/8	50	600	080
839-130MSRP = 25.49	1X1/2	50	300	080
839-131MSRP = 25.49	1X3/4	50	700	080
839-166MSRP = 27.04	1-1/4X1/2	25	150	080
839-167MSRP = 27.04	1-1/4X3/4	25	150	080
839-168MSRP = 27.04	1-1/4X1	25	300	080
839-209MSRP = 32.04	1-1/2X1/2	25	150	080
839-210MSRP = 32.04	1-1/2X3/4	25	300	080
839-211MSRP = 32.04	1-1/2X1	25	300	080
839-212MSRP = 32.04	1-1/2X1-1/4	25	300	080
839-247MSRP = 46.95	2X1/2	10	60	080
839-248MSRP = 46.95	2X3/4	10	60	080
839-249MSRP = 46.95	2X1	10	60	080
839-250MSRP = 46.95	2X1-1/4	10	60	080
839-251MSRP = 46.95	2X1-1/2	10	60	080
839-292MSRP = 63.60	2-1/2X2	10	80	080
839-337MSRP = 86.42	3X1-1/2	10	0	080
839-338MSRP = 86.42	3X2	10	0	080
839-339MSRP = 86.42	3X2-1/2	10	0	080
839-420MSRP = 178.14	4X2	6	0	080
839-422MSRP = 227.48	4X3	6	0	080
839-532MSRP = 298.88	6X4	5	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Reducer Bushing - Special Reinforced
Mipt x SR Fipt - Stainless Steel Collar

839-128SRMSRP = 13.15	1X1/4	25	150	086
839-209SRMSRP = 19.22	1-1/2X1/2	25	300	086
839-210SRMSRP = 19.22	1-1/2X3/4	25	300	086
839-247SRMSRP = 28.23	2X1/2	10	60	086
839-248SRMSRP = 28.23	2X3/4	10	60	086
839-249SRMSRP = 28.23	2X1	10	120	086
839-420SRMSRP = 106.85	4X2	6	0	086

Caps

Cap
Socket

847-002MSRP = 16.73	1/4	25	450	080
847-003MSRP = 16.73	3/8	25	450	080
847-005MSRP = 12.86	1/2	50	300	080
847-007MSRP = 13.58	3/4	25	300	080
847-010MSRP = 24.13	1	15	90	080
847-012MSRP = 29.07	1-1/4	10	60	080
847-015MSRP = 29.07	1-1/2	10	120	080
847-020MSRP = 57.45	2	10	80	080
847-025MSRP = 117.26	2-1/2	5	40	080
847-030MSRP = 137.22	3	5	0	080
847-040MSRP = 231.40	4	5	0	080
847-050FMSRP = 293.85	5	1	6	083
847-060MSRP = 575.60	6	4	0	080
847-080MSRP = 739.01	8	3	0	080
847-100FMSRP = 755.99	10	1	5	083
847-120FMSRP = 1134.56	12	1	4	083
847-140FMSRP = 1256.45	14	1	2	083
847-160FMSRP = 1627.76	16	1	2	083
847-180FMSRP = 2376.45	18	1	0	083
847-200FMSRP = 3185.77	20	1	0	083
847-240FMSRP = 5926.85	24	1	0	083

Cap
Fipt

848-002MSRP = 16.13	1/4	25	450	080
848-003MSRP = 16.13	3/8	25	450	080
848-005MSRP = 16.13	1/2	25	150	080
848-007MSRP = 18.02	3/4	25	300	080
848-010MSRP = 22.69	1	15	90	080
848-012MSRP = 27.04	1-1/4	10	60	080
848-015MSRP = 30.88	1-1/2	10	120	080
848-020MSRP = 60.67	2	10	40	080
848-025MSRP = 121.40	2-1/2	5	40	080
848-030MSRP = 142.92	3	5	0	080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 20

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Caps

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Cap (continued)
Fipt

848-040MSRP = 251.62	4	5	0	080
848-060FMSRP = 419.82	6	1	4	083
848-080FMSRP = 546.40	8	1	3	083
848-100FMSRP = 986.78	10	1	2	084
848-120FMSRP = 2105.83	12	1	2	083

Cap - Special Reinforced
SR Fipt - Stainless Steel Collar

848-002SRMSRP = 8.85	1/4	25	500	086
848-003SRMSRP = 8.85	3/8	25	450	086
848-005SRMSRP = 9.69	1/2	50	300	086
848-007SRMSRP = 12.43	3/4	25	300	086
848-030SRMSRP = 76.63	3	5	0	086

Plugs

Plug
Spigot

849-005MSRP = 12.03	1/2	50	300	080
849-007MSRP = 13.39	3/4	50	300	080
849-010MSRP = 15.09	1	50	200	080
849-012MSRP = 19.31	1-1/4	25	100	080
849-015MSRP = 21.14	1-1/2	10	120	080
849-020MSRP = 28.01	2	10	120	080
849-025F4MSRP = 65.58	2-1/2	4	0	083
849-030F4MSRP = 79.06	3	4	0	083
849-040F4MSRP = 172.93	4	4	0	083
849-060F4MSRP = 480.81	6	1	6	083
849-080F4MSRP = 626.04	8	1	6	083
849-100F4MSRP = 1017.98	10	1	2	083
849-120F4MSRP = 1885.80	12	1	0	083
849-140F4MSRP = 2180.74	14	1	0	083
849-160F4MSRP = 2584.20	16	1	0	083
849-180F4MSRP = 3603.19	18	1	0	083
849-200F4MSRP = 5843.25	20	1	0	084
849-240F4MSRP = 11255.31	24	1	0	083

⁴ Plug fabricated using Cap and pipe spigot.

Plug
Mipt

850-002MSRP = 13.91	1/4	50	900	080
850-003MSRP = 13.91	3/8	50	600	080
850-005MSRP = 12.40	1/2	50	500	080
850-007MSRP = 12.86	3/4	50	300	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Plug (continued)
Mipt

850-010MSRP = 15.77	1	25	150	080
850-012MSRP = 23.27	1-1/4	10	120	080
850-015MSRP = 28.27	1-1/2	10	120	080
850-020MSRP = 29.03	2	10	120	080
850-025MSRP = 81.05	2-1/2	5	60	080
850-030MSRP = 94.56	3	5	40	080
850-040MSRP = 184.09	4	6	0	080
850-060MSRP = 218.85	6	6	0	080
850-080MSRP = 316.81	8	6	0	080
850-080F4MSRP = 540.21	8	1	2	083
850-100F4MSRP = 791.69	10	1	3	083
850-120F4MSRP = 1084.41	12	1	0	083

⁴ Plug fabricated using Cap and threaded pipe.

Wyes

Wye
Socket x Socket x Socket
1/2" - 2" - 235 psi Maximum Internal Pressure Rating @ 73�F (23�C) 2-1/2" - 6" - 150 psi Maximum Internal Pressure Rating @ 73�F (23�C) 8" -10" & All Fabricated Sizes - 100 psi Maximum Internal Pressure Rating @ 73�F (23�C) 12" 80 psi Maximum Internal Pressure Rating @ 73�F (23�C)

875-005MSRP = 30.09	1/2	25	100	080
875-007MSRP = 31.64	3/4	25	0	080
875-010MSRP = 50.60	1	20	0	080
875-012MSRP = 77.61	1-1/4	20	0	080
875-015MSRP = 77.61	1-1/2	20	0	080
875-020MSRP = 222.64	2	10	0	080
875-025MSRP = 549.99	2-1/2	6	0	080
875-030MSRP = 715.75	3	5	0	080
875-040MSRP = 886.83	4	4	0	080
875-050F2MSRP = 1387.36	5	1	2	083
875-060MSRP = 1211.24	6	2	0	080
875-080MSRP = 2435.89	8	1	0	080
875-080F2MSRP = 1876.96	8	1	0	083
875-100F2MSRP = 2945.34	10	1	0	083
875-120F2MSRP = 3743.61	12	1	0	083
875-140F2MSRP = 6252.39	14	1	0	083
875-160F2MSRP = 8213.24	16	1	0	083
875-180F2MSRP = 9208.19	18	1	0	083
875-200F2MSRP = 12300.38	20	1	0	083
875-240F2MSRP = 16370.22	24	1	0	083

¹ Sized with Bushing
² Fiberglass reinforced

Page 21

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Wyes

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Wye - Reducing
Socket x Socket x Socket
1/2" - 2" - 235 psi Maximum Internal Pressure Rating @ 73�F (23�C) 2-1/2" - 6" - 150 psi Maximum Internal Pressure Rating @ 73�F (23�C) 8" -10" & All Fabricated Sizes - 100 psi Maximum Internal Pressure Rating @ 73�F (23�C) 12" 80 psi Maximum Internal Pressure Rating @ 73�F (23�C)

875-1011MSRP = 36.52	3/4X1/2	25	0	080
875-1301MSRP = 64.02	1X1/2	20	0	080
875-1311MSRP = 64.02	1X3/4	20	0	080
875-1661MSRP = 98.62	1-1/4X1/2	20	0	080
875-1671MSRP = 98.62	1-1/4X3/4	20	0	080
875-1681MSRP = 98.62	1-1/4X1	20	0	080
875-2091MSRP = 105.66	1-1/2X1/2	20	0	080
875-2101MSRP = 105.66	1-1/2X3/4	20	0	080
875-2111MSRP = 105.66	1-1/2X1	20	0	080
875-2121MSRP = 105.66	1-1/2X1-1/4	20	0	080
875-2471MSRP = 264.85	2X1/2	10	0	080
875-2481MSRP = 264.85	2X3/4	10	0	080
875-2491MSRP = 264.85	2X1	10	0	080
875-2501MSRP = 264.85	2X1-1/4	10	0	080
875-2511MSRP = 264.85	2X1-1/2	10	0	080
875-2911MSRP = 1031.13	2-1/2X1-1/2	4	0	080
875-2921MSRP = 1031.13	2-1/2X2-1/2X2	5	0	080
875-3351MSRP = 834.28	3X1	5	0	080
875-3361MSRP = 834.28	3X1-1/4	5	0	080
875-3371MSRP = 834.28	3X1-1/2	5	0	080
875-3381MSRP = 834.28	3X2	4	0	080
875-3391MSRP = 834.28	3X2-1/2	5	0	080
875-4191MSRP = 1255.41	4X1-1/2	4	0	080
875-420MSRP = 1048.86	4X2	4	0	080
875-420F2MSRP = 874.20	4X2	1	5	083
875-4211MSRP = 1162.61	4X2-1/2	4	0	080
875-421F2MSRP = 976.92	4X2-1/2	1	4	083
875-422MSRP = 1048.86	4X3	4	0	080
875-5251MSRP = 1286.01	6X1	5	0	080
875-5281MSRP = 1142.04	6X2	5	0	080
875-528F2MSRP = 898.07	6X2	1	3	083
875-5301MSRP = 1142.04	6X3	5	0	080
875-530F2MSRP = 975.71	6X3	1	2	083
875-532MSRP = 923.08	6X4	5	0	080
875-5781MSRP = 3186.55	8X2	2	0	080
875-578F2MSRP = 1453.02	8X2	1	2	083
875-579F2MSRP = 1485.61	8X2-1/2	1	2	083
875-5801MSRP = 3186.55	8X3	2	0	080
875-580F2MSRP = 1475.88	8X3	1	2	083
875-582MSRP = 3186.55	8X4	2	0	080
875-582F2MSRP = 1564.86	8X4	1	2	083
875-5851MSRP = 2972.48	8X6	1	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Wye - Reducing (continued)
Socket x Socket x Socket

875-585F2MSRP = 1845.31	8X6	1	083
875-621F2MSRP = 1956.03	10X2	1	083
875-622F2MSRP = 1969.66	10X2-1/2	1	083
875-6231MSRP = 3711.67	10X3	1	081
875-623F2MSRP = 1994.11	10X3	1	083
875-624F2MSRP = 2173.34	10X4	1	083
875-625F2MSRP = 2435.76	10X5	1	083
875-626MSRP = 3441.40	10X6	1	081
875-626F2MSRP = 2473.08	10X6	1	083
875-628MSRP = 4381.40	10X8	1	081
875-628F2MSRP = 2860.18	10X8	1	083
875-661F2MSRP = 2170.67	12X2	1	083
875-662F2MSRP = 2366.48	12X2-1/2	1	083
875-663F2MSRP = 2589.62	12X3	1	083
875-664F2MSRP = 2742.49	12X4	1	083
875-666F2MSRP = 3127.76	12X6	1	083
875-668F2MSRP = 3426.54	12X8	1	083
875-670F2MSRP = 3631.20	12X10	1	083
875-694F2MSRP = 3394.01	14X4	1	083
875-696F2MSRP = 3591.60	14X6	1	083
875-698F2MSRP = 3674.44	14X8	1	083
875-700F2MSRP = 4102.52	14X10	1	083
875-702F2MSRP = 4649.78	14X12	1	083
875-754F2MSRP = 3696.46	16X4	1	083
875-756F2MSRP = 3712.52	16X6	1	083
875-758F2MSRP = 4189.85	16X8	1	083
875-760F2MSRP = 4716.71	16X10	1	083
875-762F2MSRP = 5139.03	16X12	1	083
875-764F2MSRP = 5951.29	16X14	1	083
875-784F2MSRP = 6635.88	18X4	1	083
875-786F2MSRP = 7493.09	18X6	1	083
875-788F2MSRP = 7771.41	18X8	1	083
875-790F2MSRP = 8352.81	18X10	1	083
875-792F2MSRP = 8384.63	18X12	1	083
875-794F2MSRP = 9055.82	18X14	1	083
875-796F2MSRP = 9119.66	18X16	1	083
875-814F2MSRP = 8200.22	20X4	1	083
875-816F2MSRP = 8836.33	20X6	1	083
875-818F2MSRP = 9338.00	20X8	1	083
875-820F2MSRP = 9654.28	20X10	1	083
875-822F2MSRP = 10000.97	20X12	1	083
875-824F2MSRP = 10796.29	20X14	1	083
875-826F2MSRP = 11689.79	20X16	1	083
875-828F2MSRP = 12133.91	20X18	1	083
875-904F2MSRP = 10202.27	24X4	1	083
875-906F2MSRP = 10553.26	24X6	1	083
875-908F2MSRP = 10823.38	24X8	1	083
875-910F2MSRP = 11313.20	24X10	1	083
875-912F2MSRP = 12032.31	24X12	1	083
875-914F2MSRP = 12499.02	24X14	1	083
875-916F2MSRP = 13334.65	24X16	1	083
875-918F2MSRP = 15377.58	24X18	1	083
875-920F2MSRP = 16097.91	24X20	1	083

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 22

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Wyes

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Wye - Reducing (continued)
Socket x Socket x Socket

¹ Sized with Bushing
² Fiberglass reinforced

Double Wye
Socket x Socket x Socket x Socket
100 psi Maximum Internal Pressure Rating @ 73�F (23�C)

876-020F2MSRP = 736.15	2	1	4	083
876-030F2MSRP = 927.76	3	1	4	083
876-040F2MSRP = 1684.78	4	1	2	083
876-060F2MSRP = 1969.22	6	1	0	083
876-080F2MSRP = 2346.18	8	1	0	083
876-100F2MSRP = 4180.67	10	1	0	083
876-120F2MSRP = 4609.34	12	1	0	083

For larger sizes please contact your Regional Spears^� Distribution Center.

2-Fiberglass Reinforced

Double Wye - Reducing
Socket x Socket x Socket x Socket
Size 3" is 150 psi, all Fabricated Sizes- 100 psi Maximum Internal Pressure Rating @ 73�F (23�C)

876-338MSRP = 895.22	3X2	5	0	080
876-420F2MSRP = 1169.17	4X2	1	2	083
876-421F2MSRP = 1323.72	4X2-1/2	1	2	083
876-422F2MSRP = 1369.20	4X3	1	2	083
876-528F2MSRP = 1375.75	6X2	1	2	083
876-529F2MSRP = 1436.96	6X2-1/2	1	2	083
876-530F2MSRP = 1446.35	6X3	1	2	083
876-532F2MSRP = 1724.03	6X4	1	0	083
876-578F2MSRP = 1774.57	8X2	1	2	083
876-579F2MSRP = 1858.33	8X2-1/2	1	2	083
876-580F2MSRP = 1869.69	8X3	1	0	083
876-582F2MSRP = 1930.01	8X4	1	0	083
876-585F2MSRP = 2179.20	8X6	1	0	083
876-621F2MSRP = 2366.25	10X2	1	0	083
876-622F2MSRP = 2547.13	10X2-1/2	1	0	083
876-623F2MSRP = 2562.23	10X3	1	0	083
876-624F2MSRP = 2659.48	10X4	1	0	083
876-626F2MSRP = 2783.77	10X6	1	0	083
876-628F2MSRP = 3577.65	10X8	1	0	083
876-661F2MSRP = 2643.97	12X2	1	0	083
876-662F2MSRP = 2800.82	12X2-1/2	1	0	083
876-663F2MSRP = 2845.04	12X3	1	0	083
876-664F2MSRP = 3030.46	12X4	1	0	083
876-666F2MSRP = 3516.81	12X6	1	0	083
876-668F2MSRP = 4200.65	12X8	1	0	083
876-670F2MSRP = 4791.03	12X10	1	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Double Wye - Reducing (continued)
Socket x Socket x Socket x Socket

² Fiberglass reinforced
For larger sizes please contact your Regional Spears^� Distribution Center.

Unions

Union 2000 - Socket/FKM
Socket X Socket with FKM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8057-005MSRP = 26.96	1/2	20	120	080
8057-007MSRP = 34.29	3/4	20	80	080
8057-010MSRP = 39.12	1	15	90	080
8057-012MSRP = 77.67	1-1/4	10	0	080
8057-015MSRP = 87.93	1-1/2	10	0	080
8057-020MSRP = 119.23	2	5	0	080
8057-025MSRP = 190.97	2-1/2	5	0	080
8057-030MSRP = 222.03	3	5	0	080
8057-040MSRP = 309.24	4	4	0	080
8057-060MSRP = 687.31	6	1	0	080

Union 2000 - Socket/EPDM
Socket x Socket with EPDM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8097-005MSRP = 26.57	1/2	20	120	080
8097-007MSRP = 33.81	3/4	20	80	080
8097-010MSRP = 38.75	1	15	90	080
8097-012MSRP = 76.73	1-1/4	10	0	080
8097-015MSRP = 86.85	1-1/2	10	0	080
8097-020MSRP = 117.85	2	5	0	080
8097-025MSRP = 187.33	2-1/2	5	0	080
8097-030MSRP = 219.26	3	5	0	080
8097-040MSRP = 303.29	4	4	0	080
8097-060MSRP = 674.02	6	1	0	080

Union 2000 - Socket/Fipt/FKM
Socket x Fipt with FKM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8059-005MSRP = 32.87	1/2	20	120	080
8059-007MSRP = 45.96	3/4	20	80	080
8059-010MSRP = 61.06	1	15	90	080
8059-012MSRP = 116.71	1-1/4	10	0	080
8059-015MSRP = 144.44	1-1/2	10	0	080
8059-020MSRP = 222.39	2	5	0	080
8059-025MSRP = 395.14	2-1/2	5	0	080

Page 23

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Socket/Fipt/FKM (continued)
Socket x Fipt with FKM O-ring Seal

8059-030MSRP = 524.81	3	5	080
8059-040MSRP = 603.13	4	4	080
8059-060MSRP = 800.59	6	1	080

Union 2000 - Socket/Fipt/EPDM
Socket x Fipt with EPDM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8099-005MSRP = 32.43	1/2	20	120	080
8099-007MSRP = 45.36	3/4	20	80	080
8099-010MSRP = 60.28	1	15	90	080
8099-012MSRP = 115.31	1-1/4	10	0	080
8099-015MSRP = 142.66	1-1/2	10	0	080
8099-020MSRP = 219.58	2	5	0	080
8099-025MSRP = 310.46	2-1/2	5	0	080
8099-030MSRP = 518.20	3	5	0	080
8099-040MSRP = 595.05	4	4	0	080
8099-060MSRP = 761.01	6	1	0	080

Union 2000 - Socket/Spigot/FKM
Socket x Spigot with FKM O-ring Seal
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8056-005MSRP = 26.96	1/2	20	120	080
8056-007MSRP = 34.29	3/4	20	160	080
8056-010MSRP = 39.12	1	15	90	080
8056-012MSRP = 77.67	1-1/4	10	0	080
8056-015MSRP = 87.93	1-1/2	10	0	080
8056-020MSRP = 119.23	2	5	0	080
8056-025MSRP = 190.97	2-1/2	5	0	080
8056-030MSRP = 222.03	3	5	0	080
8056-040MSRP = 309.24	4	4	0	080
8056-060MSRP = 687.31	6	1	0	080

Union 2000 - Socket/Spigot/EPDM
Socket x Spigot with EPDM O-ring Seal
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8096-005MSRP = 26.57	1/2	20	160	080
8096-007MSRP = 33.81	3/4	20	80	080
8096-010MSRP = 38.75	1	15	90	080
8096-012MSRP = 76.73	1-1/4	10	0	080
8096-015MSRP = 86.85	1-1/2	10	0	080
8096-020MSRP = 117.85	2	5	0	080
8096-025MSRP = 187.33	2-1/2	5	0	080

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Socket/Spigot/EPDM (continued)
Socket x Spigot with EPDM O-ring Seal

8096-030MSRP = 219.26	3	5	080
8096-040MSRP = 303.29	4	4	080
8096-060MSRP = 674.02	6	1	080

Union 2000 - Fipt/Mipt/FKM
Fipt x Mipt with FKM O-ring Seal
1/2" - 3" 235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8053-005MSRP = 26.96	1/2	20	120	080
8053-007MSRP = 34.29	3/4	20	0	080
8053-010MSRP = 39.12	1	15	90	080
8053-012MSRP = 77.67	1-1/4	10	0	080
8053-015MSRP = 87.93	1-1/2	10	0	080
8053-020MSRP = 119.23	2	5	0	080
8053-030MSRP = 222.03	3	5	0	080

Union 2000 - Fipt/Mipt/EPDM
Fipt x Mipt with EPDM O-ring Seal
1/2" - 3" 235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8093-005MSRP = 26.57	1/2	20	120	080
8093-007MSRP = 33.81	3/4	20	0	080
8093-010MSRP = 38.75	1	15	90	080
8093-012MSRP = 76.73	1-1/4	10	0	080
8093-015MSRP = 86.85	1-1/2	10	0	080
8093-020MSRP = 117.85	2	5	0	080
8093-030MSRP = 219.26	3	5	0	080

Union 2000 - Fipt/Mipt/FKM- Reducing
Fipt x Mipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8053-168MSRP = 55.71

1-1/4X1

080

Union 2000 - Fipt/Mipt/EPDM- Reducing
Fipt x Mipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8093-168MSRP = 54.32

1-1/4X1

080

Union 2000 - Socket/Mipt/FKM
Socket x Mipt with FKM O-ring Seal
1/2" - 3" 235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8054-005MSRP = 26.96

1/2

120

080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 24

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Socket/Mipt/FKM (continued)
Socket x Mipt with FKM O-ring Seal

8054-007MSRP = 34.29	3/4	20	0	080
8054-010MSRP = 39.12	1	15	90	080
8054-012MSRP = 77.67	1-1/4	10	0	080
8054-015MSRP = 87.93	1-1/2	10	0	080
8054-020MSRP = 119.23	2	5	0	080
8054-030MSRP = 222.03	3	5	0	080

Union 2000 - Socket/Mipt/EPDM
Socket x Mipt with EPDM O-ring Seal
1/2" - 3" 235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8094-005MSRP = 26.57	1/2	20	120	080
8094-007MSRP = 33.81	3/4	20	80	080
8094-010MSRP = 38.75	1	15	90	080
8094-012MSRP = 76.73	1-1/4	10	0	080
8094-015MSRP = 86.85	1-1/2	10	0	080
8094-020MSRP = 117.85	2	5	0	080
8094-030MSRP = 219.26	3	5	0	080

Union 2000 - Socket/Mipt/FKM-Reducing
Socket x Mipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8054-168MSRP = 55.71

1-1/4X1

080

Union 2000 - Socket/Mipt/EPDM- Reducing
Socket x Mipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8094-168MSRP = 54.32

1-1/4X1

080

Union 2000 - Special Reinforced Fipt/Spigot/FKM
SR Fipt x Spigot with FKM O-ring Seal
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8055-005SRMSRP = 49.54	1/2	20	160	086
8055-007SRMSRP = 53.43	3/4	20	160	086
8055-010SRMSRP = 65.66	1	15	90	086
8055-012SRMSRP = 115.60	1-1/4	10	0	096
8055-015SRMSRP = 140.43	1-1/2	10	0	086
8055-020SRMSRP = 159.91	2	5	0	086
8055-025SRMSRP = 313.78	2-1/2	5	0	086
8055-030SRMSRP = 352.72	3	5	0	086
8055-040SRMSRP = 400.04	4	4	0	086
8055-060SRMSRP = 849.76	6	1	0	086

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Special Reinforced Fipt/Spigot/EPDM
SR Fipt x Spigot with EPDM O-ring Seal
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8095-005SRMSRP = 48.81	1/2	20	120	086
8095-007SRMSRP = 51.99	3/4	20	160	086
8095-010SRMSRP = 63.27	1	15	90	086
8095-012SRMSRP = 107.08	1-1/4	10	0	086
8095-015SRMSRP = 126.76	1-1/2	10	0	086
8095-020SRMSRP = 144.25	2	5	0	086
8095-025SRMSRP = 295.44	2-1/2	5	0	086
8095-030SRMSRP = 335.67	3	5	0	086
8095-040SRMSRP = 384.06	4	5	0	086
8095-060SRMSRP = 806.12	6	1	0	086

Union 2000 - Socket/Special Reinforced Fipt/FKM
Socket x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8059-005SRMSRP = 18.33	1/2	20	120	086
8059-007SRMSRP = 25.17	3/4	20	80	086
8059-010SRMSRP = 32.72	1	15	90	086
8059-012SRMSRP = 62.60	1-1/4	10	0	086
8059-015SRMSRP = 77.18	1-1/2	10	0	086
8059-020SRMSRP = 117.89	2	5	0	086
8059-025SRMSRP = 253.36	2-1/2	5	0	086
8059-030SRMSRP = 288.03	3	5	0	086
8059-040SRMSRP = 330.74	4	4	0	086
8059-060SRMSRP = 1317.47	6	1	0	086

Union 2000 - Socket/Special Reinforced Fipt/EPDM
Socket x SR Fipt w/EPDM O-ring Seal - Stainless Steel Collar
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8099-005SRMSRP = 17.59	1/2	20	120	086
8099-007SRMSRP = 25.07	3/4	20	80	086
8099-010SRMSRP = 32.34	1	15	90	086
8099-012SRMSRP = 56.28	1-1/4	10	0	086
8099-015SRMSRP = 72.91	1-1/2	10	0	086
8099-020SRMSRP = 117.38	2	5	0	086
8099-025SRMSRP = 251.04	2-1/2	5	0	086
8099-030SRMSRP = 279.46	3	5	0	086
8099-040SRMSRP = 318.94	4	4	0	086
8099-060SRMSRP = 1282.32	6	1	0	086

Page 25

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Fipt/FKM
Fipt x Fipt with FKM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8058-005MSRP = 31.27	1/2	20	120	080
8058-007MSRP = 43.79	3/4	20	80	080
8058-010MSRP = 58.24	1	15	90	080
8058-012MSRP = 111.17	1-1/4	10	0	080
8058-015MSRP = 137.64	1-1/2	10	0	080
8058-020MSRP = 211.75	2	5	0	080
8058-025MSRP = 358.17	2-1/2	5	0	080
8058-030MSRP = 537.12	3	5	0	080
8058-040MSRP = 631.26	4	4	0	080
8058-060MSRP = 854.13	6	1	0	080

Union 2000 - Fipt/EPDM
Fipt x Fipt with EPDM O-ring Seal
1/4" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8098-005MSRP = 30.88	1/2	20	240	080
8098-007MSRP = 43.23	3/4	20	80	080
8098-010MSRP = 57.57	1	15	90	080
8098-012MSRP = 109.73	1-1/4	10	0	080
8098-015MSRP = 135.87	1-1/2	10	0	080
8098-020MSRP = 209.12	2	5	0	080
8098-025MSRP = 280.01	2-1/2	5	0	080
8098-030MSRP = 530.44	3	5	0	080
8098-040MSRP = 620.41	4	4	0	080
8098-060MSRP = 815.04	6	1	0	080

Union 2000 - Special Reinforced Fipt/FKM
SR Fipt x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8058-005SRMSRP = 18.83	1/2	20	120	086
8058-007SRMSRP = 25.49	3/4	20	80	086
8058-010SRMSRP = 34.09	1	15	90	086
8058-012SRMSRP = 64.96	1-1/4	10	0	086
8058-015SRMSRP = 79.93	1-1/2	10	0	086
8058-020SRMSRP = 124.15	2	5	0	086
8058-025SRMSRP = 259.60	2-1/2	5	0	086
8058-030SRMSRP = 295.33	3	5	0	086
8058-040SRMSRP = 347.64	4	4	0	086
8058-060SRMSRP = 1198.02	6	1	0	086

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union 2000 - Special Reinforced Fipt/EPDM
SR Fipt x SR Fipt w/EPDM O-ring Seal - Stainless Steel Collar
1/2" - 4" 235 psi; 6" 150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8098-005SRMSRP = 18.52	1/2	20	120	086
8098-007SRMSRP = 25.23	3/4	20	80	086
8098-010SRMSRP = 33.41	1	15	90	086
8098-012SRMSRP = 62.19	1-1/4	10	0	086
8098-015SRMSRP = 78.19	1-1/2	10	0	086
8098-020SRMSRP = 122.86	2	5	0	086
8098-025SRMSRP = 248.02	2-1/2	5	0	086
8098-030SRMSRP = 292.46	3	5	0	086
8098-040SRMSRP = 335.76	4	4	0	086
8098-060SRMSRP = 1253.77	6	1	0	086

Union (Old Style) - Socket/FKM
Socket x Socket with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

857-002MSRP = 50.42	1/4	25	150	080
857-003MSRP = 50.42	3/8	25	150	080
857-005MSRP = 26.96	1/2	15	90	080
857-007MSRP = 34.29	3/4	10	60	080
857-010MSRP = 39.12	1	10	40	080
857-012MSRP = 77.67	1-1/4	5	20	080
857-015MSRP = 87.93	1-1/2	5	0	080
857-020MSRP = 119.23	2	5	0	080
857-025MSRP = 190.97	2-1/2	5	0	080
857-030MSRP = 222.03	3	5	0	080
857-040MSRP = 309.24	4	4	0	080

Union (Old Style) - Socket/EPDM
Socket x Socket with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

897-002MSRP = 49.76	1/4	25	150	080
897-003MSRP = 49.76	3/8	25	150	080
897-005MSRP = 26.57	1/2	15	90	080
897-007MSRP = 33.81	3/4	10	60	080
897-010MSRP = 38.75	1	10	40	080
897-012MSRP = 76.73	1-1/4	5	20	080
897-015MSRP = 86.85	1-1/2	5	0	080
897-020MSRP = 117.85	2	5	0	080
897-025MSRP = 187.33	2-1/2	5	0	080
897-030MSRP = 219.26	3	5	0	080
897-040MSRP = 303.29	4	4	0	080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 26

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union (Old Style) - Socket/Fipt/FKM
Socket x Fipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

859-002MSRP = 54.25	1/4	25	150	080
859-003MSRP = 54.25	3/8	25	150	080
859-005MSRP = 32.87	1/2	15	90	080
859-007MSRP = 45.96	3/4	10	60	080
859-010MSRP = 61.06	1	10	40	080
859-012MSRP = 116.71	1-1/4	5	20	080
859-015MSRP = 144.44	1-1/2	5	0	080
859-020MSRP = 222.39	2	5	0	080
859-025MSRP = 395.14	2-1/2	5	0	080
859-030MSRP = 524.81	3	5	0	080
859-040MSRP = 603.13	4	4	0	080

Union (Old Style) - Socket/Fipt/EPDM
Socket x Fipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

899-002MSRP = 53.65	1/4	25	150	080
899-003MSRP = 53.65	3/8	25	150	080
899-005MSRP = 32.43	1/2	15	90	080
899-007MSRP = 45.36	3/4	10	60	080
899-010MSRP = 60.28	1	10	40	080
899-012MSRP = 115.31	1-1/4	5	20	080
899-015MSRP = 142.66	1-1/2	5	0	080
899-020MSRP = 219.58	2	5	0	080
899-025MSRP = 310.46	2-1/2	5	0	080
899-030MSRP = 518.20	3	5	0	080
899-040MSRP = 595.05	4	4	0	080

Union (Old Style) - Special Reinforced Fipt/FKM
Socket x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

859-002SRMSRP = 33.69	1/4	25	150	086
859-003SRMSRP = 33.69	3/8	25	100	086
859-005SRMSRP = 18.33	1/2	10	60	086
859-007SRMSRP = 25.17	3/4	10	60	086
859-010SRMSRP = 32.72	1	10	40	086
859-012SRMSRP = 62.60	1-1/4	5	20	086
859-015SRMSRP = 77.18	1-1/2	5	0	086
859-020SRMSRP = 117.89	2	5	0	086
859-030SRMSRP = 288.03	3	5	0	086
859-040SRMSRP = 330.74	4	4	0	086

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union (Old Style) - Special Reinforced Fipt/EPDM
Socket x SR Fipt w/EPDM O-ring Seal - Stainless Steel Collar
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

899-002SRMSRP = 33.27	1/4	25	150	086
899-003SRMSRP = 33.27	3/8	25	100	086
899-005SRMSRP = 17.59	1/2	10	60	086
899-007SRMSRP = 25.07	3/4	10	40	086
899-010SRMSRP = 32.34	1	10	40	086
899-012SRMSRP = 56.28	1-1/4	5	20	086
899-015SRMSRP = 72.91	1-1/2	5	0	086
899-020SRMSRP = 117.38	2	5	0	086
899-030SRMSRP = 279.46	3	5	0	086
899-040SRMSRP = 318.94	4	4	0	086

Union - Socket/Brass Fipt/FKM
Socket x Fipt with Brass Thread Insert & FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

859-005BRMSRP = 76.49	1/2	10	60	086
859-007BRMSRP = 117.01	3/4	10	40	086
859-010BRMSRP = 144.38	1	10	0	086
859-012BRMSRP = 249.19	1-1/4	5	20	086
859-015BRMSRP = 329.80	1-1/2	5	0	086
859-020BRMSRP = 438.32	2	5	0	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Union - Socket/Brass Fipt/EPDM
Socket x Fipt with Brass Thread Insert & EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

899-005BRMSRP = 79.18	1/2	10	60	086
899-007BRMSRP = 105.48	3/4	10	60	086
899-010BRMSRP = 142.27	1	10	0	086
899-012BRMSRP = 239.25	1-1/4	5	20	086
899-015BRMSRP = 316.69	1-1/2	5	0	086
899-020BRMSRP = 422.08	2	5	0	086

Not intended to convey or dispense water for human consumption through drinking or cooking

Union (Old Style) - Fipt/FKM
Fipt x Fipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

858-002MSRP = 54.25	1/4	25	150	080
858-003MSRP = 54.25	3/8	25	150	080
858-005MSRP = 31.27	1/2	15	90	080
858-007MSRP = 43.79	3/4	10	60	080
858-010MSRP = 58.24	1	10	40	080
858-012MSRP = 111.17	1-1/4	5	20	080

Page 27

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
PVC Schedule 80 Fittings

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union (Old Style) - Fipt/FKM (continued)
Fipt x Fipt with FKM O-ring Seal

858-015MSRP = 137.64	1-1/2	5	080
858-020MSRP = 211.75	2	5	080
858-025MSRP = 358.17	2-1/2	5	080
858-030MSRP = 537.12	3	5	080
858-040MSRP = 631.26	4	4	080

Union (Old Style) - Fipt/EPDM
Fipt x Fipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

898-002MSRP = 53.65	1/4	25	150	080
898-003MSRP = 53.65	3/8	25	150	080
898-005MSRP = 30.88	1/2	15	90	080
898-007MSRP = 43.23	3/4	10	60	080
898-010MSRP = 57.57	1	10	40	080
898-012MSRP = 109.73	1-1/4	5	20	080
898-015MSRP = 135.87	1-1/2	5	0	080
898-020MSRP = 209.12	2	5	0	080
898-025MSRP = 280.01	2-1/2	5	0	080
898-030MSRP = 530.44	3	5	0	080
898-040MSRP = 620.41	4	4	0	080

Union -Transition JIS to ASTM/FKM
JIS (mm) Socket x ASTM (in.) Fipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8258-016MSRP = 29.60	16 DN X 1/2	20	160	197
8258-020MSRP = 41.35	20 DN X 3/4	20	80	197
8258-025MSRP = 55.03	25 DN X 1	15	90	197
8258-030MSRP = 105.06	30 DN X 1-1/4	10	0	197
8258-040MSRP = 130.06	40 DN X 1-1/2	10	0	197
8258-075MSRP = 472.29	75 DN X 3	5	0	197
8258-100MSRP = 542.83	100 DN X 4	4	0	197

Union -Transition JIS to ASTM/EPDM
JIS (mm) Socket x ASTM (in.) Fipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8298-016MSRP = 29.16	16 DN X 1/2	20	160	197
8298-020MSRP = 40.83	20 DN X 3/4	20	80	197
8298-025MSRP = 54.33	25 DN X 1	15	90	197
8298-030MSRP = 103.24	30 DN X 1-1/4	10	0	197
8298-040MSRP = 128.39	40 DN X 1-1/2	10	0	197
8298-050MSRP = 197.64	50 DN X 2	5	0	197
8298-075MSRP = 466.41	75 DN X 3	5	0	197
8298-100MSRP = 535.51	100 DN X 4	4	0	197

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union - Transition BSP to ASTM/FKM
BSP Thread (in.) x ASTM (in.) Socket with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8359-005MSRP = 29.60	1/2	20	160	197
8359-007MSRP = 41.35	3/4	20	80	197
8359-010MSRP = 55.03	1	15	90	197
8359-012MSRP = 105.06	1-1/4	10	0	197
8359-015MSRP = 130.06	1-1/2	10	0	197
8359-020MSRP = 200.08	2	5	0	197
8359-030MSRP = 472.29	3	5	0	197
8359-040MSRP = 542.83	4	4	0	197

Union - Transition BSP to ASTM/EPDM
BSP Thread (in.) x ASTM (in.) Socket with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8399-005MSRP = 29.16	1/2	10	60	197
8399-007MSRP = 40.83	3/4	20	80	197
8399-010MSRP = 54.33	1	15	90	197
8399-012MSRP = 103.76	1-1/4	10	0	197
8399-015MSRP = 128.39	1-1/2	10	0	197
8399-020MSRP = 197.64	2	5	0	197
8399-030MSRP = 466.41	3	5	0	197
8399-040MSRP = 535.51	4	4	0	197

Union - Transition DIN to ASTM/FKM
DIN (mm) Socket x ASTM (in.) Socket with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8657-020MSRP = 24.21	20 d X 1/2	10	60	197
8657-025MSRP = 30.85	25 d X 3/4	10	60	197
8657-032MSRP = 35.19	32 d X1	10	40	197
8657-040MSRP = 69.89	40 d X 1-1/4	10	0	197
8657-050MSRP = 79.16	50 d X 1-1/2	10	0	197
8657-063MSRP = 107.37	63 d X 2	5	0	197
8657-090MSRP = 199.83	90 d X 3	5	0	197
8657-110MSRP = 278.36	110 d X 4	4	0	197

Union - Transition DIN to ASTM/EPDM
DIN (mm) Socket x ASTM (in.) Socket with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8697-020MSRP = 23.89	20 d X1/2	20	240	197
8697-025MSRP = 30.46	25 d X 3/4	10	60	197
8697-032MSRP = 34.83	32d X 1	15	90	197
8697-040MSRP = 69.07	40 d X 1-1/4	10	0	197
8697-050MSRP = 78.19	50 d X 1-1/2	10	0	197
8697-063MSRP = 106.06	63 d X 2	5	0	197
8697-090MSRP = 197.35	90 d X 3	5	0	197

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 28

Schedule 80 PVC Product
PVC Schedule 80 Fittings & Tank Adapters

Print this Book

Unions

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union - Transition DIN to ASTM/EPDM (continued)
DIN (mm) Socket x ASTM (in.) Socket with EPDM O-ring Seal

8697-110MSRP = 272.95

110 d X 4

197

Union - Transition DIN to ASTM/FKM
DIN (mm) Socket x ASTM (in.) Fipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8658-020MSRP = 29.60	20 d X 1/2	10	60	197
8658-025MSRP = 41.35	25 d X 3/4	20	80	197
8658-032MSRP = 55.03	32 d X1	15	90	197
8658-040MSRP = 105.06	40 d X 1-1/4	10	0	197
8658-050MSRP = 130.06	50 d X 1-1/2	10	0	197
8658-063MSRP = 200.08	63 d X 2	5	0	197
8658-090MSRP = 472.29	90 d X 3	5	0	197
8658-110MSRP = 542.83	110 d X 4	4	0	197

Union - Transition DIN to ASTM/EPDM
DIN (mm) Socket x ASTM (in.) Fipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8698-020MSRP = 29.16	20 d X 1/2	20	160	197
8698-025MSRP = 40.83	25 d X 3/4	20	80	197
8698-032MSRP = 54.33	32 d X 1	15	90	197
8698-040MSRP = 103.24	40 d X 1-1/4	10	0	197
8698-050MSRP = 128.39	50 d X 1-1/2	10	0	197
8698-063MSRP = 197.64	63 d X 2	5	0	197
8698-090MSRP = 466.41	90 d X 3	5	0	197
8698-110MSRP = 535.51	110 d X 4	4	0	197

Union -Transition JIS to ASTM/FKM
JIS (mm) Socket x ASTM (in.) Socket with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8257-016MSRP = 24.21	16 DN X 1/2	20	160	197
8257-020MSRP = 30.85	20 DN X 3/4	10	60	197
8257-025MSRP = 35.19	25 DN X1	15	90	197
8257-030MSRP = 69.89	30 DN X 1-1/4	10	0	197
8257-040MSRP = 79.16	40 DN X 1-1/2	10	0	197
8257-050MSRP = 107.37	50 DN X 2	5	0	197
8257-075MSRP = 199.83	75 DN X 3	5	0	197
8257-100MSRP = 278.36	100 DN X 4	4	0	197

Union -Transition JIS to ASTM/EPDM
JIS (mm) Socket x ASTM (in.) Socket with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8297-016MSRP = 23.89	16 DN X 1/2	20	160	197
8297-020MSRP = 30.46	20 DN X 3/4	20	80	197

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Union -Transition JIS to ASTM/EPDM (continued)
JIS (mm) Socket x ASTM (in.) Socket with EPDM O-ring Seal

8297-025MSRP = 34.83	25 DN X 1	15	90	197
8297-030MSRP = 69.07	30 DN X 1-1/4	10	0	197
8297-040MSRP = 78.19	40 DN X 1-1/2	10	0	197
8297-050MSRP = 106.06	50 DN X 2	5	0	197
8297-075MSRP = 197.35	75 DN X 3	5	0	197
8297-100MSRP = 272.95	100 DN X 4	4	0	197

Union - Transition BSP to ASTM/FKM
BSP Thread (in.) x ASTM (in.) Fipt with FKM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8358-005MSRP = 28.20	1/2	20	160	197
8358-007MSRP = 39.39	3/4	20	80	197
8358-010MSRP = 52.42	1	15	90	197
8358-012MSRP = 100.02	1-1/4	10	0	197
8358-015MSRP = 123.86	1-1/2	10	0	197
8358-020MSRP = 190.59	2	5	0	197
8358-030MSRP = 483.43	3	5	0	197
8358-040MSRP = 568.08	4	4	0	197

Union - Transition BSP to ASTM/EPDM
BSP Thread (in.) x ASTM (in.) Fipt with EPDM O-ring Seal
235 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8398-005MSRP = 27.80	1/2	10	60	197
8398-007MSRP = 38.87	3/4	10	60	197
8398-010MSRP = 51.77	1	10	40	197
8398-012MSRP = 98.81	1-1/4	5	20	197
8398-015MSRP = 122.28	1-1/2	5	0	197
8398-020MSRP = 196.49	2	5	0	197
8398-030MSRP = 477.38	3	5	0	197
8398-040MSRP = 558.35	4	4	0	197

Tank Adapters

Tank Adapters, PVC New Style Standard with Neoprene Gaskets
Socket x Socket
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8170-002MSRP = 75.56	1/4	25	150	100
8170-003MSRP = 75.56	3/8	25	150	100
8170-005MSRP = 75.56	1/2	25	0	100
8170-007MSRP = 86.11	3/4	25	0	100
8170-010MSRP = 95.66	1	25	0	100
8170-012MSRP = 115.26	1-1/4	20	0	100
8170-015MSRP = 126.48	1-1/2	20	0	100
8170-020MSRP = 187.46	2	15	0	100
8170-025MSRP = 289.68	2-1/2	4	0	100
8170-030MSRP = 344.84	3	4	0	100
8170-040MSRP = 679.27	4	2	0	100

Page 29

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Tank Adapters

Print this Book

Tank Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Standard with Neoprene Gaskets (continued)
Socket x Socket

8170-060MSRP = 1318.52	6	1	0	100
8170-080MSRP = 2926.08	8	1	0	100

Tank Adapters, PVC New Style Standard with EPDM Gaskets
Socket x Socket
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8170E-002MSRP = 77.83	1/4	25	150	100
8170E-003MSRP = 77.83	3/8	25	150	100
8170E-005MSRP = 77.83	1/2	25	0	100
8170E-007MSRP = 87.85	3/4	25	0	100
8170E-010MSRP = 105.91	1	25	0	100
8170E-012MSRP = 125.87	1-1/4	20	0	100
8170E-015MSRP = 137.09	1-1/2	20	0	100
8170E-020MSRP = 201.76	2	15	0	100
8170E-025MSRP = 336.24	2-1/2	4	0	100
8170E-030MSRP = 357.69	3	4	0	100
8170E-040MSRP = 696.44	4	2	0	100
8170E-060MSRP = 1365.87	6	1	0	100
8170E-080MSRP = 3034.61	8	1	0	100

Tank Adapters, PVC New Style Standard with FKM Gaskets
Socket x Socket
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8170V-002MSRP = 128.34	1/4	25	150	100
8170V-003MSRP = 128.34	3/8	25	150	100
8170V-005MSRP = 128.34	1/2	25	0	100
8170V-007MSRP = 140.71	3/4	25	0	100
8170V-010MSRP = 168.48	1	25	0	100
8170V-012MSRP = 177.65	1-1/4	20	0	100
8170V-015MSRP = 195.68	1-1/2	20	0	100
8170V-020MSRP = 321.05	2	15	0	100
8170V-025MSRP = 483.98	2-1/2	4	0	100
8170V-030MSRP = 576.14	3	4	0	100
8170V-040MSRP = 1441.25	4	2	0	100
8170V-060MSRP = 2592.21	6	1	0	100
8170V-080MSRP = 4825.46	8	1	0	100

Tank Adapters, PVC New Style Standard with Neoprene Gaskets
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171-002MSRP = 75.56	1/4	25	150	100
8171-003MSRP = 75.56	3/8	25	200	100
8171-005MSRP = 75.56	1/2	25	0	100
8171-007MSRP = 86.11	3/4	25	0	100

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Standard with Neoprene Gaskets (continued)
Socket x Fipt

8171-010MSRP = 95.66	1	25	100
8171-012MSRP = 115.26	1-1/4	20	100
8171-015MSRP = 126.48	1-1/2	20	100
8171-020MSRP = 187.46	2	15	100
8171-025MSRP = 289.68	2-1/2	4	100
8171-030MSRP = 344.84	3	4	100
8171-040MSRP = 679.27	4	2	100
8171-060MSRP = 1318.52	6	1	100

Tank Adapters, PVC New Style Standard with EPDM Gaskets
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171E-002MSRP = 77.83	1/4	25	150	100
8171E-003MSRP = 77.83	3/8	25	200	100
8171E-005MSRP = 77.83	1/2	25	0	100
8171E-007MSRP = 87.85	3/4	25	0	100
8171E-010MSRP = 105.91	1	25	0	100
8171E-012MSRP = 125.87	1-1/4	20	0	100
8171E-015MSRP = 137.09	1-1/2	20	0	100
8171E-020MSRP = 201.76	2	15	0	100
8171E-025MSRP = 336.24	2-1/2	4	0	100
8171E-030MSRP = 357.69	3	4	0	100
8171E-040MSRP = 696.44	4	2	0	100
8171E-060MSRP = 1365.87	6	1	0	100

Tank Adapters, PVC New Style Standard with FKM Gaskets
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171V-002MSRP = 128.34	1/4	25	150	100
8171V-003MSRP = 128.34	3/8	25	200	100
8171V-005MSRP = 128.34	1/2	25	0	100
8171V-007MSRP = 140.71	3/4	25	0	100
8171V-010MSRP = 168.48	1	25	0	100
8171V-012MSRP = 177.65	1-1/4	20	0	100
8171V-015MSRP = 195.68	1-1/2	20	0	100
8171V-020MSRP = 321.05	2	15	0	100
8171V-025MSRP = 483.98	2-1/2	4	0	100
8171V-030MSRP = 576.14	3	4	0	100
8171V-040MSRP = 1441.25	4	2	0	100
8171V-060MSRP = 2592.21	6	1	0	100

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Socket x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171-002SRMSRP = 78.23	1/4	25	150	100
8171-003SRMSRP = 78.23	3/8	25	200	100

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 30

Schedule 80 PVC Product
Tank Adapters

Print this Book

Tank Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets (continued)
Socket x SR Fipt - Stainless Steel Collar

8171-005SRMSRP = 78.23	1/2	25	100
8171-007SRMSRP = 90.64	3/4	25	100
8171-010SRMSRP = 102.12	1	25	100
8171-012SRMSRP = 125.49	1-1/4	20	100
8171-015SRMSRP = 144.06	1-1/2	20	100
8171-020SRMSRP = 206.44	2	15	100
8171-025SRMSRP = 332.42	2-1/2	4	100
8171-030SRMSRP = 395.69	3	4	100
8171-040SRMSRP = 731.97	4	2	100
8171-060SRMSRP = 1369.87	6	1	100

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with EPDM Gaskets
Socket x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171E-002SRMSRP = 81.04	1/4	25	150	100
8171E-003SRMSRP = 81.04	3/8	25	200	100
8171E-005SRMSRP = 81.04	1/2	25	0	100
8171E-007SRMSRP = 92.39	3/4	25	0	100
8171E-010SRMSRP = 112.32	1	25	0	100
8171E-012SRMSRP = 136.09	1-1/4	20	0	100
8171E-015SRMSRP = 154.66	1-1/2	20	0	100
8171E-020SRMSRP = 220.74	2	15	0	100
8171E-025SRMSRP = 343.19	2-1/2	4	0	100
8171E-030SRMSRP = 408.60	3	4	0	100
8171E-040SRMSRP = 749.18	4	2	0	100
8171E-060SRMSRP = 1416.99	6	1	0	100

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with FKM Gaskets
Socket x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8171V-002SRMSRP = 131.54	1/4	25	150	100
8171V-003SRMSRP = 131.54	3/8	25	200	100
8171V-005SRMSRP = 131.54	1/2	25	0	100
8171V-007SRMSRP = 144.32	3/4	25	0	100
8171V-010SRMSRP = 177.89	1	25	0	100
8171V-012SRMSRP = 199.22	1-1/4	20	0	100
8171V-015SRMSRP = 224.54	1-1/2	20	0	100
8171V-020SRMSRP = 343.88	2	15	0	100
8171V-025SRMSRP = 523.55	2-1/2	4	0	100
8171V-030SRMSRP = 623.19	3	4	0	100
8171V-040SRMSRP = 1497.34	4	2	0	100
8171V-060SRMSRP = 2653.76	6	1	0	100

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Standard with Neoprene Gaskets
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172-002MSRP = 101.47	1/4	25	150	100
8172-003MSRP = 101.47	3/8	25	200	100
8172-005MSRP = 101.47	1/2	25	0	100
8172-007MSRP = 111.24	3/4	25	0	100
8172-010MSRP = 121.67	1	25	0	100
8172-012MSRP = 162.24	1-1/4	20	0	100
8172-015MSRP = 176.82	1-1/2	20	0	100
8172-020MSRP = 232.85	2	15	0	100
8172-025MSRP = 340.83	2-1/2	4	0	100
8172-030MSRP = 405.71	3	4	0	100
8172-040MSRP = 760.24	4	2	0	100
8172-060MSRP = 1521.37	6	1	0	100

Tank Adapters, PVC New Style Standard with EPDM Gaskets
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172E-002MSRP = 104.44	1/4	25	150	100
8172E-003MSRP = 104.44	3/8	25	200	100
8172E-005MSRP = 104.44	1/2	25	0	100
8172E-007MSRP = 113.45	3/4	25	0	100
8172E-010MSRP = 134.74	1	25	0	100
8172E-012MSRP = 177.14	1-1/4	20	0	100
8172E-015MSRP = 191.57	1-1/2	20	0	100
8172E-020MSRP = 250.60	2	15	0	100
8172E-025MSRP = 353.54	2-1/2	4	0	100
8172E-030MSRP = 420.95	3	4	0	100
8172E-040MSRP = 779.60	4	2	0	100
8172E-060MSRP = 1576.01	6	1	0	100

Tank Adapters, PVC New Style Standard with FKM Gaskets
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172V-002MSRP = 156.94	1/4	25	150	100
8172V-003MSRP = 156.94	3/8	25	200	100
8172V-005MSRP = 156.94	1/2	25	0	100
8172V-007MSRP = 167.24	3/4	25	0	100
8172V-010MSRP = 191.04	1	25	0	100
8172V-012MSRP = 216.80	1-1/4	20	0	100
8172V-015MSRP = 247.43	1-1/2	20	0	100
8172V-020MSRP = 366.62	2	15	0	100
8172V-025MSRP = 523.64	2-1/2	4	0	100
8172V-030MSRP = 623.58	3	4	0	100
8172V-040MSRP = 1519.81	4	2	0	100
8172V-060MSRP = 2907.86	6	1	0	100

Page 31

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Tank Adapters

Print this Book

Tank Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Fipt x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172-002SRMSRP = 104.63	1/4	25	150	100
8172-003SRMSRP = 104.63	3/8	25	200	100
8172-005SRMSRP = 104.63	1/2	25	0	100
8172-007SRMSRP = 115.81	3/4	25	0	100
8172-010SRMSRP = 128.12	1	25	0	100
8172-012SRMSRP = 172.51	1-1/4	20	0	100
8172-015SRMSRP = 194.41	1-1/2	20	0	100
8172-020SRMSRP = 251.93	2	15	0	100
8172-025SRMSRP = 383.57	2-1/2	4	0	100
8172-030SRMSRP = 456.62	3	4	0	100
8172-040SRMSRP = 812.93	4	2	0	100
8172-060SRMSRP = 1572.51	6	1	0	100

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with EPDM Gaskets
Fipt x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172E-002SRMSRP = 107.65	1/4	25	150	100
8172E-003SRMSRP = 107.65	3/8	25	200	100
8172E-005SRMSRP = 107.65	1/2	25	0	100
8172E-007SRMSRP = 118.00	3/4	25	0	100
8172E-010SRMSRP = 141.19	1	25	0	100
8172E-012SRMSRP = 187.44	1-1/4	20	0	100
8172E-015SRMSRP = 209.12	1-1/2	20	0	100
8172E-020SRMSRP = 269.67	2	15	0	100
8172E-025SRMSRP = 396.31	2-1/2	4	0	100
8172E-030SRMSRP = 471.77	3	4	0	100
8172E-040SRMSRP = 832.32	4	2	0	100
8172E-060SRMSRP = 1627.03	6	1	0	100

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with FKM Gaskets
Fipt x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172V-002SRMSRP = 160.08	1/4	25	150	100
8172V-003SRMSRP = 160.08	3/8	25	200	100
8172V-005SRMSRP = 160.08	1/2	25	0	100
8172V-007SRMSRP = 171.92	3/4	25	0	100
8172V-010SRMSRP = 197.49	1	25	0	100
8172V-012SRMSRP = 227.03	1-1/4	20	0	100
8172V-015SRMSRP = 265.04	1-1/2	20	0	100
8172V-020SRMSRP = 385.76	2	15	0	100
8172V-025SRMSRP = 566.41	2-1/2	4	0	100
8172V-030SRMSRP = 674.46	3	4	0	100
8172V-040SRMSRP = 1572.51	4	2	0	100

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapters, PVC New Style Special Reinforced (SR) Threaded with FKM Gaskets (continued)
Fipt x SR Fipt - Stainless Steel Collar

8172V-060SRMSRP = 2969.33

100

Tank Adapter, PVC Self Aligning with Neoprene Gasket
Fipt
75 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172SA-010MSRP = 325.22	1	5	100
8172SA-020MSRP = 505.72	2	4	100
8172SA-030MSRP = 765.18	3	2	100

Tank adapter body is larger than size listed. Refer to installation instructions for minimum hole size.

Tank Adapter, PVC Self Aligning with EPDM Gasket
Fipt
75 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172ESA-010MSRP = 342.23	1	5	100
8172ESA-020MSRP = 519.36	2	4	100
8172ESA-030MSRP = 805.72	3	2	100

Tank adapter body is larger than size listed. Refer to installation instructions for minimum hole size.

Tank Adapter, PVC Self Aligning with FKM Gasket
Fipt
75 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8172VSA-010MSRP = 886.81	1	5	100
8172VSA-020MSRP = 1258.95	2	4	100
8172VSA-030MSRP = 1978.19	3	2	100

Tank adapter body is larger than size listed. Refer to installation instructions for minimum hole size.

Tank Adapter, Spigot PVC with EPDM Gasket
Spigot
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

8173E-005MSRP = 77.83	1/2	25	150	100
8173E-007MSRP = 87.85	3/4	25	100	100
8173E-010MSRP = 105.91	1	25	0	100
8173E-015MSRP = 137.09	1-1/2	20	0	100
8173E-020MSRP = 201.76	2	12	0	100

Install with threaded end, gasket and one nut inside tank. Use thread sealant on internal nut.

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 32

Schedule 80 PVC Product
Tank Adapters

Print this Book

Tank Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapter, PVC Old Style with Neoprene Gasket
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

871-005MSRP = 75.56	1/2	25	100
871-007MSRP = 86.11	3/4	25	100
871-010MSRP = 95.66	1	25	100
871-012MSRP = 115.26	1-1/4	20	100
871-015MSRP = 126.48	1-1/2	20	100
871-020MSRP = 187.46	2	15	100
871-030MSRP = 344.84	3	4	100
871-040MSRP = 679.27	4	2	100

Tank Adapter, PVC Old Style with EPDM Gasket
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

871E-005MSRP = 77.83	1/2	25	100
871E-007MSRP = 87.85	3/4	25	100
871E-010MSRP = 105.91	1	25	100
871E-012MSRP = 125.87	1-1/4	20	100
871E-015MSRP = 137.09	1-1/2	20	100
871E-020MSRP = 201.76	2	15	100
871E-030MSRP = 357.69	3	4	100
871E-040MSRP = 696.44	4	2	100

Tank Adapter, PVC Old Style with Neoprene Gasket
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

872-005MSRP = 101.47	1/2	25	100
872-007MSRP = 111.24	3/4	25	100
872-010MSRP = 121.67	1	25	100
872-012MSRP = 162.24	1-1/4	20	100
872-015MSRP = 176.82	1-1/2	20	100
872-020MSRP = 232.85	2	15	100
872-030MSRP = 405.71	3	4	100
872-040MSRP = 760.24	4	2	100

Tank Adapter, PVC Old Style with EPDM Gasket
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

872E-005MSRP = 104.44	1/2	25	100
872E-007MSRP = 113.45	3/4	25	100
872E-010MSRP = 134.74	1	25	100
872E-012MSRP = 177.14	1-1/4	20	100
872E-015MSRP = 191.57	1-1/2	20	100

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapter, PVC Old Style with EPDM Gasket (continued)
Fipt x Fipt

872E-020MSRP = 250.60	2	15	100
872E-030MSRP = 420.95	3	4	100
872E-040MSRP = 779.60	4	2	100

Tank Adapter Gasket Only - Neoprene (Old Style)

2N-005MSRP = 5.61	1/2	10	299
2N-007MSRP = 6.02	3/4	10	299
2N-010MSRP = 6.39	1	10	299
2N-015MSRP = 10.35	1-1/4 OR 1-1/2	10	299
2N-020MSRP = 13.56	2	10	299
2N-030MSRP = 14.78	3	10	299
2N-040MSRP = 40.83	4	10	299

Tank Adapter Gasket Only - EPDM (Old Style)

2E-005MSRP = 6.49	1/2	10	299
2E-007MSRP = 6.73	3/4	10	299
2E-010MSRP = 11.66	1	10	299
2E-015MSRP = 17.54	1-1/4 OR 1-1/2	10	299
2E-020MSRP = 20.09	2	10	299
2E-030MSRP = 30.61	3	10	299
2E-040MSRP = 46.07	4	10	299

Tank Adapter Gasket Only - Neoprene (New Style)

3N-002MSRP = 5.61	1/4	100	299
3N-003MSRP = 5.61	3/8	50	299
3N-005MSRP = 5.61	1/2	10	299
3N-007MSRP = 6.02	3/4	10	299
3N-010MSRP = 6.39	1	10	299
3N-012MSRP = 8.84	1-1/4	10	299
3N-015MSRP = 10.35	1-1/2	10	299
3N-020MSRP = 13.56	2	10	299
3N-025MSRP = 14.14	2-1/2	10	299
3N-030MSRP = 14.78	3	10	299
3N-040MSRP = 40.83	4	50	299
2N-060MSRP = 51.01	6	10	299
3N-080MSRP = 233.94	8	10	299

Tank Adapter Gasket Only - EPDM (New Style)

3E-002MSRP = 3.46	1/4	10	299
3E-003MSRP = 3.97	3/8	10	299
3E-005MSRP = 5.34	1/2	10	299

Page 33

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Tank Adapters & Pipe Flanges

Print this Book

Tank Adapters

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapter Gasket Only - EPDM (New Style) (continued)

3E-007MSRP = 5.64	3/4	10	299
3E-010MSRP = 8.12	1	10	299
3E-012MSRP = 17.07	1-1/4	10	299
3E-015MSRP = 17.54	1-1/2	10	299
3E-020MSRP = 20.09	2	10	299
3E-025MSRP = 28.44	2-1/2	10	299
3E-030MSRP = 30.61	3	10	299
3E-040MSRP = 46.07	4	10	299
2E-060MSRP = 83.19	6	10	299
3E-080MSRP = 219.86	8	10	299

Tank Adapter Gasket Only - FKM (New Style)

3V-002MSRP = 21.23	1/4	10	299
3V-003MSRP = 26.98	3/8	10	299
3V-005MSRP = 34.35	1/2	10	299
3V-007MSRP = 38.07	3/4	10	299
3V-010MSRP = 41.59	1	10	299
3V-012MSRP = 77.83	1-1/4	10	299
3V-015MSRP = 83.55	1-1/2	10	299
3V-020MSRP = 107.64	2	10	299
3V-025MSRP = 131.16	2-1/2	10	299
3V-030MSRP = 236.54	3	10	299
3V-040MSRP = 294.61	4	10	299
2V-060MSRP = 1039.93	6	10	299
3V-080MSRP = 1673.66	8	10	299

Tank Adapter Wrench Sets (New Style)
Body Wrench & Nut Wrench

TAW-002MSRP = 45.25	1/4	1	25	299
TAW-003MSRP = 45.25	3/8	1	25	299
TAW-005MSRP = 45.25	1/2	1	25	299
TAW-007MSRP = 46.14	3/4	1	25	299
TAW-010MSRP = 47.99	1	1	25	299
TAW-012MSRP = 54.14	1-1/4	1	20	299
TAW-015MSRP = 58.71	1-1/2	1	20	299
TAW-020MSRP = 66.88	2	1	10	299
TAW-025MSRP = 73.99	2-1/2	1	10	299
TAW-030MSRP = 81.56	3	1	10	299
TAW-040MSRP = 87.36	4	1	10	299

Tank Adapter Individual Body Wrench (New Style)

TAW1-002MSRP = 25.40	1/4	500	0	299
TAW1-003MSRP = 25.40	3/8	400	0	299

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Tank Adapter Individual Body Wrench (New Style) (continued)

TAW1-005MSRP = 25.40	1/2	250	299
TAW1-007MSRP = 25.88	3/4	220	299
TAW1-010MSRP = 26.95	1	200	299
TAW1-012MSRP = 30.52	1-1/4	300	299
TAW1-015MSRP = 32.87	1-1/2	150	299
TAW1-020MSRP = 35.69	2	100	299
TAW1-025MSRP = 37.29	2-1/2	80	299
TAW1-030MSRP = 46.76	3	74	299
TAW1-040MSRP = 48.11	4	35	299

Tank Adapter Individual Nut Wrench (New Style)

TAW2-002MSRP = 25.40	1/4	300	299
TAW2-003MSRP = 25.40	3/8	250	299
TAW2-005MSRP = 25.40	1/2	200	299
TAW2-007MSRP = 25.88	3/4	160	299
TAW2-010MSRP = 26.95	1	110	299
TAW2-012MSRP = 30.52	1-1/4	200	299
TAW2-015MSRP = 32.87	1-1/2	120	299
TAW2-020MSRP = 35.69	2	100	299
TAW2-025MSRP = 37.29	2-1/2	50	299
TAW2-030MSRP = 46.76	3	40	299
TAW2-040MSRP = 48.11	4	35	299

Pipe Flanges

Flange Van Stone Style -PIP
Flange x PIP Socket
125 psi Maximum Internal Pressure Rating @ 73�F (23�C)

354-060MSRP = 225.15	6X6.140	5	0	080
354-060FMSRP = 279.37	6X6.140	1	4	320
354-080MSRP = 268.74	8X8.160	2	0	080
354-080FMSRP = 422.99	8X8.160	1	2	320
354-100MSRP = 561.60	10X10.200	2	0	081
354-100FMSRP = 594.75	10X10.200	1	2	320
354-120MSRP = 690.00	12X12.240	2	0	081
354-120FMSRP = 861.40	12X12.240	1	2	320
354-150FMSRP = 2296.07	14X15.300	1	0	320
354-151FMSRP = 2619.34	16X15.300	1	0	320
354-181FMSRP = 3979.19	18X18.701	1	0	320
354-182FMSRP = 3979.19	18X18.360	1	0	320
354-200FMSRP = 6061.14	20X20.400	1	0	320
354-201FMSRP = 6061.14	20X22.047	1	0	320
354-241FMSRP = 8876.36	24X24.803	1	0	320

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 34

Schedule 80 PVC Product
Pipe Flanges

Print this Book

Pipe Flanges

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Van Stone Style -PIP (continued)
Flange x PIP Socket

For more information, refer to 80, 100 & 125 psi PIP Fabrication Fittings.

PIP = Plastic Irrigation Pipe (dimensions are NOT the same as IPS dimensions)

Sizes 6" - 16" are furnished with Glass Filled PVC ring.
Sizes 18" - 24" are furnished with steel ring.

Flange One Piece
Socket
1/2" - 16" 150 psi Maximum Internal Pressure Rating @73�F (23�C) 18" - 24" 50 psi Maximum Internal Pressure Rating @73�F (23�C)

851-005MSRP = 66.39	1/2	25	080
851-007MSRP = 70.94	3/4	25	080
851-010MSRP = 78.97	1	15	080
851-012MSRP = 81.36	1-1/4	15	080
851-015MSRP = 83.15	1-1/2	20	080
851-020MSRP = 110.66	2	10	080
851-025MSRP = 170.82	2-1/2	10	080
851-030MSRP = 188.65	3	10	080
851-040MSRP = 238.91	4	5	080
851-050MSRP = 375.59	5	5	080
851-060MSRP = 375.59	6	5	080
851-080MSRP = 672.11	8	2	080
851-100MSRP = 922.48	10	2	081
851-120MSRP = 1210.17	12	2	081
851-140FMSRP = 4079.12	14	1	083
851-160FMSRP = 5598.11	16	1	083
851-180FMSRP = 11842.25	18	1	083
851-200FMSRP = 14501.65	20	1	083
851-240FMSRP = 19259.91	24	1	083

Flange One Piece
Fipt
150 psi Maximum Internal Pressure Rating @73�F (23�C)

852-005MSRP = 79.45	1/2	25	0	080
852-007MSRP = 93.12	3/4	25	0	080
852-010MSRP = 101.92	1	15	0	080
852-012MSRP = 140.55	1-1/4	15	0	080
852-015MSRP = 153.36	1-1/2	20	0	080
852-020MSRP = 156.81	2	10	0	080
852-025MSRP = 360.62	2-1/2	10	0	080
852-030MSRP = 371.14	3	10	0	080
852-040MSRP = 655.55	4	5	0	080
852-060FMSRP = 837.81	6	1	8	083
852-080FMSRP = 2102.60	8	1	2	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange - Special Reinforced One Piece
SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @73�F (23�C)

852-005SRMSRP = 43.65	1/2	25	086
852-007SRMSRP = 51.33	3/4	25	086
852-010SRMSRP = 56.03	1	15	086
852-012SRMSRP = 77.24	1-1/4	15	086
852-015SRMSRP = 84.54	1-1/2	15	086
852-020SRMSRP = 86.60	2	10	086
852-025SRMSRP = 198.32	2-1/2	10	086
852-030SRMSRP = 204.20	3	10	086
852-040SRMSRP = 382.97	4	5	086

Flange - Blind

1/2" - 12" Molded - 150 psi Maximum Internal Pressure Rating @ 73�F (23�C) 14" - 24" Fabricated - 50 psi Maximum Internal Pressure Rating @ 73�F (23�C)

853-005MSRP = 55.83	1/2	25	100	080
853-007MSRP = 66.49	3/4	25	0	080
853-010MSRP = 90.82	1	15	0	080
853-012MSRP = 111.49	1-1/4	20	0	080
853-015MSRP = 111.49	1-1/2	15	0	080
853-020MSRP = 166.60	2	10	0	080
853-025MSRP = 271.39	2-1/2	10	0	080
853-030MSRP = 327.52	3	10	0	080
853-040MSRP = 408.02	4	8	0	080
853-050FMSRP = 794.32	5	1	5	083
853-060MSRP = 495.78	6	5	0	080
853-080MSRP = 620.59	8	5	0	080
853-100MSRP = 1037.73	10	3	0	081
853-120MSRP = 1616.21	12	2	0	081
853-140FMSRP = 3074.69	14	1	0	083
853-160FMSRP = 3645.96	16	1	0	083
853-180FMSRP = 4100.35	18	1	0	083
853-200FMSRP = 6627.60	20	1	0	083
853-240FMSRP = 8835.99	24	1	0	083

Flange Van Stone Style with PVC Ring
Socket
1/2" - 18" molded - 150 psi = maximum internal pressure rating @ 73�F (23�C) 18" - 24" fabricated - 50 psi = maximum internal pressure rating @ 73�F (23�C)

854-005MSRP = 39.77	1/2	25	080
854-007MSRP = 42.55	3/4	25	080
854-010MSRP = 47.36	1	15	080
854-012MSRP = 48.77	1-1/4	15	080

Page 35

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Pipe Flanges

Print this Book

Pipe Flanges

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Van Stone Style with PVC Ring (continued)
Socket

854-015MSRP = 49.77	1-1/2	20	080
854-020MSRP = 66.31	2	10	080
854-025MSRP = 102.41	2-1/2	10	080
854P-030MSRP = 113.17	3	10	080
854P-040MSRP = 143.07	4	5	080
854P-050MSRP = 225.15	5	5	080
854P-060MSRP = 225.15	6	5	080
854P-080MSRP = 406.11	8	2	080
854P-100MSRP = 474.66	10	2	081
854P-120MSRP = 511.80	12	2	081
854P-140MSRP = 1975.76	14	1	082
854P-160MSRP = 2642.66	16	1	082
854P-180MSRP = 4262.25	18	1	082
854-180FPMSRP = 6743.65	18	1	083
854-200FPMSRP = 8248.43	20	1	083
854-240FPMSRP = 11220.63	24	1	083

Flange Van Stone Style with Glass Filled PVC Ring
Socket
3" - 18" molded - 150 psi = maximum internal pressure rating @ 73�F (23�C)

854-030MSRP = 113.17	3	10	080
854-040MSRP = 143.07	4	5	080
854-050MSRP = 225.15	5	5	080
854-060MSRP = 225.15	6	5	080
854-080MSRP = 406.11	8	2	080
854-100MSRP = 474.66	10	2	081
854-120MSRP = 511.80	12	2	081
854-140MSRP = 1975.76	14	1	082
854-160MSRP = 2642.66	16	1	082
854-180MSRP = 4262.25	18	1	082

18" flange has 4-section ring

Flange Van Stone Style Class 300 Bolt Pattern Fabricated with PVC Ring
Socket
1/2" - 16" molded with fab ring - 150 psi = maximum internal pressure rating @ 73�F (23�C) 18" - 24" fabricated - 50 psi = maximum internal pressure rating @ 73�F (23�C)

854-005CL300MSRP = 326.94	1/2	1	25	083
854-007CL300MSRP = 379.92	3/4	1	25	083
854-010CL300MSRP = 596.94	1	15	90	083
854-012CL300MSRP = 609.49	1-1/4	1	15	083
854-015CL300MSRP = 633.15	1-1/2	1	20	083
854-020CL300MSRP = 666.61	2	10	0	083
854-025CL300MSRP = 731.97	2-1/2	1	10	083
854-030CL300MSRP = 803.86	3	1	10	083
854-040CL300MSRP = 1363.04	4	3	0	083

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Van Stone Style Class 300 Bolt Pattern Fabricated with PVC Ring (continued)
Socket

854-060CL300MSRP = 2596.14	6	1	4	083
854-080CL300MSRP = 2777.76	8	1	3	083
854-100CL300MSRP = 3270.25	10	1	2	083
854-120CL300MSRP = 3418.99	12	1	0	083
854-140CL300MSRP = 4914.56	14	1	0	083
854-160CL300MSRP = 5118.00	16	1	0	083
854-180CL300MSRP = 7155.75	18	1	0	083
854-200CL300MSRP = 12406.57	20	1	0	083
854-240CL300MSRP = 18224.17	24	1	0	083

Flange Van Stone Style with PVC Ring
Spigot
1/2" - 16" = 150 psi maximum internal pressure rating @ 73�F (23�C) 18" - 24" = 50 psi maximum internal pressure rating @ 73�F (23�C)

856-005MSRP = 40.02	1/2	25	080
856-007MSRP = 42.87	3/4	25	080
856-010MSRP = 47.77	1	15	080
856-012MSRP = 49.28	1-1/4	15	080
856-015MSRP = 50.25	1-1/2	15	080
856-020MSRP = 66.80	2	10	080
856-025MSRP = 103.24	2-1/2	10	080
856P-030MSRP = 114.04	3	10	080
856P-040MSRP = 144.32	4	5	080
856P-060MSRP = 227.02	6	4	080
856P-080MSRP = 406.11	8	2	080
856P-100MSRP = 474.66	10	2	081
856P-120MSRP = 511.80	12	2	081
856-200FPMSRP = 8248.43	20	1	083
856-240FPMSRP = 11220.63	24	1	083

Flange Van Stone Style with Glass Filled PVC Ring
Spigot
3" - 12" molded, 14" - 18" molded/fabricated - 150 psi = maximum internal pressure rating @ 73�F (23�C)

856-030MSRP = 114.04	3	10	080
856-040MSRP = 144.32	4	5	080
856-060MSRP = 227.02	6	4	080
856-080MSRP = 406.11	8	2	080
856-100MSRP = 474.66	10	2	081
856-120MSRP = 511.80	12	2	081
856-140FPMSRP = 4238.66	14	1	083
856-160FPMSRP = 5142.63	16	1	083
856-180FPMSRP = 6743.65	18	1	083

** Fabricated from molded socket flanges with pipe spigot.
18" flange uses 4-piece ring

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 36

Schedule 80 PVC Product
Pipe Flanges

Print this Book

Pipe Flanges

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Van Stone Style with Steel Ring
Socket
150 psi Maximum Internal Pressure Rating @73�F (23�C)

854-120FSMSRP = 1757.33	12	1	083
854-140FSMSRP = 2147.91	14	1	083
854-160FSMSRP = 2661.46	16	1	083
854-180FSMSRP = 3370.67	18	1	083
854-200FSMSRP = 3980.38	20	1	083
854-240FSMSRP = 5517.61	24	1	083

Flange Van Stone Style with Steel Ring
Spigot
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

856-140FSMSRP = 2020.73	14	1	083
856-160FSMSRP = 2475.45	16	1	083
856-180FSMSRP = 3293.87	18	1	083
856-200FSMSRP = 3869.87	20	1	083
856-240FSMSRP = 5429.41	24	1	083

Flange Van Stone Style PVC with Solid Ring
Socket
150 psi Maximum Internal Pressure Rating @73�F (23�C)

S854-020MSRP = 82.86	2	10	080
S854-030MSRP = 141.49	3	10	080
S854-040MSRP = 178.95	4	5	080

Flange Van Stone Style PVC with Glass Filled PVC Solid Ring
Socket
150 psi Maximum Internal Pressure Rating @73�F (23�C)

S854-060MSRP = 281.48	6	5	080
S854-080MSRP = 458.29	8	2	080
S854-100MSRP = 593.33	10	2	081
S854-120MSRP = 639.68	12	2	081

Flange, One Piece PVC Multi-Bolt Pattern*
ASTM Socket x Multi-bolt Pattern Ring
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

M851-100MSRP = 984.24	10	2	0	081
M851-120MSRP = 1459.20	12	2	0	081

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange, One Piece PVC Multi-Bolt Pattern* (continued)
ASTM Socket x Multi-bolt Pattern Ring

Hubs fit 10" and 12" ASTM IPS pipe. Rings are manufactured to accept bolt patterns in size 10" and 12" in ANSI Class 150, B.S. 4504 PN10, B.S. 4504 PN16, Table E & JIS 10K for size 10", Table D & E for size 12" Consult Spears^� Manufacturing Company Technical Services for additional information. Not for use with wafer valves.

Flange Van Stone Style with Multi-Bolt Pattern PVC Ring*
ASTM Socket x Multi-bolt Pattern Ring
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

M854-020MSRP = 66.31

080

* Hubs fit 2" ASTM IPS pipe. Rings are manufactured to accept bolt patterns in size 2" in ANSI Class 150, B.S. 4504 PN10 B.S. 4504 PN16 (except 8"), B.S. 10 Table D and B.S. 10 Table E. Consult Spears^� Manufacturing Company Technical Services for additional information. Not for use with wafer valves.

Flange Van Stone Style with Multi-Bolt Pattern Glass Filled PVC Ring*
ASTM Socket x Multi-bolt Pattern Ring
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

M854-060MSRP = 225.15	6	5	0	080
M854-080MSRP = 406.11	8	2	0	080

* Hubs fit 6" and 8" ASTM IPS pipe. Rings are manufactured to accept bolt patterns in size 6" and 8" in ANSI Class 150, B.S. 4504 PN10 B.S. 4504 PN16 (except 8"), B.S. 10 Table D and B.S. 10 Table E. Consult Spears^� Manufacturing Company Technical Services for additional information. Not for use with wafer valves.

Flange Van Stone Style with Multi-Bolt Pattern PVC Ring*
ASTM Spigot x Multi-bolt Pattern Ring
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

M856-020MSRP = 66.80

080

* Spigots fit 2" ASTM IPS fitting socket. Rings are manufactured to accept bolt patterns in size 2" in ANSI Class 150, B.S. 4504 NP10 B.S. 4504 NP16 (except 8"), B.S. 10 Table D and B.S. 10 Table E. Consult Spears^� Manufacturing Company Technical Services for additional information. Not for use with wafer valves.

Flange Van Stone Style with Multi-Bolt Pattern Glass Filled PVC Ring*
ASTM Spigot x Multi-bolt Pattern Ring
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

M856-060MSRP = 227.02	6	4	0	080
M856-080MSRP = 406.11	8	2	0	080

* Spigots fit 6" and 8" ASTM IPS fitting socket. Rings are manufactured to accept bolt patterns in size 6" and 8" in ANSI Class 150, B.S. 4504 PN10 B.S. 4504 PN16 (except 8"), B.S. 10 Table D and B.S. 10 Table E. Consult Spears^� Manufacturing Company Technical Services for additional information. Not for use with wafer valves.

Page 37

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Pipe Flanges & Van Stone Style Flange Replacement Split Rings

Print this Book

Pipe Flanges

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Van Stone Style with PVC Ring
Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

855-005MSRP = 47.58	1/2	25	080
855-007MSRP = 55.83	3/4	25	080
855-010MSRP = 61.05	1	15	080
855-012MSRP = 84.14	1-1/4	15	080
855-015MSRP = 91.94	1-1/2	20	080
855-020MSRP = 94.03	2	10	080
855-025MSRP = 216.21	2-1/2	10	080

Flange Van Stone Style with Glass Filled PVC Ring
Fipt
150 psi Maximum Internal Pressure Rating @ 73�F (23�C)

855-030MSRP = 222.41	3	10	0	080
855-040MSRP = 404.35	4	5	0	080
855-060MSRP = 635.91	6	2	0	080
855-060FMSRP = 565.24	6	1	4	083
855-080MSRP = 788.02	8	2	0	080
855-080FMSRP = 701.28	8	1	2	083
855-100FMSRP = 790.08	10	1	2	083
855-120FMSRP = 1095.83	12	1	0	083

Flange Van Stone Style with Table D&E Drilling PVC Ring*
ASTM Socket x Table D&E Drilling
150 psi

854-030DEMSRP = 113.17	3"/80 nom.	10	0	080
854-040DEMSRP = 143.07	4"/110 nom.	5	0	080

* Hubs fit 3�or 4� ASTM IPS Pipe. Rings are manufactured to BS 10 Table D & Table E bolt patterns.

Flange Van Stone Style with PN/10/16 Drilling PVC Ring*
ASTM Socket x DIN PN 10/16 Drilling
150 psi

854-030DINMSRP = 113.17	3"/80 nom.	10	0	080
854-040DINMSRP = 143.07	4"/110 nom.	5	0	080

* Hubs fit 3� or 4� ASTM IPS Pipe. Rings are manufactured to
DIN�8063-4 PN 10 and PN 16 bolt patterns.

Van Stone Style Flange Replacement Split Rings

Application & Use of Van Stone Style Flange Replacement Split Rings

Designed for easy Van Stone style flange ring replacement in the event of system modification, repair, or improper assembly without having to remove existing flange hub. Split rings are made as a direct replacement of existing one-piece rings used on Spears^® brand only of Van Stone style flanges with ANSI Class 150 bolt pattern plastic rings. Remove old ring to be replaced then simply place the split ring sections around hub and install flange bolts (not included) through special designed section overlap to hold in position. Install appropriate user supplied bolts, washers and gasket (see Flange Gasket and Bolt Hardware Kits in this catalog); torque to specifications according to normal flange assembly. Split rings are a set of either 2-pieces or 4-pieces (illustrated) sections depending on size, in regular PVC, Glass Filled PVC, or CPVC for flange type and sizes listed.

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Replacement Split Rings, PVC
For Spears^� flanges with regular PVC Rings

854P-005-1SMSRP = 120.94	1/2	10	080
854P-007-1SMSRP = 128.38	3/4	10	080
854P-010-1SMSRP = 143.60	1	15	080
854P-012-1SMSRP = 146.40	1-1/4	15	080
854P-015-1SMSRP = 150.01	1-1/2	10	080
854P-020-1SMSRP = 199.04	2	10	080
854P-025-1SMSRP = 230.24	2-1/2	10	080
854P-030-1SMSRP = 255.28	3	10	080
854P-040-1SMSRP = 273.69	4	10	080
854P-050-1SMSRP = 370.62	5	5	080
854P-060-1SMSRP = 438.57	6	5	080
854P-080-1SMSRP = 501.06	8	4	080
854P-100-1SMSRP = 632.56	10	4	081
854P-120-1SMSRP = 784.03	12	2	081
854P-140-1SMSRP = 1073.87	14	4	082
854P-160-1SMSRP = 1334.06	16	2	082
854P-180-1SMSRP = 1448.86	18	1	082
854P-200-1SMSRP = 7690.14	20	1	083
854P-240-1SMSRP = 9422.36	24	1	083

Fits 854-xxx Socket, 855-xxx Threaded, and 856-xxx Spigot hub configurations

Flange Replacement Split Rings, Glass Filled PVC
For Spears^� flanges with Glass Filled PVC Rings

854-030-1SMSRP = 255.28

080

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 38

Schedule 80 PVC Product
Van Stone Style Flange Replacement Split Rings & Flange Insulating Joints

Print this Book

Van Stone Style Flange Replacement Split Rings

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Replacement Split Rings, Glass Filled PVC (continued)
For Spears^� flanges with Glass Filled PVC Rings

854-040-1SMSRP = 273.69	4	10	080
854-050-1SMSRP = 370.62	5	5	080
854-060-1SMSRP = 438.57	6	5	080
854-080-1SMSRP = 501.06	8	4	080
854-100-1SMSRP = 632.56	10	4	081
854-120-1SMSRP = 784.03	12	2	081
854-140-1SMSRP = 1073.87	14	2	081
854-160-1SMSRP = 1334.06	16	2	082
854-180-1SMSRP = 1448.86	18	1	082

Fits 854-xxx Socket, 855-xxx Threaded, and 856-xxx Spigot hub configurations

Flange Insulating Joints

Flange Insulating Joints - Class 150 Bolt Pattern
PP Flange Spacer with PVC Bolt Isolators
Size = Nominal Flange Diameter x Thickness (in.) For Dielectric Insulation Between Dissimilar Metal Flanges 300 psi Maximum Internal Pressure Rating @ 73�F (23�C)

IJ-030-010PMSRP = 952.57	3X1	1	016
IJ-040-010PMSRP = 1064.32	4X1	1	016
IJ-060-010PMSRP = 1265.05	6X1	1	016
IJ-080-010PMSRP = 1468.18	8X1	1	016
IJ-100-010PMSRP = 2984.07	10X1	1	016
IJ-120-010PMSRP = 3232.06	12X1	1	016
IJ-140-010PMSRP = 4188.00	14X1	1	016
IJ-160-010PMSRP = 5321.77	16X1	1	016
IJ-180-010PMSRP = 7123.65	18X1	1	016
IJ-200-010PMSRP = 9196.51	20X1	1	016
IJ-240-010PMSRP = 16179.93	24X1	1	016

Flange Insulating Joints - Class 300 Bolt Pattern
PP Flange Spacer with PVC Bolt Isolators
Size = Nominal Flange Diameter x Thickness (in.) For Dielectric Insulation Between Dissimilar Metal Flanges 300 psi Maximum Internal Pressure Rating @ 73�F (23�C)

IJ300-030-010PMSRP = 1403.26	3X1	1	016
IJ300-040-010PMSRP = 1560.76	4X1	1	016
IJ300-060-010PMSRP = 2390.61	6X1	1	016
IJ300-080-010PMSRP = 2982.38	8X1	1	016
IJ300-100-010PMSRP = 4947.62	10X1	1	016
IJ300-120-010PMSRP = 6501.73	12X1	1	016
IJ300-140-010PMSRP = 8190.59	14X1	1	016
IJ300-160-010PMSRP = 8733.80	16X1	1	016
IJ300-180-010PMSRP = 10915.19	18X1	1	016

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Insulating Joints - Class 300 Bolt Pattern (continued)
PP Flange Spacer with PVC Bolt Isolators

IJ300-200-010PMSRP = 12646.18	20X1	1	0	016
IJ300-240-010PMSRP = 15527.25	24X1	1	0	016

Page 39

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Flange Bolt Kits

Print this Book

Flange Bolt Kits

Bolt Kit Selection Guide

Order Gaskets & Bolt Kits Separately

Kit Contains All Bolts, Nuts, & Flat Washers for Specified Flange Size

For Connecting (2) Two Back To Back Spears^® Flanges

Pre-coated, Anti-seize Lubricated Bolts

Available in Zinc Coated Steel, Type 304 Stainless Steel or Type 316 Stainless Steel

Flange Size	Bolts¹ Per Kit	Diameter (in.-TPI)	Length (in.)	Hardware Kit Part Number
Flange Size	Bolts¹ Per Kit	Diameter (in.-TPI)	Length (in.)	Zinc	316 SS	304 SS
1/2	4	1/2-13	2	HK-005	HK1-005	HK2-005
3/4	4	1/2-13	2-1/4	HK-007	HK1-007	HK2-007
1, 1-1/4 & 1-1/2	4	1/2-13	2-1/2	HK-015	HK1-015	HK2-015
2	4	5/8-11	3	HK-020	HK1-020	HK2-020
2-1/2	4	5/8-11	3-1/4	HK-025	HK1-025	HK2-025
3	4	5/8-11	3-1/2	HK-030	HK1-030	HK2-030
4	8	5/8-11	3-1/2	HK-040	HK1-040	HK2-040
5	8	3/4-10	3-1/2	HK-050	HK1-050	HK2-050
6 & 8	8	3/4-10	4-1/2	HK-080	HK1-080	HK2-080
10 & 12	12	7/8-9	5	HK-120	HK1-120	HK2-120
1 - Each Bolt includes Nut & two (2) Flat Washers

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Bolt Hardware Kits - Zinc Plated Steel
For Connection of (2) Two Back to Back Spears^� Van Stone Flanges Includes - Bolts, Nuts & Flat Washers

HK-005MSRP = 20.77	1/2	1	10	017
HK-007MSRP = 25.91	3/4	1	0	017
HK-015MSRP = 38.98	1, 1-1/4 & 1-1/2	1	10	017

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Bolt Hardware Kits - Zinc Plated Steel (continued)
For Connection of (2) Two Back to Back Spears^� Van Stone Flanges Includes - Bolts, Nuts & Flat Washers

HK-020MSRP = 52.18	2	1	10	017
HK-025MSRP = 62.54	2-1/2	1	10	017
HK-030MSRP = 71.99	3	1	10	017
HK-040MSRP = 149.15	4	1	5	017
HK-050MSRP = 165.83	5	1	5	017
HK-080MSRP = 194.36	6 & 8	1	0	017
HK-120MSRP = 262.97	10 & 12	1	0	017

Flange Bolt Hardware Kits - Type 316 Stainless Steel
For Connection of (2) Two Back to Back Spears^� Van Stone Flanges Includes - Bolts, Nuts & Flat Washers

HK1-005MSRP = 62.27	1/2	1	10	017
HK1-007MSRP = 89.65	3/4	1	10	017
HK1-015MSRP = 98.78	1, 1-1/4 & 1-1/2	1	10	017
HK1-020MSRP = 118.80	2	1	10	017
HK1-025MSRP = 127.34	2-1/2	1	10	017
HK1-030MSRP = 168.02	3	1	10	017
HK1-040MSRP = 336.94	4	1	5	017
HK1-050MSRP = 439.49	5	1	10	017
HK1-080MSRP = 551.43	6 & 8	1	0	017
HK1-120MSRP = 1121.89	10 & 12	1	0	017

Flange Bolt Hardware Kits - Type 304 Stainless Steel
For Connection of (2) Two Back to Back Spears^� Van Stone Flanges Includes - Bolts, Nuts, & Flat Washers

HK2-005MSRP = 54.46	1/2	1	10	017
HK2-007MSRP = 77.69	3/4	1	10	017
HK2-015MSRP = 91.51	1, 1-1/4 & 1-1/2	1	10	017
HK2-020MSRP = 107.64	2	1	10	017
HK2-025MSRP = 114.17	2-1/2	1	10	017
HK2-030MSRP = 141.75	3	1	10	017
HK2-040MSRP = 283.49	4	1	5	017
HK2-050MSRP = 298.81	5	1	0	017
HK2-080MSRP = 392.88	6 & 8	1	0	017
HK2-120MSRP = 696.36	10 & 12	1	0	017

Flange Bolt Hardware Kits - Zinc Plated Steel
For Connection of (2) Two Back to Back Spears^� One Piece Flanges Includes- Bolts, Nuts & Flat Washers

HK-005MSRP = 20.77	1/2	1	10	017
HK-007MSRP = 25.91	3/4	1	0	017
HK-015MSRP = 38.98	1, 1-1/4 & 1-1/2	1	10	017
HK-020MSRP = 52.18	2	1	10	017

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 40

Schedule 80 PVC Product
Flange Bolt Kits & Flange Gaskets - Full-Faced

Print this Book

Flange Bolt Kits

Part Number

Size

Std Pk

Mstr
Ctn

Prod
Code

Flange Bolt Hardware Kits - Zinc Plated Steel (continued)
For Connection of (2) Two Back to Back Spears^� One Piece Flanges Includes- Bolts, Nuts & Flat Washers

HK-025MSRP = 62.54	2-1/2	1	10	017
HK-030MSRP = 71.99	3	1	10	017
HK-040MSRP = 149.15	4	1	5	017
HK-050MSRP = 165.83	5	1	5	017
HK-080MSRP = 194.36	6 & 8	1	0	017
HK-120LMSRP = 323.50	10&12	1	4	017

Flange Bolt Hardware Kits - Type 316 Stainless Steel
For Connection of (2) Two Back to Back Spears^® One Piece Flanges Includes - Bolts, Nuts & Flat Washers

HK1-005MSRP = 62.27	1/2	1	10	017
HK1-007MSRP = 89.65	3/4	1	10	017
HK1-015MSRP = 98.78	1, 1-1/4 & 1-1/2	1	10	017
HK1-020MSRP = 118.80	2	1	10	017
HK1-025MSRP = 127.34	2-1/2	1	10	017
HK1-030MSRP = 168.02	3	1	10	017
HK1-040MSRP = 336.94	4	1	5	017
HK1-050MSRP = 439.49	5	1	10	017
HK1-080MSRP = 551.43	6 & 8	1	0	017
HK1-120LMSRP = 1267.94	10&12	1	4	017

Flange Bolt Hardware Kits - Type 304 Stainless Steel
For Connection of (2) Two Back to Back Spears^® One Piece Flanges Includes - Bolts, Nuts, & Flat Washers

HK2-005MSRP = 54.46	1/2	1	10	017
HK2-007MSRP = 77.69	3/4	1	10	017
HK2-015MSRP = 91.51	1, 1-1/4 & 1-1/2	1	10	017
HK2-020MSRP = 107.64	2	1	10	017
HK2-025MSRP = 114.17	2-1/2	1	10	017
HK2-030MSRP = 141.75	3	1	10	017
HK2-040MSRP = 283.49	4	1	5	017
HK2-050MSRP = 298.81	5	1	0	017
HK2-080MSRP = 392.88	6 & 8	1	0	017
HK2-120LMSRP = 819.50	10&12	1	4	017

Flange Gaskets - Full-Faced

Gasket Selection Guide

Flange Size	Bolt Holes	Gasket Part Number
Flange Size	Bolt Holes	Buna-N	EPDM	FKM
1/2	4	GK1-005	GK2-005	GK3-005
3/4	4	GK1-007	GK2-007	GK3-007
1	4	GK1-010	GK2-010	GK3-010
1-1/4	4	GK1-012	GK2-012	GK3-012
1-1/2	4	GK1-015	GK2-015	GK3-015
2	4	GK1-020	GK2-020	GK3-020
2-1/2	4	GK1-025	GK2-025	GK3-025
3	4	GK1-030	GK2-030	GK3-030
4	8	GK1-040	GK2-040	GK3-040
5	8	GK1-050	GK2-050	GK3-050
6	8	GK1-060	GK2-060	GK3-060
8	8	GK1-080	GK2-080	GK3-080
10	12	GK1-100	GK2-100	GK3-100
12	12	GK1-120	GK2-120	GK3-120

Order Gaskets & Bolt Kits Separately

1/8" Full-Face design with ANSI Class 150 Bolt Patterns
Pressure rated to 150 psi @ 73°F
Available in Buna-N, EPDM, or FKM

Flange Gaskets - Full-Faced Buna-N

Part Number	Size	Std Pk	Mstr Ctn	Prod Code
GK1-005MSRP = 6.67	1/2	1	25	017
GK1-007MSRP = 7.62	3/4	1	25	017
GK1-010MSRP = 8.20	1	1	25	017
GK1-012MSRP = 9.04	1-1/4	1	25	017
GK1-015MSRP = 9.36	1-1/2	1	25	017
GK1-020MSRP = 12.94	2	1	25	017
GK1-025MSRP = 16.91	2-1/2	1	25	017
GK1-030MSRP = 20.45	3	1	25	017
GK1-040MSRP = 31.37	4	1	25	017
GK1-050MSRP = 33.23	5	1	25	017
GK1-060MSRP = 33.78	6	1	25	017
GK1-080MSRP = 44.20	8	1	25	017
GK1-100MSRP = 66.15	10	1	25	017
GK1-120MSRP = 98.99	12	1	25	017
GK1-140MSRP = 137.13	14	1	25	017
GK1-160MSRP = 220.53	16	1	25	017
GK1-180MSRP = 325.65	18	1	25	017
GK1-240MSRP = 431.76	24	1	25	017

Page 41

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

Spears^® Manufacturing Company

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Schedule 80 PVC Product
Flange Gaskets - Full-Faced & PVC Flange Cut-in Kit

Print this Book

Flange Gaskets - Full-Faced

Flange Gaskets - Full-Faced EPDM

Part Number	Size	Std Pk	Mstr Ctn	Prod Code
GK2-005MSRP = 8.84	1/2	1	25	017
GK2-007MSRP = 9.40	3/4	1	25	017
GK2-010MSRP = 9.82	1	1	25	017
GK2-012MSRP = 10.32	1-1/4	1	25	017
GK2-015MSRP = 11.07	1-1/2	1	25	017
GK2-020MSRP = 14.12	2	1	25	017
GK2-025MSRP = 18.18	2-1/2	1	25	017
GK2-030MSRP = 22.63	3	1	25	017
GK2-040MSRP = 33.36	4	1	25	017
GK2-050MSRP = 44.93	5	1	25	017
GK2-060MSRP = 45.57	6	1	25	017
GK2-080MSRP = 67.39	8	1	25	017
GK2-100MSRP = 73.86	10	1	25	017
GK2-120MSRP = 102.43	12	1	25	017
GK2-140MSRP = 171.77	14	1	25	017
GK2-160MSRP = 232.44	16	1	25	017
GK2-180MSRP = 350.43	18	1	25	017
GK2-200MSRP = 408.29	20	1	25	017
GK2-240MSRP = 452.12	24	1	25	017

Flange Gaskets - Full-Faced FKM

Part Number	Size	Std Pk	Mstr Ctn	Prod Code
GK3-005MSRP = 31.55	1/2	1	25	017
GK3-007MSRP = 37.44	3/4	1	25	017
GK3-010MSRP = 47.16	1	1	25	017
GK3-012MSRP = 55.91	1-1/4	1	5	017
GK3-015MSRP = 76.18	1-1/2	1	25	017
GK3-020MSRP = 102.18	2	1	25	017
GK3-025MSRP = 160.77	2-1/2	1	25	017
GK3-030MSRP = 172.38	3	1	25	017
GK3-040MSRP = 231.31	4	1	25	017
GK3-050MSRP = 275.08	5	1	25	017
GK3-060MSRP = 337.20	6	1	25	017
GK3-160MSRP = 987.36	16	1	25	017
GK3-180MSRP = 1070.77	18	1	25	017
GK3-080MSRP = 452.88	8	1	25	017
GK3-100MSRP = 538.48	10	1	25	017
GK3-120MSRP = 756.41	12	1	25	017
GK3-140MSRP = 863.87	14	1	25	017
GK3-240MSRP = 1573.67	24	1	10	017

PVC Flange Cut-in Kit

When planned system changes are needed, system downtime can be a major concern. Spears^® Flange Cut-in Kit minimizes downtime for actual cut-in to allow new connection in just minutes. Kit provides all necessary components to create a flanged joint for connection to system alterations in just minutes. Special Flange Hub can be cemented to piping and allowed to cure before shutting down and cutting into system. This allows immediate joining to mating flange (included) that can also be pre-assembled to desired alteration piping.

Kit includes special Split Flange Socket Hub, O-ring Sealed Hub Body, Stainless Steel Clamp, Split Ring, Full-Faced EPDM or FKM Gasket, Mating Flange Hub & Ring, and complete set of Stainless Steel Bolts, Flat Washers and anti-seize Brass Nuts to make the final joint. Available for IPS Pipe Sizes 1-1/2" - 12".

Pressure Rated to 150 psi @ 73°F (22°C)
Maximum Service Temperature
PVC = 140°F (60°C)
CPVC = 200°F (93°C)
Temperature/Pressure De-ratings Apply

Flange Cut-in Kit

Size	EPDM Gasket	FKM Gasket	Std Pk	Mstr Pk	Prod Code
1-1/2	FCKE-015MSRP = 840.08	FCKV-015MSRP = 868.54	1	4	017
2	FCKE-020MSRP = 869.48	FCKV-020MSRP = 917.19	1	4	017
2-1/2	FCKE-025MSRP = 974.65	FCKV-025MSRP = 1035.59	1	0	017
3	FCKE-030MSRP = 1094.00	FCKV-030MSRP = 1156.98	1	0	017
4	FCKE-040MSRP = 1813.88	FCKV-040MSRP = 1904.96	1	0	017
6	FCKE-060MSRP = 2999.04	FCKV-060MSRP = 3574.94	1	0	017
8	FCKE-080MSRP = 3635.01	FCKV-080MSRP = 4381.71	1	0	017
10	FCKE-100MSRP = 6322.11	FCKV-100MSRP = 6776.53	1	0	017
12	FCKE-120MSRP = 7826.14	FCKV-120MSRP = 8061.51	1	0	017

Made in the U.S.A.

Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears^® On-line Catalog @ www.spearsmfg.com for Pricing

Page 42

Spears Super Sourcebook prints best when the margins are set to our specifications and the headers and footers are turned off.

The Spears Product Price Schedules will print on standard 8.5 x 11 paper with the following changes to your browsers page setup.

For Microsoft Internet Explorer Version 8 & 9:

Select File/Page Setup
Set Orientation to Portrait.
Check �Print Background Colors and Images.�
Set the Margins as follows:

Left 0.875
Right 0.875
Top 0.375
Bottom 0.375

Select �-Empty-� in all the Header and Footer dropdown boxes.
Click OK.
