Schedule 80 CPVC Technical
Schedule 80 CPVC Overview
Print this Book
Print this Book

CPVC Performance Engineered and Tested
SPEARS® Schedule 80 CPVC pipe and fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure the very best CPVC piping products available.
1/4" Through 24" Availability

Spears® comprehensive line of CPVC fittings offers a variety of configurations in Schedule 80 sizes 1/4" through 24".

Exceptional Chemical & Corrosion Resistance
Unlike metal, CPVC fittings never rust, scale or pit, and will provide many years of maintenance-free service and extended system life.
Higher Temperature Ratings
High Temperature CPVC Thermoplastics can handle fluids at service temperatures up to 200°F, allowing a wide range of process applications, including hot corrosive liquids.
Higher Flow Capacity
Smooth interior walls result in lower pressure loss and higher volume than conventional metal fittings.
Lower Installation Costs
Substantially lower material costs than steel alloys or lined steel, combined with lighter weight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems.
SPEARS® Schedule 80 14" Through 24" Fittings & Flanges
Schedule 80 CPVC 14" through 24" fittings are a special engineered product by Spears® Manufacturing Company, where no applicable ASTM specifications exist. Available in a variety of injection molded and fabricated configurations including Flanges, Couplings, Elbows, Bushings and Tees, plus custom fabrication to virtually any configuration.
1/8" Through 24" Industrial Pipe Availability
Spears® premium quality Industrial CPVC pipe is offered in Schedule 80 sizes 1/8" through 24". Schedule 40 CPVC pipe is also available.
American Bureau of Shipping (ABS) Type
Approval
Spears® Schedule 40 and Schedule 80 CPVC pipe and fittings are ABS Type Approved for marine and offshore applications in nominal pipe sizes through 12". Type Approval details and restrictions are specified in ABS Certificate # 10-HS539421-1-PDA available on the ABS website at www.eagle.org.
CPVC Sample Engineering Specifications
All CPVC Schedule 80 fittings shall be produced by Spears® Manufacturing Company from CPVC materials, cell classification 23447 conforming to ASTM Standard D 1784. All injection molded fittings through 12" shall be manufactured in compliance to ASTM F 439 and all pipe through 16" shall be manufactured in compliance to ASTM F 441. Pipe and fittings shall be Certified by NSF International for use with potable water service. All 14" through 24" and fabricated fittings shall be produced in accordance with Spears® Specifications. All CPVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 2
Schedule 80 CPVC Technical
Schedule 80 CPVC Overview
Print this Book
Print this Book
The information contained in this publication is based on current information and product design at the time of publication and is subject to change without notification. Our ongoing commitment to product improvement may result in some variation. No representations, guarantees or warranties of any kind are made as to its accuracy, suitability for particular applications or results to be obtained therefrom. For verification of technical data or additional information not contained herein, please contact Spears® Technical Services Department [West Coast: (818) 364-1611 - East Coast: (678) 985-1263].
General Information
Recommendations for Installers and Users

Plastic piping systems should be ENGINEERED, INSTALLED and OPERATED in accordance with ESTABLISHED DESIGN AND ENGINEERING STANDARDS AND PROCEDURES for plastic piping systems. Suitability for the intended service application should be determined by the installer and/or user prior to installation of a plastic piping system. PRIOR TO ASSEMBLY, all piping system components should be inspected for damage or irregularities. Mating components should be checked to assure that tolerances and engagements are compatible. Do not use any components that appear irregular or do not fit properly. Contact the appropriate manufacturer of the component product in question to determine usability. Consult all applicable codes and regulations for compliance prior to installation.
Solvent Weld Connections - Use quality solvent cements and primers formulated for the intended service application, pipe size and type of joint. While the pipe and fitting materials may be compatible with the intended medium, the solvent cement may not be. Consult the manufacturers for suitability of use. Read and follow the cement and primer manufacturers' applications and cure time instructions thoroughly. Be sure to use the correct size applicator.
Threaded Connections - Use a quality grade thread sealant. WARNING: SOME PIPE JOINT COMPOUNDS OR PTFE PASTES MAY CONTAIN SUBSTANCES THAT COULD CAUSE STRESS CRACKING TO PLASTIC. Spears® Manufacturing company recommends the use of Spears® BLUE 75™ Thread Sealant which has been tested for compatibility with Spears® products. Please follow the sealant manufacturers' application/installation instructions. Choice of an appropriate thread sealant other than those listed above is at the discretion of the installer. 1 to 2 turns beyond FINGER TIGHT is generally all that is required to make a sound plastic threaded connection. Unnecessary OVERTIGHTENING will cause DAMAGE TO BOTH PIPE AND FITTING.
Standards and Specifications
Molded Schedule 80 CPVC products are manufactured to ASTM F 439 for use with pipe manufactured to ASTM F 441. Certain products carry reduced pressure handling capability and have maximum internal pressure ratings at 73°F noted.
Schedule 80 CPVC fabricated fittings for use with pipe manufactured to ASTM F 441. See publication FAB-7, General Specifications for Standard Fabricated Fittings for additional information.
All specified Schedule 80 CPVC products are manufactured from materials certified by NSF® for use in potable water service.
"Lead Free" low lead certification - unless otherwise specified, all Spears® Schedule 80 fittings specified here-in are certified by NSF International to ANSI/NSF® Standard 61, Annex G and is in compliance with California's Health & Safety Code Section 116825 (commonly known as AB1953) and Vermont Act 193. Weighted average lead content <=0.25%. Spears® PVC and CPVC Pipe, Fittings and Valves have always been lead-free and Certified by NSF International for use in potable water systems. Spears® offers a wide range of lead-free specialty fittings and transition adapters for plumbing applications. However, certain brass threaded adapter fittings for applications that are not intended to convey water for human consumption through drinking or cooking are still produced and available.
Page 3
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

ASTM STANDARD DIMENSIONS
SCHEDULE 80 PIPE DIMENSIONS
ASTM D 1785
Nominal
Pipe
Size In.		 Mean
Outside
Diameter
In.		 O. D.
Tolerance
In.		 Minimum
Wall
Thickness
In.
1/8 0.405 ± 0.004 0.095
1/4 0.540 ± 0.004 0.119
3/8 0.675 ± 0.004 0.126
1/2 0.840 ± 0.004 0.147
3/4 1.050 ± 0.004 0.154
1 1.315 ± 0.005 0.179
1-1/4 1.660 ± 0.005 0.191
1-1/2 1.900 ± 0.006 0.200
2 2.375 ± 0.006 0.218
2-1/2 2.875 ± 0.007 0.276
3 3.500 ± 0.008 0.300
4 4.500 ± 0.009 0.337
5 5.563 ± 0.010 0.375
6 6.625 ± 0.011 0.432
8 8.625 ± 0.015 0.500
10 10.750 ± 0.015 0.593
12 12.750 ± 0.015 0.687
SCHEDULE 80 SOCKET DIMENSIONS
ASTM D 2467
Nominal

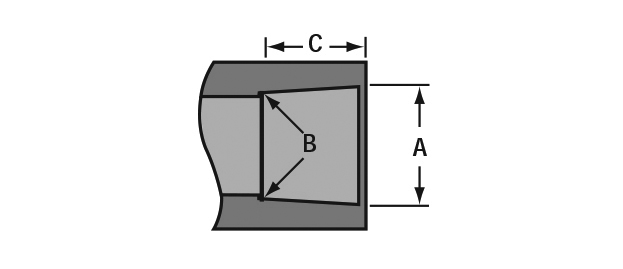

Size In.		 Diameter Socket
Length
Minimum
C
Entrance
A		 Bottom
B		 Tolerance
A
1/8 0.417 0.401 ± 0.004 0.500
1/4 0.552 0.536 ± 0.004 0.625
3/8 0.687 0.671 ± 0.004 0.750
1/2 0.848 0.836 ± 0.004 0.875
3/4 1.058 1.046 ± 0.004 1.000
1 1.325 1.310 ± 0.005 1.125
1-1/4 1.670 1.655 ± 0.005 1.250
1-1/2 1.912 1.894 ± 0.006 1.375
2 2.387 2.369 ± 0.006 1.500
2-1/2 2.889 2.868 ± 0.007 1.750
3 3.516 3.492 ± 0.008 1.875
4 4.518 4.491 ± 0.009 2.250
5 5.583 5.553 ± 0.010 2.625
6 6.647 6.614 ± 0.011 3.000
8 8.655 8.610 ± 0.015 4.000
10 10.780 10.735 ± 0.015 5.000
12 12.780 12.735 ± 0.015 6.000
14 14.030 13.985 ± 0.015 7.000

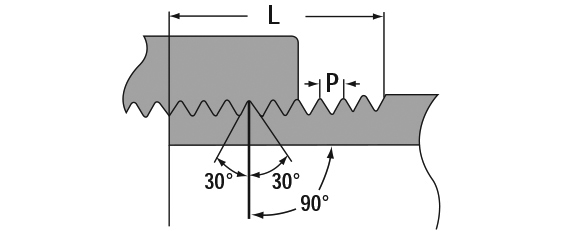

AMERICAN NATIONAL STANDARD
TAPER PIPE THREADS (NPT) ANSI
B1 .20.1 ASTM F 1498
Nominal
Size In.		 Threads
Per
Inch		 Effective
Thread
Length
L		 Pitch Of
Thread
P
1/8 27 0.2639 0.03704
1/4 18 0.4018 0.05556
3/8 18 0.4078 0.05556
1/2 14 0.5337 0.07143
3/4 14 0.5457 0.07143
1 11-1/2 0.6828 0.08696
1-1/4 11-1/2 0.7068 0.08696
1-1/2 11-1/2 0.7235 0.08696
2 11-1/2 0.7565 0.08696
2-1/2 8 1.1375 0.12500
3 8 1.2000 0.12500
4 8 1.3000 0.12500
5 8 1.4063 0.12500
6 8 1.5125 0.12500
8 8 1.7125 0.12500
STANDARD COMPARISONS
SPEARS® IPS-to-Metric transition unions are listed by nominal size. The chart below compares nominal and actual* pipe O.D. for each size according to the designated standard.
JIS K6741
(mm)		 DIN 8062
(mm)		 ASTM D1785
(in.)		 NPT-ANSI B1.20.1**
Tapered Thread		 BSP-BS21,DIN 2999,ISO 7/1
Thread
Nominal Actual* O.D. Actual* Nominal Actual* Designation Threads/in. Designation Threads/25.4mm
16 22 15 20 1/2 .840 1/2 14 1/2 14
20 26 20 25 3/4 1.050 3/4 14 3/4 14
25 32 25 32 1 1.315 1 11.5 1 11
30 38 38 40 1-1/4 1.660 1-1/4 11.5 1-1/4 11
40 48 40 50 1-1/2 1.900 1-1/2 11.5 1-1/2 11
50 60 50 63 2 2.375 2 11.5 2 11
75 89 80 90 3 3.500 3 8 3 11
100 114 100 110 4 4.500 4 8 4 11
*Specified dimension, certain tolerances apply       **NPT and BSP have different thread angles and not compatible.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 4
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

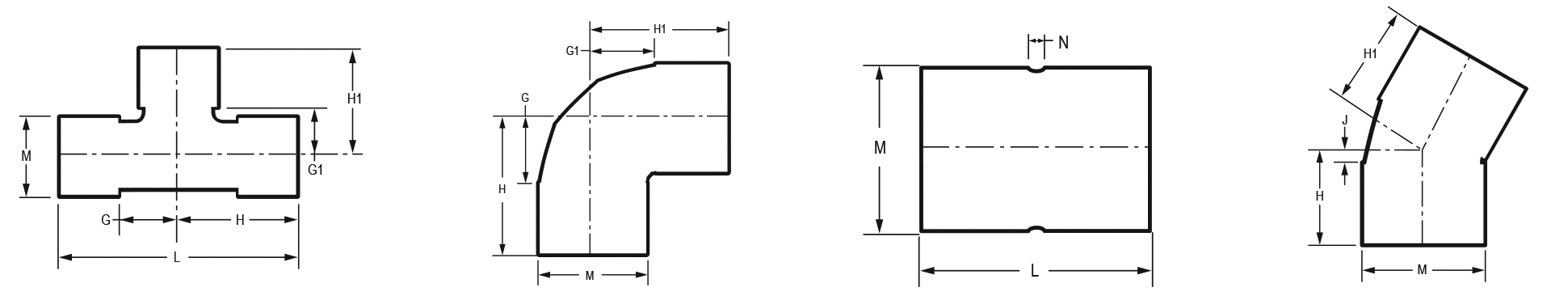

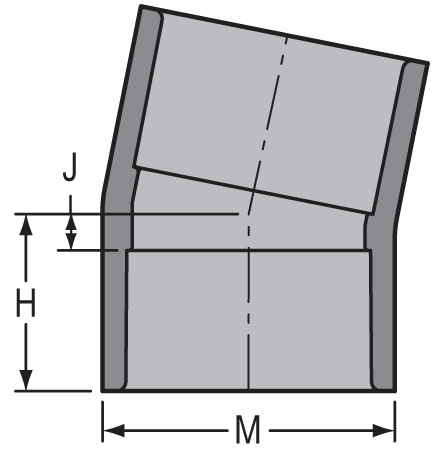

Injection Molded Dimension References:
G = (LAYING LENGTH) Intersection of center lines to bottom of
socket/thread; 90° elbows, tees, crosses; ± 1/32 inch.
H = Intersection of center lines to face of fitting; 90° elbows tees,
crosses; ± 1/32 inch.
J = Intersection of center lines to bottom of socket/thread; 45°
elbows; ± 1/32 inch
Fabricated Dimension References:
G = (LAYING LENGTH) Intersection of center lines to bottom of
socket/thread; 90° elbows, tees, crosses; ± 1/4 inch; 14" &
larger ± 1/2 inch.
H = Intersection of center lines to face of fitting; 90° elbows ± 1/4
inch, 14" & larger ± 3/4 inch; wyes ± 1/2 inch; tees, crosses
± 1/4 inch; 14" larger ± 1/2 inch.
J = Intersection of center lines to bottom of socket/thread; 45°
elbows; ± 1/4 inch; 14" & larger ± 1/2 inch.

L = Overall length of fittings; ± 1/16 inch.
M = Outside diameter of socket/thread hub; ± 1/16 inch.
N = Socket bottom to socket bottom; couplings; ± 1/16 inch.
W = Height of cap; ± 1/16 inch.

L = Overall length of fittings; ± 1/2 inch.; wyes ± 1 inch; 14" & larger ± 1 inch.
M = Outside diameter of socket/thread hub; ± 1/4 inch.
N = Socket bottom to socket bottom; couplings; ± 1/2 inch.
W = Height of cap; ± 1/4 inch.

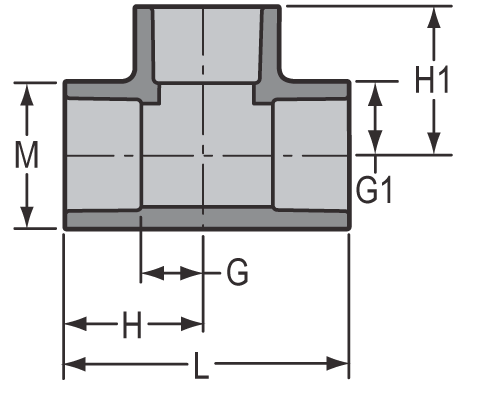

Typical Fabricated Dimension References
Tee
Socket x Socket x Socket
Tee
Part NumberSizeGG1HH1LMApprox. Wt.
(Lbs.)
801-002C1/411/3211/3231/3231/321-31/3227/32 .03
801-003C3/815/3215/321- 1/41- 1/42- 1/231/32 .06
801-005C1/219/3219/321-15/321-15/322-15/161-3/16 .11
801-007C3/411/1611/161-11/161-11/163- 3/81-13/32 .16
801-010C127/3227/322241-23/32 .29
801-012C1-1/41-1/321-1/322-9/322-9/324-9/162-3/32 .39
801-015C1-1/21-3/161-3/162-9/162-9/165-1/82-3/8 .53
801-020C21-7/161-7/162-15/162-15/165-7/82-7/8 .86
801-025C2-1/21-23/321-23/323-1/23-1/27-1/323-1/2 1.68
801-030C32-1/162-1/163-31/323-31/327-15/164-5/32 2.56
801-040C42-15/322-15/324-3/44-3/49-15/325-1/4 3.71
801-050C53- 5/323- 5/325-13/165-13/1611-5/86-13/32 6.20
801-050CF*55-1/25-1/28-1/28-1/2176-5/16 9.85
801-060C64-1/164-1/167-1/87-1/814-1/47-19/32 12.18
801-080C84-7/84-7/88-7/88-7/817-23/329-23/32 21.58
801-080CF*87-5/87-5/811-7/811-7/823-3/49-5/8 26.28
Page 5
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

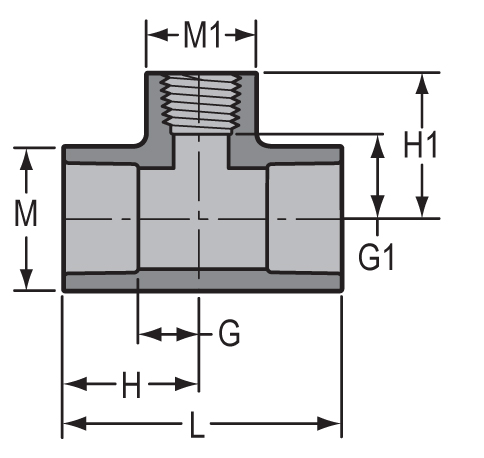

Tee
Socket x Socket x Socket
Tee
(Continued)
Part NumberSizeGG1HH1LMApprox. Wt.
(Lbs.)
801-100C105-29/325-29/3210-29/3210-29/3221-29/3212-3/16 38.18
801-100CF*109914- 1/414- 1/428- 1/211-15/16 43.27
801-120C126-31/326-31/3212-31/3212-31/3225-11/1614-1/4 55.92
801-120CF*1211- 1/411- 1/417- 1/217- 1/23514- 1/8 72.57
801-140C147- 1/167- 1/1614-1/1614-1/1628-1/815-3/8 66.40
801-140CF*1412- 1/412- 1/419- 1/419- 1/438- 1/215- 1/2 102.20
801-160CF*16131321214217-11/16 143.98
801-180CF*1813- 3/413- 3/422- 3/422- 3/445- 1/219- 7/8 187.57
801-200CF*2016- 3/816- 3/826- 3/826- 3/852- 3/422- 1/16 270.59
801-240CF*2420- 1/420- 1/432- 1/432- 1/464- 1/226- 7/16 500.00
* Fabricated

Tee - Reducing
Socket x Socket x Socket
Tee - Reducing
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
801-101C3/4X1/219/3211/1619/321-19/321-9/161-19/323-3/161-13/321-3/161-13/32 .14
801-130C1X1/219/327/819/321-23/321-3/41-23/323-7/161-3/41-3/161-3/4 .20
801-131C1X3/411/1627/3211/161-27/321-27/321-27/323-11/161- 3/41-13/321-3/4 .24
801-157C1-1/4X1X3/411/161-1/1611/161-7/82-1/161-15/163-3/42-3/321-13/321-23/32 .32
801-158C1-1/4X1X17/827/3225/322- 1/81-31/321-15/1642-1/81-3/41-3/4 .32
801-159C1-1/4X1X1-1/415/1615/1615/162-7/322-7/322-3/324- 5/162-3/322-3/321-23/32 .40
801-166C11-1/4X1/25/81-5/165/81-15/162-7/321-15/163-7/82-3/321-13/322-3/32 .28
801-167C1-1/4X3/45/831/325/81-15/161-31/321-15/163- 7/82-3/321-13/322-3/32 .29
801-168C1-1/4X127/321- 1/3227/322- 3/322- 5/322- 3/324- 7/322- 3/321- 3/42- 3/32 .35
801-202C1-1/2X1-1/4X127/321-1/3227/322- 1/42-5/322- 1/44- 1/22-11/321-23/322-1/16 .42
801-209C1-1/2X1/219/321-3/3219/321-31/321-31/321-31/323-15/162- 3/81- 3/162- 3/8 .36
801-210C1-1/2X3/411/161- 1/3211/162- 1/162- 1/322-3/324-3/162-11/321-13/322- 11/32 .40
801-211C1-1/2X127/321- 5/3227/322-1/42- 5/162-1/44-1/22-11/321- 3/42- 11/32 .43
801-212C1-1/2X1-1/41- 3/161-1/321- 3/162- 9/162-9/322- 9/165- 1/82-11/322-3/322-11/32 .57
801-247C2X1/29/161-13/329/162- 3/322- 9/322- 3/324- 3/162-27/321- 5/322-27/32 .45
801-248C2X3/411/161-13/3211/162- 3/162-13/322- 3/164- 3/82-27/321- 3/82- 27/32 .51
801-249C2X127/321- 7/1627/322-11/322- 9/162-11/324-23/322- 7/81- 3/42- 7/8 .57
801-250C2X1-1/41-1/321-11/321-1/322-9/162-19/322-9/165-3/322-27/322-3/322- 27/32 .65
801-251C2X1-1/21-3/161-11/321-3/162-11/162-27/322-11/165- 3/82-7/82-3/82- 7/8 .79
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 6
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

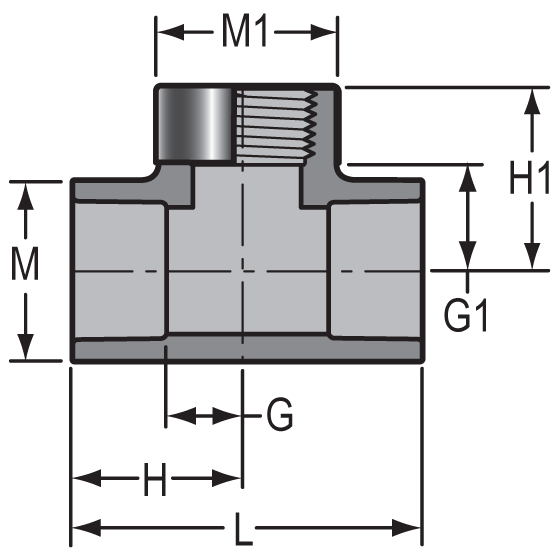

Tee - Reducing
Socket x Socket x Socket
Tee - Reducing
(Continued)
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
801-254C12X2X43-21/322-15/323-21/325- 3/164-3/45- 3/1610-11/325- 1/45- 1/45- 1/4 5.92
801-287C2-1/2X1/219/321-19/3219/322-3/82-15/322-3/84-23/323-1/21-3/163-1/2 .78
801-288C2-1/2X3/421/321-1/221/322-7/162-17/322-7/164-27/323-15/321-13/323-15/32 .83
801-289C2-1/2X17/81-11/167/82-5/82-13/162-5/85-1/43-1/21-23/323-1/2 1.03
801-290C2-1/2X1-1/41-1/321-23/321-1/322-27/322-31/322-27/325-11/163-1/22-3/323-1/2 1.16
801-291C2-1/2X1-1/21-3/161-3/41-3/162-15/163- 1/82-15/165-7/83-1/22-11/323-1/2 1.27
801-292C2-1/2X21-13/321-5/81-13/323-3/163-1/83-3/166-3/83-1/22-7/83-1/2 1.37
801-333C13X1/227/322-7/1627/322-3/43-11/322-3/45-1/24- 3/161-3/44-3/16 1.35
801-334C13X3/411/162-1/1611/162-19/323-3/322-19/325-3/164-3/161-13/324-3/16 1.20
801-335C3X3X127/321-31/3227/322-3/43-1/82-3/45-1/24-3/161-3/44-3/16 1.28
801-336C13X1-1/41-3/82-1/41-3/83-5/163-17/323-5/166-5/84-3/162-7/84-3/16 1.93
801-337C3X3X1-1/21-5/322-1/161-5/323-1/163-7/163-1/166-1/84-3/162-3/84-3/16 1.49
801-338C3X21-7/161-13/161-7/163-5/163-5/163-5/166-5/84-3/162-7/84-3/16 1.73
801-339C3X2-1/21-3/41-15/161-3/43-5/83-11/163-5/87-1/44-3/163-1/24-3/16 2.11
801-415C14X1/27/83-1/87/83-1/84-1/323-1/86-1/45-1/41-3/45-1/4 2.06
801-416C14X3/47/83-1/87/83-1/84-1/83-1/86-1/45-1/41-3/45-1/4 2.02
801-417C4X17/82-5/87/83-1/83-3/43-1/86-1/45-1/41-3/45-1/4 1.99
801-418C14X1-1/41-1/82-13/161-1/83-3/84-7/323-3/86-3/45-1/42-3/85-1/4 2.27
801-419C4X1-1/21-1/82-9/161-1/83-3/83-15/163-3/86-3/45-1/42-3/85-1/4 2.20
801-420C4X21-7/162-7/161-7/163-11/163-15/163-11/167-3/85-1/42-7/85-1/4 2.46
801-421C14X2-1/22-1/82-29/322-1/84-3/854-3/88-3/45-1/44-3/165-1/4 3.48
801-422C4X32-1/82-13/162-1/84-3/84-19/324-3/88-3/45-1/44-3/165-1/4 3.07
801-486C15X23- 5/325-1/163- 5/325-13/166-9/165-13/1611-19/326-13/326-13/326- 13/32 8.66
801-486CF*5X24-5/164-3/44-5/167-5/166-1/27-5/1614-5/86-5/162-13/166-5/16 5.94
801-487CF*5X2-1/244-15/16476-15/167146-5/163-7/166-5/16 6.27
801-488C15X33- 5/324- 5/83- 5/325-13/326- 1/25-13/3211-19/326-13/326-13/326- 13/32 8.42
801-490C15X43- 5/323-29/323- 5/325-13/166- 5/325-13/1611- 5/86-13/326-13/326- 13/32 7.56
801-490CF*5X44-7/86-5/164-7/88-3/88-9/168-3/816-3/46-5/165-3/166-5/16 9.97
801-523C16X1/27/84-3/167/83-7/85-3/323-7/87-3/47-9/161-23/327-9/16 4.50
801-524C16X3/47/83-31/327/83-7/853-7/87-3/47-9/161-23/327- 9/16 4.47
801-525C6X17/83-23/327/83-7/84-27/323-7/87-3/47-9/161-23/327-9/16 4.43
801-526C16X1-1/41-7/164-3/161-7/164-7/165-15/324-7/168-7/87-9/162-7/87-9/16 5.59
801-527C16X1-1/21-7/164-3/321-7/164-7/165-1/24-7/168-7/87-19/322-7/87-19/32 5.54
801-528C6X21-7/163-3/41-7/164-7/165-1/44-7/168-7/87-9/162-7/87-9/16 5.39
801-528CF*6X24-5/85-3/164-5/87-7/86-15/167-7/815-3/47-1/22-13/167-1/2 9.14
801-529C16X2-1/22-1/164-3/162-1/165-5/3265-5/3210-3/167-9/164-3/167-9/16 7.11
801-529CF*6X2-1/24-13/165-3/84-13/168-1/167-3/88-1/1616-1/87-1/23-7/167-1/2 9.25
801-530C16X32-1/163-3/42-1/165-3/325-5/85-3/3210-3/167-9/165-1/47-9/16 6.70
801-530CF*6X34- 3/45- 3/44- 3/4888167- 1/24- 1/87- 1/2 10.00
801-532C6X42-11/163-13/162-11/165-11/166-1/165-11/1611-3/87-9/165-1/47-9/16 7.54
801-575C18X12-5/86-1/22-5/86-5/87-5/86-5/813-1/49-23/325-1/49-23/32 13.58
Page 7
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Tee - Reducing
Socket x Socket x Socket
Tee - Reducing
(Continued)
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
801-575CF*8X14-1/86-1/164-1/88-3/87-5/168-3/816-3/49-5/81-11/169-5/8 13.19
801-576CF*8X1-1/44-1/46-1/164-1/48-1/27-9/168-1/2179-5/82-1/169-5/8 13.83
801-578C18X22-5/862-5/86-5/87-1/26-5/813-1/49-23/325-1/49-23/32 13.47
801-578CF*8X24-11/166- 1/84-11/168-15/167- 7/88-15/1617- 7/89- 5/82-13/169- 5/8 14.64
801-579CF*8X2-1/24- 7/86-5/164- 7/89- 1/88- 5/169- 1/818- 1/49- 5/83- 7/169- 5/8 14.84
801-580C18X32-5/85-21/322-5/86-5/87-17/326-5/813-1/49-23/325-1/49-23/32 13.23
801-580CF*8X35- 3/166-11/165- 3/169- 7/168-15/169- 7/1618- 7/89- 5/84- 1/89-5/8 15.44
801-582C18X42-5/84-7/82-5/86-5/87-1/86-5/813-1/49-23/325-1/49-23/32 12.37
801-582CF*8X45- 3/47-11/165- 3/4109-15/1610209- 5/85- 3/169- 5/8 17.51
801-585C8X63-7/84-15/163-7/87-29/3287-29/3215-13/169-23/327-9/169-23/32 15.60
801-618CF*10X14-1/27-1/164-1/29-3/48-5/169-3/419-1/211-15/161-11/1611-15/16 23.76
801-619CF*10X1-1/44-1/474-1/49-1/28-9/169-1/21911-15/162-1/1611-15/16 23.03
801-621CF*10X24- 3/87- 1/84- 3/89- 5/88- 7/89- 5/819- 1/411-15/162-13/1611-15/16 23.87
801-622CF*10X2-1/25- 1/47- 5/165- 1/410- 1/29- 5/1610- 1/22111-15/163- 7/1611- 15/16 25.70
801-623C110X33-25/327-1/23-25/329-3/89-3/89-3/818-3/412-1/167-9/1612-1/16 28.57
801-623CF*10X34- 7/87-11/164- 7/810- 1/89-15/1610- 1/820- 1/411-15/164- 1/811-15/16 23.85
801-624C110X43-25/327-1/83-25/329-3/89-3/89-3/818-3/412-1/167-9/1612-1/16 28.40
801-624CF*10X45- 3/88-11/165- 3/810- 5/810-15/1610- 5/821- 1/411-15/165- 3/1611-15/16 26.65
801-626C10X63-7/85-13/163-7/89-3/88-27/329-3/818-3/412-1/167-9/1612-1/16 25.50
801-626CF*10X65- 7/89- 1/165- 7/811- 1/812- 5/1611- 1/822- 1/411-15/167- 1/211- 15/16 30.18
801-628C110X85-27/327-7/325-27/3210-29/3211-7/3210-29/3221-13/1612-1/812-1/812-1/8 49.65
801-628CF*10X88- 1/49-15/168- 1/413- 1/214- 3/1613- 1/22711-15/169- 5/811- 15/16 38.10
801-661CF*12X24- 3/484- 3/4119- 3/4112214- 1/82-13/1614- 1/8 37.00
801-663CF*12X35- 1/48- 9/165- 1/411- 1/210-13/1611- 1/22314- 1/84- 1/814- 1/8 37.44
801-664C112X44-7/89-3/84-7/811-15/3211-5/811-15/3222-29/3214-1/49-3/414-1/4 50.14
801-664CF*12X45- 3/49- 9/165- 3/41211-13/16122414- 1/85- 3/1614- 1/8 42.27
801-666CF*12X67- 1/49-15/167- 1/413- 1/413- 3/1613- 1/426- 1/214- 1/87- 1/214- 1/8 47.04
801-668C12X84-7/87-1/84-7/811-15/3211-5/3211-15/3222-29/3214-1/49-3/414-1/4 44.00
801-668CF*12X8810-13/16814- 1/415- 1/1614- 1/428- 1/214- 1/89- 5/814- 1/8 52.66
801-670CF*12X1010-1/410-13/1610-1/416-1/216- 1/1616-1/23314- 1/811-15/1614- 1/8 62.18
801-691CF*14X25- 3/168- 9/165- 3/1612- 3/1610- 5/1612- 3/1624- 3/815- 1/22-13/1615-1/2 49.11
801-692CF*14X2-1/25- 7/168- 3/45- 7/1612- 7/1610- 3/412- 7/1624- 7/815- 1/23- 7/1615- 1/2 55.06
801-693CF*14X35- 3/49- 1/85- 3/412- 3/411- 3/812- 3/425- 1/215- 1/24- 1/815-1/2 52.55
801-694CF*14X46- 1/210- 1/86- 1/213- 1/212- 3/813- 1/22715- 1/25- 3/1615- 1/2 54.07
801-696CF*14X68- 1/410- 1/28- 1/415- 1/413- 3/415- 1/430- 1/215- 1/27- 1/215 -1/2 64.29
801-698CF*14X89- 1/411- 3/89- 1/416- 1/415- 5/816- 1/432- 1/215- 1/29- 5/815- 1/2 71.38
801-700CF*14X1010- 1/811- 3/810- 1/817- 1/816- 5/817- 1/834- 1/415- 1/211-15/1615- 1/2 80.46
801-702C14X127-1/327-13/327-1/3214-1/3213-13/3214-1/3228-1/1615-21/3214-9/3215- 21/32 65.48
801-702CF*14X121111- 3/8111817- 5/8183615- 1/214- 1/815- 1/2 88.28
801-751CF*16X25- 7/89- 1/25- 7/813- 7/811- 1/413- 7/827- 3/417-11/162-13/1617- 11/16 72.48
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 8
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Tee - Reducing
Socket x Socket x Socket
Tee - Reducing
(Continued)
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
801-752CF*16X2-1/269-11/1661411-11/16142817-11/163- 7/1617- 11/16 65.12
801-753CF*16X36- 5/1610- 1/166- 5/1614- 5/1612- 5/1614- 5/1628- 5/817-11/164- 1/817- 11/16 76.03
801-754CF*16X46- 1/811- 1/166- 1/814- 1/813- 5/1614- 1/828- 1/417-11/165- 3/1617- 11/16 79.03
801-756CF*16X68- 5/811- 7/168- 5/816- 5/814-11/1616- 5/833- 1/417-11/167- 1/217- 11/16 89.59
801-758CF*16X89- 5/812- 5/169- 5/817- 5/816- 9/1617- 5/835- 1/417-11/169- 5/817- 11/16 98.00
801-760CF*16X1010- 5/812- 5/1610- 5/818- 5/817- 9/1618- 5/837- 1/417-11/1611-15/1617- 11/16 103.61
801-762CF*16X1211- 5/812- 5/1611- 5/819- 5/818- 9/1619- 5/839- 1/417-11/1614- 1/817- 11/16 115.74
801-764CF*16X1412- 3/412-11/1612- 3/420- 3/419-11/1620- 3/441- 1/217-11/1615- 1/217- 11/16 127.09
801-783CF*18X36-3/810-15/166-3/815-3/813-3/1615-3/830-3/419-7/84-1/819-7/8 101.41
801-784CF*18X46- 7/811-15/166- 7/815- 7/814- 3/1615- 7/831- 3/419- 7/85- 3/1619- 7/8 105.12
801-786CF*18X68- 1/212- 5/168- 1/217- 1/215- 9/1617- 1/23519- 7/87- 1/219- 7/8 116.61
801-788CF*18X89- 1/213- 3/169- 1/218- 1/217- 7/1618- 1/23719- 7/89- 5/819- 7/8 127.49
801-790CF*18X1010- 1/213- 3/1610- 1/219- 1/218- 7/1619- 1/23919- 7/811-15/1619- 7/8 138.58
801-792CF*18X1211- 1/213- 3/1611- 1/220- 1/219- 7/1620- 1/24119- 7/814- 1/819- 7/8 159.38
801-794CF*18X1412- 3/413- 9/1612- 3/421- 3/420- 9/1621- 3/443- 1/219-7/815- 1/219-7/8 154.48
801-796CF*18X1613- 1/214- 3/1613- 1/222- 1/222- 3/1622- 1/24519-7/817-11/1619-7/8 172.46
801-814CF*20X47-11/1612- 7/87-11/1617-11/1615- 1/817-11/1635- 3/822- 1/165- 3/1622-1/16 144.71
801-816CF*20X68- 7/813- 1/48- 7/818- 7/816- 1/218- 7/837- 3/422- 1/167- 1/222-1/16 161.20
801-818CF*20X89- 7/814- 1/89- 7/819- 7/818- 3/819- 7/839- 3/422- 1/169- 5/822- 1/16 172.69
801-820CF*20X1010- 7/814- 1/810- 7/820- 7/819- 3/820- 7/841- 3/422- 1/1611-15/1622- 1/16 163.27
801-822CF*20X1211- 7/814- 1/811- 7/821- 7/820- 3/821- 7/843- 3/422- 1/1614- 1/822- 1/16 199.57
801-824CF*20X1412- 7/814- 1/212- 7/822- 7/821- 1/222- 7/845- 3/422- 1/1615- 1/222-1/16 190.94
801-826CF*20X161415- 1/8142423- 1/8244822- 1/1617-11/1622- 1/16 210.27
801-828CF*20X181515152524255022- 1/1619- 7/822- 1/16 226.80
801-904CF*24X4914-11/1692116-15/16214226- 7/165- 3/1626- 7/16 250.81
801-906CF*24X69- 1/415- 1/169- 1/421- 1/418- 5/1621- 1/442- 1/226- 7/167- 1/226- 7/16 253.45
801-908CF*24X810- 1/415-15/1610- 1/422- 1/420- 3/1622- 1/444- 1/226- 7/169- 5/826- 7/16 247.99
801-910CF*24X1011- 1/415-15/1611- 1/423- 1/421- 3/1623- 1/446- 1/226- 7/1611-15/1626- 7/16 255.59
801-912CF*24X1212- 1/415-15/1612- 1/424- 1/422- 3/1624- 1/448- 1/226- 7/1614- 1/826- 7/16 301.36
801-914CF*24X1413- 1/416- 5/1613- 1/425- 1/423- 5/1625- 1/450- 1/226-7/1615- 1/226-7/16 282.42
801-916CF*24X1614- 3/416-15/1614- 3/426- 3/424-15/1626- 3/453- 1/226- 7/1617-11/1626- 7/16 306.68
801-918CF*24X1815- 3/416-13/1615- 3/427- 3/425-13/1627- 3/455- 1/226- 7/1619- 7/826- 7/16 246.78
801-920CF*24X2016- 3/418- 3/1616- 3/428- 3/428- 3/1628- 3/457- 1/226- 7/1622- 1/1626- 7/16 351.59
1 Sized with Bushing

* Fabricated

Page 9
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Tee
Socket x Socket x Fipt
Tee
Part NumberSizeGG1HH1LMApprox. Wt.
(Lbs.)
802-002C1/45/163/815/1615/161-29/327/8 .05
802-005C1/29/1621/321-15/321-11/322-15/161-7/32 .12
802-007C3/419/3221/321-19/321-3/83- 3/161-3/8 .14
802-010C15/83/41-25/321- 5/83-19/321-3/4 .23
802-012C1-1/413/1612- 3/321-31/324-3/162- 3/32 .35
802-015C1-1/21-5/161-7/322-11/322- 5/324-11/162-11/32 .51
802-020C21-5/161-7/162-13/162-7/165-21/322-27/32 .80
802-025C2-1/22-9/322-25/324-11/324-3/88-11/164-3/16 3.88
802-030C31-31/322- 1/83- 3/43-17/327-15/324-1/4 2.35
802-040C42-1/22-21/324- 5/84- 5/329- 7/325- 9/32 3.49
802-060CF*64-1/897-1/810-1/214-1/47-5/8 15.08
802-080CF*84-13/1610-13/168-13/1612-9/1617-11/169-11/16 28.31
* Fabricated

Tee - Reducing
Socket x Socket x Fipt
Tee - Reducing
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-101C3/4X1/219/3223/321-19/321-7/163-7/321-13/321-3/16 .14
802-130C1X1/27/1629/321- 9/161- 5/83- 1/81-23/321-3/16 .19
802-131C1X3/421/3213/161-13/161-17/323- 5/81-23/321- 3/8 .24
802-166C1-1/4X1/27/161- 1/81-11/161-27/323- 3/82- 3/321- 3/16 .26
802-167C11-1/4X3/427/321-23/322- 1/82- 7/164- 7/322- 3/321- 3/4 .41
802-168C1-1/4X127/321- 1/322- 3/321-29/324- 7/322- 3/321-11/16 .34
802-209C11-1/2X1/21/21-1/41-7/81-31/323-3/42-11/321-3/16 .33
802-210C11-1/2X3/427/321-13/162- 1/42-9/164- 1/22-11/321-3/16 .49
802-211C11-1/2X127/321-7/322- 1/42- 3/324-15/322-11/321-11/16 .66
802-212C1-1/2X1-1/41- 1/321- 5/322- 7/162- 3/324-7/82- 3/82- 1/16 .48
802-247C2X1/21/21-17/3222- 7/3242-27/321- 3/16 .47
802-248C2X3/45/81- 3/82- 1/82-1/84- 1/42- 7/81- 3/8 .48
802-249C2X127/321-13/322-11/322-5/164-11/162- 7/81-11/16 .56
802-250C12X1-1/41-3/162-1/82-11/163-1/85-3/82-7/82-13/32 .90
802-251C12X1-1/21- 7/162-3/82-15/163-1/85- 7/82- 7/82- 7/8 1.06
802-287C2-1/2X1/217/321-3/42- 5/162-1/24-5/83- 1/21- 3/16 .78
802-288C12-1/2X3/427/322-7/162-5/83- 5/325-1/43-1/21-23/32 1.09
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 10
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Tee - Reducing
Socket x Socket x Fipt
Tee - Reducing
(Continued)
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-289C12-1/2X11-1/322-11/322-27/323- 1/45-11/163- 1/22-3/32 1.25
802-290C12-1/2X1-1/41- 3/162-7/162-31/323-7/165-15/163-9/162- 3/8 1.37
802-291C12-1/2X1-1/21- 7/162-9/163- 3/163-5/166- 3/83- 1/22- 7/8 1.57
802-292C12-1/2X21- 3/42-27/323- 1/23-27/3273-15/323-15/32 1.95
802-333C13X1/27/82-19/322- 3/43-11/325- 1/24-3/161-3/4 1.34
802-334C13X3/47/82-21/322- 3/43-13/325- 1/24- 3/161- 3/4 1.34
802-335C13X11- 3/162-29/323- 1/163-13/166- 1/84-3/162-3/8 1.65
802-336C13X1-1/41-5/322-23/323-1/323-21/326-1/164-3/162-3/8 1.59
802-337C13X1-1/21- 7/162-3/43- 5/163-3/46- 5/84-3/162-7/8 1.93
802-338C13X22- 3/323-11/323-31/324-5/167-15/164-3/164-3/16 3.14
802-339C13X2-1/22- 3/3233-31/324-1/27-15/164-3/164-3/16 3.07
802-415C14X1/27/83-5/163-1/84-11/326-1/45- 1/41-3/4 2.05
802-416C14X3/47/83-9/323-1/84-1/326-1/45- 1/41-3/4 2.05
802-417C14X11-1/83-3/83-3/84-9/326-3/45- 1/42-11/32 2.36
802-418C14X1-1/41-1/83-3/163-3/84-1/86-3/45-1/42-3/8 2.30
802-419C14X1-1/21-7/163-3/83-11/164-11/327- 3/85- 1/42- 7/8 2.66
802-420C14X22- 1/84-1/164- 3/85- 1/328-25/325- 1/44- 3/16 3.64
802-421C14X2-1/22- 1/83-1/24- 3/858-25/325- 1/44- 3/16 3.57
802-422C14X32-1/23-9/164-3/45-3/169-1/25- 1/45- 1/4 4.56
802-525C16X11-13/324-3/44-7/165-11/168-7/87-9/162-7/8 5.66
802-526C16X1-1/41-7/164-17/324-17/325-15/328-7/87-9/162-7/8 5.64
802-527C16X1-1/21-7/164-17/324-7/165-15/328-7/87-9/162-7/8 5.59
802-528C16X22-1/164-3/325-3/325-3/3210-3/167-9/164-3/16 7.28
802-529C16X2-1/22- 1/164-21/325- 3/326- 3/1610- 5/327-19/324- 1/4 7.21
802-530C16X32-11/164-15/165-23/326-15/3211-7/167-9/325- 1/4 8.39
802-623C110X33-25/327-31/329-3/89-3/818-3/412-1/167-9/16 28.64
802-532C16X43-25/325-13/166-13/167-5/1613-5/87-9/167-9/16 15.46
802-624C110X43-25/327-7/89-3/89-3/818-3/412-1/167-9/16 28.77
802-661C112X24-7/811-1/1611-15/3212-1/1622-15/1614-1/49-3/4 52.61
802-663C112X34-7/810-5/811-15/3212-1/1622-15/1614-1/49-3/4 52.50
802-664C112X44-7/810-9/1611-15/3212-1/1622-15/1614-1/49-3/4 52.63
802-578C18X22-5/86-1/26-5/87-1/213-1/49-23/325-1/4 13.57
802-582C18X43-7/877-29/328-1/215-13/169-23/327-9/16 18.87
802-580C18X32-5/85-7/86-5/87-1/213-1/49-23/325-1/4 13.22
802-621C110X23-25/328-3/89-3/89-3/818-3/412-1/167-9/16 28.75
1 Sized with Bushing

Page 11
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Tee - Special Reinforced
Socket x Socket x SR Fipt - Stainless Steel Collar
Tee - Special Reinforced
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-005CSR1/29/1621/321-15/321- 3/82-15/161- 7/321-3/16 .13
802-007CSR3/419/3221/321-19/321-3/83- 3/161-3/81-3/8 .15
802-010CSR121/3211/161-13/161- 5/83- 5/81-23/321-23/32 .34
802-012CSR1-1/413/1612- 3/321-31/324- 3/162- 3/322- 1/16 .38
802-015CSR1-1/21-5/161- 7/322-11/322- 5/324-11/162-11/322- 7/16 .52
802-020CSR21- 5/161-7/162-13/162-7/165-21/322-27/323- 1/32 .83
802-030CSR31-27/322-5/323-23/323-9/167-15/324- 9/324-1/4 2.43
802-040CSR42-1/22-21/324- 5/84- 5/329- 7/325- 1/45- 1/4 3.55

Tee - Special Reinforced Reducing
Socket x Socket x SR Fipt - Stainless Steel Collar
Tee - Special Reinforced Reducing
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-072CSR1/2X1/47/1611/161- 5/161- 7/322- 5/81- 5/3227/32 .09
802-098CSR3/4X1/47/1613/161- 7/161-11/322- 7/81- 3/827/32 .12
802-101CSR3/4X1/219/3223/321-19/321-15/323- 7/321-13/321- 3/16 .15
802-128CSR11X1/47/82-11/1623-1/441-3/427/32 .38
802-130CSR1X1/27/1629/321- 9/161- 5/83- 1/81-23/321- 3/16 .20
802-131CSR1X3/421/3213/161-13/161-9/163-19/321-23/321- 3/8 .22
802-164CSR11-1/4X1/427/322-13/162- 1/83-13/324- 7/322- 3/3227/32 .44
802-166CSR1-1/4X1/27/161- 1/81-11/161-27/323-13/322- 3/321- 3/16 .26
802-168CSR1-1/4X127/3212-1/81-29/324-1/42- 3/321-11/16 .36
802-207CSR11-1/2X1/427/321-31/322- 1/42-9/164-1/22-11/321- 3/4 .51
802-211CSR1-1/2X127/321- 7/322- 1/42- 1/84-15/322- 3/81-11/16 .43
802-212CSR1-1/2X1-1/41- 1/321- 5/322- 7/162- 3/324-7/82- 3/82- 1/16 .51
802-247CSR2X1/21/21-17/3222- 1/442-27/321- 3/16 .48
802-248CSR2X3/419/321-13/322- 1/82- 1/84- 1/42- 7/81- 3/8 .50
802-287CSR2-1/2X1/217/321-3/42- 5/162- 1/24-5/83- 1/21-3/16 .79
802-331CSR13X1/47/83-3/42-3/44-11/325-1/24-7/3227/32 1.37
802-413CSR14X1/427/324-13/323-1/856-1/45- 1/427/32 2.07
1 Sized with Bushing

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 12
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Tee - Brass Transition
Socket x Socket x Fipt With Brass Thread Insert
Tee - Brass Transition
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-005CBR1/27/831/321- 7/161-17/322- 5/81- 5/321- 7/32 .16
802-007CBR3/417/321- 5/321-17/321-13/163- 1/161-13/321- 3/8 .22
Not intended to convey or dispense water for human consumption through drinking or cooking

Tee - Brass Transition Reducing
Socket x Socket x Fipt With Brass Thread Insert
Tee - Brass Transition Reducing
Part NumberSizeGG1HH1LMM1Approx. Wt.
(Lbs.)
802-101CBR3/4X1/27/161- 1/321- 7/161- 5/82-29/321-13/321- 3/16 .19
Not intended to convey or dispense water for human consumption through drinking or cooking

Tee - Reducing
Socket x Fipt x Socket
Tee - Reducing
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
803-095C3/4X1/2X3/411/1611/1611/161-11/161-11/161-13/323- 3/321-13/321-13/321-3/16 .15

Page 13
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Tee - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar x Socket
Tee - Special Reinforced Reducing
Part NumberSizeGG1G2HH1H2LMM1M2Approx. Wt.
(Lbs.)
803-095CSR3/4X1/2X3/411/1611/1611/161-11/161-11/161-13/323- 1/81-13/321-13/321-7/32 .16

Tee
Fipt x Fipt x Fipt
Tee
Part NumberSizeGHLMApprox. Wt.
(Lbs.)
805-002C1/41/21- 3/322- 3/1627/32 .05
805-003C3/89/161- 5/322- 5/1615/16 .07
805-005C1/217/321- 1/42-15/321- 3/16 .11
805-007C3/421/321-15/322-15/161- 1/2 .20
805-010C17/81-23/323-7/161-27/32 .28
805-012C1-1/415/161-31/323-29/322- 1/4 .55
805-015C1-1/21-3/82- 3/164- 3/82-7/16 .62
805-020C21- 5/82- 5/85- 1/43 1.15
805-025C2-1/21-19/323- 1/86-9/323-9/16 1.76
805-030C31-15/163- 9/167- 3/324-11/32 2.92
805-040C42-15/324-3/168-3/85-13/32 4.35
805-060CF1*6910-1/220-15/167-3/16 21.55
805-080CF1*810-7/812-5/825-5/169-5/16 41.95
1 Sized with Bushing
* Fabricated

Tee - Special Reinforced
SR Fipt x SR Fipt x SR Fipt - Stainless Steel Collar
Tee - Special Reinforced
Part NumberSizeGHLMApprox. Wt.
(Lbs.)
805-002CSR1/417/321- 1/82- 1/427/32 .06
805-003CSR3/89/161- 3/162-11/3231/32 .08
805-005CSR1/217/321- 1/42- 1/21- 3/16 .14
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 14
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Tee - Special Reinforced
SR Fipt x SR Fipt x SR Fipt - Stainless Steel Collar
Tee - Special Reinforced
(Continued)
Part NumberSizeGHLMApprox. Wt.
(Lbs.)
805-007CSR3/419/321-11/322-11/161- 3/8 .16
805-010CSR17/81-25/323- 9/161-11/16 .33
805-015CSR1-1/21-1/42-7/324-7/162-13/32 .70
805-020CSR21-21/322-21/325-5/163 1.26

Tee - Street
Spigot x Socket x Socket
Tee - Street
Part NumberSizeGG1G2HH1H2LM1Approx. Wt.
(Lbs.)
844-005C1/225/3219/3219/321-11/161-15/321-15/323- 5/321- 3/16 .10
844-007C3/415/1611/1611/161-15/161-11/161-11/163- 5/81-13/32 .16
844-010C11- 3/327/87/82- 7/32224- 7/321- 3/4 .26
844-012C1-1/41-5/161-1/321-1/322-9/162-9/322-9/324-27/322-1/8 .41
844-015C1-1/21-7/161-3/161-3/162-13/162- 9/162- 9/165-3/82-3/8 .54
844-020C21-23/321- 7/161-7/163- 1/42-15/162-15/166-3/162- 7/8 .83

90° Ell
Socket x Socket
90° Ell
Part NumberSizeGHMApprox. Wt.
(Lbs.)
806-002C1/413/321-1/3213/16 .03
806-003C3/815/321-7/3231/32 .04
806-005C1/29/161-15/321- 3/16 .08
806-007C3/411/161-11/161-13/32 .12
806-010C17/821- 3/4 .20
806-012C1-1/41-1/322- 9/322-3/32 .31
806-015C1-1/21- 5/322- 9/162-11/32 .41
806-020C21-13/322-15/162- 7/8 .62
Page 15
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

90° Ell
Socket x Socket
90° Ell
(Continued)
Part NumberSizeGHMApprox. Wt.
(Lbs.)
806-025C2-1/21-1/23-3/83-1/2 1.14
806-030C32-1/1644- 3/16 1.75
806-040C42-19/324-27/325- 1/4 2.92
806-050C53-3/165-13/166- 3/8 4.62
806-050CF*56- 9/169- 9/166- 5/16 7.40
806-060C63-13/166-13/167-19/32 7.97
806-080C84-25/328-25/329- 3/4 15.11
806-080CF*89- 1/413- 1/29- 5/8 21.14
806-100C105-25/3210-13/1612-1/16 27.41
806-100CF*1011-13/1617- 1/1611-15/16 41.40
806-120C1271314-1/4 45.01
806-120CF*1213- 5/819- 7/814- 1/8 59.42
806-140C147- 1/214- 1/215-9/16 55.89
806-140CF*14162315- 1/2 86.71
806-160CF*1618- 7/1626- 7/1617-11/16 141.62
806-180CF*1820- 7/829- 7/819- 7/8 175.61
806-200CF*2023- 5/1633- 5/1622- 1/16 260.13
806-240CF*2428- 1/440- 1/426- 7/16 422.00
* Fabricated

90° Ell - Sweep
Socket x Socket
90° Ell - Sweep
Part NumberSizeGHMApprox. Wt.
(Lbs.)
806-005SC1/227/321-23/321- 3/16 .09
806-007SC3/41-1/162-1/161-13/32 .13
806-010SC11- 5/162- 7/161-3/4 .23
806-012SC1-1/41- 9/162-27/322- 3/32 .35
806-015SC1-1/21- 3/43-5/322-3/8 .43
806-020SC22- 5/163-13/162- 7/8 .81

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 16
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
90° Ell - Long Sweep
Socket x Socket
90° Ell - Long Sweep
Part NumberSizeGHMApprox. Wt.
(Lbs.)
806-005LSCF*1/21- 7/82- 3/41- 1/8 .15
806-007LSCF*3/42- 7/163- 7/161- 7/16 .26
806-010LSCF*12- 7/841-11/16 .40
806-012LSCF*1-1/43- 5/84- 7/82- 1/16 .56
806-015LSCF*1-1/24- 1/85- 1/22- 5/16 .65
806-020LSCF*24- 3/46-1/42-13/16 1.18
806-025LSCF*2-1/25-3/47-3/43-7/16 1.70
806-030LSCF*3794- 1/8 2.46
806-040LSCF*4911- 1/45- 3/16 4.85
806-060LSCF*61316- 1/47- 1/2 11.76
806-080LSCF*823-1/227-3/49-5/8 31.25
806-100LSCF*102732-1/411-15/16 54.83
* Fabricated

90° Ell
Socket x Fipt
90° Ell
Part NumberSizeGG1HH1MApprox. Wt.
(Lbs.)
807-002C1/45/1611/3215/1615/167/8 .03
807-003C3/81/47/161- 1/321- 1/321- 1/32 .05
807-005C1/215/329/161-11/321- 9/321- 3/16 .08
807-007C3/49/1611/161- 9/161-13/321- 3/8 .10
807-010C111/163/41-7/81-11/161-23/32 .19
807-012C1-1/423/321- 1/321-31/321-31/322- 1/16 .29
807-015C1-1/231/321- 7/322-11/322- 5/322-3/8 .40
807-020C21-13/321-1/22-15/162-1/23 .84
807-030C31-13/162-1/43-11/163- 9/164-1/4 1.99
807-040C42-3/82-13/164- 9/164-7/325- 1/4 2.94
Page 17
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book




90° Ell - Special Reinforced
Socket x SR Fipt - Stainless Steel Collar
90° Ell - Special Reinforced
Part NumberSizeGG1HH1MM1Approx. Wt.
(Lbs.)
807-005CSR1/215/3223/321-11/321- 9/321- 3/161- 7/32 .09
807-007CSR3/49/1621/321- 9/161-13/321- 3/81- 3/8 .11
807-010CSR119/3213/161-23/321-23/321-11/161-23/32 .21
807-012CSR1-1/423/321- 1/321-31/321-31/322- 1/162- 1/16 .31
807-015CSR1-1/231/321- 5/322- 3/82- 1/82-11/322- 7/16 .42
807-020CSR21-13/321- 1/22-15/162-17/3233-1/32 .87
807-030CSR31-13/162- 7/323-23/323- 9/164- 9/324- 9/32 1.98
807-040CSR42- 9/322-25/324- 9/164- 7/325- 1/45- 1/4 3.03

90° Ell - Brass Transition
Socket x Fipt With Brass Thread Insert
90° Ell - Brass Transition
Part NumberSizeGG1HH1MM1Approx. Wt.
(Lbs.)
807-005CBR1/213/3231/321- 9/321-17/321- 5/321- 3/16 .14
807-007CBR3/417/321-1/161-17/321-11/161- 3/81-3/8 .21
Not intended to convey or dispense water for human consumption through drinking or cooking

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 18
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
90° Ell
Fipt x Fipt
90° Ell
Part NumberSizeGHMApprox. Wt.
(Lbs.)
808-002C1/411/3215/167/8 .03
808-003C3/89/161- 5/3215/16 .05
808-005C1/21/21- 7/321- 9/32 .08
808-007C3/45/81- 3/81- 3/8 .12
808-010C111/161-9/161-23/32 .21
808-012C1-1/411-15/162- 1/16 .31
808-015C1-1/212- 3/322- 7/16 .47
808-020C21-17/322-17/323 .92
808-025C2-1/21-9/163-1/83-1/2 1.25
808-030C31-7/83-1/24-9/32 2.37
808-040C42-11/164-3/165-1/4 3.15

90° Street Ell
Mipt x Fipt
90° Street Ell
Part NumberSizeGG1HH1M1Approx. Wt.
(Lbs.)
812-002C1/49/161/41-1/1627/3213/16 .02
812-005C1/223/3213/321-11/321-1/81-3/16 .06
812-007C3/47/817/321-1/21-1/41-7/16 .09
812-010C11- 1/3221/321-13/161- 9/161-23/32 .16

90° Ell - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar
90° Ell - Special Reinforced
Part NumberSizeGHMApprox. Wt.
(Lbs.)
808-003CSR3/89/161-5/3231/32 .07
808-005CSR1/21/21- 7/321- 3/16 .10
808-007CSR3/45/81- 3/81- 3/8 .14
Page 19
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

90° Ell - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar
90° Ell - Special Reinforced
(Continued)
Part NumberSizeGHMApprox. Wt.
(Lbs.)
808-010CSR125/321-11/161-23/32 .24
808-012CSR1-1/415/161- 7/82- 1/16 .36
808-015CSR1-1/21- 1/322- 1/82- 7/16 .52
808-020CSR21-19/322- 1/23 .96

90° Street Ell
Spigot x Socket
90° Street Ell
Part NumberSizeGG1HH1M1Approx. Wt.
(Lbs.)
809-005C1/225/3219/321-11/161-15/321-3/16 .07
809-007C3/429/3211/161-15/161-11/161-13/32 .11
809-010C11-3/3227/322- 7/3221-23/32 .20
809-012C1-1/41-5/161-1/322-9/162-9/322- 3/32 .31
809-015C1-1/21- 7/161- 3/162-13/162- 9/162- 3/8 .42
809-020C21- 3/41- 7/163- 1/42-31/322- 7/8 .64
809-025C12-1/23-3/81-1/25-1/43- 3/83-1/2 1.41
809-030C32- 3/81-13/164- 1/43-11/164- 3/16 1.70
809-040C43-1/322-9/325-9/324-9/165- 1/4 2.94
809-060C165-13/163-13/168-13/166-13/167- 9/16 9.27
809-080C187-1/8511-1/88-7/89- 3/4 17.33
809-100C1108-7/85-7/813-7/810-7/812- 1/16 34.95
809-100CF*1014-5/1611-13/1620-5/1617-1/1611-15/16 42.52
809-120C112117171314-5/16 57.29
809-120CF*1216-5/813-5/823-5/819-7/814-1/8 74.92
809-140C11411-1/27-1/218-1/214-1/215-9/16 70.92
809-140CF*1419-1/21627-1/22315-1/2 112.42
809-160CF*1622-7/1618-7/1631-7/1626-7/1617-11/16 164.40
809-180CF*1825-3/820-7/835-3/829-7/819-7/8 200.00
809-200CF*2028-5/1623-5/1639-5/1633-5/1622-1/16 294.00
809-240CF*2434-1/428-1/447-1/440-1/426-7/16 546.72

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 20
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
90° Ell - Reducing
Socket x Fipt
90° Ell - Reducing
Part NumberSizeGG1HH1MM1Approx. Wt.
(Lbs.)
807-101C3/4X1/21/213/161-1/21-17/321-13/321- 3/16 .11
807-130C11X1/27/81-15/3222-3/161-23/321-23/32 .26
807-131C11X3/47/81-17/3222- 1/41-23/321-23/32 .15
1 Sized with Bushing

90° Ell - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar
90° Ell - Special Reinforced Reducing
Part NumberSizeGG1HH1MM1Approx. Wt.
(Lbs.)
807-101CSR3/4X1/21/213/161-17/321-17/321-13/321- 3/16 .11
807-130CSR1X1/29/1611-23/321- 5/81-23/321- 3/16 .13

Page 21
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

90° Ell - Brass Transition Reducing
Socket x Fipt With Brass Thread Insert
90° Ell - Brass Transition Reducing
Part NumberSizeGG1HH1MM1Approx. Wt.
(Lbs.)
807-101CBR3/4X1/21/21-3/321- 1/21- 5/81-13/321- 3/16 .17
Not intended to convey or dispense water for human consumption through drinking or cooking

11-1/4° Ell
Socket x Socket
11-1/4° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
811-005CF*1/21-5/165/161-1/8 .06
811-007CF*3/41-5/165/161-3/8 .08
811-010CF*11-9/165/161-11/16 .14
811-012CF*1-1/421/22-1/16 .25
811-015C1-1/21-19/327/322- 3/8 .25
811-020C21-23/327/322-27/32 .35
811-025CF*2-1/22-11/1611/163- 7/16 .88
811-030C32- 3/165/164-5/32 .91
811-040C42-21/323/85- 1/4 1.58
811-050CF*53-13/1613/166-5/16 3.41
811-060CF*64- 1/417- 1/2 4.68
811-080CF*85- 3/81- 1/89- 5/8 8.72
811-100CF*106-11/161- 7/1611-15/16 15.81
811-120CF*127-13/161- 9/1614- 1/8 26.65
811-140CF*149215- 1/2 35.90
811-160CF*1610- 3/82- 3/817-11/16 55.59
811-180CF*1811- 3/42- 3/419- 7/8 83.44
811-200CF*2013-1/83-1/822-1/16 99.90
811-240CF*2415-13/163-13/1626-7/16 196.95
* Fabricated

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 22
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
30° Ell
Socket x Socket
30° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
815-005CF*1/21- 7/167/161- 1/8 .06
815-007CF*3/41- 7/167/161- 3/8 .11
815-010CF*11- 3/41/21-11/16 .15
815-012CF*1-1/42- 3/1611/162- 1/16 .24
815-015CF*1-1/22- 3/1611/162- 5/16 .37
815-020CF*22- 1/23/42-13/16 .55
815-025CF*2-1/2313- 7/16 .92
815-030CF*33- 5/161- 1/164- 1/8 1.43
815-040CF*43- 7/161- 3/165- 3/16 2.15
815-050CF*54-3/81-3/86-5/16 3.22
815-060C64-13/161-13/167-5/8 5.89
815-080CF*86- 3/161-15/169- 5/8 10.04
815-100CF*107- 3/42- 1/211-15/16 17.68
815-120CF*129- 1/162-13/1614- 1/8 30.39
815-140CF*1410- 7/163- 7/1615- 1/2 42.92
815-160CF*1611-15/163-15/1617-11/16 64.23
815-180CF*1813-1/24-1/219- 7/8 92.38
815-200CF*2015522-1/16 109.88
815-240CF*2418-1/86-1/826-7/16 185.25
* Fabricated

22-1/2° Ell
Socket x Socket
22-1/2° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
816-005C1/21- 1/163/161- 5/32 .06
816-007C3/41- 3/167/321-13/32 .08
816-010C11-11/327/321-23/32 .14
816-010CF*11-11/167/161-11/16 .18
816-012C1-1/41- 1/21/42- 3/32 .20
816-015C1-1/21-21/329/322-11/32 .27
816-015CF*1-1/22-1/85/82-5/16 .31
816-020C21- 7/83/82-27/32 .43
816-025C2-1/22- 7/3215/323- 1/2 .72
Page 23
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

22-1/2° Ell
Socket x Socket
22-1/2° Ell
(Continued)
Part NumberSizeHJMApprox. Wt.
(Lbs.)
816-025CF*2-1/22- 7/87/83- 7/16 .81
816-030C32-3/81/24- 5/32 1.00
816-040C42- 7/85/85- 1/4 1.71
816-050CF*54-1/81-1/86-5/16 3.22
816-060C63-15/167/87- 9/16 4.59
816-060CF*64- 5/81- 3/87- 1/2 5.16
816-080C85- 1/161- 1/329- 3/4 8.59
816-080CF*85- 7/81- 5/89- 5/8 9.36
816-100CF*107- 5/162- 1/1611-15/16 17.59
816-120CF*128- 9/162- 5/1614- 1/8 29.69
816-140CF*149-13/162-13/1615- 1/2 37.75
816-160CF*1611- 5/163- 5/1617-11/16 57.95
816-180CF*1812- 3/43- 3/419- 7/8 86.42
816-200CF*2014-1/44-1/422-1/16 103.22
816-240CF*2417-3/165-3/1626-7/16 205.70
* Fabricated

45° Ell
Socket x Socket
45° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
817-002C1/413/165/3227/32 .02
817-003C3/815/163/161 .03
817-005C1/21-1/81/41-3/16 .06
817-007C3/41-5/165/161-7/16 .09
817-010C11-7/165/161-23/32 .16
817-012C1-1/41-5/83/82-1/8 .22
817-015C1-1/21-13/167/162-3/8 .29
817-020C22-1/85/82-7/8 .47
817-025C2-1/22-7/1611/163-1/2 .82
817-030C32-25/3229/324-1/8 1.21
817-040C43-5/161-1/165-1/4 2.14
817-050C541-3/86-13/32 3.30
817-050CF*54-7/81-7/86-5/16 3.85
817-060C64-3/41-3/47-9/16 5.58
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 24
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
45° Ell
Socket x Socket
45° Ell
(Continued)
Part NumberSizeHJMApprox. Wt.
(Lbs.)
817-080C8629-3/4 10.64
817-100C107-5/82-19/3212-1/8 20.08
817-100CF*108-11/163- 7/1611-15/16 19.37
817-120C129-3/163-1/814-9/32 32.86
817-120CF*1210- 1/83- 7/814- 1/8 32.40
817-140C1410-11/323- 5/1615- 5/8 43.00
817-140CF*1411- 9/164- 9/1615- 1/2 41.37
817-160CF*1613- 5/165- 5/1617-11/16 64.66
817-180CF*1815619- 7/8 88.48
817-200CF*2016- 3/46- 3/422- 1/16 124.66
817-240CF*2420- 3/168- 3/1626- 7/16 207.66
* Fabricated

15° Ell
Socket x Socket
15° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
818-005CF*1/21-5/165/161-1/8 .13
818-007CF*3/41-5/165/161-3/8 .08
818-010CF*11-5/83/81-11/16 .15
818-012CF*1-1/421/22-1/16 .25
818-015CF*1-1/221/22-5/16 .26
818-020CF*22- 5/169/162-13/16 .48
818-025CF*2-1/22- 3/43/43- 7/16 .88
818-030CF*333/44- 1/8 1.25
818-040CF*43- 1/87/85- 3/16 1.79
818-050CF*53-15/1615/166-5/16 3.08
818-060CF*64- 3/81- 1/87- 1/2 4.77
818-080CF*85-1/21- 1/49- 5/8 8.81
818-100CF*106-15/161-11/1611-15/16 17.29
818-120CF*128- 1/161-13/1614- 1/8 27.73
818-140CF*149- 5/162- 5/1615- 1/2 40.74
818-160CF*1610-11/162-11/1617-11/16 59.47
Page 25
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

15° Ell
Socket x Socket
15° Ell
(Continued)
Part NumberSizeHJMApprox. Wt.
(Lbs.)
818-180CF*1812- 1/163- 1/1619- 7/8 83.44
818-200CF*2013-1/23-1/222-1/16 99.90
818-240CF*2416-1/44-1/426-7/16 202.28
* Fabricated

45° Ell
Fipt x Fipt
45° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
819-002C1/43/45/3227/32 .03
819-003C3/825/323/161 .03
819-005C1/231/321/41- 3/16 .07
819-007C3/41-1/325/161- 3/8 .07
819-010C11- 7/325/161-11/16 .14
819-012C1-1/41-3/83/82- 3/16 .25
819-015C1-1/21-25/327/162- 1/2 .32
819-020C21-11/165/83 .48
819-025C2-1/22-1/161-1/163- 1/2 1.24
819-030C32-23/321-7/324- 9/32 1.91
819-040C43- 1/41-3/45- 1/4 3.33

45° Ell - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar
45° Ell - Special Reinforced
Part NumberSizeHJMApprox. Wt.
(Lbs.)
819-005CSR1/215/161- 3/16 .09
819-007CSR3/41- 1/813/321- 3/8 .11
819-010CSR11- 1/413/321-23/32 .17
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 26
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
60° Ell
Socket x Socket
60° Ell
Part NumberSizeHJMApprox. Wt.
(Lbs.)
824-005CF*1/21- 5/85/81- 1/8 .11
824-007CF*3/41-11/1611/161- 3/8 .08
824-010CF*123/41-11/16 .17
824-012CF*1-1/42- 1/212- 1/16 .35
824-015CF*1-1/22- 5/81- 1/82-5/16 .36
824-020CF*231- 1/42-13/16 .59
824-025CF*2-1/23- 9/161- 9/163- 7/16 1.04
824-030CF*341- 3/44- 1/8 1.51
824-040CF*44- 5/162- 1/165- 3/16 2.31
824-060CF*66- 1/82- 7/87- 1/2 5.92
824-080CF*87- 3/43- 1/29- 5/8 10.94
824-100CF*109-11/164- 7/1611-15/16 21.91
824-120CF*1211- 5/165- 1/1614- 1/8 31.43
824-140CF*1412-15/165-15/1615- 1/2 88.89
824-160CF*1614-13/166-13/1617-11/16 126.08
824-180CF*1816- 3/47- 3/419- 7/8 175.81
824-200CF*2026-5/816-5/822-1/16 247.63
824-240CF*2432-1/820-1/826-7/16 415.20
* Fabricated

45° Street Ell
Spigot x Socket
45° Street Ell
Part NumberSizeHH1JJ1M1Approx. Wt.
(Lbs.)
827-005C1/21-3/81-1/815/321/41- 3/16 .06
827-007C3/41-9/161-3/817/323/81-3/8 .09
827-010C11-25/321- 1/219/3211/321-23/32 .15
827-012C1-1/421-23/323/415/322- 3/32 .24
827-015C1-1/22-3/161-29/3213/1617/322-3/8 .31
827-020C22-7/162-1/815/165/82-7/8 .46
827-025C12-1/23-5/162-7/161-9/1611/163-17/32 1.22
827-030C33-3/162-3/41-5/167/84-3/16 1.25
827-040C43-7/83-11/321-5/81-3/325- 1/4 2.19
827-050CF*57-3/84-7/83-3/81-7/86-5/16 5.28
Page 27
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

45° Street Ell
Spigot x Socket
45° Street Ell
(Continued)
Part NumberSizeHH1JJ1M1Approx. Wt.
(Lbs.)
827-060C65-1/84-3/42-1/81-3/47-19/32 5.91
827-080C86-19/3262-9/1629- 3/4 11.14
827-100C11010-5/87-21/325-5/82-5/812 25.44
827-120C11212-13/169-5/326-13/163- 3/3214-13/32 45.35
827-140CF*1416- 1/1611- 9/168- 1/164- 9/1615- 1/2 64.42
827-160CF*1618- 5/1613- 5/169- 5/165- 5/1617-11/16 90.40
827-180CF*1820- 1/21510- 1/2619- 7/8 131.11
827-200CF*2022-3/416-3/411-3/46-3/422-1/16 153.18
827-240CF*2427-3/1620-3/1614-3/168-3/1626-7/16 123.29
* Fabricated

22-1/2° Street Ell
Spigot x Socket
22-1/2° Street Ell
Part NumberSizeHH1JJ1M1Approx. Wt.
(Lbs.)
842-005C1/21-1/815/161/41/321- 3/16 .05
842-007C3/41-5/161-1/85/161/81- 3/8 .08
842-010C11-1/21-11/323/87/321-23/32 .13
842-012C1-1/41-11/161-1/27/161/42-1/16 .20
842-015C1-1/21-27/321-11/1615/325/162-11/32 .27
842-020C22-1/161-7/817/323/82- 7/8 .40
842-025C2-1/22- 7/322- 7/3215/3215/323- 1/2 .76
842-030C32-13/322-13/321-7/3217/324- 5/32 1.00
842-040C432-7/83/45/85- 1/4 1.80
842-060C65-7/83-29/322-7/87/87-9/16 6.65
842-080C87-3/325-3/323-9/321-3/329- 3/4 11.78

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 28
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Cross
Socket x Socket x Socket x Socket
Cross
Part NumberSizeGG1HH1LL1MM1Approx. Wt.
(Lbs.)
820-002C1/413/3213/321- 1/321- 1/322- 1/162- 1/1613/1613/16 .05
820-005C1/219/3219/321-15/321-15/322-15/162-15/161- 3/161- 3/16 .14
820-007C3/45/85/81- 5/81- 5/83- 9/323- 9/321-13/321-13/32 .21
820-010C131/3231/322- 3/322- 3/324-3/164-3/161-23/321-23/32 .39
820-012C1-1/41- 3/321- 3/322- 3/82- 3/84- 3/44- 3/42- 1/82- 1/8 .61
820-015C1-1/21- 1/41- 1/42- 5/82- 5/85- 1/45- 1/42- 3/82- 3/8 .86
820-020C21- 1/21- 1/2336633 1.40
820-025C2-1/21-11/161-11/163-7/163-7/166-7/86-7/83-17/323-17/32 2.17
820-030C32- 3/322- 3/323-31/323-31/327-15/167-15/164-11/324-11/32 3.39
820-040C42- 5/82- 5/84- 7/84- 7/89- 3/49- 3/45-1/45-1/4 5.50
820-060CF*66- 1/46- 1/49- 1/29- 1/219197- 1/27- 1/2 16.93
820-080CF*87- 5/87- 5/811- 7/811- 7/823- 3/423- 3/49- 5/89- 5/8 30.81
820-100CF*109914- 1/414- 1/428- 1/228- 1/211-15/1611-15/16 68.17
820-120CF*1211- 1/411- 1/417- 1/217- 1/2353514- 1/814- 1/8 96.33
820-140CF*1412- 1/412- 1/419- 1/419- 1/438- 1/238- 1/215- 1/215- 1/2 127.64
820-160CF*1613132121424217-11/1617-11/16 175.70
820-180CF*1813- 3/413- 3/422- 3/422- 3/445- 1/245- 1/219- 7/819- 7/8 233.48
* Fabricated

Cross - Reducing
Socket x Socket x Socket x Socket
Cross - Reducing
Part NumberSizeGG1HH1LL1MM1Approx. Wt.
(Lbs.)
820-101C13/4X1/25/815/161-5/81-27/323-1/43-21/321-13/321-13/32 .26
820-130C11X1/231/321-15/322-3/322-11/324-3/164-23/321-23/321-23/32 .53
820-131C1X3/423/325/81- 5/81- 5/83- 1/43- 1/41- 7/81- 1/2 .30
820-166C11-1/4X1/21- 3/321-3/42- 3/82-5/84- 3/45-1/42-1/82-1/8 .86
820-167C1-1/4X3/43/41-1/3222-1/1644-1/162- 1/161-3/8 .34
820-168C11-1/4X11-3/321-15/322-3/82-19/324-3/45-3/162-1/82-1/8 .75
820-200CF*2016-3/816-3/826-3/826-3/852-3/452-3/422-1/622-1/16 249.75
820-209C11-1/2X1/21-1/42-1/162-5/82-15/165- 1/45-7/82- 3/82- 3/8 1.16
820-210C1-1/2X3/411/161- 5/322- 3/322-11/644- 3/164-11/322- 3/81-13/32 .41
820-211C11-1/2X11-1/41-5/82- 5/82-25/325-1/45-3/42-3/82-3/8 1.11
820-212C11-1/2X1-1/41-1/41-19/322-5/82-27/325-1/45-11/162-3/82-3/8 .99
Page 29
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Cross - Reducing
Socket x Socket x Socket x Socket
Cross - Reducing
(Continued)
Part NumberSizeGG1HH1LL1MM1Approx. Wt.
(Lbs.)
820-240CF*2420-1/420-1/432-1/432-1/464-1/264-1/226-7/1626-7/16 355.98
820-247C12X1/21-1/22-3/833-1/466-1/233 1.99
820-248C12X3/411/161- 7/162-13/642- 7/164-13/324- 7/82-29/321-13/32 .55
820-249C12X11- 1/22-1/833-1/466-1/233 1.87
820-250C12X1-1/41-1/21-15/1633-3/1666-3/833 1.81
820-289C2-1/2X129/321-3/42-43/642-7/85-11/325- 3/43- 1/21- 3/4 1.03
820-290C12-1/2X1-1/41-11/162-9/163-7/163-13/166-7/87-5/83-17/323-17/32 3.09
820-291C12-1/2X1-1/21-11/162-15/323- 7/163-27/326- 7/87-11/163-17/323-17/32 2.97
820-292C12-1/2X21-11/162-3/163-7/163-23/326-7/87-7/163-17/323-17/32 2.76
820-335C13X12-3/323-5/323-31/324-9/327-15/168-9/164-11/324-11/32 4.73
820-336C13X1-1/42- 3/323- 1/83-31/324- 3/87-15/168- 3/44-11/324-11/32 4.79
820-337C13X1-1/2 4.73
820-338C13X22- 3/322-25/323-31/324- 5/167-15/168- 5/84-11/324-11/32 4.66
820-339C13X2-1/22-3/322-1/23-31/324-9/327-15/168-9/164-11/324-11/32 4.25
820-420C14X22- 5/83-3/44- 7/85-1/49- 3/410-/125-1/45-1/4 7.70
820-422C14X32- 5/83-5/164- 7/85-3/169- 3/410-3/85- 1/45- 1/4 7.21
820-420CF*4X23- 7/84- 1/46- 1/8612- 1/4125- 3/162-13/16 4.14
820-528CF*6X24- 5/85- 3/167- 7/86-15/1615- 3/413- 7/87- 1/22-13/16 12.00
820-530CF*6X34- 3/45- 3/48816167- 1/24- 1/8 10.24
820-532CF*6X45- 1/46- 3/48- 1/2917187- 1/25- 3/16 12.14
820-578CF*8X24-11/166- 1/88-15/167- 7/817- 7/815- 3/49- 5/82-13/16 14.84
820-580CF*8X35- 3/166-11/169- 7/168-15/1618- 7/817- 7/89- 5/84- 1/8 16.96
820-582CF*8X45- 3/47-11/16109-15/162019- 7/89- 5/85- 3/16 20.46
820-585CF*8X66- 3/48- 1/161111- 5/162222- 5/89- 5/87- 1/2 33.37
820-621CF*10X24- 3/87- 1/89- 5/88- 7/819- 1/417-11/1611-15/162-13/16 24.57
820-623CF*10X34- 7/87-11/1610- 1/89-15/1620- 1/419-13/1611-15/164- 1/8 28.98
820-624CF*10X45- 3/88-11/1610- 5/810-15/1621- 1/421-13/1611-15/165- 3/16 28.01
820-626CF*10X65- 7/89- 1/1611- 1/812- 5/1622- 1/424- 5/811-15/167- 1/2 36.35
820-628CF*10X88- 1/49-15/1613- 1/214- 3/162728- 3/811-15/169- 5/8 47.27
820-661CF*12X24- 3/48119- 3/42219- 1/214- 1/82-13/16 35.55
820-663CF*12X35- 1/48- 9/1611- 1/210-13/162321- 5/814- 1/84- 1/8 45.27
820-664CF*12X45- 3/49- 9/161211-13/162423- 5/814- 1/85- 3/16 42.59
820-666CF*12X67- 1/49-15/1613- 1/413- 3/1626- 1/226- 3/814- 1/87- 1/2 54.26
820-668CF*12X8810-13/1614- 1/415- 1/1628- 1/230- 1/814- 1/89- 5/8 58.59
820-670CF*12X1010-1/410-13/1616-1/216- 1/163332- 1/814- 1/811-15/16 80.00
820-691CF*14X25- 3/168- 9/1612- 3/1610- 5/1624- 3/820- 5/815- 1/22-13/16 53.24
820-693CF*14X35- 3/49- 1/812- 3/411- 3/825- 1/222- 3/415- 1/24- 1/8 56.21
820-694CF*14X46- 1/210- 1/813- 1/212- 3/82724- 3/415- 1/25- 3/16 61.76
820-696CF*14X68- 1/410- 1/215- 1/413- 3/430- 1/227- 1/215- 1/27- 1/2 72.85
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 30
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Cross - Reducing
Socket x Socket x Socket x Socket
Cross - Reducing
(Continued)
Part NumberSizeGG1HH1LL1MM1Approx. Wt.
(Lbs.)
820-698CF*14X89- 1/411- 3/816- 1/415- 5/832- 1/231- 1/415- 1/29- 5/8 84.42
820-700CF*14X1010- 1/811- 3/817- 1/816- 5/834- 1/433- 1/415- 1/211-15/16 90.19
820-702CF*14X121111- 3/81817- 5/83635- 1/415- 1/214- 1/8 117.29
820-751CF*16X25- 7/89- 1/213- 7/811- 1/427- 3/422- 1/217-11/162-13/16 77.67
820-753CF*16X36- 5/1610- 1/1614- 5/1612- 5/1628- 5/824- 5/817-11/164- 1/8 81.65
820-754CF*16X46- 1/811- 1/1614- 1/813- 5/1628- 1/426- 5/817-11/165- 3/16 80.84
820-756CF*16X68- 5/811- 7/1616- 5/814-11/1633- 1/429- 3/817-11/167- 1/2 98.57
820-758CF*16X89- 5/812- 5/1617- 5/816- 9/1635- 1/433- 1/817-11/169- 5/8 111.25
820-760CF*16X1010-5/812-5/1618-5/817-9/1637-1/435-1/817-11/1611-15/16 125.38
820-762CF*16X1211- 5/812- 5/1619- 5/818- 9/1639- 1/437- 1/817-11/1614- 1/8 138.83
820-764CF*16X1412- 3/412-11/1620- 3/419-11/1641- 1/239- 3/817-11/1615- 1/2 129.51
820-781CF*18X25-13/1610-3/814-13/1612-1/829-5/824-1/419-7/82-13/16 98.27
820-783CF*18X36-3/810-15/1615-3/813-3/1630-3/426-3/819-7/84-1/8 102.29
820-784CF*18X46- 7/811-15/1615- 7/814- 3/1631- 3/428- 3/819- 7/85- 3/16 106.93
820-786CF*18X68- 1/212- 5/1617- 1/215- 9/163531- 1/819- 7/87- 1/2 121.05
820-788CF*18X89- 1/213- 3/1618- 1/217- 7/163734- 7/819- 7/89- 5/8 133.90
820-790CF*18X1010- 1/213- 3/1619- 1/218- 7/163936- 7/819- 7/811-15/16 149.71
820-792CF*18X1211- 1/213- 3/1620- 1/219- 7/164138- 7/819- 7/814- 1/8 .00
820-794CF*18X1412- 3/413- 9/1621- 3/420- 9/1643- 1/241- 1/819-7/815- 1/2 165.77
820-796CF*18X1613- 1/214- 3/1622- 1/222- 3/164544- 3/819-7/817-11/16 172.46
820-814CF*20X47-11/1612-7/817-11/1615-1/835-3/830-1/422-1/165-3/16 148.90
820-816CF*20X68-7/813-1/418-7/816-1/237-3/43322-1/167-1/2 165.15
820-818CF*20X89-7/814-1/819-7/818-3/839-3/436-3/422-1/169-5/8 180.23
820-820CF*20X1010-7/814-1/820-7/819-3/841-3/438-3/422-1/1611-15/16 197.78
820-822CF*20X1211-7/814-1/821-7/820-3/843-3/440-3/422-1/1614-1/8 217.92
820-824CF*20X1412-7/814-1/222-7/821-1/245-3/44322-1/1615-1/2 190.94
820-826CF*20X161415-1/82423-1/84846-1/422-1/1617-11/16 210.27
820-828CF*20X1815152524504822-1/1619-7/8 226.80
820-904CF*24X4914-11/162116-15/164233-7/826-7/165-3/16 252.62
820-906CF*24X69-1/415-1/1621-1/418-5/1642-1/236-5/826-7/167-1/2 257.40
820-908CF*24X810-1/415-15/1622-1/420-3/1644-1/240-3/826-7/169-5/8 275.67
820-910CF*24X1011-1/415-15/1623-1/421-3/1646-1/242-3/826-7/1611-15/16 296.39
820-912CF*24X1212-1/415-15/1624-1/422-3/1648-1/244-3/826-7/1614-1/8 325.12
820-914CF*24X1413-1/416-5/1625-1/423-5/1650-1/246-5/826-7/1615-1/2 282.42
820-916CF*24X1614-3/416-15/1626-3/424-15/1653-1/249-7/826-7/1617-11/16 306.44
820-918CF*24X1815-3/416-3/1627-3/425-13/1655-1/251-5/826-7/1619-7/8 246.78
820-920CF*24X2016-3/418-3/828-3/428-3/1657-1/256-3/826-7/1622-1/16 351.59
1 Sized with Bushing

* Fabricated

Page 31
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

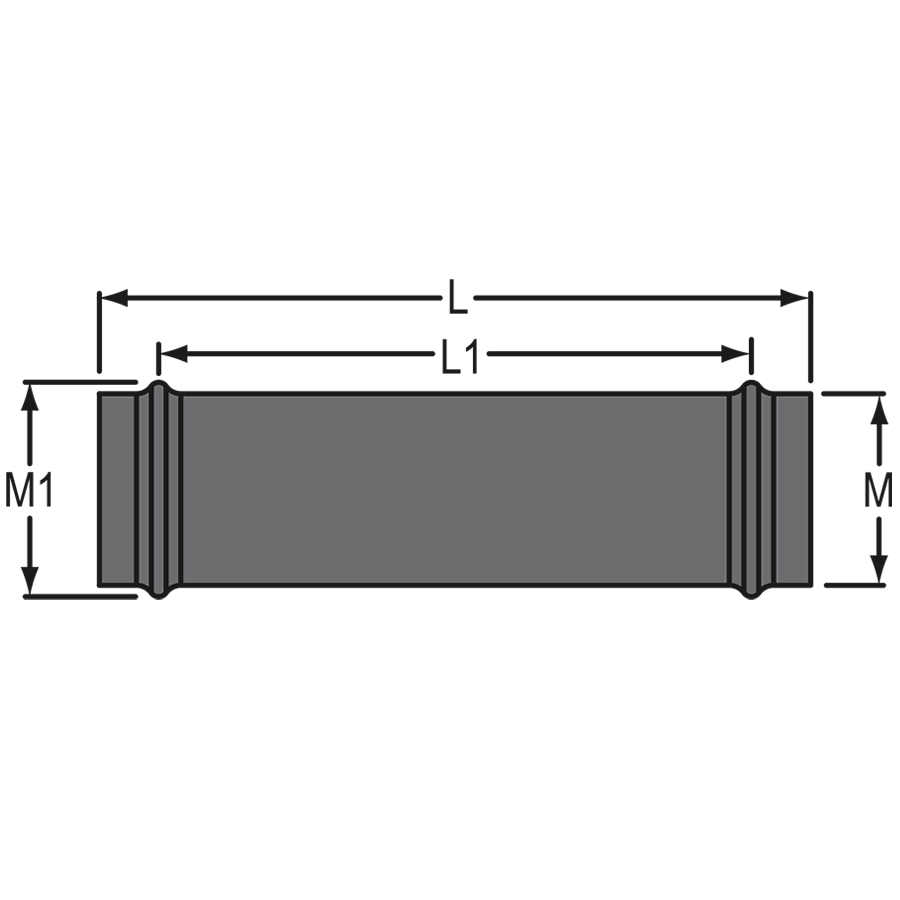

Repair Coupling - Fabricated
Gasket x Gasket
Repair Coupling - Fabricated
Part NumberSizeLL1MM1Approx. Wt.
(Lbs.)
828-020CF*29- 1/862-13/163- 3/16 1.00
828-030CF*315- 1/211- 3/44- 1/84- 5/8 3.38
828-040CF*419- 1/2155- 3/165- 3/4 6.53
828-060CF*62318-1/47- 1/28- 1/8 13.41
828-080CF*826-1/8199- 5/810- 3/8 23.42
828-100CF*102821-1/411-15/1613-1/8 37.92
828-120CF*122921-3/814- 1/815-3/8 53.28
828-140CF*14302115- 1/217-1/4 68.61
828-160CF*163122-1/417-11/1618-7/8 88.02
828-180CF*183222-5/819-7/821-7/8 112.44
828-200CF*203223-1/222-1/1624-1/16 160.38
828-240CF*243223-1/222-7/1624-13/16 236.00
* Fabricated

Coupling
Socket x Socket
Coupling
Part NumberSizeLMNApprox. Wt.
(Lbs.)
829-002C1/41- 3/827/323/32 .02
829-003C3/81-5/813/32 .03
829-005C1/21- 7/81-9/321/8 .07
829-007C3/42-5/321-1/21/8 .10
829-010C12-13/321-23/321/8 .12
829-012C1-1/42-11/162-7/325/32 .17
829-015C1-1/22- 7/82-11/323/32 .22
829-020C23- 1/82-7/83/32 .32
829-025C2-1/23-23/323-1/27/32 .58
829-030C33-31/324-3/163/16 .81
829-040C44-13/165-1/41/4 1.36
829-050C55-15/326- 3/87/32 2.18
829-050CF*586-5/162 3.41
829-060C66-5/167-21/329/32 3.53
829-080C88-9/329-3/49/32 6.77
829-100C1010- 9/3212- 1/161/4 12.85
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 32
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Coupling
Socket x Socket
Coupling
(Continued)
Part NumberSizeLMNApprox. Wt.
(Lbs.)
829-100CF*1013-1/811-15/162-5/8 15.68
829-120C1212-13/3214-9/323/8 20.05
829-120CF*1215-1/414-1/82-3/4 25.85
829-140C1414- 7/1615- 5/83/8 28.10
829-140CF*141615- 1/22 33.33
829-160CF*1619-3/417-11/163-3/4 54.79
829-180CF*182219- 7/84 72.88
829-200CF*2025-3/422- 1/165-3/4 102.09
829-240CF*2429- 1/426- 7/165- 1/4 167.66
* Fabricated

Coupling - Reducer
Socket x Socket
Coupling - Reducer
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
829-101C3/4X1/22- 3/321-7/161-3/167/32 .06
829-130C1X1/22- 3/161-23/321-13/323/16 .12
829-131C1X3/42-3/81-23/321-13/327/32 .15
829-166C1-1/4X1/22- 9/162- 3/321- 5/327/16 .14
829-167C1-1/4X3/42-19/322- 3/321- 5/811/32 .17
829-168C1-1/4X12-11/162-3/321-23/325/16 .18
829-209C1-1/2X1/22-27/322-11/321- 3/169/16 .20
829-210C1-1/2X3/42- 7/82-7/161-13/3215/32 .22
829-211C1-1/2X12- 7/82-13/321-15/1611/32 .26
829-212C1-1/2X1-1/42-13/162-13/322- 1/85/32 .22
829-247C2X1/23- 3/322- 7/81- 5/3211/16 .31
829-248C2X3/43- 7/322- 7/81-7/1611/16 .32
829-249C2X13-1/231-3/413/16 .37
829-250C2X1-1/43-1/42- 7/82- 3/321/2 .33
829-251C2X1-1/23- 7/322-27/322-11/321/4 .31
829-290C12-1/2X1-1/43-29/323-1/22-3/87/8 .57
829-291C2-1/2X1-1/23- 3/43- 1/22- 3/819/32 .50
829-292C2-1/2X23-21/323-1/22-7/83/8 .51
829-335C13X14-1/44-3/162-29/321-7/32 1.01
829-336C13X1-1/44-3/164-3/162-29/321- 1/16 .98
Page 33
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Coupling - Reducer
Socket x Socket
Coupling - Reducer
(Continued)
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
829-337C3X1-1/23- 1/24- 3/162-3/87/32 .70
829-338C3X244- 5/322-7/819/32 .77
829-339C3X2-1/24-1/84- 5/323- 15/321/2 .79
829-339CF*3X2-1/264- 1/163- 7/161- 3/4 1.01
829-416C14X3/45-23/325- 9/322-29/322-7/16 1.79
829-417C14X15-25/325- 9/322-29/322-13/32 1.76
829-419C14X1-1/25-23/325- 9/322-29/322- 1/16 1.67
829-420C4X25- 1/25-5/162-29/321-23/32 1.52
829-421C4X2-1/24-25/325-1/43- 1/225/32 1.27
829-422C4X34-19/325- 1/44- 3/1615/32 1.32
829-488CF1*5X38-1/86- 1/45- 3/163-1/4 3.30
829-490CF1*5X47- 3/46- 1/45- 3/162- 1/2 2.53
829-528C16X27- 1/167-19/325-9/322-1/2 4.55
829-529C16X2-1/26-31/327-9/165- 9/322- 3/16 4.71
829-530C16X37-1/167- 9/165- 9/322-5/32 4.30
829-530CF*6X39-1/47-5/165-3/164-1/8 4.33
829-532C6X46-21/327-19/325-9/321-3/8 3.44
829-533CF*6X58-15/167-3/86-5/162-11/16 3.92
829-580CF1,2*8X3159- 1/25- 3/168-7/8 8.74
829-582C18X48-7/89-3/45-9/322-9/16 6.43
829-582CF1,2*8X414- 5/89- 1/25- 3/168- 1/8 7.75
829-583CF2*8X514-11/169-1/26-5/167-7/16 8.30
829-585C8X68-1/169- 3/47-19/321 6.48
829-621CF1,3*10X221- 1/211- 3/45- 3/1614-3/4 17.04
829-623CF1,3*10X321-1/211- 3/45- 3/1614-3/8 17.18
829-624CF3*10X421- 1/811- 3/45- 3/1613- 5/8 16.03
829-625CF3*10X521- 3/1611- 3/46- 5/1612-15/16 16.94
829-626C10X610-5/812- 1/327-19/322-5/8 11.46
829-626CF2*10X617- 5/811- 3/47- 1/29- 1/8 15.00
829-628C10X810- 5/812-1/329- 3/41-5/8 11.62
829-628CF*10X813- 3/811- 3/49- 5/83- 7/8 11.31
829-663CF1,4*12X328-3/413-15/165-3/1620-5/8 29.95
829-664CF4*12X428- 3/813-15/165- 3/1619- 7/8 29.44
829-665CF4*12X528- 7/1613-15/166- 5/1619- 3/16 30.50
829-666CF3*12X624- 7/813-15/167- 1/215- 3/8 29.92
829-668C12X812- 5/814- 7/329- 3/42- 7/16 18.35
829-668CF2*12X820- 5/813-15/169- 5/810- 1/8 27.00
829-670CF*12X1016- 3/813-15/1611-15/164- 7/8 20.77
829-694CF4*14X430- 1/815- 3/165- 3/1620- 7/8 34.71
829-696CF3*14X626- 5/815- 3/167- 1/216- 3/8 31.45
829-698CF2*14X822- 3/815- 3/169- 5/811- 1/8 27.68
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 34
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Coupling - Reducer
Socket x Socket
Coupling - Reducer
(Continued)
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
829-700CF*14X1018- 1/815- 3/1611-15/165- 7/8 25.24
829-702CF*14X1217- 3/415- 3/814- 1/84- 1/2 29.29
829-754CF5*16X43817- 3/85- 3/1627- 3/4 53.88
829-756CF4*16X634- 1/217- 3/87- 1/223- 1/4 54.03
829-758CF3*16X830- 1/417- 3/89- 5/818 52.64
829-760CF2*16X102617- 3/811-15/1612- 3/4 45.61
829-762CF*16X1220- 1/417- 3/814- 1/86 35.57
829-764CF*16X1421- 1/417- 1/215- 1/25- 1/4 43.94
829-783CF1,6*18X347-3/419-11/165-3/1636-7/8 106.50
829-784CF6*18X447- 3/819-11/165- 3/1636- 1/8 105.64
829-786CF5*18X643- 7/819-11/167- 1/231- 5/8 104.71
829-788CF4*18X839- 5/819-11/169- 5/826- 3/8 100.55
829-790CF3*18X1035- 3/819-11/1611-15/1621- 1/8 89.53
829-792CF2*18X1229- 5/819-11/1614- 1/814- 3/8 76.67
829-794CF2*18X1429- 5/819-11/1615- 1/213- 5/8 86.99
829-796CF*18X162319-11/1617-11/166 63.70
829-814CF7*20X45821-7/85-3/1645-3/4 160.61
829-816CF6*20X654-1/221-7/87-1/241-1/4 159.69
829-818CF5*20X850- 1/421- 7/89- 5/836 155.53
829-820CF4*20X104621-7/811-15/1630-3/4 143.72
829-822CF3*20X1240-1/421-7/814-1/824 138.43
829-824CF3*20X1440-1/421-7/815-1/223-1/4 145.49
829-826CF2*20X1633- 5/821- 7/817-11/1615- 5/8 112.40
829-828CF*20X1825- 1/221- 7/819- 7/86- 1/2 88.55
829-904CF8*24X471-1/226-1/65-3/1657-1/4 252.91
829-906CF7*24X66826- 1/167- 1/252- 3/4 251.98
829-908CF6*24X863-3/426-1/169-5/847-1/2 247.82
829-910CF5*24X1059-1/226-1/1611-15/1642-1/4 242.10
829-912CF4*24X1253-3/426-1/1614-1/835-1/2 230.72
829-914CF4*24X1453-1/426-1/1615-1/234-3/4 237.78
829-916CF3*24X1647-1/826-1/1617-11/1627-1/8 214.52
829-918CF2*24X183926- 1/1619- 7/818 176.32
829-920CF*24X2030- 5/826- 1/1622- 1/168- 5/8 128.81
1 Sized with Bushing
* Fabricated

Page 35
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Coupling - Eccentric Reducer
Socket x Socket
Coupling - Eccentric Reducer
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
829-101CFE*3/4X1/23-7/161- 3/81- 1/81-7/16 .07
829-130CFE*1X1/24-1/161- 5/81- 1/81-13/16 .11
829-131CFE*1X3/441- 5/81-1/81- 3/4 .13
829-168CFE*1-1/4X14-1/221-11/161-3/4 .22
829-209CFE2*1-1/2X1/282- 1/41- 1/85-1/2 .33
829-210CFE2*1-1/2X3/47-15/162- 1/41- 3/85-7/16 .33
829-211CFE*1-1/2X15-5/162-1/41-11/162-9/16 .27
829-212CFE*1-1/2X1-1/44-9/162- 5/162- 1/161-9/16 .33
829-249CFE*2X16- 1/82- 3/41-11/163- 1/8 .41
829-250CFE*2X1-1/46- 1/82- 3/42- 1/162- 7/8 .40
829-251CFE*2X1-1/25-9/162- 3/42- 5/162-5/16 .48
829-289CFE2*2-1/2X110-3/83-5/161-11/167-1/8 .99
829-290CFE2*2-1/2X1-1/410-3/83- 5/162- 1/166-7/8 1.01
829-291CFE2*2-1/2X1-1/29-13/163- 5/162- 5/166-5/16 .99
829-292CFE*2-1/2X26-5/83- 5/162-13/162-7/8 .72
829-335CFE2*3X111- 7/83-15/161-11/168- 3/8 1.21
829-336CFE2*3X1-1/411- 7/83-15/162- 1/168- 1/8 1.21
829-337CFE2*3X1-1/211-5/163-15/162- 5/167-9/16 1.31
829-338EC3X25-7/84-3/162-7/82-15/32 1.00
829-338CFE*3X28- 1/83-15/162-13/164- 1/8 1.07
829-339CFE*3X2-1/27- 1/44- 1/163- 7/163 1.23
829-417CFE3*4X1175- 1/81-11/1613- 1/2 2.66
829-418CFE3*4X1-1/4175- 1/82- 1/1613- 1/4 2.64
829-419CFE3*4X1-1/216-7/165- 1/82- 5/1612-11/16 2.59
829-420CFE2*4X212-3/85- 1/82-13/168-5/8 2.82
829-421CFE2*4X2-1/212- 3/85- 1/83- 7/168- 1/8 2.62
829-422CFE*4X38- 3/45- 1/84- 1/84- 1/4 1.90
829-490CFE*5X4106-1/45-3/164-3/4 3.14
829-528CFE3*6X2207-5/162-7/815-1/4 5.39
829-529CFE3*6X2-1/2207- 5/163- 7/1614- 3/4 5.74
829-530CFE2*6X316- 3/87- 5/164- 1/810- 7/8 5.03
829-532CFE*6X411- 1/87- 5/165- 3/165- 5/8 3.74
829-533CFE*6X511-1/47-3/86-5/165 4.77
829-578CFE4*8X229-3/49- 1/22-7/824 12.97
829-580CFE3*8X326- 1/89- 1/24- 1/819- 5/8 12.51
829-582CFE2*8X420- 7/89- 1/25- 3/1614- 3/8 11.11
829-583CFE2*8X5219- 1/26- 5/1613- 3/4 11.51
829-585CFE*8X615- 1/49- 1/27- 1/27- 3/4 9.77
829-624CFE3*10X43211- 3/45- 3/1624- 1/2 23.06
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 36
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Coupling - Eccentric Reducer
Socket x Socket
Coupling - Eccentric Reducer
(Continued)
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
829-625CFE3*10X532- 1/811- 3/46- 5/1623- 7/8 23.12
829-626CFE2*10X626-3/811- 3/47- 1/217-7/8 21.55
829-628CFE*10X818- 1/1611- 3/49- 5/88- 9/16 16.14
829-664CFE4*12X443- 1/213-15/165- 3/1635 47.19
829-666CFE3*12X637- 7/813-15/167- 1/228- 3/8 40.39
829-668CFE2*12X829- 9/1613-15/169- 5/819- 1/16 34.85
829-670CFE*12X1020- 5/813-15/1611-15/169- 1/8 26.05
829-696CFE3*14X641- 3/815- 3/167- 1/231- 1/8 45.55
829-698CFE2*14X833- 1/1615- 3/169- 5/821-13/16 39.31
829-700CFE*14X1024- 1/815- 3/1611-15/1611- 7/8 29.93
829-702CFE*14X1220- 1/815- 3/814- 1/86- 7/8 35.17
829-756CFE4*16X654- 1/417- 1/27- 1/243 81.83
829-758CFE3*16X845-15/1617- 1/29- 5/833-11/16 77.09
829-760CFE2*16X103717- 1/211-15/1623- 3/4 67.18
829-762CFE2*16X123317- 1/214- 1/818- 3/4 71.77
829-764CFE*16X1424- 5/817- 1/215- 1/29- 5/8 54.62
829-786CFE5*18X669- 1/419-11/167- 1/257 59.26
829-788CFE4*18X860-15/1619-11/169- 5/847-11/16 148.97
829-790CFE3*18X105219-11/1611-15/1637- 3/4 124.66
829-792CFE3*18X124819-11/1614- 1/832- 3/4 118.39
829-794CFE2*18X1439- 5/819-11/1615- 1/223- 5/8 111.05
829-796CFE*18X1628- 5/819-11/1617-11/1611- 5/8 85.64
* Fabricated

Page 37
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Coupling
Fipt x Fipt
Coupling
Part NumberSizeLMNApprox. Wt.
(Lbs.)
830-002C1/41-5/1627/325/32 .02
830-003C3/81-15/3215/16 .03
830-005C1/21-19/321-13/325/32 .07
830-007C3/41-11/161-17/321/8 .09
830-010C12- 3/321-15/161/8 .15
830-012C1-1/42-7/322- 9/323/16 .22
830-015C1-1/22-1/42- 5/87/32 .29
830-020C22- 7/3237/32 .35
830-025C2-1/23-11/323-21/323/16 .71
830-030C33-17/324-13/3211/16 1.12
830-040C43-21/325- 9/163/16 1.61
830-060CF*63- 3/47- 3/163/4 1.76
830-080CF*84-1/29-3/81-1/16 3.32
* Fabricated

Coupling - Special Reinforced
SR Fipt x SR Fipt - Stainless Steel Collar
Coupling - Special Reinforced
Part NumberSizeLMNApprox. Wt.
(Lbs.)
830-005CSR1/21-9/161-3/163/32 .06
830-007CSR3/41-19/321- 3/83/32 .07
830-010CSR11-15/161-11/165/32 .12
830-012CSR1-1/42- 1/162- 1/165/32 .17
830-015CSR1-1/22-3/162- 7/161/4 .25
830-020CSR22- 1/437/32 .39
830-030CSR33-17/324-9/3211/16 1.25

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 38
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Coupling - Reducer
Fipt x Fipt
Coupling - Reducer
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
830-072C1/2X1/41-29/321-7/321-5/325/8 .06
830-073C1/2X3/81-15/161-7/321-5/325/8 .07
830-101C3/4X1/21-11/161- 3/81-3/161/4 .06

Coupling - Special Reinforced Reducer
SR Fipt x SR Fipt - Stainless Steel Collar
Coupling - Special Reinforced Reducer
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
830-101CSR3/4X1/21-3/41- 3/81-3/161/4 .08
830-130CSR1X1/22-7/321-11/161-3/1617/32 .17
830-131CSR1X3/42-3/81-11/161- 3/811/16 .16
830-168CSR1-1/4X12-11/162-1/161-11/1613/16 .26
830-210CSR1-1/2X3/42- 7/82- 7/161- 3/81- 7/32 .30
830-211CSR1-1/2X12-7/82- 7/161-11/161-3/16 .32
830-212CSR1-1/2X1-1/42-27/322-7/162-1/1615/16 .34
830-249CSR2X13- 3/1631-11/161-5/16 .48
830-251CSR2X1-1/23-7/3232- 7/161-5/16 .52

Grooved Coupling Adapter
Groove x Socket
Grooved Coupling Adapter
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
833-012C1-1/42-27/322-3/321- 9/16 .16
833-015C1-1/22-29/322-3/81- 1/2 .19
833-020C23- 1/162- 7/81- 9/16 .29
833-025C2-1/23-13/323- 1/21- 5/8 .52
833-030C33- 9/164- 3/161-11/16 .72
833-040C44-1/25- 1/42-7/32 1.37
Page 39
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Grooved Coupling Adapter
Groove x Socket
Grooved Coupling Adapter
(Continued)
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
833-050CF*576- 5/164 2.77
833-060C65-11/167- 9/162-11/16 2.99
833-080CF*88- 3/169- 5/83-15/16 6.59
833-100CF*109- 7/811-15/164- 5/8 10.90
833-120CF*1210- 7/814- 1/84- 5/8 17.84
* Fabricated

Female Adapter
Socket x Fipt
Female Adapter
Part NumberSizeLMNApprox. Wt.
(Lbs.)
835-002C1/41-5/1613/163/32 .02
835-003C3/81-7/1613/32 .03
835-098C3/4X1/41-15/161-3/85/16 .06
835-005C1/21-11/161-3/163/32 .05
835-007C3/41-27/321-13/323/32 .08
835-010C12-1/41-3/41/8 .13
835-012C1-1/42-9/322-1/163/32 .16
835-015C1-1/22- 1/22-5/161/8 .20
835-020C22-11/1631/4 .41
835-025C2-1/23- 1/43- 9/167/32 .66
835-030C33-1/24-5/327/32 .76
835-040C43-15/165- 7/323/16 1.62
835-060C64-31/327-21/321/4 3.22
835-060CF*66-3/47-1/22 4.22
835-080C86- 5/329-23/321/4 5.50
835-080CF*88- 9/169- 5/82- 9/16 6.89
835-100CF*1010- 1/411-15/163 11.58
835-120CF*1211-1/214- 1/83 17.62
* Fabricated
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 40
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Female Adapter - Brass Transition
Socket x Fipt With Brass Thread Insert
Female Adapter - Brass Transition
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-005CBR1/21-25/321- 5/321-3/1611/32 .12
835-007CBR3/421-13/321- 3/811/32 .15
835-010CBR12- 7/321- 3/41-11/1611/32 .24
835-012CBR1-1/42- 3/82- 3/322- 1/163/8 .34
835-015CBR1-1/22-17/322-13/322- 7/1613/32 .46
835-020CBR22-25/322- 7/83- 3/167/16 1.03
Not intended to convey or dispense water for human consumption through drinking or cooking

Female Adapter - Brass Transition Reducing
Socket x Fipt With Brass Thread Insert
Female Adapter - Brass Transition Reducing
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-101CBR3/4X1/22- 1/321- 7/161- 3/1615/32 .13
Not intended to convey or dispense water for human consumption through drinking or cooking

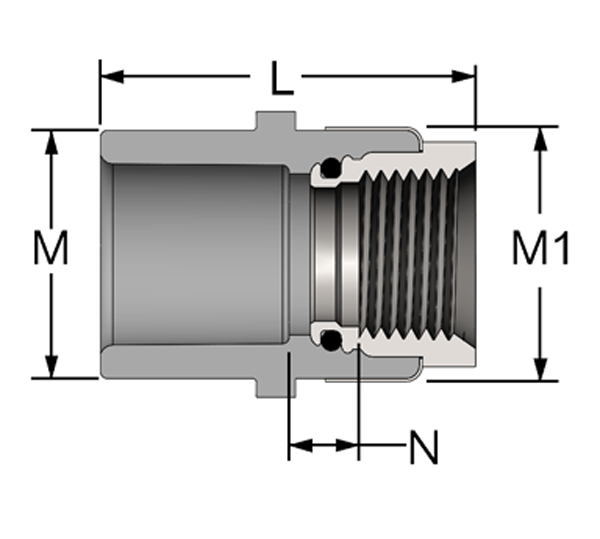

Female Adapter - Stainless Steel Transition
Socket x Fipt With 316 Stainless steel Thread Insert
NSF® Certified Lead Free
Female Adapter - Stainless Steel Transition
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-005CSS1/21-25/321-5/321-3/1611/32 .10
835-007CSS3/421-3/81-13/321/4 .14
835-010CSS12-1/41-23/321-11/1615/32 .24
835-012CSS1-1/42-3/82-3/322-1/163/8 .28
Page 41
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Female Adapter - Stainless Steel Transition
Socket x Fipt With 316 Stainless steel Thread Insert
NSF® Certified Lead Free
Female Adapter - Stainless Steel Transition
(Continued)
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-015CSS1-1/22-9/162-3/82-7/163/8 .64
835-020CSS22-11/162-7/837/16 .84

Female Adapter - Special Reinforced
Socket x SR Fipt - Stainless Steel Collar
Female Adapter - Special Reinforced
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-002CSR1/41-13/3227/3227/323/32 .03
835-003CSR3/81-15/3215/1631/323/32 .03
835-005CSR1/21-23/321- 5/321- 3/163/32 .06
835-007CSR3/41- 7/81-13/321- 3/83/32 .08
835-010CSR12-5/321-23/321-11/163/32 .12
835-012CSR1-1/42- 5/162- 3/322- 1/163/32 .24
835-015CSR1-1/22- 7/162-13/322- 7/163/32 .28
835-020CSR22-23/3233- 1/321/4 .45
835-025CSR2-1/23-9/323- 9/163- 9/163/16 .70
835-030CSR33- 1/24- 1/44- 9/323/32 1.01
835-040CSR43-11/165- 7/325-7/321/4 1.35
835-060CSR64-31/327-21/327-21/321/4 3.16

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 42
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Female Adapter - Special Reinforced Reducing
Socket x SR Fipt - Stainless Steel Collar
Female Adapter - Special Reinforced Reducing
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-074CSR1/2X3/41-23/321- 3/161- 3/83/32 .07
835-098CSR3/4X1/41-31/321-13/3227/3211/32 .06
835-101CSR3/4X1/21-27/321- 3/81- 3/163/32 .07
835-102CSR3/4X12-1/321- 7/161-11/163/32 .12
835-130CSR1X1/221-11/161- 3/167/32 .10
835-131CSR1X3/42- 3/321- 3/41- 3/81/4 .12

Female Adapter - Encapsulated Special Reinforced
Socket x ESR Fipt
Female Adapter - Encapsulated Special Reinforced
Part NumberSizeLMM1NApprox. Wt.
(Lbs.)
835-002CESR1/41- 1/227/3229/323/32 .03
835-003CESR3/81-17/3215/161- 1/323/32 .04
835-005CESR1/21-27/321-5/321- 9/323/32 .07
835-007CESR3/41-31/321-13/321-15/323/32 .09
835-010CESR12- 1/41-23/321-25/323/32 .14
835-012CESR1-1/42- 7/162-3/322- 5/321/8 .26
835-015CESR1-1/22- 9/162-13/322- 1/27/32 .31
835-020CESR22-27/3233- 3/321/4 .48

Male Adapter
Mipt x Socket
Male Adapter
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
836-005C1/21-23/321-9/323/16 .04
836-007C3/41-29/321-7/167/32 .06
836-102C3/4X12- 9/321- 3/417/32 .10
836-131C1X3/42- 1/161-13/321/4 .12
Page 43
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Male Adapter
Mipt x Socket
Male Adapter
(Continued)
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
836-010C12- 5/321-23/327/32 .10
836-012C1-1/42- 1/42- 1/81/4 .15
836-015C1-1/22-9/162-7/169/32 .19
836-020C22- 7/82- 7/85/16 .30
836-025C2-1/23-11/163-17/3211/32 .53
836-030C33-29/324-7/323/8 .77
836-040C44-13/325- 5/1613/32 1.18
836-050CF*566-5/161-5/8 2.31
836-060C65- 1/27- 9/1619/32 3.03
836-060CF*66-1/27-1/21-13/16 3.92
836-080CF*88- 3/169- 5/82- 3/16 6.67
836-100CF*1010- 3/811-15/163- 3/16 11.27
836-120CF*1211- 1/814- 1/82- 3/4 22.93
* Fabricated

Male Adapter -
Internal Reinforced
R Mipt x Socket - Stainless Steel Sleeve
NSF® Certified Lead Free
Male Adapter - <br> Internal Reinforced
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
836-005CR1/22-1/81-3/169/16 .05
836-007CR3/42- 1/41-13/329/16 .08
836-010CR12-21/321-23/3221/32 .15
836-012CR1-1/42-15/162-1/821/32 .17
836-015CR1-1/23-3/162- 3/83/4 .26
836-020CR23-11/322-29/323/4 .29


Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 44
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Male Adapter - CPVC Lined Brass Transition
Brass Mipt x Socket
NSF® Certified Lead Free
Male Adapter - CPVC Lined Brass Transition<br>
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
836-005CBR1/22-13/321- 9/321-3/16 .20
836-007CBR3/42-17/321-13/3213/16 .26
836-010CBR12-15/161-23/3229/32 .50
836-012CBR1-1/43- 1/82- 3/3231/32 .66
836-015CBR1-1/23- 9/322-11/3231/32 .80
836-020CBR23- 7/162-27/321 1.07

Male Spigot Adapter
Spigot x Mipt
Male Spigot Adapter
Part NumberSizeLNApprox. Wt.
(Lbs.)
861-005C1/21-13/161/4 .03
861-007C3/41-31/321/4 .04
861-010C12- 3/321/4 .07
861-131C1X3/421/4 .07
861-012C1-1/42- 9/329/32 .12
861-015C1-1/22-7/165/16 .14
861-020C22-11/163/8 .24

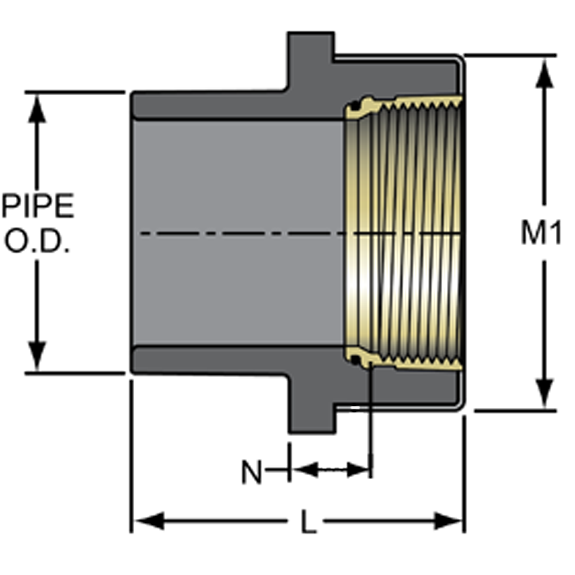

Female Spigot Adapter - Brass Transition
Spigot x Fipt With Brass Thread Insert
Female Spigot Adapter - Brass Transition
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
878-010CBR12-9/321-11/167/16 .22
Not intended to convey or dispense water for human consumption through drinking or cooking

Page 45
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Female Spigot Adapter - Special Reinforced
Spigot x SR Fipt - Stainless Steel Collar
Female Spigot Adapter - Special Reinforced
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
878-005CSR1/21- 3/41- 3/161/8 .05
878-007CSR3/41-15/161- 3/83/16 .07
878-010CSR12- 1/41-23/327/32 .12
878-012CSR1-1/42-15/322- 1/161/4 .18
878-015CSR1-1/22-21/322- 7/169/32 .26
878-020CSR22-13/1639/32 .40
878-030CSR33-27/324- 9/325/16 .96
878-040CSR44- 3/85- 1/45/8 1.42

Female Spigot Adapter - Special Reinforced Reducing
Spigot x SR Fipt - Stainless Steel Collar
Female Spigot Adapter - Special Reinforced Reducing
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
878-072CSR1/2X1/41-13/3227/321/8 .03
878-098CSR3/4X1/41-27/3227/327/32 .05
878-128CSR1X1/42- 3/827/3221/32 .08

Female Spigot Adapter - Encapsulated Special Reinforced
Spigot x ESR Fipt
Female Spigot Adapter - Encapsulated Special Reinforced
Part NumberSizeLM1NApprox. Wt.
(Lbs.)
878-005CESR1/21- 7/81- 9/321/8 .06
878-007CESR3/42- 1/161-15/325/32 .09
878-010CESR12- 3/81-25/327/32 .14
878-012CESR1-1/42-9/162- 5/321/4 .20
878-015CESR1-1/22-25/322- 1/29/32 .29
878-020CESR22-29/323- 3/329/32 .43

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 46
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Reducer Bushing
Flush Style
Spigot x Socket
Reducer Bushing <br> Flush Style
Part NumberSizeLNApprox. Wt.
(Lbs.)
837-052C3/8X1/431/325/16 .01
837-072C1/2X1/41- 3/3213/32 .02
837-073C1/2X3/81- 1/811/32 .01
837-101C3/4X1/21-1/43/8 .02
837-129C11X3/81-3/827/32 .08
837-130C1X1/21-3/81/2 .06
837-131C1X3/41-11/325/16 .03
837-166C1-1/4X1/21- 1/25/8 .12
837-167C1-1/4X3/41-13/3213/32 .09
837-168C1-1/4X11-13/329/32 .06
837-209C1-1/2X1/21-23/3213/16 .15
837-210C1-1/2X3/41-5/85/8 .16
837-211C1-1/2X11-19/3213/32 .12
837-212C1-1/2X1-1/41-17/329/32 .06
837-247C2X1/21-29/321 .29
837-248C2X3/41-23/3223/32 .27
837-249C2X11-3/45/8 .23
837-250C2X1-1/41-11/167/16 .20
837-251C2X1-1/21-3/411/32 .15
837-289C2-1/2X12-1/3229/32 .43
837-290C2-1/2X1-1/42-5/3213/32 .46
837-291C2-1/2X1-1/22-5/323/4 .40
837-292C2-1/2X22-9/323/4 .29
837-333C3X1/22-3/161-5/16 .64
837-334C13X3/42-3/81-3/8 .70
837-335C3X12-9/321-1/8 .66
837-336C3X1-1/42-1/41 .70
837-337C3X1-1/22-9/327/8 .66
837-338C3X22-7/329/16 .63
837-339C3X2-1/22-11/329/32 .43
837-419C4X1-1/22-19/321-3/16 1.07
837-420C4X22-21/321-1/8 1.10
837-421C4X2-1/22-17/3225/32 1.07
837-422C4X32-5/83/4 .85
837-490C5X42-31/3223/32 1.35
837-490CF*5X433/4 1.43
837-525C16X13-13/162-11/16 3.37
837-528C6X23-1/22 3.13
837-529C16X2-1/23-7/81-13/16 3.48
837-530C6X33-17/322-1/8 3.07
837-532C6X43-9/161- 1/4 2.90
837-533CF*6X537/16 1.75
837-534C6X53-17/327/8 2.05
837-578C18X24-15/163-3/8 7.25
Page 47
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Reducer Bushing
Flush Style
Spigot x Socket
Reducer Bushing <br> Flush Style
(Continued)
Part NumberSizeLNApprox. Wt.
(Lbs.)
837-580C18X34-7/83 7.00
837-582C8X44- 1/22- 1/4 6.14
837-583CF*8X54-7/161-3/4 7.12
837-585C8X64-3/81-3/8 5.36
837-624C110X463-3/4 13.30
837-626C10X65-5/162-5/16 10.39
837-628C10X85-11/321-5/16 11.47
837-628CF*10X85-1/41-1/4 8.43
837-663CF*12X36-7/85 25.78
837-666CF*12X66-3/83-5/16 22.70
837-668C12X86-7/82-7/16 16.29
837-670CF*12X1061 12.31
837-696CF*14X67-3/44-11/16 31.99
837-698CF*14X87-5/163-5/16 26.62
837-700CF*14X107-5/162-5/16 22.64
837-702CF*14X1271 10.33
837-756CF*16X68-3/45-11/16 47.20
837-754CF16X48-13/166-13/16 47.37
837-758CF*16X88-5/164-5/16 42.24
837-760CF*16X108-5/163-5/16 42.68
837-762CF*16X1282 31.01
837-764CF*16X1481 20.03
837-786CF*18X69-3/46-11/16 79.67
837-788CF*18X89-5/165-5/16 73.66
837-790CF*18X109-5/164-5/16 69.68
837-792CF*18X1293 57.37
837-794CF*18X1492 47.03
837-796CF*18X1691 27.00
837-816CF*20X69-3/46-11/16 113.65
837-818CF*20X810-5/166-5/16 106.59
837-820CF*20X1010-5/165-5/16 103.25
837-822CF*20X12104 90.94
837-824CF*20X14103 79.96
837-826CF*20X16102 59.92
837-828CF*20X18101 32.92
1 Sized with Bushing
* Fabricated

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 48
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Reducer Bushing
Flush Style
Spigot x Fipt
Reducer Bushing <br> Flush Style
Part NumberSizeLNApprox. Wt.
(Lbs.)
838-052C3/8X1/415/163/8 .01
838-071C1/2X1/819/16 .02
838-072C1/2X1/4113/32 .01
838-073C1/2X3/81- 3/3217/32 .01
838-098C3/4X1/41- 7/325/8 .04
838-099C3/4X3/81- 1/421/32 .03
838-101C3/4X1/21-1/41/2 .02
838-129C1X3/81-13/3213/32 .06
838-130C1X1/21-3/85/8 .06
838-131C1X3/41- 3/821/32 .05
838-166C1-1/4X1/21-9/1613/16 .11
838-167C1-1/4X3/41-15/323/4 .09
838-168C1-1/4X11-7/161/2 .09
838-207C1-1/2X1/41- 9/1615/16 .15
838-209C1-1/2X1/21-23/321 .16
838-210C1-1/2X3/41-23/3229/32 .14
838-211C1-1/2X11-23/3213/16 .15
838-212C1-1/2X1-1/41- 1/29/16 .10
838-247C2X1/21-29/321-3/16 .29
838-248C2X3/41-29/321- 5/32 .30
838-249C2X11-7/81 .26
838-250C2X1-1/41-29/327/8 .25
838-251C2X1-1/21-29/3215/16 .20
838-287C2-1/2X1/22- 3/81-21/32 .45
838-288C2-1/2X3/42- 7/161- 5/8 .53
838-289C2-1/2X12-1/81-7/32 .41
838-290C2-1/2X1-1/42-3/81-7/32 .45
838-291C2-1/2X1-1/22- 3/81-13/32 .51
838-292C2-1/2X22-1/321- 1/16 .26
838-334C3X3/42- 9/321-17/32 .62
838-335C3X12-1/41-3/8 .61
838-336C3X1-1/42-9/321-11/32 .61
838-337C3X1-1/22-9/321-5/16 .74
838-338C3X22- 3/161- 7/32 .57
838-339C3X2-1/22- 3/813/16 .50
838-420C4X22-21/321-21/32 1.19
838-421C4X2-1/22-21/321-5/32 1.10
838-422C4X32- 5/81-1/32 .84
838-528C6X23-1/22-1/2 3.25
838-530C6X33-17/322- 1/8 3.14
838-532C6X43-17/322- 1/32 3.27

Page 49
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

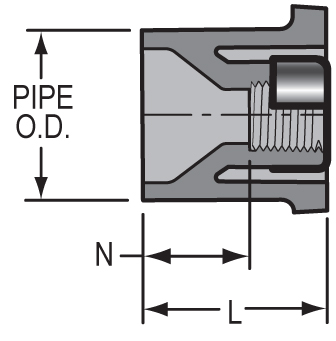

Reducer Bushing -
Special Reinforced
Spigot x SR Fipt - Stainless Steel Collar
Reducer Bushing - <br> Special Reinforced
Part NumberSizeLNApprox. Wt.
(Lbs.)
838-128CSR1X1/41-13/3225/32 .08
838-207CSR1-1/2X1/41- 9/1615/16 .16
838-209CSR1-1/2X1/21-23/321 .17
838-210CSR1-1/2X3/41-23/3229/32 .16
838-247CSR2X1/21-29/321-3/16 .29
838-248CSR2X3/41-29/321- 5/32 .29
838-249CSR2X11- 7/831/32 .31
838-334CSR3X3/42- 9/321-17/32 .62
838-335CSR3X12-1/41-3/8 .68
838-336CSR3X1-1/42-9/321-11/32 .63
838-337CSR3X1-1/22-9/321-5/16 .64
838-528CSR6X23- 1/22-1/2 3.20
838-530CSR6X33-17/322- 1/8 3.07
838-532CSR6X43-27/322 3.32

Reducer Bushing (T.T.) Flush Style
Mipt x Fipt
Reducer Bushing (T.T.) Flush Style
Part NumberSizeLNApprox. Wt.
(Lbs.)
839-041C1/4X1/823/325/16 .00
839-052C3/8X1/425/323/16 .01
839-072C1/2X1/47/85/16 .01
839-073C1/2X3/815/1611/32 .01
839-098C3/4X1/417/16 .03
839-099C3/4X3/817/16 .03
839-101C3/4X1/215/163/16 .01
839-128C1X1/41-7/325/8 .05
839-129C1X3/81- 7/325/8 .05
839-130C1X1/21-7/3215/32 .05
839-131C1X3/41-1/415/32 .04
839-166C1-1/4X1/21-9/329/16 .09
839-167C1-1/4X3/41- 9/329/16 .08
839-168C1-1/4X11- 9/325/16 .06
839-209C1-1/2X1/21-11/3219/32 .12
839-210C1-1/2X3/41-11/3219/32 .12
839-211C1-1/2X11-11/327/16 .10
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 50
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Reducer Bushing (T.T.) Flush Style
Mipt x Fipt
Reducer Bushing (T.T.) Flush Style
(Continued)
Part NumberSizeLNApprox. Wt.
(Lbs.)
839-212C1-1/2X1-1/41-11/3213/32 .06
839-247C2X1/21- 3/821/32 .18
839-248C2X3/41- 3/85/8 .18
839-249C2X11- 3/815/32 .18
839-250C2X1-1/41- 3/87/16 .16
839-251C2X1-1/21- 3/813/32 .12
839-292C2-1/2X21-7/87/8 .22
839-337C3X1-1/21-15/1615/16 .52
839-338C3X21-15/1615/16 .46
839-339C3X2-1/21-15/165/8 .38
839-420C4X22- 1/81- 1/8 .86
839-422C4X32- 1/81/2 .74
839-532C6X43-17/321-13/16 3.16

Reducer Bushing - Special Reinforced Reducing Flush Style
Mipt x SR Fipt - Stainless Steel Collar
Reducer Bushing - Special Reinforced Reducing Flush Style
Part NumberSizeLNApprox. Wt.
(Lbs.)
839-209CSR1-1/2X1/21-11/3219/32 .12
839-210CSR1-1/2X3/41-11/3219/32 .12
839-247CSR2X1/21- 3/821/32 .18
839-248CSR2X3/41- 3/85/8 .18
839-249CSR2X11- 3/815/32 .20
839-420CSR4X22- 1/81- 1/8 .90

Page 51
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Cap
Socket
Cap
Part NumberSizeMWApprox. Wt.
(Lbs.)
847-002C1/413/1629/32 .01
847-003C3/831/321- 1/8 .02
847-005C1/21- 3/161- 7/32 .03
847-007C3/41- 3/81-13/32 .04
847-010C11-11/161- 5/8 .08
847-012C1-1/42- 3/321-27/32 .12
847-015C1-1/22-11/322 .17
847-020C22-27/322- 9/32 .26
847-025C2-1/23-17/322- 5/8 .46
847-030C34- 5/323- 1/32 .73
847-040C45-7/323-15/16 1.36
847-050CF*56-1/24-7/16 1.98
847-060C67-9/165-15/32 3.42
847-080C89-23/327-5/32 6.93
847-100CF*1012- 1/45-15/16 7.48
847-120CF*1214- 1/47- 1/8 12.11
847-140CF*1415- 1/27- 3/8 14.71
847-160CF*1617- 7/89 24.00
847-180CF*1819-15/169-1/4 28.87
847-200CF*202214-1/4 45.81
847-240CF*2426-3/817-1/4 270.65
* Fabricated

Cap
Fipt
Cap
Part NumberSizeMWApprox. Wt.
(Lbs.)
848-002C1/413/1613/16 .01
848-003C3/815/167/8 .01
848-005C1/21- 3/161- 1/16 .03
848-007C3/41- 3/81-3/32 .04
848-010C11-27/321- 7/16 .10
848-012C1-1/42- 7/321-17/32 .15
848-015C1-1/22-17/321-19/32 .20
848-020C23-1/161-13/16 .29
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 52
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Cap
Fipt
Cap
(Continued)
Part NumberSizeMWApprox. Wt.
(Lbs.)
848-025C2-1/23-11/162-15/32 .58
848-030C34- 3/82- 7/16 .77
848-040C45-17/323 1.37
848-060CF*67-3/164-3/8 2.20
848-080CF*89-3/84-3/8 3.76
848-100CF*1011-5/85-3/4 6.38
848-120CF*1213-13/166-3/16 10.24
* Fabricated

Cap - Special Reinforced
SR Fipt - Stainless Steel Collar
Cap - Special Reinforced
Part NumberSizeMWApprox. Wt.
(Lbs.)
848-002CSR1/427/3227/32 .01
848-003CSR3/831/3229/32 .02
848-005CSR1/21-3/161-1/16 .04
848-007CSR3/41- 3/81- 3/32 .05
848-030CSR34- 9/322- 7/16 .84

Plug
Spigot
Plug
Part NumberSizeLApprox. Wt.
(Lbs.)
849-005C1/21-5/32 .03
849-007C3/41- 1/4 .03
849-010C11- 3/8 .06
849-012C1-1/41-17/32 .10
Page 53
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Plug
Spigot
Plug
(Continued)
Part NumberSizeLApprox. Wt.
(Lbs.)
849-015C1-1/21-11/16 .14
849-020C21- 7/8 .22
849-025CF4*2-1/25- 3/8 1.12
849-030CF4*35-7/8 1.55
849-040CF4*46-15/16 2.66
849-060CF4*69-5/8 6.75
849-080CF4*812-3/16 13.50
849-100CF4*1012-1/4 17.99
849-120CF4*1214-1/8 28.85
849-140CF4*1415-3/8 39.91
849-160CF4*1618 57.90
849-180CF4*1819-1/4 74.02
849-200CF4*2025-1/4 76.91
849-240CF4*2430-1/4 208.48
4 Plug fabricated using Cap and pipe spigot.
* Fabricated

Plug
Mipt
Plug
Part NumberSizeLApprox. Wt.
(Lbs.)
850-002C1/423/32 .01
850-003C3/83/4 .01
850-005C1/227/32 .01
850-007C3/47/8 .02
850-010C11- 1/16 .05
850-012C1-1/41-5/16 .07
850-015C1-1/21-3/8 .10
850-020C21- 3/8 .16
850-025C2-1/21-13/16 .29
850-030C31- 7/8 .45
850-040C42-1/8 .81
850-060C62- 3/32 1.79
850-060CF4*67-1/2 5.50
850-080C82-13/32 3.53
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 54
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Plug
Mipt
Plug
(Continued)
Part NumberSizeLApprox. Wt.
(Lbs.)
850-080CF4*89-11/16 12.18
850-100CF4*108- 7/16 13.76
850-120CF4*1210-5/8 24.34
4 Plug fabricated using Cap and threaded pipe.
* Fabricated

Wye
Socket x Socket x Socket
1/2" - 2" - 235 psi Maximum Internal Pressure Rating @ 73°F (23°C) 2-1/2" - 6" - 150 psi Maximum Internal Pressure Rating @ 73°F (23°C) 8" -10" & All Fabricated Sizes - 100 psi Maximum Internal Pressure Rating @ 73°F (23°C) 12" 80 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Wye
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
875-005C1/21/41-3/161-3/161-5/322- 1/162-1/163-7/321- 5/321- 5/32 .12
875-007C3/49/321-13/321-13/321-9/322-13/322-13/323-11/161- 3/81- 3/8 .19
875-010C111/321- 3/41- 3/41-15/322-7/82- 7/84-11/321-11/161-11/16 .32
875-012C1-1/413/322-3/162-3/161-21/323-15/323-15/325-1/82- 1/162- 1/16 .52
875-015C1-1/215/322-19/322-19/321-27/323-31/323-31/325-13/162-11/322-11/32 .73
875-020C25/83- 7/323- 7/322- 5/324-23/324-23/326- 7/82- 7/82- 7/8 1.27
875-025C2-1/227/323-31/323-31/322-19/325-23/325-23/328- 5/163- 1/23- 1/2 2.04
875-030C331/324- 3/44-3/42-7/86- 5/86-5/89- 1/24- 3/164- 3/16 3.12
875-040C41-7/326- 1/326- 1/323-15/328- 9/328- 9/3211-3/45- 1/45- 1/4 5.35
875-060C61-13/328-21/328-1/164-13/3211-21/3211-1/1615-15/327- 9/167- 9/16 13.21
875-080C82-1/3211-9/3211-9/326-1/3215-9/3215-9/3221- 5/169- 3/49- 3/4 28.12
875-080CF2*85- 1/1615- 7/813-11/169- 5/1620- 1/817-15/1627- 1/49- 5/89- 5/8 37.70
875-100CF2*106- 1/218- 7/817- 1/411- 3/424- 1/822- 1/234- 1/411-15/1611-15/16 73.03
875-120CF2*127- 1/821-13/1619- 7/813- 3/828- 1/1626- 1/839- 1/214- 1/814- 1/8 111.12
875-140CF2*149-13/1623-13/1623-13/1616-13/1630-13/1630-13/1647- 5/815- 1/215- 1/2 159.14
875-160CF2*1610- 1/826- 1/826- 1/818- 1/834- 1/834- 1/852- 1/417-11/1617-11/16 211.72
875-180CF2*181029- 3/8281938- 3/8375619- 7/819- 7/8 292.03
875-200CF2*2011-5/831-5/831-5/821-5/841-5/841-5/863-1/422-1/1622-1/16 374.67
875-240CF2*2414-1/438-1/438-1/426-1/450-1/450-1/476-1/226-7/1626-7/16 719.95
2 Fiberglass reinforced.
* Fabricated

Page 55
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Wye - Reducing
Socket x Socket x Socket
1/2" - 2" - 235 psi Maximum Internal Pressure Rating @ 73°F (23°C) 2-1/2" - 6" - 150 psi Maximum Internal Pressure Rating @ 73°F (23°C) 8" -10" & All Fabricated Sizes - 100 psi Maximum Internal Pressure Rating @ 73°F (23°C) 12" 80 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Wye - Reducing
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
875-167C11-1/4X3/413/322-9/322-3/161-21/323-5/83-15/325- 1/82- 1/162- 1/16 .62
875-168C11-1/4X113/322-15/322-3/161-21/323-5/83-15/325- 1/82- 1/162- 1/16 .59
875-200CF2*2011-5/831-5/831-5/821-5/841-5/841-5/863-1/422-1/1622-1/16 374.67
875-210C11-1/2X3/41/23- 1/22- 9/161- 7/84- 1/23-15/165-13/162-11/322-11/32 .90
875-211C11-1/2X115/3232-19/321-27/324-1/83-31/325-13/162-11/322-11/32 .86
875-212C11-1/2X1-1/415/322-7/82-19/321-27/324-1/83-31/325-13/162-11/322-11/32 .80
875-240CF2*2414-1/438-1/438-1/426-1/450-1/450-1/476-1/226-7/1626-7/16 719.95
875-248C12X3/45/84- 5/323- 7/322- 5/325- 5/324- 7/86- 7/82- 7/82- 7/8 1.55
875-250C12X1-1/45/83-21/323-7/322- 5/324-15/164-23/326- 7/82- 7/82- 7/8 1.48
875-251C12X1-1/25/83-3/43-7/322-5/325-1/84-23/326- 7/82- 7/82- 7/8 1.43
875-335C13X131/325- 7/84-3/42-7/87-1/326-5/89-1/24- 3/164- 3/16 3.79
875-336C13X1-1/431/325- 3/44-3/42-7/87-1/326-5/89-1/24- 3/164- 3/16 3.83
875-337C13X1-1/231/325-3/44-3/42-7/87-1/326-5/89-1/24-3/164-3/16 3.79
875-338C13X231/325-7/164- 3/42- 7/86-31/326- 5/89- 1/24- 3/164- 3/16 3.76
875-339C13X2-1/231/324-15/164-3/42-7/87-1/326-5/89-1/24- 3/164- 3/16 3.53
875-420C4X23/324-7/84-15/322-5/326-3/86-3/48-29/325-1/42-7/8 3.13
875-422C4X35/85- 7/165-9/322-7/87- 5/167-1/210-3/85- 1/44-5/32 4.18
875-528C16X208-23/326-11/16310-1/49-11/1612-11/167- 9/165- 7/16 11.18
875-528CF2*6X21-15/169- 3/168- 9/165- 3/1610-15/1611-13/16177- 1/22-13/16 12.18
875-530C16X308-11/326-11/16310- 1/49-11/1612-11/167- 9/165-7/16 10.94
875-530CF2*6X32-15/1610- 5/169- 9/166- 3/1612- 9/1612-13/16197- 1/24- 1/8 14.44
875-532C6X407-5/86-11/1639-7/89-11/1612-11/167- 9/165- 7/16 10.08
875-578C18X215/3210-3/168-1/43-17/3211-23/3212-1/415-25/329-23/325-1/4 16.42
875-578CF2*8X27/810- 1/29- 1/25- 1/812- 1/413- 3/418- 7/89- 5/82-13/16 19.11
875-579CF2*8X2-1/21- 7/1610-15/1610- 1/165-11/1612-15/1614- 5/16209- 5/83- 7/16 18.51
875-580CF2*8X31-15/1611- 5/810- 9/166- 3/1613- 7/814-13/16219- 5/84- 1/8 21.71
875-582C8X4-15/329-1/168-1/43-17/3211-5/1612-1/415-3/49-23/325- 1/4 15.31
875-582CF2*8X42-15/1611- 7/811- 9/167- 3/1614- 1/815-13/16239- 5/85- 3/16 24.77
875-585C18X62-1/3212-11/1611-9/326-1/3215-11/1615-9/3221-5/169-3/49-3/4 33.48
875-585CF2*8X64-15/1613-15/1613- 9/169- 3/1617- 3/1617-13/16279- 5/87- 1/2 34.47
875-621CF2*10X21/411- 7/810- 1/2513- 5/815- 3/420- 3/411-15/162-13/16 29.82
875-623CF2*10X33/41311- 1/2615- 1/416- 3/422- 3/411-15/164- 1/8 33.43
875-624CF2*10X41- 3/413- 1/412- 1/2715- 1/217- 3/424- 3/411-15/165- 3/16 36.89
875-626C10X6-3/1611-29/32114-13/1614-15/161620-13/1612- 1/167-5/8 29.73
875-626CF2*10X63- 3/415- 5/1614- 1/2918- 9/1619- 3/428- 3/411-15/167- 1/2 47.48
875-628C10X81-7/1612-7/812-7/166-7/1616-7/817-7/1623-7/812-3/329-3/4 37.73
875-628CF2*10X85- 1/417- 1/41610- 1/221- 1/221- 1/431- 3/411-15/169- 5/8 56.36
875-661CF2*12X21- 5/1613- 3/1611- 7/164-15/1614-15/1617-11/1622- 5/814- 1/82-13/16 44.03
875-663CF2*12X31/814- 5/1612- 7/86- 3/816- 9/1619- 1/825- 1/214- 1/84- 1/8 44.74
875-664CF2*12X45/814- 9/1613- 3/86- 7/816-13/1619- 5/826- 1/214- 1/85- 3/16 50.66
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 56
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book
Wye - Reducing
Socket x Socket x Socket
1/2" - 2" - 235 psi Maximum Internal Pressure Rating @ 73°F (23°C) 2-1/2" - 6" - 150 psi Maximum Internal Pressure Rating @ 73°F (23°C) 8" -10" & All Fabricated Sizes - 100 psi Maximum Internal Pressure Rating @ 73°F (23°C) 12" 80 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Wye - Reducing
(Continued)
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
875-666CF2*12X62- 5/816- 5/815- 3/88- 7/819- 7/821- 5/830- 1/214- 1/87- 1/2 63.31
875-668CF2*12X84- 1/418- 9/161710- 1/222-13/1623- 1/433- 3/414- 1/89- 5/8 74.48
875-670CF2*12X105- 3/420- 3/1618- 1/21225- 7/1624- 3/436- 3/414- 1/811-15/16 86.93
875-694CF2*14X41- 1/415- 5/1615- 1/48- 1/417- 9/1622- 1/430- 1/215- 1/25- 3/16 73.56
875-696CF2*14X6217- 3/816920- 5/8233215- 1/27- 1/2 83.85
875-698CF2*14X84- 1/419- 5/1618- 1/411- 1/423- 9/1625- 1/436- 1/215- 1/29- 5/8 93.92
875-700CF2*14X105-3/420-15/1619-3/412-3/426-3/1626-3/439-1/215-1/211-15/16 107.46
875-702CF2*14X127- 1/422- 9/1621- 1/414- 1/428-13/1628- 1/442- 1/215- 1/214- 1/8 133.37
875-754CF2*16X41- 1/816- 5/817- 1/89- 1/818- 7/825- 1/834- 1/417-11/165- 3/16 103.11
875-756CF2*16X61- 5/818-11/1617- 5/89- 5/821-15/1625- 5/835- 1/417-11/167- 1/2 107.53
875-758CF2*16X83- 5/820- 5/819- 5/811- 5/824- 7/827- 5/839- 1/417-11/169- 5/8 126.98
875-760CF2*16X105- 1/822- 1/421- 1/813- 1/827- 1/229- 1/842- 1/417-11/1611-15/16 137.96
875-762CF2*16X126- 1/223- 7/822- 1/214- 1/230- 1/830- 1/24517-11/1614- 1/8 165.90
875-764CF2*16X147- 7/825- 1/823- 7/815- 7/832- 1/831- 7/847- 3/417-11/1615- 1/2 167.10
875-784CF2*18X4017- 7/818920- 1/8273619- 7/85- 3/16 117.95
875-786CF2*18X63/820- 1/818- 9/169- 3/823- 3/827- 9/1636-15/1619- 7/87- 1/2 123.00
875-788CF2*18X8321- 7/8211226- 1/8304219- 7/89- 5/8 144.88
875-790CF2*18X104- 1/223- 1/222- 1/213- 1/228- 3/431- 1/24519- 7/811-15/16 197.59
875-792CF2*18X12625- 1/8241531- 3/8334819- 7/814- 1/8 187.12
875-794CF2*18X14726- 3/8251633- 3/8345019- 7/815- 1/2 211.64
875-796CF2*18X168- 1/227- 3/826- 1/217- 1/235- 3/835- 1/25319- 7/817-11/16 225.07
1 Sized with Bushing
2 Fiberglass reinforced.
* Fabricated

Double Wye
Socket x Socket x Socket x Socket
100 psi Maximum internal Pressure Rating @ 73°F (23°C)
Double Wye
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
876-020CF2*23-15/165-5/86-5/165- 7/167-3/167-13/1613-1/42- 7/82- 7/8 4.84
Page 57
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Print this Book
Print this Book

Double Wye
Socket x Socket x Socket x Socket
100 psi Maximum internal Pressure Rating @ 73°F (23°C)
Double Wye
(Continued)
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
876-030CF2*34-3/48-1/48-1/46-5/810-3/1610-3/1616-13/164- 3/164- 3/16 10.11
876-040CF2*44-11/169- 3/169- 3/166-15/1611- 7/1611- 7/1618- 3/85- 3/165- 3/16 13.41
876-060CF2*64-15/1612- 5/811- 9/168- 3/1615- 7/814-13/16237- 1/27- 1/2 30.18
876-080CF2*85- 1/1615- 7/813-11/169- 5/1620- 1/817-15/1627- 1/49- 5/89- 5/8 53.78
876-100CF2*106- 1/218- 7/817- 1/411- 3/424- 1/822- 1/234- 1/411-15/1611-15/16 93.99
876-120CF2*127- 1/821-13/1619- 7/813- 3/828- 1/1626- 1/839- 1/214- 1/814- 1/8 149.18
2 Fiberglass reinforced.
* Fabricated

Double Wye - Reducing
Socket x Socket x Socket x Socket
Size 3" is 150 psi, all Fabricated Sizes- 100 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Double Wye - Reducing
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
876-338C3X23/164- 1/442-1/165- 3/45-7/87-15/164- 3/162- 7/8 2.39
876-420CF2*4X22-1/47-13/166-3/44-1/29-9/16913-1/25-3/162-13/16 7.15
876-421CF2*4X2-1/21-7/88-1/46-3/84-1/810-1/48-5/812-3/45-3/163-7/16 5.85
876-422CF2*4X34-11/169-15/169- 3/166-15/1611-7/811- 7/1618- 3/85- 3/165- 3/16 15.13
876-528CF2*6X21-15/169- 3/168- 9/165- 3/1610-15/1611-13/16177- 1/22-13/16 13.76
876-529CF2*6X2-1/22- 7/169- 5/89- 1/165-11/1611- 5/812- 5/16187- 1/23- 7/16 12.11
876-530CF2*6X32-15/1610- 5/169- 9/166- 3/1612- 9/1612-13/16197- 1/24- 1/8 16.03
876-532CF2*6X43-15/1610- 9/1610- 9/167- 3/1612-13/1613-13/16217- 1/25- 3/16 19.77
876-578CF2*8X27/810- 1/29- 1/25- 1/812- 1/413- 3/418- 7/89- 5/82-13/16 17.20
876-579CF2*8X2-1/21- 7/1610-15/1610- 1/165-11/1612-15/1614- 5/16209- 5/83- 7/16 19.56
876-580CF2*8X31-15/1611- 5/810- 9/166- 3/1613- 7/814-13/16219- 5/84- 1/8 25.11
876-582CF2*8X42-15/1611- 7/811- 9/167- 3/1614- 1/815-13/16239- 5/85- 3/16 28.85
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 58
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings & Schedule 80 CPVC Unions
Print this Book
Print this Book
Double Wye - Reducing
Socket x Socket x Socket x Socket
Size 3" is 150 psi, all Fabricated Sizes- 100 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Double Wye - Reducing
(Continued)
Part NumberSizeGG1G2HH1H2LMM1Approx. Wt.
(Lbs.)
876-585CF2*8X64-15/1613-15/1613- 9/169- 3/1617- 3/1617-13/16279- 5/87- 1/2 41.47
876-621CF2*10X21/411- 7/810- 1/2513- 5/815- 3/420- 3/411-15/162-13/16 26.33
876-622CF2*10X2-1/21/812- 5/1610- 7/85- 3/814- 5/1616- 1/821- 1/211-15/163- 7/16 28.27
876-623CF2*10X33/41311- 1/2615- 1/416- 3/422- 3/411-15/164- 1/8 24.66
876-624CF2*10X41- 3/413- 1/412- 1/2715- 1/217- 3/424- 3/411-15/165- 3/16 35.90
876-626CF2*10X63- 3/415- 5/1614- 1/2918- 9/1619- 3/428- 3/411-15/167- 1/2 46.54
876-628CF2*10X85- 1/417- 1/41610- 1/221- 1/221- 1/431- 3/411-15/169- 5/8 70.04
876-661CF2*12X21- 5/1613- 3/1611- 7/164-15/1614-15/1617-11/1622- 5/814- 1/82-13/16 39.61
876-662CF2*12X2-1/215/1613- 5/811-13/165- 5/1615- 5/818- 1/1623- 3/814- 1/83- 7/16 41.99
876-663CF2*12X31/814-15/1612- 7/86- 3/816- 9/1619- 1/825- 1/214- 1/84- 1/8 46.17
876-664CF2*12X45/814- 9/1613- 3/86- 7/816-13/1619- 5/826- 1/214- 1/85- 3/16 49.77
876-666CF2*12X62- 5/816- 5/815- 3/88- 7/819- 7/821- 5/830- 1/214- 1/87- 1/2 63.29
876-668CF2*12X84- 1/418- 9/161710- 1/222-13/1623- 1/433- 3/414- 1/89- 5/8 79.18
876-670CF2*12X105- 3/420- 3/1618- 1/21225- 7/1624- 3/436- 3/414- 1/811-15/16 102.16
2 Fiberglass reinforced.
* Fabricated

Union 2000 - Socket/FKM
Socket x Socket with FKM O-ring Seal
Dimensions Also Applicable to
8097-XXXC EPDM O-Ring Seals
Union 2000 - Socket/FKM
Pressure Rating
1/4" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
857-002C1/41-15/1629/3211/161-21/32 .09
857-003C3/82- 5/321-1/165/81-25/32 .11
8057-005C1/22- 3/321- 3/165/161-15/16 .12
8057-007C3/42- 3/81-3/83/82-3/8 .20
8057-010C12-11/161-23/3213/322-21/32 .28
8057-012C1-1/42-15/162- 3/321-3/323- 3/32 .41
8057-015C1-1/23- 1/42-11/321/23-19/32 .54
8057-020C23-9/162- 7/817/324-5/16 .90
8057-025C2-1/24- 7/323- 1/211/166-3/16 2.25
8057-030C34-5/164-5/3217/326-3/16 2.27
Page 59
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book

Union 2000 - Socket/FKM
Socket x Socket with FKM O-ring Seal
Dimensions Also Applicable to
8097-XXXC EPDM O-Ring Seals
Union 2000 - Socket/FKM
(Continued)
Pressure Rating
1/4" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8057-040C45-3/165- 1/421/327- 3/4 4.02
8057-060C66-29/327-21/3227/3211- 5/8 12.44

Union 2000 - Socket/Fipt/FKM
Socket x Fipt with FKM O-ring Seal
Dimensions Also Applicable to
8099-XXXC EPDM O-Ring Seals
Union 2000 - Socket/Fipt/FKM
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8059-005C1/21-7/81-3/165/161-15/16 .12
8059-007C3/42- 1/161-3/83/82-3/8 .19
8059-010C12-7/161-11/161/22-21/32 .27
8059-012C1-1/42-5/82-1/161/23-3/16 .40
8059-015C1-1/22-13/162-11/3217/323-19/32 .53
8059-020C232- 7/89/164-5/16 .88
8059-025C2-1/23-15/323- 1/213/326- 3/16 2.28
8059-030C33-13/164-5/325/86-3/16 2.26
8059-040C44- 3/85- 1/411/167- 3/4 3.85
8059-060C66-27/327-21/321-17/3211- 5/8 11.98

Union 2000 - Socket/Spigot/FKM
Socket x Spigot with FKM O-ring Seal
Dimensions Also Applicable to
8096-XXXC EPDM O-Ring Seals
Union 2000 - Socket/Spigot/FKM <br>
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8056-005C1/22-11/321- 3/169/161-15/16 .13
8056-007C3/42- 5/81- 3/819/322-3/8 .20
8056-010C12-15/161-23/3211/162-21/32 .29
8056-012C1-1/43- 7/322- 3/3211/163- 3/16 .43
8056-015C1-1/23- 1/22-11/3223/323-19/32 .55
8056-020C23-25/322- 7/83/44- 5/16 .92
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 60
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book
Union 2000 - Socket/Spigot/FKM
Socket x Spigot with FKM O-ring Seal
Dimensions Also Applicable to
8096-XXXC EPDM O-Ring Seals
Union 2000 - Socket/Spigot/FKM <br>
(Continued)
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8056-025C2-1/24-21/323-1/21-1/86-3/16 2.32
8056-030C34-3/44- 5/3231/326-3/16 2.35
8056-040C45- 5/85- 1/41- 1/87-23/32 4.09
8056-060C67-5/87- 9/161- 1/211-11/16 12.86

Union 2000 - Special Reinforced Fipt/Spigot/FKM
SR Fipt x Spigot with FKM O-ring Seal
Dimensions Also Applicable to
8095-XXXCSR EPDM O-Ring Seals
Union 2000 - Special Reinforced Fipt/Spigot/FKM <br>
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8055-005CSR1/22-13/321-7/3225/321-15/16 .14
8055-007CSR3/42-21/321-3/829/322-3/8 .22
8055-010CSR13-1/161-23/321-1/162-21/32 .34
8055-012CSR1-1/43-5/162-3/321-1/163-3/16 .47
8055-015CSR1-1/23-15/322-7/161-3/323-19/32 .61
8055-020CSR23-31/323-1/321-15/324-5/16 1.02
8055-025CSR2-1/24-9/323-19/321-27/326-3/16 2.51
8055-030CSR35-1/84-9/321-27/326-3/16 2.59
8055-040CSR465-1/42-7/327-3/4 4.38
8055-060CSR67-19/327-19/322-7/811-5/8 13.16

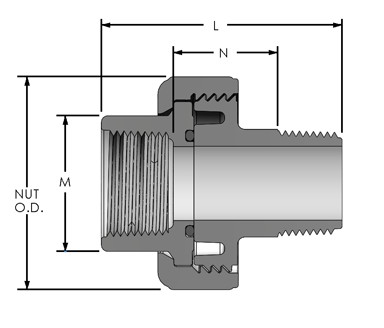

Union 2000 - Fipt/Mipt/FKM
Fipt x Mipt with FKM O-ring Seal
Dimensions Also Applicable to
8093-XXXCSR EPDM O-Ring Seals
Union 2000 - Fipt/Mipt/FKM
Pressure Rating
1/2" - 3" 235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8053-005C1/22-3/81-3/161-1/161-15/16 .13
8053-007C3/42-9/161-3/81-1/42-3/8 .20
8053-010C131-11/161-3/82-21/32 .29
8053-012C1-1/43-5/162-1/161-7/163-3/16 .43
Page 61
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book

Union 2000 - Fipt/Mipt/FKM
Fipt x Mipt with FKM O-ring Seal
Dimensions Also Applicable to
8093-XXXCSR EPDM O-Ring Seals
Union 2000 - Fipt/Mipt/FKM
(Continued)
Pressure Rating
1/2" - 3" 235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8053-015C1-1/23-1/22-13/321-5/83-19/32 .57
8053-020C24-15/1631-15/164-5/16 .99
8053-030C35-7/164-9/322-7/166-3/16 2.57

Union 2000 - Fipt/Mipt/FKM- Reducing
Fipt x Mipt with FKM O-ring Seal
Dimensions Also Applicable to
8094-XXXCSR EPDM O-Ring Seals
Union 2000 - Fipt/Mipt/FKM- Reducing
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8053-168C1-1/4X13-1/82-1/161-7/163-3/16 .41

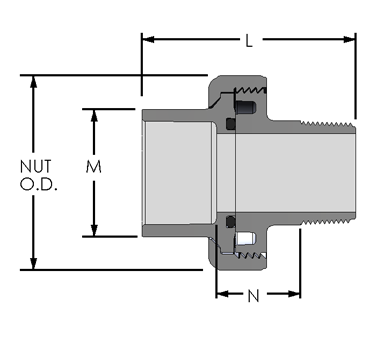

Union 2000 - Socket/Mipt/FKM
Socket x Mipt with FKM O-ring Seal
Dimensions Also Applicable to
8094-XXXCSR EPDM O-Ring Seals
Union 2000 - Socket/Mipt/FKM
Pressure Rating
1/2" - 3" 235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8054-005C1/22-9/161-3/161-1/161-15/16 .13
8054-007C3/42-13/161-3/81-3/162-3/8 .21
8054-010C13-3/161-23/321-1/42-21/32 .29
8054-012C1-1/43-5/82-3/321-3/83-3/16 .44
8054-015C1-1/23-15/162-11/321-9/163-19/32 .59
8054-020C24-1/22-7/81-7/84-5/16 1.01
8054-030C35-7/84-5/322-3/86-3/16 2.59

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 62
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book
Union 2000 - Socket/Mipt/FKM-Reducing
Socket x Mipt with FKM O-ring Seal
Dimensions Also Applicable to
8093-XXXCSR EPDM O-Ring Seals
Union 2000 - Socket/Mipt/FKM-Reducing
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8054-168C1-1/4X13-7/162-3/321-3/83-3/16 .42

Union 2000 - Fipt/FKM
Fipt x Fipt with FKM O-ring Seal
Dimensions Also Applicable to
8098-XXXC EPDM O-Ring Seals
Union 2000 - Fipt/FKM
Pressure Rating
1/4" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
858-002C1/41-15/1615/163/41-21/32 .10
858-003C3/82-5/321- 1/3231/321-25/32 .13
8058-005C1/21-29/321- 3/1617/321- 7/8 .13
8058-007C3/42-3/321- 3/83/42-3/8 .20
8058-010C12-9/161-11/1629/322- 9/16 .29
8058-012C1-1/42-23/322-1/167/83-3/16 .42
8058-015C1-1/22-3/162- 3/813-19/32 .56
8058-020C23-3/1631-1/44-5/16 .94
8058-025C2-1/24-1/163- 9/161-15/326-3/16 2.41
8058-030C34-3/164- 9/321-1/26-3/16 2.48
8058-040C44-11/165- 1/41-13/167- 3/4 4.05
8058-060C66-7/327-21/322-13/1611-5/8 12.14

Union 2000 - Socket/Special Reinforced Fipt/FKM
Socket x SR Fipt with FKM O-ring Seal
Dimensions Also Applicable to
8099-XXXCSR EPDM O-Ring Seals
Union 2000 - Socket/Special Reinforced Fipt/FKM <br>
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8059-005CSR1/21-29/321- 3/169/321-15/16 .13
8059-007CSR3/42-3/321-3/811/322-3/8 .20
8059-010CSR12-15/321-23/3213/322-21/32 .29
8059-012CSR1-1/42-21/322- 3/327/163-7/32 .42
8059-015CSR1-1/22-27/322-11/321/23-19/32 .56
Page 63
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book

Union 2000 - Socket/Special Reinforced Fipt/FKM
Socket x SR Fipt with FKM O-ring Seal
Dimensions Also Applicable to
8099-XXXCSR EPDM O-Ring Seals
Union 2000 - Socket/Special Reinforced Fipt/FKM <br>
(Continued)
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8059-020CSR23-1/322- 7/81/24-5/16 .92
8059-025CSR2-1/23-27/323-1/23/46- 3/16 2.32
8059-030CSR33-13/164-5/321/26-3/16 2.34
8059-040CSR44-11/325- 1/45/87- 3/4 3.95
8059-060CSR66-1/47-21/321-17/3211-9/16 12.13

Union 2000 - Special Reinforced Fipt/FKM
SR Fipt x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
Dimensions Also Applicable to
8098-XXXCSR EPDM O-Ring Seals
Union 2000 - Special Reinforced Fipt/FKM
Pressure Rating
1/2" - 4" 235 psi @ 73°F
6" 150 PSI @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
8058-005CSR1/221-7/329/161-15/16 .15
8058-007CSR3/42-1/81- 3/823/322-3/8 .22
8058-010CSR12-19/321-23/3229/322-21/32 .34
8058-012CSR1-1/42-3/42-3/3229/323-3/16 .46
8058-015CSR1-1/22-27/322-7/161-1/323-19/32 .62
8058-020CSR23-3/163- 1/321-9/324-5/32 1.02
8058-025CSR2-1/24-3/323-19/321-9/166-3/16 2.51
8058-030CSR34-7/324- 9/321-1/26-3/16 2.58
8058-040CSR44-3/45- 1/41-13/167-3/4 4.24
8058-060CSR66-1/47-19/322-31/3211- 5/8 12.43

Union (Old Style) - Socket/FKM
Socket x Socket with FKM O-ring Seal
Dimensions Also Applicable to
897-XXXC EPDM O-Ring Seals
Union (Old Style) - Socket/FKM
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
857-005C1/22-1/161- 9/325/161-31/32 .15
857-007C3/42-13/321-17/3211/322- 1/2 .28
857-010C12- 9/161-7/85/162- 7/8 .39
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 64
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book
Union (Old Style) - Socket/FKM
Socket x Socket with FKM O-ring Seal
Dimensions Also Applicable to
897-XXXC EPDM O-Ring Seals
Union (Old Style) - Socket/FKM
(Continued)
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
857-012C1-1/42- 7/82- 7/3211/323- 5/16 .52
857-015C1-1/23-5/322- 9/1615/323-17/32 .64
857-020C23- 5/83-1/169/164- 3/16 1.01
857-025C2-1/24- 3/83- 5/87/84- 7/8 1.58
857-030C354- 3/81-7/325- 3/4 2.51
857-040C45-27/325-13/321-11/327- 1/8 3.97

Union (Old Style) - Socket/Fipt/FKM
Socket x Fipt with FKM O-ring Seal
Dimensions Also Applicable to
899-XXXC EPDM O-Ring Seals
Union (Old Style) - Socket/Fipt/FKM
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
859-005C1/22-1/161-5/167/161-31/32 .16
859-007C3/42-13/321-17/3219/322- 1/2 .29
859-010C12- 9/161-7/87/162- 7/8 .40
859-012C1-1/42- 7/82-1/419/323- 5/16 .54
859-015C1-1/23-3/162-9/1627/323- 9/16 .66
859-020C23- 5/83-1/161-1/84- 3/16 1.06
859-025C2-1/24-13/323- 5/81-13/324- 7/8 1.65
859-030C35-1/324- 3/81-19/325- 3/4 2.60
859-040C45- 7/85-13/321- 7/87-1/8 4.12

Union - Socket/Brass Fipt/FKM
Socket x Fipt with Brass Thread Insert & FKM O-ring Seal
Dimensions Also Applicable to
899-XXXCBR EPDM O-Ring Seals
Union - Socket/Brass Fipt/FKM
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
859-005CBR1/22-1/41-9/3225/321-15/16 .22
859-007CBR3/42-11/161-17/3212- 1/2 .36
859-010CBR12-13/161- 7/81- 1/322- 7/8 .53
Page 65
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions
Print this Book
Print this Book

Union - Socket/Brass Fipt/FKM
Socket x Fipt with Brass Thread Insert & FKM O-ring Seal
Dimensions Also Applicable to
899-XXXCBR EPDM O-Ring Seals
Union - Socket/Brass Fipt/FKM
(Continued)
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
859-012CBR1-1/43-5/162-1/41-5/163- 5/16 .76
859-015CBR1-1/23-9/162- 9/161-13/323-17/32 .92
859-020CBR23-19/322- 7/81-5/164- 5/16 1.63
Not intended to convey or dispense water for human consumption through drinking or cooking

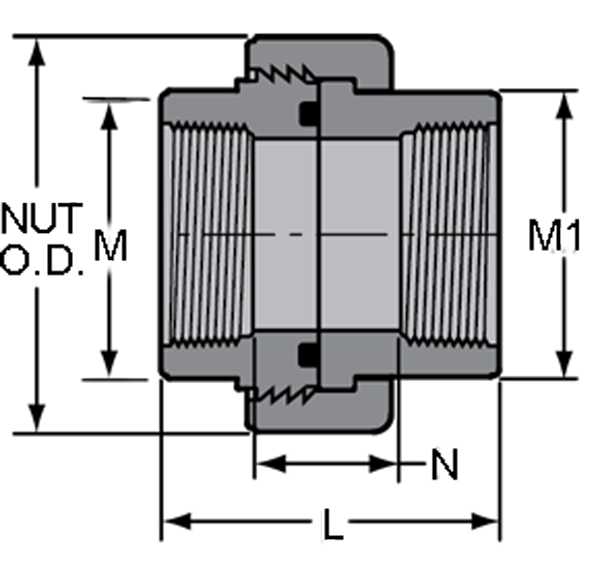

Union (Old Style) - Fipt/FKM
Fipt x Fipt with FKM O-ring Seal
Dimensions Also Applicable to
898-XXXC EPDM O-Ring Seals
Union (Old Style) - Fipt/FKM
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMM1NNUT O.D.Approx. Wt.
(Lbs.)
858-005C1/22-1/161- 9/321-9/3219/321-31/32 .16
858-007C3/42- 3/81-17/321-17/3213/162- 1/2 .30
858-010C12- 9/161-27/321-7/819/322- 7/8 .41
858-012C1-1/42- 7/82- 7/322-27/327/83- 5/16 .61
858-015C1-1/23-3/162-1/22-9/161-7/323-17/32 .69
858-020C23-19/3233-1/161-19/324- 3/16 1.11
858-025C2-1/24- 3/83- 5/83-5/81-25/324- 7/8 1.74
858-030C354- 3/84-3/81-13/165- 3/4 2.66
858-040C45- 7/85-3/85-13/322-5/87-1/8 4.29

Union (Old Style) - Socket/Special Reinforced Fipt/FKM
Socket x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
Dimensions Also Applicable to
899-XXXCSR EPDM O-Ring Seals
Union (Old Style) - Socket/Special Reinforced Fipt/FKM
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
859-002CSR1/42-1/815/167/81-21/32 .07
859-003CSR3/82-5/161-1/161-5/161-25/32 .07
859-005CSR1/22- 9/321- 9/3221/321-31/32 .16
859-007CSR3/42-19/321-17/3225/322- 1/2 .29
859-010CSR12-15/161-29/3229/322- 7/8 .43
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 66
Schedule 80 CPVC Technical
Schedule 80 CPVC Unions & Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book
Union (Old Style) - Socket/Special Reinforced Fipt/FKM
Socket x SR Fipt w/FKM O-ring Seal - Stainless Steel Collar
Dimensions Also Applicable to
899-XXXCSR EPDM O-Ring Seals
Union (Old Style) - Socket/Special Reinforced Fipt/FKM
(Continued)
Pressure Rating
235 psi @ 73°F
Part NumberSizeLMNNUT O.D.Approx. Wt.
(Lbs.)
859-012CSR1-1/43-7/322- 7/3231/323- 5/16 .57
859-015CSR1-1/23-7/162- 9/161- 1/323- 9/16 .71
859-020CSR24- 3/323-1/161-19/324- 3/16 1.17
859-030CSR35- 1/44-13/3225- 3/4 2.74
859-040CSR45-5/165-13/322-7/327-1/8 4.19

Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Socket x Socket
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8170E-XXXC & 8170V-XXXC
Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Part NumberSizeLL1MM1NRMin Hole
Size		Approx. Wt.
(Lbs.)
8170-002C1/42-15/321-13/161-17/321-1/321-3/161/21-1/16 .11
8170-003C3/82- 1/21-27/321-21/321-5/3211/21-3/16 .12
8170-005C1/22-29/322-3/162-1/161-7/161-1/85/81-1/2 .22
8170-007C3/42-15/162-3/162-1/41-5/829/325/81-3/4 .24
8170-010C13-9/322-9/162-21/321-31/3215/82 .37
8170-012C1-1/43-13/322-5/83-1/82-5/1629/325/82-3/8 .48
8170-015C1-1/23-5/82-13/163-5/82-11/167/85/82-3/4 .66
8170-020C24-1/83-1/44-7/83-1/41-1/163/43-3/8 1.29
8170-025C2-1/24-27/323-29/325-1/43-13/161-5/1613-7/8 2.26
8170-030C35-1/24-1/264-17/321-23/3214-5/8 2.61
8170-040C44-31/323-15/167-7/165-7/167/161-1/45-1/2 3.21
8170-060C65410-3/3281/81-1/48 5.76
8170-080C88-19/326-7/812-15/1610-7/321/21-1/210-3/8 17.30

Page 67
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book

Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8171E-XXXC & 8171V-XXXC
Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Part NumberSizeLL1MM1NRMin Hole
Size		Approx. Wt.
(Lbs.)
8171-002C1/42-15/321-13/161-17/321-1/321- 1/41/21-1/16 .12
8171-003C3/82- 1/21-27/321-21/321-5/321- 3/161/21-3/16 .12
8171-005C1/22-29/322- 3/162- 1/161-7/161-5/165/81-1/2 .23
8171-007C3/42-15/162-3/162- 1/41- 5/81- 3/165/81-3/4 .26
8171-010C13-9/322-9/162-21/321-31/321- 1/45/82 .39
8171-012C1-1/43-13/322-5/83-1/82- 5/161-7/325/82-3/8 .51
8171-015C1-1/23- 5/82-13/163- 5/82-11/161-9/325/82-3/4 .71
8171-020C24- 1/83- 1/44- 7/83- 1/41- 5/83/43-3/8 1.34
8171-025C2-1/24-27/323-29/325- 1/43-13/161-3/413-7/8 2.39
8171-030C35- 1/24- 1/264-17/322- 3/1614-5/8 2.75
8171-040C44-31/323-15/167-7/165-7/161-7/321- 1/45-1/2 3.35
8171-060C65410-3/3281/321- 1/48 5.91

Tank Adapters, CPVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Socket x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8171E-XXXCSR & 8171V-XXXCSR
Tank Adapters, CPVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Part NumberSizeLL1MM1NRMin Hole
Size		Approx. Wt.
(Lbs.)
8171-002CSR1/42- 1/21-13/161- 1/21- 1/161- 1/41/21-1/16 .12
8171-003CSR3/82- 1/21-13/161- 5/81- 3/161- 3/161/21-3/16 .13
8171-005CSR1/22-15/162- 1/42- 1/161-15/321- 9/325/81-1/2 .24
8171-007CSR3/42-15/162- 3/162- 1/41- 5/81- 1/45/81-3/4 .27
8171-010CSR13- 5/162-13/162- 5/81-31/321- 1/45/82 .40
8171-012CSR1-1/43-13/322- 5/83- 3/322- 5/161-17/325/82-3/8 .53
8171-015CSR1-1/23- 5/82-13/163- 5/82-11/161- 1/45/82-3/4 .74
8171-020CSR24- 1/83- 1/44- 7/83- 1/41- 5/83/43-3/8 1.36
8171-025CSR2-1/24- 7/83- 7/85- 1/43-13/161-11/1613-7/8 2.45
8171-030CSR35- 1/24- 1/264- 9/162- 3/1614-5/8 2.82
8171-040CSR4547- 1/25- 1/21- 1/41- 1/45-1/2 3.47
8171-060CSR64-31/324- 1/1610-3/327-11/161/161- 1/48 9.11

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 68
Schedule 80 CPVC Technical
Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book
Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8172E-XXXC & 8172V-XXXC
Tank Adapters, CPVC New Style Standard with Neoprene Gaskets
Part NumberSizeLL1MM1NRMin Hole
Size		Approx. Wt.
(Lbs.)
8172-002C1/42-15/321-13/161-17/321-1/321- 5/161/21-1/16 .12
8172-003C3/82- 1/21-27/321-21/321-5/321-11/321/21-3/16 .13
8172-005C1/22-29/322- 3/162- 1/161-7/161-15/325/81-1/2 .24
8172-007C3/42-15/162-3/162- 1/41- 5/81-15/325/81-3/4 .26
8172-010C13-9/322-9/162-21/321-31/321-1/25/82 .40
8172-012C1-1/43-13/322-5/83-1/82- 5/161-17/325/82-3/8 .53
8172-015C1-1/23-5/82-13/163-5/82-11/161-23/325/82-3/4 .74
8172-020C24- 1/83- 1/44- 7/83- 1/42-5/323/43-3/8 1.35
8172-025C2-1/24-7/323-29/325- 1/43-13/162-7/3213-7/8 2.52
8172-030C35- 1/24- 1/264-17/322-11/1614-5/8 2.95
8172-040C44-31/323-15/167-7/165-7/1621- 1/45-1/2 3.69
8172-060C65410-3/3281-1/81- 1/48 6.21

Tank Adapters, CPVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Fipt x SR Fipt - Stainless Steel Collar
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8172E-XXXCSR & 8172V-XXXCSR
Tank Adapters, CPVC New Style Special Reinforced (SR) Threaded with Neoprene Gaskets
Part NumberSizeLL1MM1NRMin Hole
Size		Approx. Wt.
(Lbs.)
8172-002CSR1/42- 1/21-13/161-17/321-1/321- 5/161/21-1/16 .12
8172-003CSR3/82-17/321-27/321-21/321-5/321- 3/81/21-3/16 .13
8172-005CSR1/22-15/162- 3/162- 1/161-15/321-1/25/81-1/2 .25
8172-007CSR3/42-15/162-7/322- 1/41- 5/81-1/25/81-3/4 .27
8172-010CSR13-5/162-9/162-21/321-31/321-17/325/82 .42
8172-012CSR1-1/43-9/162-21/323-1/82- 5/161-9/165/82-3/8 .54
8172-015CSR1-1/23- 5/82-13/163- 5/82-11/161-23/325/82-3/4 .77
8172-020CSR24- 1/83- 1/44-7/83-1/42-5/323/43-3/8 1.41
8172-025CSR2-1/24- 7/83-29/325- 1/43-13/162- 1/413-7/8 2.58
8172-030CSR35-1/24-1/25-31/324-1/22-11/1614-5/8 3.00
8172-040CSR4547-7/165-7/162-1/321- 1/45-1/2 3.79
8172-060CSR654-3/329-15/1681-1/81-1/48 9.41

Page 69
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book

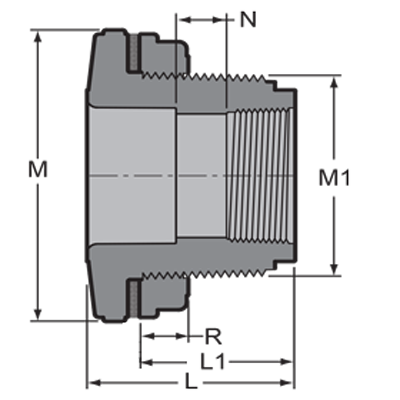

Tank Adapter, CPVC Old Style with Neoprene Gasket
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Tank Adapter, CPVC Old Style with Neoprene Gasket
Part NumberSizeLL1MM1NRApprox. Wt.
(Lbs.)
871-005C1/22-27/322-3/162-3/81- 9/321-11/325/8 .25
871-007C3/42-23/322-1/162-5/81- 5/829/325/8 .31
871-010C12-25/322- 1/82-13/161- 7/825/3221/32 .34
871-012C1-1/43- 1/82- 7/163-29/322-11/3227/325/8 .62
871-015C1-1/23- 5/322-21/323-29/322-11/323/45/8 .57
871-020C23- 3/162-17/324-31/323-15/3213/163/4 1.42
871-030C34-19/323-13/166- 7/164-15/3231/321- 3/16 2.62
871-040C44- 7/163-23/327- 7/165- 1/21/21- 1/4 3.37

Tank Adapter, CPVC Old Style with Neoprene Gasket
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Tank Adapter, CPVC Old Style with Neoprene Gasket
Part NumberSizeLL1MM1NRApprox. Wt.
(Lbs.)
872-005C1/22-27/322-3/162-3/81-9/321-15/325/8 .25
872-007C3/42-23/322-1/162-5/81- 5/81-1/45/8 .32
872-010C12-25/322-1/82-7/81- 7/81-5/165/8 .36
872-012C1-1/43- 1/82-7/163-15/162-11/321- 1/85/8 .64
872-015C1-1/23- 1/82-7/163-15/162-11/321- 1/165/8 .60
872-020C23-3/162- 3/85-3/323-15/321-1/83/4 1.44
872-030C34-19/323-11/166-19/324-7/161-1/81- 3/16 2.61
872-040C44-15/323-17/327-11/165- 1/217/321- 1/4 3.46
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 70
Schedule 80 CPVC Technical
Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book

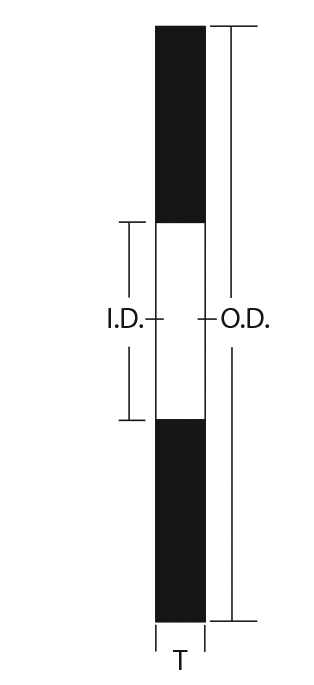

TANK ADAPTER
GASKET SECTION		 SIZE O.D.* I.D.* T
1/2 2.25 1.33 3/16
3/4 2.49 1.69 3/16
1 2.79 1.94 3/16
1-1/4 3.81 2.39 3/16
1-1/2 3.81 2.39 3/16
2 4.89 3.51 3/16
3 6.30 4.49 3/16
4 7.33 5.50 3/16
Old Style Tank Adapter Gasket & Hole Size Requirements
Tank Adapter
Size		 Recommended
Minimum Hole Size		 Minimum Inside
Curvature Radius
(inches)		 Maximum Tank
Wall Thickness
(inches)
1/2 1-3/8 3.88 1.06
3/4 1-3/4 5.00 1.06
1 2 6.12 1.06
1-1/4 2-7/16 10.75 1.34
1-1/2 2-7/16 10.75 1.34
2 3-9/16 18.50 1.16
3 4-9/16 31.00 1.75
4 5-9/16 42.75 1.81
* Both outside and inside dimensions are +/- .03 shore hardness 65-70

Tank Adapter, CPVC Self Aligning with Neoprene Gasket
Fipt
75 psi Maximum Internal Pressure Rating @ 73°F (23°C)
Dimensions Also Applicable to
8172ESA-XXXC & 8172VSA-XXXC
Tank Adapter, CPVC Self Aligning with Neoprene Gasket
Part NumberSizeLL1MM1RApprox. Wt.
(Lbs.)
8172SA-010C12- 9/161- 3/44- 7/83- 1/43/4 2.60
8172SA-020C22-11/161- 3/464-7/161 2.14
8172SA-030C33-3/162-9/327-7/165-7/161- 1/4 3.14

Page 71
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® Product Sourcebook for product offerings
Schedule 80 CPVC Technical
Schedule 80 CPVC Tank Adapters
Print this Book
Print this Book

Self-Aligning Tank Adapters
Swivel Ball design permits straight-pipe connections with up to a 27° angle off vertical pipe centerline in any direction. Aids installation in domed top tanks and provides easy adjustment to compensate for tank curvature in making system connections. Pressure rated to 75 psi @ 73°F (23°C).
Easy Installation
1. Locate and cut designated hole size in tank
2. Remove Nut and insert Self-Aligning Tank Adapter through hole from inside. Note: Body and Gasket must be installed on the inside of tank.
3. Tighten Nut (clockwise) while holding body from inside tank.
4. Install threaded pipe into ball.
5. Position angular offset as desired and tighten lock ring (clockwise) against ball.
Self Aligning Tank Adapter Installation Requirements
Tank Adapter Size Minimum Hole Size Minimum Tank Inside
Curvature-Radius (in.)		 Maximum Tank Wall Thickness
1 3-3/8 18.5 1-5/16
2 4-5/8 32.5 1-5/16
3 5-1/2 43.5 1-11/16
Nut Wrenches
While not required for installation, Self-Aligning Tank Adapters can use certain nut wrenches produced for use on Spears® regular Tank Adapters (New Style). While designated wrench sizes do not directly correspond, the following chart shows specific regular Tank Adapter Nut Wrench to use with each Self-Aligning size. Body wrenches are not currently available.
Self-Aligning Tank
Adapter Size		 Regular Tank Adapter Nut Wrench to Use
Part Number Comment
1" TAW2-020 Regular 2" wrench fits Self-Aligning 1" nut
2" TAW2-030 Regular 3" wrench fits Self-Aligning 2" nut
3" TAW2-040 Regular 4" wrench Self-Aligning 3" nut
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® Product Sourcebook for product offerings
Page 72
Spears Super Sourcebook prints best when the margins are set to our specifications and the headers and footers are turned off.
The Spears Product Price Schedules will print on standard 8.5 x 11 paper with the following changes to your browsers page setup.

For Microsoft Internet Explorer Version 8 & 9:
  1. Select File/Page Setup
  2. Set Orientation to Portrait.
  3. Check “Print Background Colors and Images.”
  4. Set the Margins as follows:
  5. Select “-Empty-” in all the Header and Footer dropdown boxes.
  6. Click OK.
