Double Containment

PRODUCT
Contact Spears® for any Information not found.
Page 1
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Double Containment Overview
Print this Book
Print this Book

DOUBLE CONTAINMENT SYSTEM DESIGN
Spears® Double Containment (DC) Fittings are constructed from standard fittings that are to be assembled on the jobsite. Spears® DC fittings work with standard pipe for both Carrier and Containment lines. Carrier fittings are equipped with special extender couplings for connection to carrier pipe. Simple, slip-on centralizer brackets used on the carrier pipe support this assembly inside the containment pipe. This design allows the carrier fitting to "float" within the containment fitting, allowing ease of movement for installation while reducing problems associated with thermal expansion and contraction during operation. This simplified approach to double containment makes installation very easy. However, successful installation requires proper design and planning of system layout, a basic understanding of how Spears® double containment fitting design works, and specific attention to a proper sequence of general assembly. See Double Containment Design & Installation Guide for additional details on design, installation and different configuration applications. DC fitting sizes are listed through 12", but additional sizes are available on request.

CONFIGURATIONS
DC Pipe: Spears® DC Fittings can be used with any standard pipe of the corresponding size and schedule. As a result, pipe is not listed in this product Schedule.
DC Fittings: Each configuration includes all components to form an internal Carrier Fitting with applicable Extender-Couplings and an external Containment fitting. Each DC Fitting configuration is specified as Carrier Material & Schedule x Containment Material & Schedule. Refer to example below (additional information is found in specific fitting sections).

Note: Assembled carrier/containment pipe available on request. Contact Spears® for additional information.

Example

A Double Containment 90" Ell having a 1/2" Schedule 40 Carrier and 2" Schedule 40 Containment pipe would be listed as follows:

Product Name DC 90° Ell
Configuration Description PVC Sch 40 x PVC Sch 40
Carrier Elbow
Containment Elbow
Extender Couplings

Part Number Size Prod
Code
DC06-A005-A020 1/2X2 470

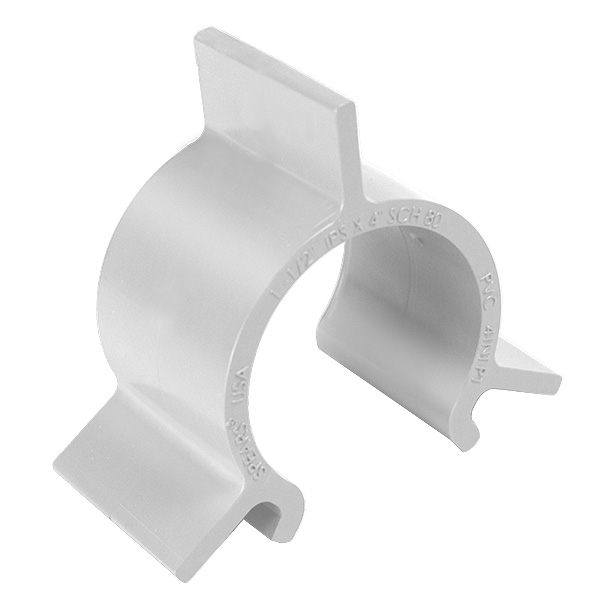

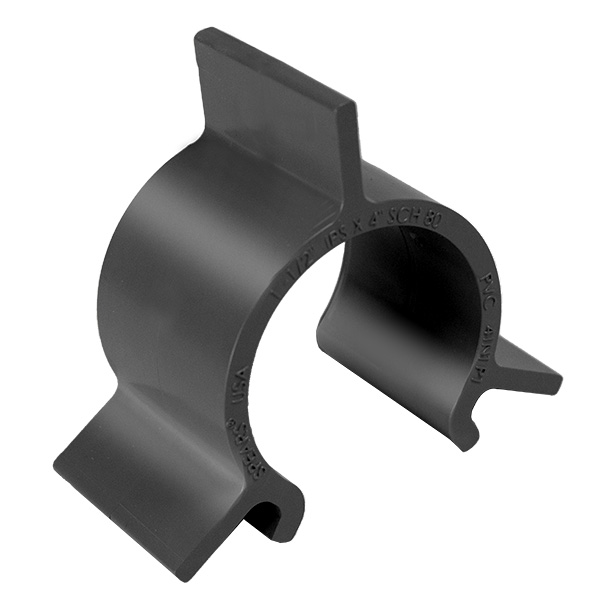

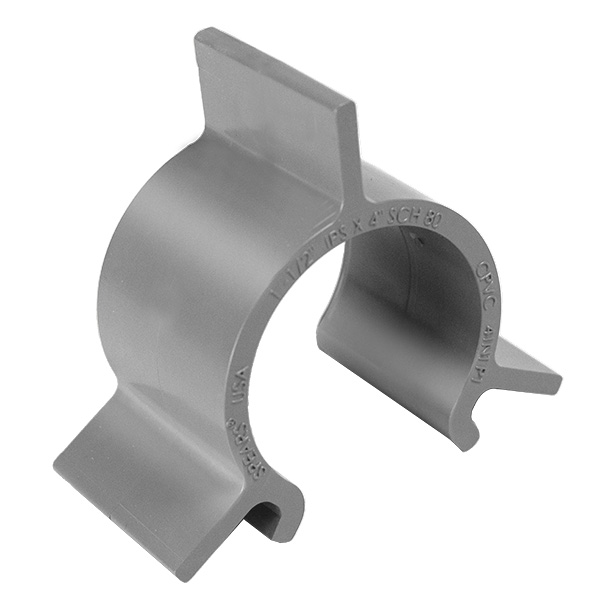

Centralizer Brackets should be ordered separately for Carrier pipe support in runs of Containment pipe.

Valve Boxes: Like DC Fittings, Valve Boxes include all necessary components for connection to the designated Carrier x Containment system. Valve Boxes include the applicable True Union Industrial Ball Valve, Ball Check Valve, or Diaphragm Valve, with designated elastomer seals. Refer to example below (additional information is found in specific Valve Box sections).

Example

A Valve Box with True Union 2000 Industrial Ball Valve having a 1/2" valve with Schedule 40 Carrier and 2" Schedule 40 Containment pipe would be listed as follows:

Product Name Valve Box, with PVC True Union 2000 Industrial Ball Valve
Configuration Description PVC Sch 40 x PVC Sch 40

Carrier Valve
Containment Valve Box
Extender Couplings
Size EPDM FKM Prod
Code
1/2X2 VBA20-A005-A020 VBA30-A005-A020 470
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 2
Double Containment Product
Tees
Print this Book
Print this Book

Tees

DC Tees are made from standard Spears® pressure fittings in designated material and Schedule selected. Included are separate internal Carrier and external Containment fittings of the same configuration. Carrier fittings are equipped with extenders to facilitate cement assembly. Certain combinations use larger Containment tees that are bushed to specified size.

Important Note: Some Tees are shipped with the Carrier Tee branch extender separated from the Carrier Tee assembly to facilitate assembly. The Carrier Tee branch extension must be cemented in place after the run Carrier Tee assembly is completed. See Double Containment Design & Installation Guide for proper installation.

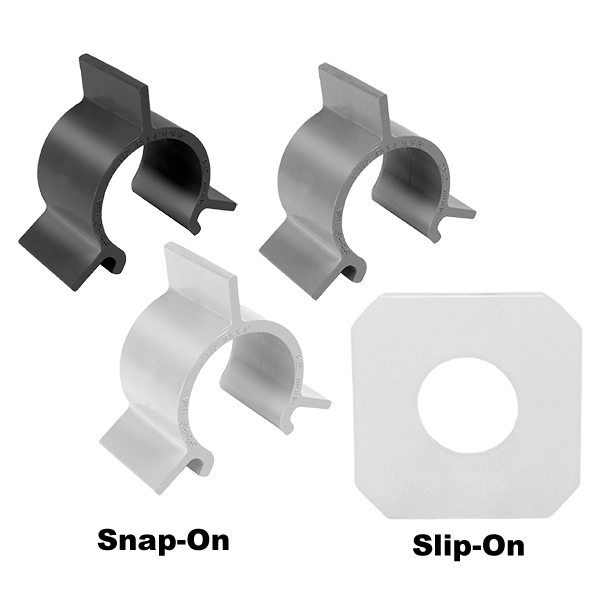

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

1 Configuration uses larger size Containment Tee with Outlets Bushed down


DC Tee PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-A005-A020MSRP = 59.43
1/2X218470
DC01-A007-A030MSRP = 119.86
3/4X3110470
DC01-A010-A030MSRP = 124.97
1X3110470
DC01-A015-A040MSRP = 159.02
1-1/2X414470
DC01-A020-A040MSRP = 191.86
2X414470
DC01-A030-A060MSRP = 348.98
3X612470
DC01-A040-A080MSRP = 752.84
4X812470
DC01-A060-A100MSRP = 2052.77
6X1010470
DC01-A080-A120MSRP = 3021.18
8X1210470
DC Tee PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-A005-G020MSRP = 185.23
1/2X218470
DC01-A007-G030MSRP = 744.42
3/4X3110470
DC01-A010-G030MSRP = 773.22
1X3110470
DC01-A015-G040MSRP = 1384.20
1-1/2X414470

DC Tee PVC Sch 40 x PVC Sch 40 Clear (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-A020-G040MSRP = 1406.85
2X414470
DC01-A030-G060MSRP = 2457.73
3X612470
DC01-A040-G080MSRP = 4388.39
4X812470
DC Tee PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-B005-A020MSRP = 95.96
1/2X219470
DC01-B007-A030MSRP = 127.55
3/4X3110470
DC01-B010-A030MSRP = 208.59
1X3110470
DC01-B015-A040MSRP = 217.24
1-1/2X414470
DC01-B020-A040MSRP = 253.55
2X412470
DC01-B030-A060MSRP = 573.27
3X620470
DC01-B040-A080MSRP = 964.60
4X812470
DC01-B060-A100MSRP = 2799.66
6X1010470
DC01-B080-A120MSRP = 4436.31
8X1210470
DC Tee PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-B005-G020MSRP = 227.72
1/2X219470
DC01-B007-G030MSRP = 819.15
3/4X3110470
DC01-B010-G030MSRP = 838.98
1X3110470
DC01-B015-G040MSRP = 1485.52
1-1/2X414470
DC01-B020-G040MSRP = 1500.80
2X412470
DC01-B030-G060MSRP = 2702.86
3X612470
DC01-B040-G080MSRP = 4644.60
4X812470
DC Tee PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-B005-B020MSRP = 158.59
1/2X2110470
DC01-B007-B030MSRP = 185.44
3/4X3110470
DC01-B010-B030MSRP = 201.28
1X315470
DC01-B015-B040MSRP = 284.74
1-1/2X414470
DC01-B020-B0401MSRP = 954.44
2X410470
DC01-B030-B060MSRP = 758.04
3X620470
DC01-B040-B080MSRP = 1531.06
4X810470
DC01-B060-B100MSRP = 4067.17
6X1010470
DC01-B080-B120MSRP = 6340.43
8X1210470
DC Tee CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-C005-A020MSRP = 94.311/2X2110473
DC01-C007-A030MSRP = 124.843/4X315473
DC01-C010-A030MSRP = 138.151X3110473
DC01-C015-A040MSRP = 249.591-1/2X414473
DC01-C020-A040MSRP = 292.722X412473
DC01-C030-A060MSRP = 1964.963X612473
DC01-C040-A080MSRP = 1244.194X810473
DC01-C060-A100MSRP = 3372.766X1010473
DC01-C080-A120MSRP = 7030.518X1210473
DC Tee CPVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-C005-B020MSRP = 155.611/2X219473
DC01-C007-B030MSRP = 202.843/4X315473
DC01-C010-B030MSRP = 213.571X315473
Page 3
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Tees & 90° Ells
Print this Book
Print this Book

Tees
DC Tee CPVC Sch 80 x PVC Sch 80 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-C015-B040MSRP = 299.411-1/2X414473
DC01-C020-B0401MSRP = 1044.712X414473
DC01-C030-B060MSRP = 1007.673X612473
DC01-C040-B080MSRP = 1588.284X810473
DC01-C060-B100MSRP = 3589.996X1010473
DC01-C080-B120MSRP = 8843.348X1210473
DC Tee CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-C005-C020MSRP = 167.711/2X2110473
DC01-C007-C030MSRP = 292.243/4X315473
DC01-C010-C030MSRP = 305.991X315473
DC01-C015-C040MSRP = 470.081-1/2X415473
DC01-C020-C0401MSRP = 1061.202X410473
DC01-C030-C060MSRP = 1239.353X612473
DC01-C040-C080MSRP = 2702.774X810473
DC01-C060-C100MSRP = 5800.116X1010473
DC01-C080-C120MSRP = 9311.548X1210473
DC Tee CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC01-C005-G020MSRP = 224.091/2X219473
DC01-C007-G030MSRP = 772.763/4X315473
DC01-C010-G030MSRP = 797.461X3110473
DC01-C015-G040MSRP = 1440.691-1/2X416473
DC01-C020-G040MSRP = 1457.292X412473
DC01-C030-G060MSRP = 2825.173X612473
DC01-C040-G080MSRP = 3358.804X812473
90° Ells

DC 90° Ells are made from standard Spears® pressure fittings in designated material and Schedule selected. Included are separate internal Carrier and external Containment fittings of the same configuration. Carrier fittings are equipped with extenders to facilitate cement assembly. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.


DC 90° Ell PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-A005-A020MSRP = 75.92
1/2X2125470
DC06-A007-A030MSRP = 98.95
3/4X3110470
DC06-A010-A030MSRP = 102.25
1X3110470
DC06-A015-A040MSRP = 131.25
1-1/2X415470
DC06-A020-A040MSRP = 167.04
2X415470
DC06-A030-A060MSRP = 335.05
3X620470
DC06-A040-A080MSRP = 650.99
4X812470
DC06-A060-A100MSRP = 1642.11
6X1010470
DC06-A080-A120MSRP = 3125.37
8X1210470
DC 90° Ell PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-A005-G020MSRP = 202.53
1/2X2125470
DC06-A007-G030MSRP = 558.75
3/4X3110470
DC06-A010-G030MSRP = 562.25
1X314470
DC06-A015-G040MSRP = 954.41
1-1/2X415470
DC06-A020-G040MSRP = 990.19
2X418470
DC06-A030-G060MSRP = 1740.19
3X612470
DC06-A040-G080MSRP = 3044.42
4X812470
DC 90° Ell PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-B005-A020MSRP = 106.12
1/2X2125470
DC06-B007-A030MSRP = 139.88
3/4X3110470
DC06-B010-A030MSRP = 146.45
1X3110470
DC06-B015-A040MSRP = 203.77
1-1/2X415470
DC06-B020-A040MSRP = 241.04
2X415470
DC06-B030-A060MSRP = 519.38
3X620470
DC06-B040-A080MSRP = 877.31
4X812470
DC06-B060-A100MSRP = 2582.38
6X1010470
DC06-B080-A120MSRP = 3859.47
8X1210470
DC 90° Ell PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-B005-G020MSRP = 231.93
1/2X2125470
DC06-B007-G030MSRP = 599.61
3/4X3110470
DC06-B010-G030MSRP = 606.22
1X3110470
DC06-B015-G040MSRP = 1024.03
1-1/2X418470
DC06-B020-G040MSRP = 1032.96
2X414470
DC06-B030-G060MSRP = 516.77
3X620470
DC06-B040-G080MSRP = 3270.81
4X812470
DC 90° Ell PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-B005-B020MSRP = 123.61
1/2X2120470
DC06-B007-B030MSRP = 177.24
3/4X3110470
DC06-B010-B030MSRP = 183.91
1X3110470
DC06-B015-B040MSRP = 249.37
1-1/2X415470
DC06-B020-B040MSRP = 258.60
2X414470
DC06-B030-B060MSRP = 638.97
3X620470
DC06-B040-B080MSRP = 1238.86
4X812470
DC06-B060-B100MSRP = 4521.04
6X1010470
DC06-B080-B120MSRP = 6322.19
8X1210470
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 4
Double Containment Product
90° Ells & 45° Ells
Print this Book
Print this Book

90° Ells
DC 90° Ell CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-C005-A020MSRP = 107.131/2X218473
DC06-C007-A030MSRP = 141.143/4X315473
DC06-C010-A030MSRP = 164.231X315473
DC06-C015-A040MSRP = 266.841-1/2X418473
DC06-C020-A040MSRP = 322.022X415473
DC06-C030-A060MSRP = 625.793X620473
DC06-C040-A080MSRP = 1203.574X812473
DC06-C060-A100MSRP = 3195.826X1010473
DC06-C080-A120MSRP = 6131.668X1210473
DC 90° Ell CPVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-C005-B020MSRP = 123.581/2X2125473
DC06-C007-B030MSRP = 176.313/4X315473
DC06-C010-B030MSRP = 226.671X315473
DC06-C015-B040MSRP = 312.441-1/2X414473
DC06-C020-B040MSRP = 367.612X414473
DC06-C030-B060MSRP = 820.453X620473
DC06-C040-B080MSRP = 1543.464X812473
DC06-C060-B100MSRP = 5018.046X1010473
DC06-C080-B120MSRP = 8446.998X1210473
DC 90° Ell CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-C005-C020MSRP = 172.871/2X2125473
DC06-C007-C030MSRP = 305.223/4X3110473
DC06-C010-C030MSRP = 327.401X315473
DC06-C015-C040MSRP = 577.601-1/2X415473
DC06-C020-C040MSRP = 616.412X414473
DC06-C030-C060MSRP = 1074.883X620473
DC06-C040-C080MSRP = 2481.184X812473
DC06-C060-C100MSRP = 6145.206X1010473
DC06-C080-C120MSRP = 10141.068X1210473
DC 90° Ell CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC06-C005-G020MSRP = 226.171/2X2123473
DC06-C007-G030MSRP = 574.133/4X314473
DC06-C010-G030MSRP = 596.391X315473
DC06-C015-G040MSRP = 1040.641-1/2X418473
DC06-C020-G040MSRP = 1095.602X414473
DC06-C030-G060MSRP = 2029.233X620473
DC06-C040-G080MSRP = 3459.364X812473

45° Ells

DC 45° Ells are made from standard Spears® pressure fittings in designated material and Schedule selected. Included are separate internal Carrier and external Containment fittings of the same configuration. Carrier fittings are equipped with extenders to facilitate cement assembly. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC 45° Ell PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-A005-A020MSRP = 70.34
1/2X2125470
DC17-A007-A030MSRP = 94.57
3/4X350470
DC17-A010-A030MSRP = 101.72
1X315470
DC17-A015-A040MSRP = 150.14
1-1/2X415470
DC17-A020-A040MSRP = 185.13
2X414470
DC17-A030-A060MSRP = 280.65
3X620470
DC17-A040-A080MSRP = 512.06
4X830470
DC17-A060-A100MSRP = 1333.96
6X1010470
DC17-A080-A120MSRP = 2065.65
8X1210470
DC 45° Ell PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-A005-G020MSRP = 170.11
1/2X2125470
DC17-A007-G030MSRP = 653.73
3/4X318470
DC17-A010-G030MSRP = 684.42
1X315470
DC17-A015-G040MSRP = 1231.73
1-1/2X415470
DC17-A020-G040MSRP = 1258.04
2X414470
DC17-A030-G060MSRP = 2229.47
3X612470
DC17-A040-G080MSRP = 3815.23
4X813470
DC 45° Ell PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-B005-A020MSRP = 112.45
1/2X2125470
DC17-B007-A030MSRP = 154.75
3/4X318470
DC17-B010-A030MSRP = 172.13
1X3110470
DC17-B015-A040MSRP = 198.67
1-1/2X415470
Page 5
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
45° Ells & Couplings
Print this Book
Print this Book

45° Ells
DC 45° Ell PVC Sch 80 x PVC Sch 40 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-B020-A040MSRP = 290.81
2X415470
DC17-B030-A060MSRP = 609.71
3X620470
DC17-B040-A080MSRP = 767.78
4X820470
DC17-B060-A100MSRP = 1746.78
6X1010470
DC17-B080-A120MSRP = 2630.23
8X1210470
DC 45° Ell PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-B005-G020MSRP = 262.15
1/2X2110470
DC17-B007-G030MSRP = 728.68
3/4X318470
DC17-B010-G030MSRP = 733.64
1X315470
DC17-B015-G040MSRP = 1198.17
1-1/2X415470
DC17-B020-G040MSRP = 1284.08
2X415470
DC17-B030-G060MSRP = 2359.84
3X614470
DC17-B040-G080MSRP = 4120.03
4X813470
DC 45° Ell PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-B005-B020MSRP = 117.03
1/2X2110470
DC17-B007-B030MSRP = 277.03
3/4X318470
DC17-B010-B030MSRP = 300.08
1X315470
DC17-B015-B040MSRP = 453.05
1-1/2X415470
DC17-B020-B040MSRP = 471.16
2X415470
DC17-B030-B060MSRP = 785.79
3X612470
DC17-B040-B080MSRP = 1045.44
4X812470
DC17-B060-B100MSRP = 2645.55
6X1010470
DC17-B080-B120MSRP = 3710.35
8X1210470
DC 45° Ell CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-C005-A020MSRP = 111.171/2X2125473
DC17-C007-A030MSRP = 77.293/4X318473
DC17-C010-A030MSRP = 194.381X3110472
DC17-C015-A040MSRP = 292.181-1/2X415473
DC17-C020-A040MSRP = 342.932X415473
DC17-C030-A060MSRP = 561.653X615473
DC17-C040-A080MSRP = 1120.994X813473
DC17-C060-A100MSRP = 2826.596X1010473
DC17-C080-A120MSRP = 5665.668X1210473
DC 45° Ell CPVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-C005-B020MSRP = 159.381/2X2125473
DC17-C007-B030MSRP = 266.173/4X315473
DC17-C010-B030MSRP = 309.791X315472
DC17-C015-B040MSRP = 332.021-1/2X414473
DC17-C020-B040MSRP = 383.202X415473
DC17-C030-B060MSRP = 790.513X615473
DC17-C040-B080MSRP = 1441.294X812473
DC17-C060-B100MSRP = 4057.146X1010473
DC17-C080-B120MSRP = 7052.318X1210473

DC 45° Ell CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-C005-C020MSRP = 181.241/2X2110473
DC17-C007-C030MSRP = 327.523/4X318473
DC17-C010-C030MSRP = 375.991X3110472
DC17-C015-C040MSRP = 510.671-1/2X415473
DC17-C020-C040MSRP = 561.852X415473
DC17-C030-C060MSRP = 1276.173X612473
DC17-C040-C080MSRP = 2552.014X812473
DC17-C060-C100MSRP = 7730.286X1010473
DC17-C080-C120MSRP = 10620.658X1210473
DC 45° Ell CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC17-C005-G020MSRP = 250.191/2X2110473
DC17-C007-G030MSRP = 718.283/4X318473
DC17-C010-G030MSRP = 791.641X3110472
DC17-C015-G040MSRP = 1328.181-1/2X415473
DC17-C020-G040MSRP = 1351.912X415473
DC17-C030-G060MSRP = 2517.723X615473
DC17-C040-G080MSRP = 4259.934X813473
Couplings

DC Couplings are made from standard Spears® pressure fittings in designated material and Schedule selected. Included are separate internal Carrier and external Containment fittings of the same configuration. Carrier fittings are equipped with extenders to facilitate cement assembly. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC Coupling PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-A005-A020MSRP = 14.94
1/2X2125470
DC29-A007-A030MSRP = 18.83
3/4X3110470
DC29-A010-A030MSRP = 19.77
1X3110470
DC29-A015-A040MSRP = 28.65
1-1/2X416470
DC29-A020-A040MSRP = 30.41
2X4110470
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 6
Double Containment Product
Couplings
Print this Book
Print this Book

Couplings
DC Coupling PVC Sch 40 x PVC Sch 40 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-A030-A060MSRP = 97.61
3X614470
DC29-A040-A080MSRP = 174.86
4X816470
DC29-A060-A100MSRP = 516.00
6X1012470
DC29-A080-A120MSRP = 1017.98
8X1210470
DC Coupling PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-A005-G020MSRP = 82.34
1/2X2110470
DC29-A007-G030MSRP = 280.28
3/4X3110470
DC29-A010-G030MSRP = 281.09
1X3110470
DC29-A015-G040MSRP = 406.12
1-1/2X416470
DC29-A020-G040MSRP = 407.82
2X418470
DC29-A030-G060MSRP = 772.93
3X614470
DC29-A040-G080MSRP = 1330.42
4X816470
DC Coupling PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-B005-A020MSRP = 18.21
1/2X2125470
DC29-B007-A030MSRP = 35.54
3/4X3110470
DC29-B010-A030MSRP = 35.81
1X315470
DC29-B015-A040MSRP = 55.35
1-1/2X416470
DC29-B020-A040MSRP = 57.59
2X415470
DC29-B030-A060MSRP = 171.29
3X614470
DC29-B040-A080MSRP = 263.80
4X816470
DC29-B060-A100MSRP = 681.76
6X1012470
DC29-B080-A120MSRP = 1202.95
8X1214470
DC Coupling PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-B005-G020MSRP = 94.33
1/2X2110470
DC29-B007-G030MSRP = 296.83
3/4X3110470
DC29-B010-G030MSRP = 297.27
1X3110470
DC29-B015-G040MSRP = 421.17
1-1/2X416470
DC29-B020-G040MSRP = 435.04
2X480470
DC29-B030-G060MSRP = 757.41
3X614470
DC29-B040-G080MSRP = 1403.59
4X814470
DC Coupling PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-B005-B020MSRP = 45.36
1/2X2110470
DC29-B007-B030MSRP = 109.05
3/4X315470
DC29-B010-B030MSRP = 109.55
1X315470
DC29-B015-B040MSRP = 144.32
1-1/2X415470
DC29-B020-B040MSRP = 146.53
2X418470
DC29-B030-B060MSRP = 337.09
3X618470
DC29-B040-B080MSRP = 448.78
4X814470
DC29-B060-B100MSRP = 1394.13
6X1010470
DC29-B080-B120MSRP = 1658.23
8X1210470
DC Coupling CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-C005-A020MSRP = 17.971/2X2125473

DC Coupling CPVC Sch 80 x PVC Sch 40 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-C007-A030MSRP = 34.943/4X3110473
DC29-C010-A030MSRP = 41.351X3110473
DC29-C015-A040MSRP = 70.631-1/2X416473
DC29-C020-A040MSRP = 78.252X416473
DC29-C030-A060MSRP = 206.833X614473
DC29-C040-A080MSRP = 313.044X816473
DC29-C060-A100MSRP = 815.876X1012473
DC29-C080-A120MSRP = 1254.678X1214473
DC Coupling CPVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-C005-B020MSRP = 42.441/2X2110473
DC29-C007-B030MSRP = 104.203/4X315473
DC29-C010-B030MSRP = 110.641X315473
DC29-C015-B040MSRP = 154.241-1/2X416473
DC29-C020-B040MSRP = 157.092X414473
DC29-C030-B060MSRP = 362.623X614473
DC29-C040-B080MSRP = 445.254X814473
DC29-C060-B100MSRP = 1321.226X1012473
DC29-C080-B120MSRP = 2341.698X1210473
DC Coupling CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-C005-C020MSRP = 67.581/2X2110473
DC29-C007-C030MSRP = 150.043/4X315473
DC29-C010-C030MSRP = 156.361X3110473
DC29-C015-C040MSRP = 219.311-1/2X415473
DC29-C020-C040MSRP = 226.912X418473
DC29-C030-C060MSRP = 537.733X614473
DC29-C040-C080MSRP = 1270.244X814473
DC29-C060-C100MSRP = 1786.916X1010473
DC29-C080-C120MSRP = 2711.148X1210473
DC Coupling CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DC29-C005-G020MSRP = 89.491/2X2110473
DC29-C007-G030MSRP = 280.713/4X3110473
DC29-C010-G030MSRP = 287.081X3110473
DC29-C015-G040MSRP = 425.481-1/2X416473
DC29-C020-G040MSRP = 433.012X416473
DC29-C030-G060MSRP = 813.183X6110473
DC29-C040-G080MSRP = 1399.284X816473
Page 7
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Access Tees
Print this Book
Print this Book

Access Tees
DC Access Tees are made from standard Spears® pressure fittings in designated material and Schedule selected. Included is an internal Carrier pipe section equipped with couplings and an external Containment Tee fitting equipped with a threaded Plug on the branch for access. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC Access Tee PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-A005-A020MSRP = 93.26
1/2X2110470
DCAT-A007-A030MSRP = 155.36
3/4X315470
DCAT-A010-A030MSRP = 157.28
1X315470
DCAT-A015-A040MSRP = 221.18
1-1/2X413470
DCAT-A020-A040MSRP = 288.52
2X415470
DCAT-A030-A060MSRP = 794.98
3X614470
DCAT-A040-A080MSRP = 1657.28
4X810470
DCAT-A060-A100MSRP = 3772.21
6X1010470
DCAT-A080-A120MSRP = 5326.66
8X1210470
DC Access Tee PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-A005-G020MSRP = 472.43
1/2X2110470
DCAT-A007-G030MSRP = 1254.75
3/4X3110470
DCAT-A010-G030MSRP = 1256.73
1X3110470
DCAT-A015-G040MSRP = 2065.71
1-1/2X416470
DCAT-A020-G040MSRP = 2092.53
2X416470
DCAT-A030-G060MSRP = 2841.83
3X614470
DCAT-A040-G080MSRP = 5217.01
4X810470
DC Access Tee PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-B005-A020MSRP = 117.76
1/2X2110470
DCAT-B007-A030MSRP = 188.45
3/4X3110470
DCAT-B010-A030MSRP = 189.36
1X316470
DCAT-B015-A040MSRP = 274.66
1-1/2X416470
DCAT-B020-A040MSRP = 302.41
2X416470
DCAT-B030-A060MSRP = 942.44
3X614470
DCAT-B040-A080MSRP = 1835.09
4X812470

DC Access Tee PVC Sch 80 x PVC Sch 40 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-B060-A100MSRP = 4132.73
6X1010470
DCAT-B080-A120MSRP = 5895.85
8X1210470
DC Access Tee PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-B005-G020MSRP = 570.45
1/2X2110470
DCAT-B007-G030MSRP = 1287.85
3/4X3110470
DCAT-B010-G030MSRP = 1288.51
1X315470
DCAT-B015-G040MSRP = 2116.27
1-1/2X413470
DCAT-B020-G040MSRP = 2123.61
2X416470
DCAT-B030-G060MSRP = 2989.22
3X614470
DCAT-B040-G080MSRP = 5394.82
4X812470
DC Access Tee PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-B005-B020MSRP = 195.46
1/2X215470
DCAT-B007-B030MSRP = 356.56
3/4X315470
DCAT-B010-B030MSRP = 357.73
1X316470
DCAT-B015-B040MSRP = 613.19
1-1/2X414470
DCAT-B020-B040MSRP = 640.94
2X450470
DCAT-B030-B060MSRP = 1416.35
3X614470
DCAT-B040-B080MSRP = 2352.71
4X812470
DCAT-B060-B100MSRP = 6373.56
6X1010470
DCAT-B080-B120MSRP = 7749.79
8X1210470
DC Access Tee CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-C007-A030MSRP = 180.493/4X315473
DCAT-C010-A030MSRP = 193.331X316473
DCAT-C015-A040MSRP = 295.361-1/2X416473
DCAT-C020-A040MSRP = 332.432X416473
DCAT-C030-A060MSRP = 950.213X614473
DCAT-C040-A080MSRP = 1851.894X812473
DCAT-C060-A100MSRP = 4234.956X1010473
DCAT-C080-A120MSRP = 5538.238X1210473
DC Access Tee CPVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-C005-B020MSRP = 185.391/2X2110473
DCAT-C007-B030MSRP = 338.533/4X315473
DCAT-C010-B030MSRP = 351.351X315473
DCAT-C015-B040MSRP = 487.451-1/2X415473
DCAT-C020-B040MSRP = 650.612X415473
DCAT-C030-B060MSRP = 1472.313X614473
DCAT-C040-B080MSRP = 2751.154X812473
DCAT-C060-B100MSRP = 5891.466X1010473
DCAT-C080-B120MSRP = 9215.688X1210473
DC Access Tee CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-C005-C020MSRP = 309.981/2X2110473
DCAT-C007-C030MSRP = 1024.873/4X315473
DCAT-C010-C030MSRP = 1034.711X316473
DCAT-C015-C040MSRP = 1463.091-1/2X414473
DCAT-C020-C040MSRP = 1478.282X415473
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 8
Double Containment Product
Access Tees & Closure Fittings
Print this Book
Print this Book

Access Tees
DC Access Tee CPVC Sch 80 x CPVC Sch 80 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-C030-C060MSRP = 3163.853X614473
DCAT-C040-C080MSRP = 8035.314X810473
DCAT-C060-C100MSRP = 8593.176X1010473
DCAT-C080-C120MSRP = 13094.848X1210473
DC Access Tee CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCAT-C005-G020MSRP = 576.711/2X2110473
DCAT-C007-G030MSRP = 1213.933/4X315473
DCAT-C010-G030MSRP = 1226.811X315473
DCAT-C015-G040MSRP = 2029.181-1/2X413473
DCAT-C020-G040MSRP = 2044.412X460473
DCAT-C030-G060MSRP = 2923.443X614473
DCAT-C040-G080MSRP = 5222.924X812473

Closure Fittings

A Closure Fitting is a special coupling configuration for joining both Carrier and Containment piping in situations where opposing runs of Carrier and Containment system must meet. Closure Fittings are frequently used at the end of a system where the final Termination Fitting must connect to a fixed point in the system. Spears® offers a complete range of Solvent Cement Closure Fittings that form a permanent solvent cement joint, plus special Union Closure Fittings in limited sizes that provide an easily-installed union to join these opposing Containment piping runs. See Double Containment Design & Installation Guide for proper installation.

Solvent Cement Closure Fittings consist of a male component and a female component. An internal O-ring on each component serves as a "cement-wiper" during installation to assure a proper joint. A "One-step" type cement, such as Spears® CPVC 24 for both PVC & CPVC, should be used to facilitate rapid assembly. See Double Containment Design & Installation Guide for proper installation.

Union Closure Fittings consist of a male component and female component with Union Nut and O-ring seal. Each component is installed on the carrier pipe incorporating a double O-ring seal on the carrier pipe with cemented retainers. Union Closure Fitting allows for easy access to carrier pipe after installation and also provides a small amount of expansion and contraction. See Double Containment Design & Installation Guide and product-enclosed instructions for proper installation.

Closure Fittings

Centralizers are used inside the Containment piping system, but not inside fittings installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC Solvent Cement Closure Fitting PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCCF-A030MSRP = 1033.49
3130470
DCCF-A040MSRP = 1058.88
450470
DCCF-A060MSRP = 1102.00
612470
DCCF-A080MSRP = 1520.07
810470
DCCF-A100MSRP = 1676.85
1020470
DCCF-A120MSRP = 2648.85
1212470
DC Solvent Cement Closure Fitting PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCCF-B020MSRP = 1032.59
2100470
DCCF-B030MSRP = 1050.25
3100470
DCCF-B040MSRP = 1082.19
450470
DCCF-B060MSRP = 1146.22
612470
DCCF-B080MSRP = 1519.64
813470
DCCF-B100MSRP = 2016.69
1012470
DCCF-B120MSRP = 3232.82
1210470
DC Solvent Cement Closure Fitting CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCCF-C020MSRP = 985.342100473
DCCF-C030MSRP = 1026.453110473
DCCF-C040MSRP = 1071.35450473
DCCF-C060MSRP = 1305.86612473
DCCF-C080MSRP = 1756.71813473
DCCF-C100MSRP = 3270.251012473
DCCF-C120MSRP = 5188.531210473
DC Solvent Cement Closure Fitting PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCCF-G030MSRP = 1153.20
3130470
DCCF-G040MSRP = 1198.13
450470
DCCF-G060MSRP = 1421.09
612470
DCCF-G080MSRP = 2111.76
816470
DC Union Closure Fittings PVC Clear - EPDM Seals
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCUC-030MSRP = 313.45
310471
DCUC-040MSRP = 403.31
410471
DCUC-060MSRP = 504.51
610471
Maximum 100 psi Short Term Hydrostatic Test Only.
50 psi Working Pressure @ 73° F (23° C)
DC Union Closure Fittings PVC Clear - FKM Seals
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCUC2-040MSRP = 517.56
410471
DCUC2-060MSRP = 710.78
610471
Page 9
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Closure Fittings & Isolation Couplers
Print this Book
Print this Book

Closure Fittings
DC Union Closure Fittings PVC Clear - FKM Seals (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Maximum 100 psi Short Term Hydrostatic Test Only.
50 psi Working Pressure @ 73° F (23° C)
Isolation Couplers
DC Isolation Couplers are to isolate a containment section for improved location identification if a leak is detected. When cemented into place, a suitable seal is formed for isolation of the containment sections. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC Isolation Coupler PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-A005-A020MSRP = 76.23
1/2X250470
DCDB-A007-A030MSRP = 121.45
3/4X315470
DCDB-A010-A030MSRP = 135.12
1X315470
DCDB-A015-A040MSRP = 139.38
1-1/2X415470
DCDB-A020-A040MSRP = 143.86
2X415470
DCDB-A030-A060MSRP = 230.69
3X614470
DCDB-A040-A080MSRP = 331.93
4X814470
DCDB-A060-A100MSRP = 443.17
6X10110470
DCDB-A080-A120MSRP = 749.64
8X1210470
DC Isolation Coupler PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-A005-G020MSRP = 176.11
1/2X250470
DCDB-A007-G030MSRP = 217.67
3/4X315470
DCDB-A010-G030MSRP = 455.66
1X315470
DCDB-A015-G040MSRP = 524.64
1-1/2X415470
DCDB-A020-G040MSRP = 542.97
2X415470
DCDB-A030-G060MSRP = 593.99
3X614470
DCDB-A040-G080MSRP = 749.18
4X814470
DC Isolation Coupler PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-B005-A020MSRP = 110.02
1/2X215470
DCDB-B007-A030MSRP = 131.76
3/4X315470
DCDB-B010-A030MSRP = 145.36
1X314470

DC Isolation Coupler PVC Sch 80 x PVC Sch 40 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-B015-A040MSRP = 155.44
1-1/2X415470
DCDB-B020-A040MSRP = 167.97
2X415470
DCDB-B030-A060MSRP = 240.98
3X615470
DCDB-B040-A080MSRP = 360.78
4X814470
DCDB-B060-A100MSRP = 471.47
6X1010470
DCDB-B080-A120MSRP = 810.92
8X1210470
DC Isolation Coupler PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-B005-G020MSRP = 232.23
1/2X215470
DCDB-B010-G030MSRP = 466.27
1X315470
DCDB-B015-G040MSRP = 603.16
1-1/2X415470
DCDB-B020-G040MSRP = 660.25
2X415470
DCDB-B030-G060MSRP = 733.17
3X615470
DCDB-B040-G080MSRP = 865.57
4X814470
DC Isolation Coupler PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-B005-B020MSRP = 281.48
1/2X2112470
DCDB-B007-B030MSRP = 345.28
3/4X315470
DCDB-B010-B030MSRP = 414.22
1X315470
DCDB-B015-B040MSRP = 437.01
1-1/2X414470
DCDB-B020-B040MSRP = 343.65
2X440470
DCDB-B030-B060MSRP = 498.24
3X614470
DCDB-B040-B080MSRP = 539.48
4X814470
DCDB-B060-B100MSRP = 552.61
6X1010470
DCDB-B080-B120MSRP = 908.78
8X1210470
DC Isolation Coupler CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-C005-A020MSRP = 106.231/2X215473
DCDB-C007-A030MSRP = 142.493/4X315473
DCDB-C010-A030MSRP = 144.061X315473
DCDB-C015-A040MSRP = 169.061-1/2X415473
DCDB-C020-A040MSRP = 236.492X415473
DCDB-C030-A060MSRP = 382.973X615473
DCDB-C040-A080MSRP = 645.374X814473
DCDB-C060-A100MSRP = 993.256X1010473
DC Isolation Coupler CPVC Sch 80 x Sch 80 Gray
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-C005-B020MSRP = 107.131/2X2112473
DCDB-C007-B030MSRP = 126.093/4X315473
DCDB-C010-B030MSRP = 127.681X350473
DCDB-C015-B040MSRP = 179.731-1/2X414473
DCDB-C020-B040MSRP = 247.072X440473
DCDB-C030-B060MSRP = 403.653X615473
DCDB-C040-B080MSRP = 681.924X814473
DCDB-C060-B100MSRP = 1069.676X1010473
DC Isolation Coupler CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-C005-C020MSRP = 217.721/2X2112473
DCDB-C007-C030MSRP = 240.743/4X315473
DCDB-C010-C030MSRP = 506.131X315473
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 10
Double Containment Product
Isolation Couplers & Termination Fittings
Print this Book
Print this Book

Isolation Couplers
DC Isolation Coupler CPVC Sch 80 x CPVC Sch 80 (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-C015-C040MSRP = 549.671-1/2X414473
DCDB-C020-C040MSRP = 615.442X414473
DCDB-C030-C060MSRP = 798.063X614473
DCDB-C040-C080MSRP = 813.974X814473
DCDB-C060-C100MSRP = 1360.696X1010473
DC Isolation Coupler CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCDB-C005-G020MSRP = 230.351/2X215473
DCDB-C007-G030MSRP = 253.493/4X315473
DCDB-C010-G030MSRP = 526.671X315473
DCDB-C015-G040MSRP = 720.221-1/2X450473
DCDB-C020-G040MSRP = 787.562X415473
DCDB-C030-G060MSRP = 836.963X615473
Termination Fittings

DC Termination Fittings are a special configuration for starting or stopping the containment portion of a system. Termination Fittings consist of a reducer coupling to accept the Containment pipe that is pre-fabricated to an internal extender coupling for connection to existing Carrier system. See Double Containment Design & Installation Guide for proper installation.

Centralizers are used inside the Containment piping system, but not inside fittings, installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

DC Termination Fitting PVC Sch 40 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-A005-A020MSRP = 252.55
1/2X280470
DCTM-A007-A030MSRP = 265.73
3/4X380470
DCTM-A010-A030MSRP = 278.33
1X390470
DCTM-A015-A040MSRP = 300.40
1-1/2X440470
DCTM-A020-A040MSRP = 315.37
2X450470
DCTM-A030-A060MSRP = 430.29
3X612470
DCTM-A040-A080MSRP = 561.25
4X812470
DCTM-A060-A100MSRP = 1260.71
6X1012470
DCTM-A080-A120MSRP = 1718.88
8X1212470
DC Termination Fitting PVC Sch 40 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-A005-G020MSRP = 328.64
1/2X218470

DC Termination Fitting PVC Sch 40 x PVC Sch 40 Clear (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-A007-G030MSRP = 537.85
3/4X370470
DCTM-A010-G030MSRP = 539.78
1X319470
DCTM-A015-G040MSRP = 677.88
1-1/2X414470
DCTM-A020-G040MSRP = 693.05
2X414470
DCTM-A030-G060MSRP = 1075.29
3X612470
DCTM-A040-G080MSRP = 1716.81
4X813470
DC Termination Fitting PVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-B005-A020MSRP = 277.03
1/2X280470
DCTM-B007-A030MSRP = 309.43
3/4X390470
DCTM-B010-A030MSRP = 310.38
1X380470
DCTM-B015-A040MSRP = 353.93
1-1/2X440470
DCTM-B020-A040MSRP = 370.01
2X450470
DCTM-B030-A060MSRP = 577.72
3X640470
DCTM-B040-A080MSRP = 739.03
4X830470
DCTM-B060-A100MSRP = 1407.16
6X1010470
DCTM-B080-A120MSRP = 2088.88
8X1213470
DC Termination Fitting PVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-B005-G020MSRP = 363.22
1/2X290470
DCTM-B007-G030MSRP = 579.26
3/4X3100470
DCTM-B010-G030MSRP = 440.75
1X380470
DCTM-B015-G040MSRP = 738.91
1-1/2X440470
DCTM-B020-G040MSRP = 753.72
2X450470
DCTM-B030-G060MSRP = 1234.88
3X640470
DCTM-B040-G080MSRP = 2167.73
4X813470
DC Termination Fitting PVC Sch 80 x PVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-B005-B020MSRP = 314.28
1/2X2100470
DCTM-B007-B030MSRP = 391.51
3/4X380470
DCTM-B010-B030MSRP = 392.42
1X380470
DCTM-B015-B040MSRP = 449.14
1-1/2X440470
DCTM-B020-B040MSRP = 465.18
2X440470
DCTM-B030-B060MSRP = 755.67
3X620470
DCTM-B040-B080MSRP = 940.12
4X820470
DCTM-B060-B100MSRP = 2148.31
6X1010470
DCTM-B080-B120MSRP = 2589.73
8X1210470
DC Termination Fitting CPVC Sch 80 x PVC Sch 40
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-C005-A020MSRP = 262.031/2X280473
DCTM-C007-A030MSRP = 294.203/4X318473
DCTM-C010-A030MSRP = 307.131X380473
DCTM-C015-A040MSRP = 369.861-1/2X440473
DCTM-C020-A040MSRP = 396.022X430473
DCTM-C030-A060MSRP = 634.773X612473
DCTM-C040-A080MSRP = 824.934X813473
DCTM-C060-A100MSRP = 1670.916X1010473
DCTM-C080-A120MSRP = 3529.998X1213473
Page 11
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Termination Fittings & Tubing Termination Fitting
Print this Book
Print this Book

Termination Fittings
DC Termination Fitting CPVC Sch 80 x Sch 80 Gray
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-C005-B020MSRP = 297.061/2X280473
DCTM-C007-B030MSRP = 371.343/4X380473
DCTM-C010-B030MSRP = 384.231X380473
DCTM-C015-B040MSRP = 459.331-1/2X440473
DCTM-C020-B040MSRP = 485.462X414473
DCTM-C030-B060MSRP = 801.803X612473
DCTM-C040-B080MSRP = 1013.884X813473
DCTM-C060-B100MSRP = 2369.726X1012473
DCTM-C080-B120MSRP = 4000.458X1210473
DC Termination Fitting CPVC Sch 80 x PVC Sch 40 Clear
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-C005-G020MSRP = 354.541/2X280473
DCTM-C007-G030MSRP = 585.453/4X319473
DCTM-C010-G030MSRP = 608.111X390473
DCTM-C015-G040MSRP = 798.001-1/2X4100473
DCTM-C020-G040MSRP = 824.152X430473
DCTM-C030-G060MSRP = 1394.813X6115473
DCTM-C040-G080MSRP = 2111.944X813473
DC Termination Fitting CPVC Sch 80 x CPVC Sch 80
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-C005-C020MSRP = 445.021/2X290473
DCTM-C007-C030MSRP = 454.783/4X380473
DCTM-C010-C030MSRP = 467.601X340473
DCTM-C015-C040MSRP = 591.891-1/2X440473
DCTM-C020-C040MSRP = 618.002X440473
DCTM-C030-C060MSRP = 1119.373X620473
DCTM-C040-C080MSRP = 2001.154X820473
DCTM-C060-C100MSRP = 3045.696X1010473
DCTM-C080-C120MSRP = 4896.848X1210473



Tubing Termination Fitting

DC Tubing Termination Fittings are a special configuration for starting or stopping the containment portion of a system while allowing for tubing throughput. Tubing Termination Fittings consist of a termination plate inside a Containment coupling to terminate the system and an FKM O-ring for optimum sealing and chemical resistance.

User-supplied Carrier tubing can lay on the interior wall of the Containment pipe or Centralizers can be ordered to support the tubing within the Containment Piping. Centralizers are installed on Carrier tubing inside the Containment piping system but not inside fittings and are ordered separately according to same Carrier Tubing x Containment Pipe size and pipe schedule selected. Tubing and tubing connector fittings are user-supplied and not available from Spears® Manufacturing Company.

DC Tubing Termination Fitting PFA Tubing x PVC Sch 40 with FKM O-ring
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-T002-A010MSRP = 211.91
1/4X1500470
DCTM-T003-A010MSRP = 223.42
3/8X1500470
DCTM-T005-A020MSRP = 252.70
1/2X2250470
DCTM-T006-A020MSRP = 251.64
5/8X2250470
DCTM-T006-A040MSRP = 184.82
5/8X460470
DCTM-T007-A020MSRP = 265.62
3/4X2250470
DCTM-T007-A030MSRP = 275.09
3/4X3200470
DCTM-T010-A030MSRP = 310.09
1X3200470
DCTM-T010-A040MSRP = 345.86
1X460470
DC Tubing Termination Fitting PFA Tubing x PVC Sch 80 with FKM O-Ring
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-T002-B010MSRP = 234.95
1/4X1250470
DCTM-T003-B010MSRP = 249.17
3/8X1250470
DCTM-T003-B020MSRP = 267.27
3/8X2200470
DCTM-T005-B020MSRP = 283.89
1/2X2200470
DCTM-T006-B020MSRP = 201.49
5/8X2200470
DCTM-T006-B025MSRP = 225.09
5/8X2-1/2100470
DCTM-T007-B020MSRP = 287.95
3/4X2200470
DCTM-T007-B030MSRP = 327.55
3/4X350470
DCTM-T010-B030MSRP = 343.27
1X350470
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 12
Double Containment Product
Tubing Termination Fitting & Centralizers
Print this Book
Print this Book

Tubing Termination Fitting
DC Tubing Termination Fitting PFA Tubing x CPVC Sch 80 with FKM O-Ring
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-T002-C010MSRP = 284.92
1/4X1150470
DCTM-T003-C010MSRP = 292.72
3/8X1150470
DCTM-T005-C020MSRP = 405.00
1/2X2200470
DCTM-T006-C020MSRP = 339.42
5/8X2200470
DCTM-T007-C020MSRP = 381.59
3/4X2200470
DCTM-T007-C030MSRP = 406.56
3/4X350470
DCTM-T010-C030MSRP = 500.34
1X350470
DC Tubing Termination Fitting PFA Tubing x PVC Sch 40 Clear with FKM O-Ring
Part NumberSizeStd PkMstr
Ctn		Prod
Code
DCTM-T002-G010MSRP = 264.52
1/4X1500470
DCTM-T003-G010MSRP = 271.74
3/8X1500470
DCTM-T003-G015MSRP = 280.68
3/8X1-1/2250470
DCTM-T005-G010MSRP = 279.26
1/2X1500470
DCTM-T005-G015MSRP = 288.88
1/2X1-1/2250470
DCTM-T005-G020MSRP = 331.21
1/2X2100470
DCTM-T005-G030MSRP = 377.71
1/2X3200470
DCTM-T006-G020MSRP = 323.76
5/8X2100470
DCTM-T007-G020MSRP = 438.19
3/4X2100470
DCTM-T007-G030MSRP = 516.59
3/4X3200470
DCTM-T010-G030MSRP = 523.99
1X3200470
DCTM-T012-G015MSRP = 262.77
1-1/4X1-1/2250470
DCTM-T012-G020MSRP = 291.82
1-1/4X2100470
DCTM-T012-G030MSRP = 500.33
1-1/4X3200470


Centralizers

Centralizers are a simple slip-on design that are positioned and held in place by a few wraps of clean-room adhesive on each side. Centralizers hold the Carrier piping centrally located within the Containment piping and are designed with an annular space for routing of leak detection cable, if used. See Double Containment Design & Installation Guide for proper installation. The following Spacing Chart can be used as a guide for determining the quantity of Centralizers needed,based on temperature and Carrier pipe size and schedule selected.



Centralizers
RECOMMENDED MINIMUM CENTRALIZER SUPPORT SPACING (ft.) *
Carrier Size
(in.)		 PVC SCHEDULE 40 CARRIER
Temperature °F
60° 80° 100° 120° 140°
1/2 4-1/2 4-1/2 4 2-1/2 2-1/2
3/4 5 4-1/2 4 2-1/2 2-1/2
1 5-1/2 5 4-1/2 3 2-1/2
1-1/2 6 5-1/2 5 3-1/2 3
2 6 5-1/2 5 3-1/2 3
3 7 7 6 4 3-1/2
4 7-1/2 7 6-1/2 4-1/2 4
6 8-1/2 8 7-1/2 5 4-1/2
8 9 8-1/2 8 5 4-1/2
10 10 9 8-1/2 5-1/2 5
12 11-1/2 10-1/2 9-1/2 6-1/2 5-1/2

Carrier Size
(in.)		 PVC SCHEDULE 80 CARRIER
Temperature °F
60° 80° 100° 120° 140°
1/2 5 4-1/2 4-1/2 3 2-1/2
3/4 5-1/2 5 4-1/2 3 2-1/2
1 6 5-1/2 5 3-1/2 3
1-1/2 6-1/2 6 5-1/2 3-1/2 3-1/2
2 7 6-1/2 6 4 3-1/2
3 8 7-1/2 7 4-1/2 4
4 9 8-1/2 7-1/2 5 4-1/2
6 10 9-1/2 9 6 5
8 11 10-1/2 9-1/2 6-1/2 5-1/2
10 12 11 10 7 6
12 5-1/2 13 12 10-1/2 7-1/2

Carrier Size
(in.)		 CPVC SCHEDULE 80 CARRIER
Temperature °F
73° 100° 120° 140° 160° 180°
1/2 5-1/2 5 4-1/2 4-1/2 3 2-1/2
3/4 5-1/2 5-1/2 5 4-1/2 3 2-1/2
1 6 6 5-1/2 5 3-1/2 2
1-1/2 7 6-1/2 6 5-1/2 3-1/2 3-1/2
2 7 7 6-1/2 6 4 3-1/2
3 8 8 7-1/2 7 4-1/2 4
4 9 8-1/2 8 7-1/2 5 4-1/2
6 10 9-1/2 9 8 5-1/2 5
8 11 10-1/2 10 9 6 5-1/2
10 11-1/2 11 10-1/2 9-1/2 6-1/2 6
12 12-1/2 12 11-1/2 10-1/2 7-1/2 6-1/2
Note: Specified minimum spacing can also be used for system support according to the secondary Containment pipe size and schedule used. Where practical, system support should correspond to internal carrier support (centralizers) to minimize concentrated point loads.
Note: Data furnished is based on raw material manufacturer's information. This information can be considered a reliable recommendation, but not a guarantee. Actual service conditions and system parameters should be evaluated by qualified personnel.

DC Centralizer IPS O.D. x Sch 40 White I.D.
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Carrier x Containment
DCCT-H005-A020MSRP = 27.351/2X255330479
Page 13
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Centralizers & Ball Valve Box With Valve
Print this Book
Print this Book

Centralizers
DC Centralizer IPS O.D. x Sch 40 White I.D. (continued)
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Carrier x Containment
DCCT-H007-A030MSRP = 27.353/4X355220479
DCCT-H010-A030MSRP = 29.711X355220479
DCCT-H015-A040MSRP = 39.511-1/2X4550479
DCCT-H020-A040MSRP = 39.512X4550479
DCCT-H030-A060MSRP = 50.463X6550479
DCCT-H040-A080MSRP = 62.384X8550479
DCCT-H060-A100MSRP = 80.916X10250479
DCCT-H080-A120MSRP = 101.608X12250479
DC Centralizer IPS O.D. x Sch 40 Clear I.D.
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Carrier x Containment
DCCT-H005-G020MSRP = 27.351/2X255330479
DCCT-H007-G020MSRP = 27.353/4X255330479
DCCT-H010-G030MSRP = 30.451X355220479
DCCT-H015-G040MSRP = 39.511-1/2X455220479
DCCT-H020-G040MSRP = 39.512X4550479
DCCT-H030-G060MSRP = 50.463X6550479
DCCT-H040-G080MSRP = 62.384X8550479
DC Centralizer IPS O.D. x Sch 80 PVC I.D.
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Carrier x Containment
DCCT-H005-B020MSRP = 27.351/2X255330479
DCCT-H007-B020MSRP = 27.353/4X255330479
DCCT-H010-B030MSRP = 30.451X355220479
DCCT-H015-B040MSRP = 30.451-1/2X4550479
DCCT-H020-B040MSRP = 39.512X4550479
DCCT-H030-B060MSRP = 50.463X6550479
DCCT-H040-B080MSRP = 62.384X8550479
DCCT-H060-B100MSRP = 80.916X10250479
DCCT-H080-B120MSRP = 101.608X12200479
DC Centralizer IPS O.D. x Sch 80 CPVC I.D.
Part NumberSizeStd PkMstr
Ctn		Prod
Code
Carrier x Containment
DCCT-H005-C020MSRP = 27.351/2X255330479
DCCT-H007-C030MSRP = 27.353/4X355220479
DCCT-H010-C030MSRP = 30.451X355220479
DCCT-H015-C040MSRP = 30.451-1/2X4550479
DCCT-H020-C040MSRP = 39.512X4550479
DCCT-H030-C060MSRP = 50.463X6550479
DCCT-H040-C080MSRP = 62.384X8550479
DCCT-H060-C100MSRP = 80.916X10240479
DCCT-H080-C120MSRP = 101.608X12200479

Ball Valve Box With Valve


DC Ball Valve Boxes are made from a standard Spears® Tee fitting in designated material and Schedule selected, which is fitted with Carrier pipe size Ball Valve and bushed to specified Containment size. Includes Containment Valve Box fitting with threaded Access Plug, True Union 2000 Industrial Ball Valve with Lockout

Handle and Centralizers for positioning valve in box. Carrier valves are equipped with extenders to facilitate cement assembly. See Double Containment Design & Installation Guide for proper installation.

General Installation Information: Ball check valves may be installed in either horizontal or vertical position. A minimum of ten (10) pipe diameters' distance maintained from any pump or other source of turbulence. Check valves MUST be installed with the valve's FLOW arrow pointing in the direction of flow.While Valve Boxes include Centralizers for valve, additional Centralizers are used inside the Containment piping system installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.


True Union 2000 Industrial Ball Valve Specifications, Sizes 1/2" - 2":


Material:PVC/CPVC
Seats:PTFE
Seals:EPDM/FKM
PR, Water:235 psi @ 73°F (23°C), 1/2" - 2"
Maximum Service Temperature
PVC = 140°F (60°C)
CPVC = 200°F (93°C)
Temperature/Pressure
De-ratings Apply
All Valves assembled with Silicone-Free, Water Soluble Lubricant

Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 40 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBA20-A005-A020MSRP = 648.73
VBA30-A005-A020MSRP = 660.13
10470
3/4X3
VBA20-A007-A030MSRP = 675.67
VBA30-A007-A030MSRP = 689.23
15470
1X3
VBA20-A010-A030MSRP = 875.72
VBA30-A010-A030MSRP = 711.15
10470
1-1/2X4
VBA20-A015-A040MSRP = 1192.48
VBA30-A015-A040MSRP = 1218.75
10470
2X4
VBA20-A020-A040MSRP = 1355.93
VBA30-A020-A040MSRP = 1267.05
10470
Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 40 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBA20-A005-G020MSRP = 2877.58
VBA30-A005-G020MSRP = 2888.95
10470
3/4X3
VBA20-A007-G030MSRP = 2896.86
VBA30-A007-G030MSRP = 2910.46
10470
1X3
VBA20-A010-G030MSRP = 2920.46
VBA30-A010-G030MSRP = 2939.04
10470
1-1/2X4
VBA20-A015-G040MSRP = 5251.81
VBA30-A015-G040MSRP = 5278.06
10470
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 14
Double Containment Product
Ball Valve Box With Valve & Ball Check Valve Box With Valve
Print this Book
Print this Book

Ball Valve Box With Valve
Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 40 x PVC Sch 40 Clear (continued)
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
2X4
VBA20-A020-G040MSRP = 5330.25
VBA30-A020-G040MSRP = 5363.54
10470
Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBA20-B005-A020MSRP = 680.78
VBA30-B005-A020MSRP = 692.19
10470
3/4X3
VBA20-B007-A030MSRP = 708.75
VBA30-B007-A030MSRP = 722.31
10470
1X3
VBA20-B010-A030MSRP = 732.61
VBA30-B010-A030MSRP = 1378.25
10470
1-1/2X4
VBA20-B015-A040MSRP = 1266.09
VBA30-B015-A040MSRP = 1606.64
10470
2X4
VBA20-B020-A040MSRP = 1392.74
VBA30-B020-A040MSRP = 1667.68
10470
Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBA20-B005-G020MSRP = 2900.52
VBA30-B005-G020MSRP = 2911.88
10470
3/4X3
VBA20-B007-G030MSRP = 2930.14
VBA30-B007-G030MSRP = 2943.67
10470
1X3
VBA20-B010-G030MSRP = 2953.85
VBA30-B010-G030MSRP = 2970.74
10470
1-1/2X4
VBA20-B015-G040MSRP = 5318.40
VBA30-B015-G040MSRP = 5344.71
10470
2X4
VBA20-B020-G040MSRP = 5399.15
VBA30-B020-G040MSRP = 5431.05
10470
Valve Box, with PVC True Union 2000 Industrial Ball Valve
PVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBA20-B005-B020MSRP = 970.96
VBA30-B005-B020MSRP = 1372.49
10470
3/4X3
VBA20-B007-B030MSRP = 1390.78
VBA30-B007-B030MSRP = 1404.31
10470
1X3
VBA20-B010-B030MSRP = 1412.93
VBA30-B010-B030MSRP = 1428.42
10470
1-1/2X4
VBA20-B015-B040MSRP = 1832.96
VBA30-B015-B040MSRP = 1859.44
10470
2X4
VBA20-B020-B040MSRP = 2152.49
VBA30-B020-B040MSRP = 2184.63
10470
Valve Box, with CPVC True Union 2000 Industrial Ball Valve
CPVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBA20-C005-A020MSRP = 688.95VBA30-C005-A020MSRP = 703.0110473
3/4X3VBA20-C007-A030MSRP = 715.35VBA30-C007-A030MSRP = 733.0710473
1X3VBA20-C010-A030MSRP = 758.59VBA30-C010-A030MSRP = 779.5710473
1-1/2X4VBA20-C015-A040MSRP = 1343.33VBA30-C015-A040MSRP = 1413.9610473
2X4VBA20-C020-A040MSRP = 1443.75VBA30-C020-A040MSRP = 2223.3310473
Valve Box, with CPVC True Union 2000 Industrial Ball Valve
CPVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBA20-C005-B020MSRP = 1313.31VBA30-C005-B020MSRP = 1327.4010473
3/4X3VBA20-C007-B030MSRP = 1356.51VBA30-C007-B030MSRP = 1374.2415473
1X3VBA20-C010-B030MSRP = 1399.66VBA30-C010-B030MSRP = 1420.6514473
1-1/2X4VBA20-C015-B040MSRP = 2087.71VBA30-C015-B040MSRP = 2125.4713473
2X4VBA20-C020-B040MSRP = 2210.32VBA30-C020-B040MSRP = 2273.8810473

Valve Box, with CPVC True Union 2000 Industrial Ball Valve
CPVC Sch 80 x CPVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBA20-C005-C020MSRP = 1983.18VBA30-C005-C020MSRP = 1997.1810473
3/4X3VBA20-C007-C030MSRP = 2033.07VBA30-C007-C030MSRP = 2050.8210473
1X3VBA20-C010-C030MSRP = 2119.05VBA30-C010-C030MSRP = 3804.1210473
1-1/2X4VBA20-C015-C040MSRP = 4101.45VBA30-C015-C040MSRP = 4136.8013473
2X4VBA20-C020-C040MSRP = 4223.22VBA30-C020-C040MSRP = 4286.7710473
Valve Box, with CPVC True Union 2000 Industrial Ball Valve
CPVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBA20-C005-G020MSRP = 2760.24VBA30-C005-G020MSRP = 2774.2714473
3/4X3VBA20-C007-G030MSRP = 2803.44VBA30-C007-G030MSRP = 2821.1410473
1X3VBA20-C010-G030MSRP = 2846.54VBA30-C010-G030MSRP = 2916.8510473
1-1/2X4VBA20-C015-G040MSRP = 5129.81VBA30-C015-G040MSRP = 4178.0110473
2X4VBA20-C020-G040MSRP = 5252.18VBA30-C020-G040MSRP = 5315.7210473
Ball Check Valve Box With Valve

DC Ball Check Valve Boxes are made from a standard Spears® Tee fitting in designated material and Schedule selected, which is fitted with Carrier pipe size Ball Valve and bushed to specified Containment size. Includes Containment Valve Box fitting with threaded Access Plug, True Union 2000 Industrial Ball Check Valve

Double Containment Design & Installation Guide for proper installation.

General Installation Information: Ball check valves may be installed in either horizontal or vertical position. A minimum of ten (10) pipe diameters' distance maintained from any pump or other source of turbulence. Check valves MUST be installed with the valve's FLOW arrow pointing in the direction of flow.While Valve Boxes include Centralizers for valve, additional Centralizers are used inside the Containment piping system installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

True Union 2000 Industrial Ball Check Valve Specifications, Sizes 1/2" - 2":


Material:PVC/CPVC
Seats:PTFE
Seals:EPDM/FKM
PR, Water:235 psi @ 73°F (23°C), 1/2" - 2"
Maximum Service Temperature
PVC = 140°F (60°C)
CPVC = 200°F (93°C)
Temperature/Pressure
De-ratings Apply
All Valves assembled with Silicone-Free, Water Soluble Lubricant

Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 40 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBC2-A005-A020MSRP = 658.31
VBC3-A005-A020MSRP = 672.96
14470
Page 15
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Ball Check Valve Box With Valve
Print this Book
Print this Book

Ball Check Valve Box With Valve
Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 40 x PVC Sch 40 (continued)
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
3/4X3
VBC2-A007-A030MSRP = 681.18
VBC3-A007-A030MSRP = 697.22
14470
1X3
VBC2-A010-A030MSRP = 709.15
VBC3-A010-A030MSRP = 727.91
10470
1-1/2X4
VBC2-A015-A040MSRP = 1249.01
VBC3-A015-A040MSRP = 1279.27
13470
2X4
VBC2-A020-A040MSRP = 1353.04
VBC3-A020-A040MSRP = 1394.97
13470
Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 40 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBC2-A005-G020MSRP = 2891.75
VBC3-A005-G020MSRP = 2904.32
10470
3/4X3
VBC2-A007-G030MSRP = 2914.14
VBC3-A007-G030MSRP = 2930.14
14470
1X3
VBC2-A010-G030MSRP = 2942.09
VBC3-A010-G030MSRP = 2960.87
13470
1-1/2X4
VBC2-A015-G040MSRP = 5300.45
VBC3-A015-G040MSRP = 5330.75
13470
2X4
VBC2-A020-G040MSRP = 5404.22
VBC3-A020-G040MSRP = 5446.14
13470
Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBC2-B005-A020MSRP = 694.39
VBC3-B005-A020MSRP = 709.12
14470
3/4X3
VBC2-B007-A030MSRP = 725.91
VBC3-B007-A030MSRP = 741.93
14470
1X3
VBC2-B010-A030MSRP = 752.85
VBC3-B010-A030MSRP = 757.01
13470
1-1/2X4
VBC2-B015-A040MSRP = 1302.55
VBC3-B015-A040MSRP = 1332.75
13470
2X4
VBC2-B020-A040MSRP = 1407.16
VBC3-B020-A040MSRP = 1449.08
13470
Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBC2-B005-G020MSRP = 1634.38
VBC3-B005-G020MSRP = 2930.40
10470
3/4X3
VBC2-B007-G030MSRP = 2947.19
VBC3-B007-G030MSRP = 2963.23
14470
1X3
VBC2-B010-G030MSRP = 2974.17
VBC3-B010-G030MSRP = 1332.75
13470
1-1/2X4
VBC2-B015-G040MSRP = 5354.02
VBC3-B015-G040MSRP = 5384.21
13470
2X4
VBC2-B020-G040MSRP = 5458.41
VBC3-B020-G040MSRP = 2264.29
10470
Valve Box, with PVC True Union 2000 Industrial Ball Check Valve
PVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBC2-B005-B020MSRP = 886.96
VBC3-B005-B020MSRP = 1389.59
10470
3/4X3
VBC2-B007-B030MSRP = 1407.96
VBC3-B007-B030MSRP = 1423.96
14470
1X3
VBC2-B010-B030MSRP = 1434.88
VBC3-B010-B030MSRP = 1010.35
13470
1-1/2X4
VBC2-B015-B040MSRP = 2117.59
VBC3-B015-B040MSRP = 2147.83
13470
2X4
VBC2-B020-B040MSRP = 2222.33
VBC3-B020-B040MSRP = 2264.27
10470
Valve Box, with CPVC True Union 2000 Industrial Ball Check Valve
CPVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBC2-C005-A020MSRP = 717.05VBC3-C005-A020MSRP = 735.2614473

Valve Box, with CPVC True Union 2000 Industrial Ball Check Valve
CPVC Sch 80 x PVC Sch 40 (continued)
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
3/4X3VBC2-C007-A030MSRP = 758.77VBC3-C007-A030MSRP = 780.1410473
1X3VBC2-C010-A030MSRP = 809.93VBC3-C010-A030MSRP = 831.2810473
1-1/2X4VBC2-C015-A040MSRP = 1452.15VBC3-C015-A040MSRP = 1495.0610473
2X4VBC2-C020-A040MSRP = 1598.14VBC3-C020-A040MSRP = 1657.5510473
Valve Box, with CPVC True Union 2000 Industrial Ball Check Valve
CPVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBC2-C005-B020MSRP = 1347.27VBC3-C005-B020MSRP = 1365.4514473
3/4X3VBC2-C007-B030MSRP = 1389.01VBC3-C007-B030MSRP = 1410.3614473
1X3VBC2-C010-B030MSRP = 1436.64VBC3-C010-B030MSRP = 1461.7913473
1-1/2X4VBC2-C015-B040MSRP = 2066.53VBC3-C015-B040MSRP = 2109.4513473
2X4VBC2-C020-B040MSRP = 2223.56VBC3-C020-B040MSRP = 2282.9710473
Valve Box, with CPVC True Union 2000 Industrial Ball Check Valve
CPVC Sch 80 x CPVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBC2-C005-C020MSRP = 2133.36VBC3-C005-C020MSRP = 2151.5610473
3/4X3VBC2-C007-C030MSRP = 2175.34VBC3-C007-C030MSRP = 2196.7310473
1X3VBC2-C010-C030MSRP = 2222.73VBC3-C010-C030MSRP = 2247.8814473
1-1/2X4VBC2-C015-C040MSRP = 3864.19VBC3-C015-C040MSRP = 3907.1413473
2X4VBC2-C020-C040MSRP = 4004.69VBC3-C020-C040MSRP = 4064.1713473
Valve Box, with CPVC True Union 2000 Industrial Ball Check Valve
CPVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBC2-C005-G020MSRP = 2737.54VBC3-C005-G020MSRP = 2755.6914473
3/4X3VBC2-C007-G030MSRP = 2836.18VBC3-C007-G030MSRP = 2857.5814473
1X3VBC2-C010-G030MSRP = 2883.55VBC3-C010-G030MSRP = 2908.6913473
1-1/2X4VBC2-C015-G040MSRP = 5201.75VBC3-C015-G040MSRP = 5244.6614473
2X4VBC2-C020-G040MSRP = 5347.73VBC3-C020-G040MSRP = 5407.1914473
Diaphragm Valve Box With Valve


Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 16
Double Containment Product
Diaphragm Valve Box With Valve
Print this Book
Print this Book

Diaphragm Valve Box With Valve

DC Diaphragm Valve Boxes are made from a standard Spears® Tee fitting in designated material and Schedule selected, which is fitted with Carrier pipe size Diaphragm Valve and bushed to specified Containment size. Includes Containment Valve Box fitting with threaded Access Plug, True Union Diaphragm Valve and Centralizers for positioning valve in box. Carrier valves are equipped with extenders to facilitate cement assembly. See Double Containment Design & Installation Guide for proper installation.

General Installation Information: Ball check valves may be installed in either horizontal or vertical position. A minimum of ten (10) pipe diameters' distance maintained from any pump or other source of turbulence. Check valves MUST be installed with the valve's FLOW arrow pointing in the direction of flow.While Valve Boxes include Centralizers for valve, additional Centralizers are used inside the Containment piping system installed on Carrier pipe and must be ordered separately according to same Carrier x Containment size and pipe schedule selected.

True Union Diaphragm Valve Specifications, Sizes 1/2" - 2":

Material:PVC/CPVC
Seals:EPDM/FKM
PR, Water:235 psi @ 73°F (23°C), 1/2" - 2"
Maximum Service Temperature
PVC = 140°F (60°C)
CPVC = 200°F (93°C)
Temperature/Pressure
De-ratings Apply
All Valves assembled with Silicone-Free, Water Soluble Lubricant

Valve Box, with PVC True Union Diaphragm Valve
PVC Sch 40 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-A005-A020MSRP = 837.33
VBD30-A005-A020MSRP = 868.71
10470
3/4X3
VBD20-A007-A030MSRP = 876.23
VBD30-A007-A030MSRP = 911.88
10470
1X3
VBD20-A010-A030MSRP = 952.75
VBD30-A010-A030MSRP = 991.76
10470
1-1/2X4
VBD20-A015-A040MSRP = 1624.42
VBD30-A015-A040MSRP = 1721.72
10470
2X4
VBD20-A020-A040MSRP = 1741.85
VBD30-A020-A040MSRP = 1878.12
10470
Valve Box, with PVC True Union Diaphragm Valve
PVC Sch 40 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-A005-G020MSRP = 3058.59
VBD30-A005-G020MSRP = 3089.98
10470
3/4X3
VBD20-A007-G030MSRP = 3155.71
VBD30-A007-G030MSRP = 3191.38
10470
1X3
VBD20-A010-G030MSRP = 3232.56
VBD30-A010-G030MSRP = 3271.61
10470
1-1/2X4
VBD20-A015-G040MSRP = 5677.45
VBD30-A015-G040MSRP = 5774.72
10470
2X4
VBD20-A020-G040MSRP = 5794.77
VBD30-A020-G040MSRP = 5931.02
10470
Valve Box, with PVC True Union Diaphragm Valve
PVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-B005-A020MSRP = 861.80
VBD30-B005-A020MSRP = 893.18
10470
3/4X3
VBD20-B007-A030MSRP = 909.31
VBD30-B007-A030MSRP = 944.95
10470
1X3
VBD20-B010-A030MSRP = 984.76
VBD30-B010-A030MSRP = 1023.82
10470
1-1/2X4
VBD20-B015-A040MSRP = 1678.33
VBD30-B015-A040MSRP = 1775.56
10470
2X4
VBD20-B020-A040MSRP = 1796.24
VBD30-B020-A040MSRP = 1932.51
10470

Valve Box, with PVC True Union Diaphragm Valve
PVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-B005-G020MSRP = 3146.59
VBD30-B005-G020MSRP = 3177.98
10470
3/4X3
VBD20-B007-G030MSRP = 3188.76
VBD30-B007-G030MSRP = 3224.43
10470
1X3
VBD20-B010-G030MSRP = 3264.27
VBD30-B010-G030MSRP = 3303.36
10470
1-1/2X4
VBD20-B015-G040MSRP = 5731.01
VBD30-B015-G040MSRP = 5828.22
10470
2X4
VBD20-B020-G040MSRP = 5849.27
VBD30-B020-G040MSRP = 5985.54
10470
Valve Box, with PVC True Union Diaphragm Valve
PVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-B005-B020MSRP = 1543.78
VBD30-B005-B020MSRP = 1575.19
10470
3/4X3
VBD20-B007-B030MSRP = 1591.19
VBD30-B007-B030MSRP = 1626.84
10470
1X3
VBD20-B010-B030MSRP = 1666.64
VBD30-B010-B030MSRP = 1705.67
10470
1-1/2X4
VBD20-B015-B040MSRP = 2453.97
VBD30-B015-B040MSRP = 2551.23
10470
2X4
VBD20-B020-B040MSRP = 2572.28
VBD30-B020-B040MSRP = 2708.53
10470
Valve Box, with CPVC True Union Diaphragm Valve
CPVC Sch 80 x PVC Sch 40
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2
VBD20-C005-A020MSRP = 1081.66
VBD30-C005-A020MSRP = 1149.17
10470
3/4X3VBD20-C007-A030MSRP = 1079.99VBD30-C007-A030MSRP = 1318.4010473
1X3VBD20-C010-A030MSRP = 1218.97VBD30-C010-A030MSRP = 1396.2910473
1-1/2X4VBD20-C015-A040MSRP = 1937.57VBD30-C015-A040MSRP = 2151.0610473
2X4VBD20-C020-A040MSRP = 2013.64VBD30-C020-A040MSRP = 2264.7710473
Valve Box, with CPVC True Union Diaphragm Valve
CPVC Sch 80 x PVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBD20-C005-B020MSRP = 1573.78VBD30-C005-B020MSRP = 1706.2415473
3/4X3VBD20-C007-B030MSRP = 1721.13VBD30-C007-B030MSRP = 1959.5416473
1X3VBD20-C010-B030MSRP = 1814.60VBD30-C010-B030MSRP = 1991.9816473
1-1/2X4VBD20-C015-B040MSRP = 2704.41VBD30-C015-B040MSRP = 2863.1614473
2X4VBD20-C020-B040MSRP = 2780.51VBD30-C020-B040MSRP = 3031.5810473
Valve Box, with CPVC True Union Diaphragm Valve
CPVC Sch 80 x CPVC Sch 80
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBD20-C005-C020MSRP = 2252.00VBD30-C005-C020MSRP = 2384.4510473
3/4X3VBD20-C007-C030MSRP = 2397.64VBD30-C007-C030MSRP = 2636.1110473
1X3VBD20-C010-C030MSRP = 2491.09VBD30-C010-C030MSRP = 2668.4310473
1-1/2X4VBD20-C015-C040MSRP = 4411.67VBD30-C015-C040MSRP = 4570.3810473
2X4VBD20-C020-C040MSRP = 4487.69VBD30-C020-C040MSRP = 4738.8010473
Valve Box, with CPVC True Union Diaphragm Valve
CPVC Sch 80 x PVC Sch 40 Clear
SizeEPDMFKMStd
Pk		Mstr
Pk		Prod
Code
1/2X2VBD20-C005-G020MSRP = 3104.43VBD30-C005-G020MSRP = 3236.8810473
3/4X3VBD20-C007-G030MSRP = 3167.97VBD30-C007-G030MSRP = 3406.4410473
1X3VBD20-C010-G030MSRP = 3261.55VBD30-C010-G030MSRP = 3438.8710473
1-1/2X4VBD20-C015-G040MSRP = 5746.49VBD30-C015-G040MSRP = 5904.5410473
2X4VBD20-C020-G040MSRP = 5822.55VBD30-C020-G040MSRP = 6073.6510473
Page 17
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Double Containment Product
Clamp-On Saddles for Leak Detection Sensors
Print this Book
Print this Book

Clamp-On Saddles for Leak Detection Sensors


Leak Detection Sensor Saddles are special devices which can be installed on the Containment system where a "low-point" is desired for leak detection apparatus. Spears® Clamp-on style saddles feature an internal O-ring seal to allow easy installation anywhere on the containment piping. Saddles may also be used in Containment high points for air relief or for connection of Containment drainage valves (see note below). See Double Containment Design & Installation Guide for proper installation.

Note: Saddles specified in this catalog are for listed containment pipe sizes through 8", with 1/2" or 3/4" NPT connections. For a wide variety of additional pipe and outlet sizes, including solvent weld outlets, please refer to Spears® PVC/CPVC Clamp-On & Hot-Tap Saddles.

Clamp-on Saddle Specifications, Containment sizes 2" - 8":


Material:PVC/CPVC
Seals:EPDM/FKM
Hardware:Stainless Steel (no fluid contact)
Outlet:Special Reinforced (SR) Female
Plastic thread
1/2" or 3/4" NPT (see note below)
PR, Water:235 psi @ 73°F (23°C), 2" - 4"
200 psi @ 73°F (23°C)
150 psi @ 73°F (23°C), 8"

Maximum Service Temperature
PVC = 140°F (60°C)
CPVC = 200°F (93°C)
Temperature/Pressure
De-ratings Apply



PVC White Clamp-On Saddle x SR Thread
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with EPDM O-ring Seal & SS Hardware
2"-4" 235, 6" 200, 8"-12" 150 psi @ 73°F (23°C)
467SE-247SRMSRP = 117.752X1/23/4110046
467SE-248SRMSRP = 117.752X3/47/8110046
467SE-333SR1MSRP = 158.003X1/27/8110046
467SE-334SRMSRP = 158.003X3/47/8110046
467SE-415SR1MSRP = 198.224X1/21-1/8110046
467SE-416SR1MSRP = 198.224X3/41-1/8110046
467SE-523SR1MSRP = 333.126X1/21-1/814046
467SE-524SR1MSRP = 333.126X3/41-1/814046
467SE-573SR1MSRP = 477.898X1/2410046
467SE-574SR1MSRP = 477.898X3/4410046
1 Outlet Sized with Adapter
PVC White Saddles with FKM O-ring seals available by special order
PVC Gray Clamp-On Saddle x SR Thread
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with EPDM O-ring Seal & SS Hardware
2"-4" 235, 6" 200, 8"-12" 150 psi @ 73°F (23°C)
867S-247SRMSRP = 127.072X1/23/4110086
867S-248SRMSRP = 127.072X3/47/8110086

PVC Gray Clamp-On Saddle x SR Thread (continued)
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with EPDM O-ring Seal & SS Hardware
867S-333SR1MSRP = 170.843X1/27/8110086
867S-334SRMSRP = 170.843X3/47/8110086
867S-415SR1MSRP = 215.084X1/21-1/8110086
867S-416SR1MSRP = 215.084X3/41-1/8110086
867S-523SR1MSRP = 310.966X1/21-1/814086
867S-524SR1MSRP = 310.966X3/41-1/814086
867S-573SR1MSRP = 576.628X1/2410086
867S-574SR1MSRP = 576.628X3/4410086
1 Outlet sized with Adapter
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with FKM O-ring Seal & SS Hardware
2"-4" 235, 6" 200, 8"-12" 150 psi @ 73°F (23°C)
867SV-247SRMSRP = 142.192X1/23/4110086
867SV-248SRMSRP = 142.192X3/47/8110086
867SV-333SR1MSRP = 190.093X1/27/8110086
867SV-334SRMSRP = 190.093X3/47/8110086
867SV-415SR1MSRP = 240.024X1/21-1/8110086
867SV-416SR1MSRP = 240.024X3/41-1/8110086
867SV-523SR1MSRP = 352.576X1/21-1/814086
867SV-524SR1MSRP = 352.576X3/41-1/814086
867SV-573SR1MSRP = 630.018X1/2410086
867SV-574SR1MSRP = 630.018X3/4410086
1 Outlet sized with Adapter
CPVC Gray Clamp-On Saddle x SR Thread
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with EPDM O-ring Seal & SS Hardware
2"-4" 235, 6" 200, 8"-12" 150 psi @ 73°F (23°C)
867S-247CSRMSRP = 200.032X1/23/4110096
867S-248CSRMSRP = 200.032X3/47/8110096
867S-333CSR1MSRP = 267.803X1/27/8110096
867S-334CSRMSRP = 267.803X3/47/8110096
867S-415CSR1MSRP = 337.044X1/21-1/8110096
867S-416CSR1MSRP = 337.044X3/41-1/8110096
867S-523CSR1MSRP = 561.686X1/21-1/814096
867S-524CSR1MSRP = 561.686X3/41-1/814096
867S-573CSRMSRP = 997.878X1/2410096
867S-574CSR1MSRP = 997.878X3/4410096
1 Outlet sized with Adapter
Part NumberSizeHole Saw DiaStd PkMstr
Ctn		Prod
Code
with FKM O-ring Seal & SS Hardware
2"-4" 235, 6" 200, 8"-12" 150 psi @ 73°F (23°C)
867SV-247CSRMSRP = 222.732X1/23/4110096
867SV-248CSRMSRP = 222.732X3/47/8110096
867SV-333CSR1MSRP = 299.203X1/27/8110096
867SV-334CSRMSRP = 299.203X3/47/8110096
867SV-415CSR1MSRP = 378.014X1/21-1/8110096
867SV-416CSR1MSRP = 378.014X3/41-1/8110096
867SV-523CSR1MSRP = 630.086X1/21-1/814096
867SV-524CSR1MSRP = 630.086X3/41-1/814096
867SV-573CSR1MSRP = 1085.378X1/2410096
867SV-574CSR1MSRP = 1085.378X3/4410096
1 Outlet sized with Adapter
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 18
Spears Super Sourcebook prints best when the margins are set to our specifications and the headers and footers are turned off.
The Spears Product Price Schedules will print on standard 8.5 x 11 paper with the following changes to your browsers page setup.

For Microsoft Internet Explorer Version 8 & 9:
  1. Select File/Page Setup
  2. Set Orientation to Portrait.
  3. Check “Print Background Colors and Images.”
  4. Set the Margins as follows:
  5. Select “-Empty-” in all the Header and Footer dropdown boxes.
  6. Click OK.
