Actuated Valves Product
Electric & Pneumatic Actuated Valves
Print this Book
Print this Book

Electric & Pneumatic Actuated Valves

PRODUCT
Contact Spears® for any Information not found.
Page 1
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Electric & Pneumatic Actuated Valves Overview
Print this Book
Print this Book

Spears® Makes Valve Actuation Simple. . .

Sold in Pre-Matched Valve & Actuator Packages
Spears® makes actuation easy by matching each valve type and size with the appropriate actuator for proper operating torque and cycle time to assure optimum performance.

Accessory Add-ons Provide Custom Actuation Configurations
Spears® Premium Actuation Packages can be fully customized to user specifications by addition of selected control accessories purchased separately. Select from our wide variety of accessories and options or contact Spears® for virtually any special actuation need, even if not specified.

Complete Packages Factory Assembled - Ready for Installation
All actuation packages include valve, actuator mounting, coupling, and precision actuator factory assembled with any purchased accessories, ready for installation.

Easy Steps to Locate Desired Product
This catalog provides both Spears® economical Electro Series Actuated Ball Valves and Spears® full featured Premium Electric and Premium Pneumatic actuated valve packages with optional accessories. Actuated valve packages are listed in separate sections by valve type (ball, butterfly, diaphragm) and actuation type (electric, pneumatic). Optional accessories are listed and priced separately for assembly with the desired package.  A complete listing of content is located at the end of this catalog.  See Spears® Actuated Thermoplastic Valves Product Guide & Engineering Specification, for additional technical information on valve packages and accessories.


Step 1: Select and Locate Desired Actuated Valve Type
Section I: Ball Valves
Section II: Butterfly Valves
Section III: Diaphragm Valves

Step 2:
Select and Locate Desired Actuation Type within Valve Section
Electric Actuated
Pneumatic Actuated

Step 3:
Select and Locate Desired Material Type Table
PVC
CPVC
Polypropylene
Step 4: Select and Locate Specific Part Number According to Listed Options
Individual tables for actuated valve packages are organized by valve Size, Elastomer type (O-ring, seat, etc.), and valve configuration options such as End Connector (Joint) or other specified criteria. Product Code is located in the far right column.

Step 5:
Select and Locate Desired Accessories (see important ordering information below)
Electric Actuator Accessories
Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves
Pneumatic Actuator Accessories for Diaphragm Valves


Ordering Premium Valve Packages with Accessory Add-ons
- IMPORTANT -

Accessories are individually ordered separately and factory assembled with the selected Premium Actuated Valve Package. When Accessories are ordered for assembly with an actuated valve package, the suffix "-A" must be added to the actuated valve package part number being ordered. Do not add this suffix if no accessories are being ordered or if ordering Electro Series Ball Valves. Example: Package part number 21101A112-005 would be ordered as 21101A112-005-A REQUIRED ORDER SEQUENCE: Order line items should begin with the actuated valve package part number (with -A suffix) and be immediately followed by the selected accessory part number(s) as the next line item(s). This sequential listing of valve package and applicable accessories on the order assures that selected accessories are properly assembled with the selected package. Failure to follow this simple practice may result in unnecessary delays.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 2
Actuated Valves Product
Electric & Pneumatic Actuated Valves Overview
Print this Book
Print this Book


Actuated Valve Packages Overview

Typical Package Illustration Valve Type Basic Valve Options Actuation Package Available
Basic Valve Material Size Range (inch) Seal Material Options End Connector Options Premium Electric Actuation Premium Pneumatic Actuation Electro Series Actuation

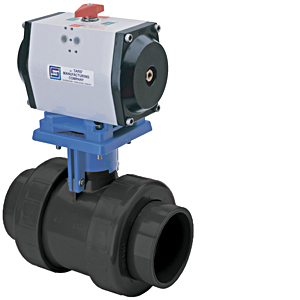

True Union 2000
Ball Valves		 PVC 1/2 - 6 EPDM
FKM		 Socket
SR Thread
Flanged		 X X X
1/2" - 2"
CPVC 1/2 - 6 EPDM
FKM		 Socket
SR Thread
Flanged		 X X X
1/2" - 2"

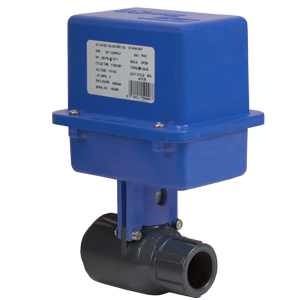

Compact 2000
Ball Valves		 PVC 1/2 - 6 EPDM
FKM		 Socket
Thread
Flanged		 X X X
1/2" - 2"
CPVC 1/2 - 6 EPDM
FKM		 Socket
Thread
Flanged		 X X X
1/2" - 2"

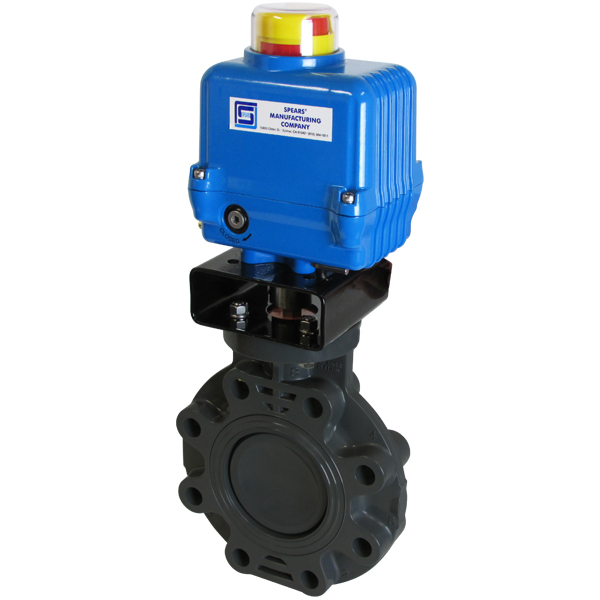

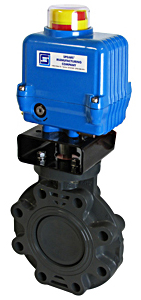

 Butterfly Valves PVC 1-1/2 - 12 Buna-N
EPDM
FKM		 Flanged X X
CPVC 1-1/2 - 12 Buna-N
EPDM
FKM		 Flanged X X
PP 1-1/2 - 24 1 EPDM
FKM		 Flanged X X

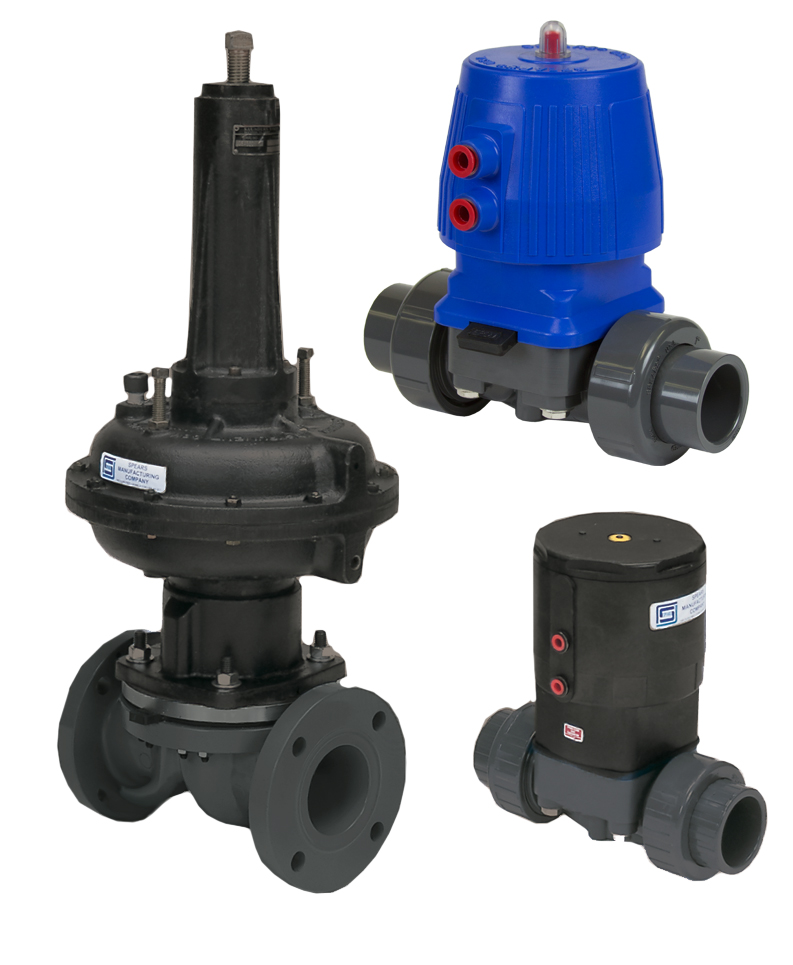

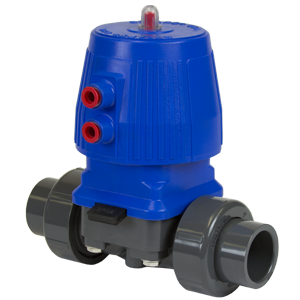

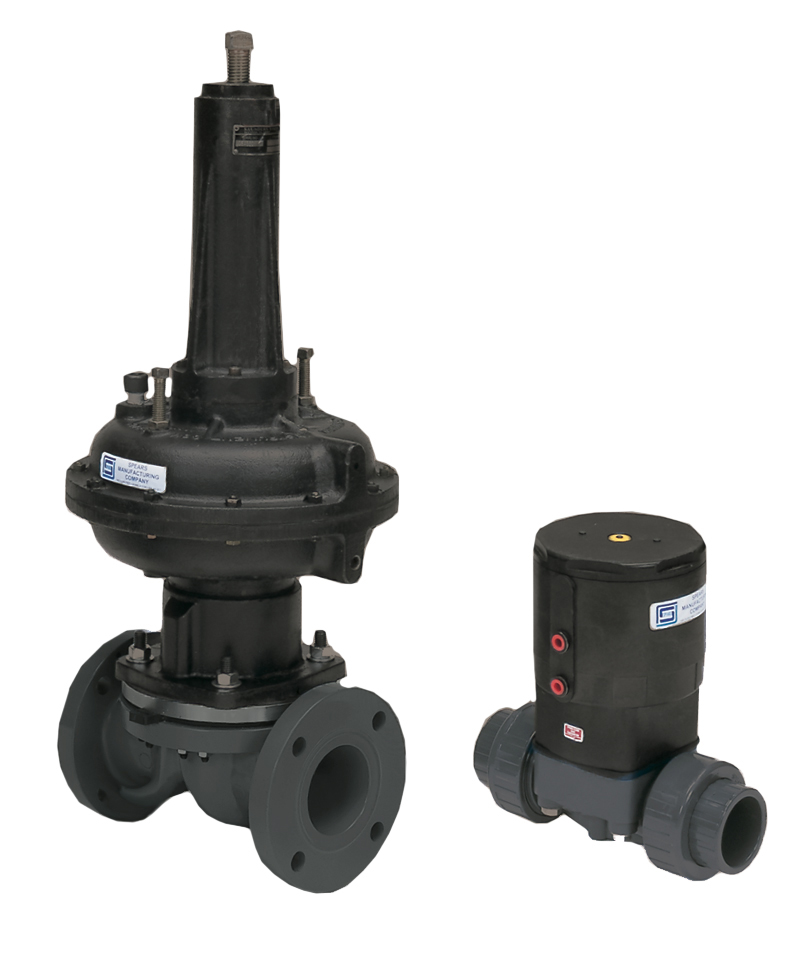

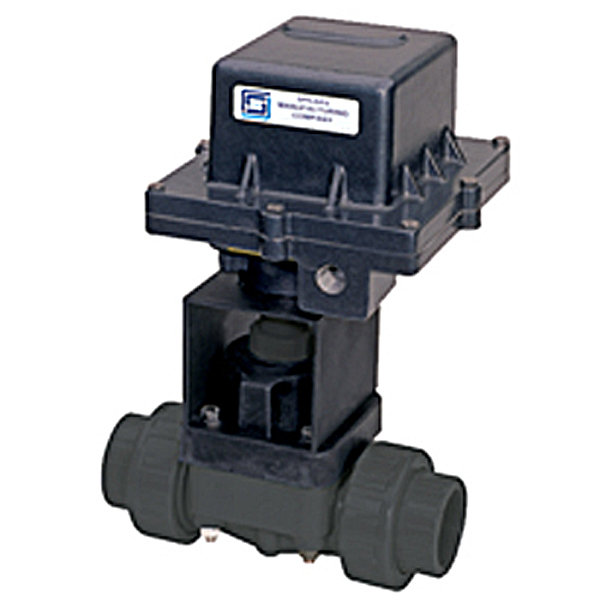

Diaphragm Valves PVC 1/2 - 4 2 Buna-N
EPDM
FKM
PTFE 		Socket 3
Thread 3
Spigot 4
Flanged 		X X
CPVC 1/2 - 4 2 Buna-N
EPDM
FKM
PTFE		 Socket
Thread
Spigot
Flanged 		X X
PP 1/2 - 4 2 EPDM
FKM		 Thread
Flanged		 X X
Notes: 1.  Butterfly Valves also available in sizes 30" - 60", quoted and produced to order. Contact Spears®.         2.  2-1/2" to 4" Diaphragm Valves available in Flanged ends only.
3 - 1/2" - 2" Socket and Thread Diaphragm Valves are True Union style.                                                       4.  Spigot Diaphragm Valves available in sizes 1/2" - 2" only.
Page 3
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Electric & Pneumatic Actuated Valves Overview
Print this Book
Print this Book


The following table illustrates actuator features for Premium Electric actuators used in Actuated Valve Packages. Features specified as "Standard" are available on packages in this sheet. Features specified as "Accessory" are included as package add-ons in this sheet. Features specified as "Optional" must be special ordered (contact Spears® for MSRP).

Electric Actuator Features Overview

Standard 2-Position
Electric Actuator Features		 Electro Series
Ball Valves		 Premium Electric
TU Ball Valves		 Premium Electric
Butterfly Valves		 Premium Electric
Diaphragm Valves
Motor Rotation Unidirectional Reversing Reversing Reversing
NEMA Rating 4X 4 4 4
Enclosure Material PP Powder Coated Aluminum Powder Coated Aluminum Powder Coated Aluminum
Enclosure Conduit Entry 1/2 NPT 1/2 NPT (1/2" – 3")
3/4 NPT (4" – 6")		 1/2 NPT (1-1/2" – 4")
or 3/4 (4" – 12")		 1/2 NPT
Voltage 115 VAC 115 VAC 115 VAC 115 VAC
Pre Wired to terminal strip Wired Direct Standard Standard Standard
Thermal Overload Protection Wired Direct Standard Standard Standard
Basic Manual Override — Standard (1/2" – 3") Standard (1-1/2" – 4") Optional
Declutchable Manual Override — Standard (4" – 6") Standard (6" – 12") Standard (2" – 4")
Limit Switches (SPDT) 1 4 (2 sets of 2 ea) 4 (2 sets of 2 ea) 2 (1 set of 2 ea)
Mounting Position Any Any Any Any
Permanent Lubrication Standard Standard Standard Standard
 Options & Accessories
Feedback Potentiometer — Accessory Accessory Accessory
24 VAC Optional Optional Optional Optional
230 VAC Optional Optional Optional Optional
230 VAC 3-phase, 60 Hz — Optional Optional Optional
230 VAC 3-phase, 50 Hz — Optional Optional Optional
460 VAC 3-phase, 60 Hz — Optional Optional —
460 VAC 3-phase, 50 Hz — Optional Optional —
12 VDC Optional Optional Optional Optional
24 VDC Optional Optional Optional Optional
NEMA 4X, 7, 9 Rating (4X Standard) Optional Optional Optional
Basic Manual Override — Standard (1/2" – 3") Standard (1-1/2" – 4") Optional
Declutchable Manual Override — Optional (Standard 4" – 6") Optional (Standard 6" – 12") Optional
Duty Cycle Upgrade Optional — — Optional
Spring Return (Fail Safe) — Optional Optional —
Positioner Board (Modulating) — Accessory Accessory Accessory
Additional Limit Switch Sets — Accessory Accessory Accessory
LED Indicator Lights — Accessory Accessory Accessory
Position Indicator (visual) Standard Standard Standard —
Heater — Standard Standard Accessory
Thermostat — Accessory Accessory Accessory

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 4
Actuated Valves Product
Electric & Pneumatic Actuated Valves Overview
Print this Book
Print this Book


The following table illustrates actuator features for Premium Pneumatic actuators used in Actuated Valve Packages. Features specified as "Standard" are available on packages in this sheet. Features specified as "Accessory" are included as package add-ons in this sheet. Features specified as "Options" must be special ordered (contact Spears® for MSRP).


Please contact Spears® for any desired features or accessories not specified.

Pneumatic Actuator Features Overview

Standard Pneumatic
Actuator Features 		Premium Pneumatic
TU Ball Valves 		Premium Pneumatic
Butterfly Valves 		Premium Pneumatic
Diaphragm Valves
Type Dual Piston, Rack & Pinion Dual Piston, Rack & Pinion Linear Piston
Enclosure Material (ends/body) Epoxy Coated/Hard Anodized Aluminum Epoxy Coated/Hard Anodized Aluminum PES-Polyestersulphone
PP-Polypropylene
Standard Operation Air-to-Air or Air-Spring Closed Air-to-Air or Air-Spring Closed Air-to-Air or Air-Spring Closed/Open
Standard Operating Pressure 80 psi 80 psi 80 psi
Air Connection Size 1/8" 1/8" 1/8"
Basic Manual Override Standard Standard (Option)
Options & Accessories
Air-Spring Open Option Option Option
40 psi Operating Pressure Option Option —
60 psi Operating Pressure Option Option Option
Basic Manual Override (Standard) (Standard) Option
Declutchable Manual Override Option Option —
Pneumatic Positioner Accessory Accessory Accessory
Electro-Pneumatic Positioner Accessory Accessory Accessory
Dome Position Indicator Accessory Accessory Accessory
Pointer Indicator Accessory Accessory —
3 & 4-Way Solenoid Valve Accessory Accessory Accessory
Dual Power Solenoid Valve Accessory Accessory —
Limit Switches Accessory Accessory Accessory
Output Signal Limit Switches Accessory Accessory —
3-Way "Dribble" Control
Limit Switches 		Accessory Accessory —
Stainless Steel Pressure Gauge Set Accessory Accessory Accessory
Stem Extension Accessory Accessory Accessory
ID Tag-SS Accessory Accessory Accessory
Page 5
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Electric & Pneumatic Actuated Valves Overview
Print this Book
Print this Book

Additional Actuated Valve Configurations,
Options & Accessories Not Specified

Spears® can provide virtually any actuation need for Spears® valves. The following actuated valve configurations, options and accessories not currently specified in this sheet are a few of those available on a special order basis. See the Accessories sections for standard configuration and accessory options. Please contact Spears® for additional technical information or other custom actuation needs. Certain special order options and custom Actuation Packages may require extended lead times. Please contact Spears® for details.


Special Actuated Ball Valves
  • Compact Ball Valves
  • Single Entry Ball Valves
  • True Union 2000 3-Way Vertical & Horizontal Ball Valves
  • Vented Ball Valves
Special Actuated Butterfly Valves

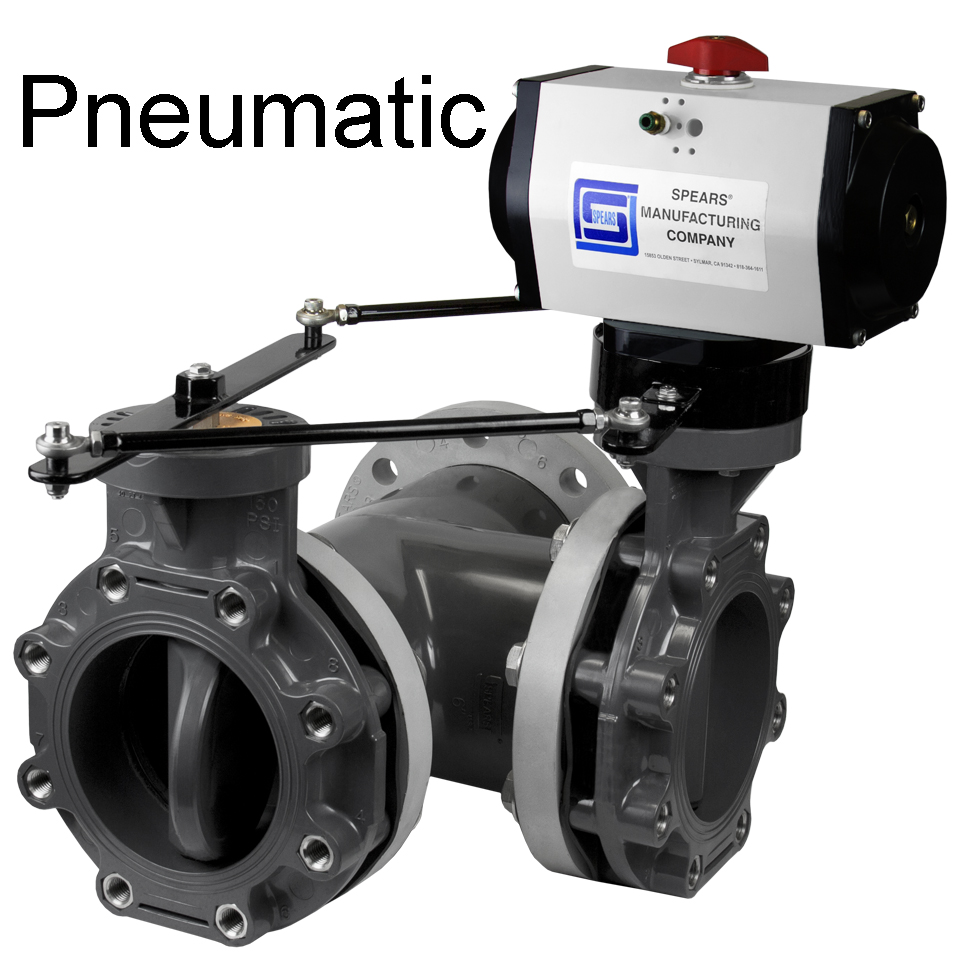

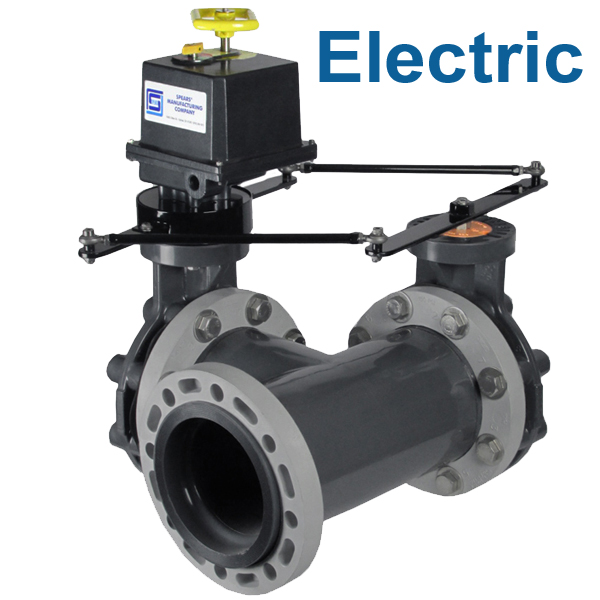

  • Tandem 3-Way - two valves operated from one actuator, both closing or both opening at the same time
  • Tandem Diverting - two valves operated from one actuator, one opening while the other closes
  • "No Seat" actuated Butterfly Valves for duct (damper) applications
  • Polypropylene 30" to 60" Actuated Valves (custom produced)
Actuated Gate Valves
  • PVC & CPVC Construction
  • Sizes 1/2" – 4"
  • Socket, Thread, Flange End Connections
Special Actuator Options
  • Actuators Only
  • Actuator Brackets Only
  • Actuator Stem Extensions
  • Double Powder Coated Electric Enclosures
  • Stainless Steel Pneumatic Enclosures
  • Electric Spring Return Open or Close with No Override
  • Battery Back-up Electric Actuators
Special Switch Sets & Solenoids
  • Single Limit Switch & Bracket Only (no actuator) for manual valves
  • Double Limit Switch & Bracket Only (no actuator) for manual valves
  • Dual Coil 5-Way Solenoid Valves
Replacement Parts Many replacement parts are available for Spears® electric and pneumatic actuators and valves. Contact Spears® for specific parts needed.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 6
Actuated Valves Product

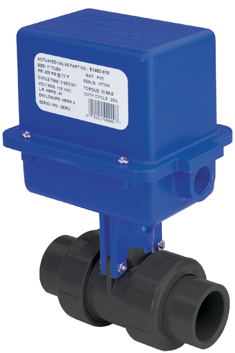

Electro Actuated Compact 2000 Ball Valve & Electro Actuated True Union 2000 Standard Ball Valve
Print this Book
Print this Book

General purpose industrial grade sealed unit design, 1/4-turn shutoff. Basic On-Off operation.
  • Maintenance-free
  • PTFE Seats
  • 235 psi @ 73°F (23°C) (flanged 150 psi)
  • 115 VAC standard, optional voltages available
  • High Impact PP NEMA 4x Enclosure, SS316 Fasteners
  • 2-Position with Stem-mounted Visual Open/Close Indicator
See Electric Actuator Accessories for "2-wire" Control Add-on Actuator Accessory

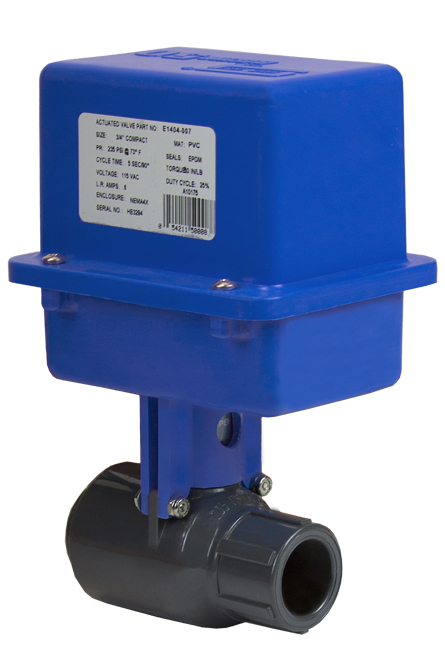

PVC Electro Actuated Compact 2000 Ball Valve
O-ringEPDMFKMProd
Code
JointSocketThreadFlangedSocketThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1404-005*Contact Spears
for MSRP		E1406-005*Contact Spears
for MSRP		E1408-005*Contact Spears
for MSRP		E1405-005*Contact Spears
for MSRP		E1407-005*Contact Spears
for MSRP		E1409-005*Contact Spears
for MSRP		496
3/4E1404-007*Contact Spears
for MSRP		E1406-007*Contact Spears
for MSRP		E1408-007*Contact Spears
for MSRP		E1405-007*Contact Spears
for MSRP		E1407-007*Contact Spears
for MSRP		E1409-007*Contact Spears
for MSRP		496
1E1404-010*Contact Spears
for MSRP		E1406-010*Contact Spears
for MSRP		E1408-010*Contact Spears
for MSRP		E1405-010*Contact Spears
for MSRP		E1407-010*Contact Spears
for MSRP		E1409-010*Contact Spears
for MSRP		496
1-1/4E1504-012*Contact Spears
for MSRP		E1506-012*Contact Spears
for MSRP		E1508-012*Contact Spears
for MSRP		E1505-012*Contact Spears
for MSRP		E1507-012*Contact Spears
for MSRP		E1509-012*Contact Spears
for MSRP		496
1-1/2E1504-015*Contact Spears
for MSRP		E1506-015*Contact Spears
for MSRP		E1508-015*Contact Spears
for MSRP		E1505-015*Contact Spears
for MSRP		E1507-015*Contact Spears
for MSRP		E1509-015*Contact Spears
for MSRP		496
2E1504-020*Contact Spears
for MSRP		E1506-020*Contact Spears
for MSRP		E1508-020*Contact Spears
for MSRP		E1505-020*Contact Spears
for MSRP		E1507-020*Contact Spears
for MSRP		E1509-020*Contact Spears
for MSRP		496
CPVC
O-ringEPDMFKMProd
Code
JointSocketThreadFlangedSocketThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1404-005C*Contact Spears
for MSRP		E1406-005C*Contact Spears
for MSRP		E1408-005C*Contact Spears
for MSRP		E1405-005C*Contact Spears
for MSRP		E1407-005C*Contact Spears
for MSRP		E1409-005C*Contact Spears
for MSRP		498
3/4E1404-007C*Contact Spears
for MSRP		E1406-007C*Contact Spears
for MSRP		E1408-007C*Contact Spears
for MSRP		E1405-007C*Contact Spears
for MSRP		E1407-007C*Contact Spears
for MSRP		E1409-007C*Contact Spears
for MSRP		498
1E1404-010C*Contact Spears
for MSRP		E1406-010C*Contact Spears
for MSRP		E1408-010C*Contact Spears
for MSRP		E1405-010C*Contact Spears
for MSRP		E1407-010C*Contact Spears
for MSRP		E1409-010C*Contact Spears
for MSRP		498
1-1/4E1504-012C*Contact Spears
for MSRP		E1506-012C*Contact Spears
for MSRP		E1508-012C*Contact Spears
for MSRP		E1505-012C*Contact Spears
for MSRP		E1507-012C*Contact Spears
for MSRP		E1509-012C*Contact Spears
for MSRP		498
1-1/2E1504-015C*Contact Spears
for MSRP		E1506-015C*Contact Spears
for MSRP		E1508-015C*Contact Spears
for MSRP		E1505-015C*Contact Spears
for MSRP		E1507-015C*Contact Spears
for MSRP		E1509-015C*Contact Spears
for MSRP		498
2E1504-020C*Contact Spears
for MSRP		E1506-020C*Contact Spears
for MSRP		E1508-020C*Contact Spears
for MSRP		E1505-020C*Contact Spears
for MSRP		E1507-020C*Contact Spears
for MSRP		E1509-020C*Contact Spears
for MSRP		498
General Purpose True Union design, 1/4-turn shutoff. Basic On-Off operation.
  • Blocked Seal Carrier
  • PTFE/HDPE Seats
  • 235 psi @ 73°F (23°C) (flanged 150 psi)
  • 115 VAC standard, optional voltages available
  • High Impact PP NEMA 4x Enclosure, SS316 Fasteners
  • 2-Position with Stem-mounted Visual Open/Close Indicator
See Electric Actuator Accessories for "2-wire" Control Add-on Actuator Accessory
PVC Electro Actuated True Union 2000 Standard Ball Valve
O-ringEPDMFKMProd
Code
JointSocket & ThreadSR ThreadFlangedSocket & ThreadSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1453-005*Contact Spears
for MSRP		E1451-005SR*Contact Spears
for MSRP		E1457-005*Contact Spears
for MSRP		E1454-005*Contact Spears
for MSRP		E1452-005SR*Contact Spears
for MSRP		E1458-005*Contact Spears
for MSRP		500
3/4E1453-007*Contact Spears
for MSRP		E1451-007SR*Contact Spears
for MSRP		E1457-007*Contact Spears
for MSRP		E1454-007*Contact Spears
for MSRP		E1452-007SR*Contact Spears
for MSRP		E1458-007*Contact Spears
for MSRP		500
1E1453-010*Contact Spears
for MSRP		E1451-010SR*Contact Spears
for MSRP		E1457-010*Contact Spears
for MSRP		E1454-010*Contact Spears
for MSRP		E1452-010SR*Contact Spears
for MSRP		E1458-010*Contact Spears
for MSRP		500
1-1/4E1553-012*Contact Spears
for MSRP		E1551-012SR*Contact Spears
for MSRP		E1557-012*Contact Spears
for MSRP		E1554-012*Contact Spears
for MSRP		E1552-012SR*Contact Spears
for MSRP		E1558-012*Contact Spears
for MSRP		500
1-1/2E1553-015*Contact Spears
for MSRP		E1551-015SR*Contact Spears
for MSRP		E1557-015*Contact Spears
for MSRP		E1554-015*Contact Spears
for MSRP		E1552-015SR*Contact Spears
for MSRP		E1558-015*Contact Spears
for MSRP		500
2E1553-020*Contact Spears
for MSRP		E1551-020SR*Contact Spears
for MSRP		E1557-020*Contact Spears
for MSRP		E1554-020*Contact Spears
for MSRP		E1552-020SR*Contact Spears
for MSRP		E1558-020*Contact Spears
for MSRP		500
CPVC
O-ringEPDMFKMProd
Code
JointSocket & ThreadSR ThreadFlangedSocket & ThreadSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1453-005C*Contact Spears
for MSRP		E1451-005CSR*Contact Spears
for MSRP		E1457-005C*Contact Spears
for MSRP		E1454-005C*Contact Spears
for MSRP		E1452-005CSR*Contact Spears
for MSRP		E1458-005C*Contact Spears
for MSRP		502
3/4E1453-007C*Contact Spears
for MSRP		E1451-007CSR*Contact Spears
for MSRP		E1457-007C*Contact Spears
for MSRP		E1454-007C*Contact Spears
for MSRP		E1452-007CSR*Contact Spears
for MSRP		E1458-007C*Contact Spears
for MSRP		502
1E1455-010C*Contact Spears
for MSRP		E1451-010CSR*Contact Spears
for MSRP		E1457-010C*Contact Spears
for MSRP		E1454-010C*Contact Spears
for MSRP		E1452-010CSR*Contact Spears
for MSRP		E1458-010C*Contact Spears
for MSRP		502
1-1/4E1555-012C*Contact Spears
for MSRP		E1551-012CSR*Contact Spears
for MSRP		E1557-012C*Contact Spears
for MSRP		E1554-012C*Contact Spears
for MSRP		E1552-012CSR*Contact Spears
for MSRP		E1558-012C*Contact Spears
for MSRP		502
1-1/2E1555-015C*Contact Spears
for MSRP		E1551-015CSR*Contact Spears
for MSRP		E1557-015C*Contact Spears
for MSRP		E1554-015C*Contact Spears
for MSRP		E1552-015CSR*Contact Spears
for MSRP		E1558-015C*Contact Spears
for MSRP		502
2E1555-020C*Contact Spears
for MSRP		E1551-020CSR*Contact Spears
for MSRP		E1557-020C*Contact Spears
for MSRP		E1554-020C*Contact Spears
for MSRP		E1552-020CSR*Contact Spears
for MSRP		E1558-020C*Contact Spears
for MSRP		502
Page 7
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product

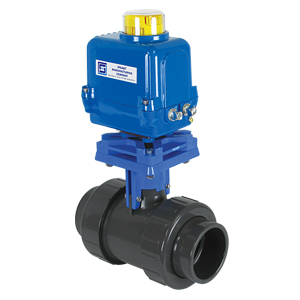

Electro Actuated True Union 2000 Industrial Ball Valve & Premium Actuated True Union 2000 Industrial Ball Valve - Electric
Print this Book
Print this Book

Industrial grade True Union design, 1/4-turn shutoff. Basic On-Off operation.
  • Blocked Seal Carrier
  • Double O-ring Stem Seal
  • PTFE Seats
  • 235 psi @ 73°F (23°C) (flanged 150 psi)
  • 115 VAC standard, optional voltages available
  • High Impact PP NEMA 4x Enclosure, SS316 Fasteners
  • 2-Position with Stem-mounted Visual Open/Close Indicator
See Electric Actuator Accessories for "2-wire" Control Add-on Actuator Accessory

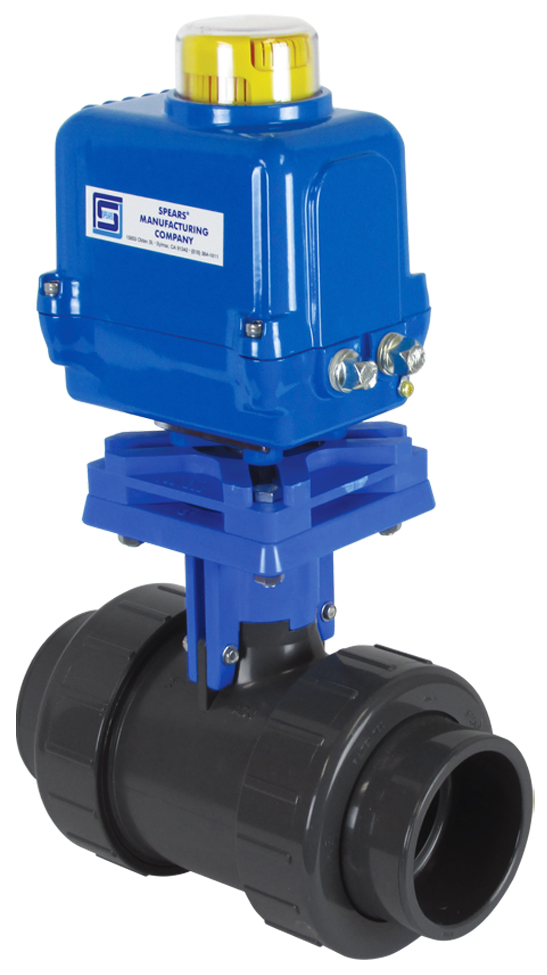

PVC Electro Actuated True Union 2000 Industrial Ball Valve
O-ringEPDMFKMProd
Code
JointSocket & ThreadSR ThreadFlangedSocket & ThreadSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1459-005*Contact Spears
for MSRP		E1463-005SR*Contact Spears
for MSRP		E1465-005*Contact Spears
for MSRP		E1460-005*Contact Spears
for MSRP		E1464-005SR*Contact Spears
for MSRP		E1466-005*Contact Spears
for MSRP		500
3/4E1459-007*Contact Spears
for MSRP		E1463-007SR*Contact Spears
for MSRP		E1465-007*Contact Spears
for MSRP		E1460-007*Contact Spears
for MSRP		E1464-007SR*Contact Spears
for MSRP		E1466-007*Contact Spears
for MSRP		500
1E1459-010*Contact Spears
for MSRP		E1463-010SR*Contact Spears
for MSRP		E1465-010*Contact Spears
for MSRP		E1460-010*Contact Spears
for MSRP		E1464-010SR*Contact Spears
for MSRP		E1466-010*Contact Spears
for MSRP		500
1-1/4E1559-012*Contact Spears
for MSRP		E1563-012SR*Contact Spears
for MSRP		E1565-012*Contact Spears
for MSRP		E1560-012*Contact Spears
for MSRP		E1564-012SR*Contact Spears
for MSRP		E1566-012*Contact Spears
for MSRP		500
1-1/2E1559-015*Contact Spears
for MSRP		E1563-015SR*Contact Spears
for MSRP		E1565-015*Contact Spears
for MSRP		E1560-015*Contact Spears
for MSRP		E1564-015SR*Contact Spears
for MSRP		E1566-015*Contact Spears
for MSRP		500
2E1559-020*Contact Spears
for MSRP		E1563-020SR*Contact Spears
for MSRP		E1565-020*Contact Spears
for MSRP		E1560-020*Contact Spears
for MSRP		E1564-020SR*Contact Spears
for MSRP		E1566-020*Contact Spears
for MSRP		500
CPVC
O-ringEPDMFKMProd
Code
JointSocket & ThreadSR ThreadFlangedSocket & ThreadSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2E1459-005C*Contact Spears
for MSRP		E1463-005CSR*Contact Spears
for MSRP		E1465-005C*Contact Spears
for MSRP		E1460-005C*Contact Spears
for MSRP		E1464-005CSR*Contact Spears
for MSRP		E1466-005C*Contact Spears
for MSRP		502
3/4E1459-007C*Contact Spears
for MSRP		E1463-007CSR*Contact Spears
for MSRP		E1465-007C*Contact Spears
for MSRP		E1460-007C*Contact Spears
for MSRP		E1464-007CSR*Contact Spears
for MSRP		E1466-007C*Contact Spears
for MSRP		502
1E1459-010C*Contact Spears
for MSRP		E1463-010CSR*Contact Spears
for MSRP		E1465-010C*Contact Spears
for MSRP		E1460-010C*Contact Spears
for MSRP		E1464-010CSR*Contact Spears
for MSRP		E1466-010C*Contact Spears
for MSRP		502
1-1/4E1559-012C*Contact Spears
for MSRP		E1563-012CSR*Contact Spears
for MSRP		E1565-012C*Contact Spears
for MSRP		E1560-012C*Contact Spears
for MSRP		E1564-012CSR*Contact Spears
for MSRP		E1566-012C*Contact Spears
for MSRP		502
1-1/2E1559-015C*Contact Spears
for MSRP		E1563-015CSR*Contact Spears
for MSRP		E1565-015C*Contact Spears
for MSRP		E1560-015C*Contact Spears
for MSRP		E1564-015CSR*Contact Spears
for MSRP		E1566-015C*Contact Spears
for MSRP		502
2E1559-020C*Contact Spears
for MSRP		E1563-020CSR*Contact Spears
for MSRP		E1565-020C*Contact Spears
for MSRP		E1560-020C*Contact Spears
for MSRP		E1564-020CSR*Contact Spears
for MSRP		E1566-020C*Contact Spears
for MSRP		502
Industrial grade True Union design, 1/4-turn shutoff for a wide range of applications. Full-featured actuator can be custom configured with add-on accessories. Use part numbers on following page and see Electric Actuator Accessories for Ball Valves.
  • Blocked Seal Carrier
  • Double O-ring Stem Seal
  • PTFE Seats
  • 1/2" - 4" 235 psi @ 73°F (23°C)
  • 6" and all flanged 150 psi @ 73°F (23°C)
  • 115 VAC standard, optional voltages available
  • Illuminated Position Indicator
  • Heater
  • 2-Position Operation with 2-SPDT Limit Switches
  • Additional set dry contacts SPDT limit Switches
  • NEMA 4 Enclosure, Powder Coated
  • Declutchable Manual Override 4" through 6"
  • Basic Manual Override 1/2" through 3"
    (Declutchable Available)

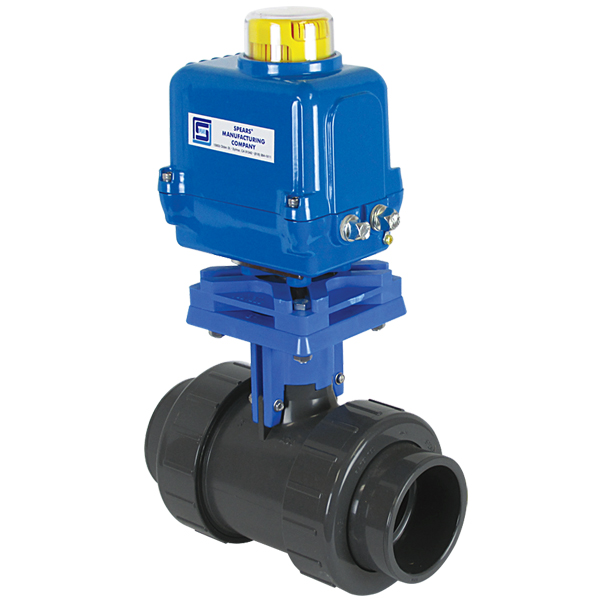

PVC Premium Actuated True Union 2000 Industrial Ball Valve - Electric
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/221101A112-005*Contact Spears
for MSRP		23101A112-005*Contact Spears
for MSRP		24101A112-005*Contact Spears
for MSRP		21201A112-005*Contact Spears
for MSRP		23201A112-005*Contact Spears
for MSRP		24201A112-005*Contact Spears
for MSRP		500
3/421101A112-007*Contact Spears
for MSRP		23101A112-007*Contact Spears
for MSRP		24101A112-007*Contact Spears
for MSRP		21201A112-007*Contact Spears
for MSRP		23201A112-007*Contact Spears
for MSRP		24201A112-007*Contact Spears
for MSRP		500
121101A112-010*Contact Spears
for MSRP		23101A112-010*Contact Spears
for MSRP		24101A112-010*Contact Spears
for MSRP		21201A112-010*Contact Spears
for MSRP		23201A112-010*Contact Spears
for MSRP		24201A112-010*Contact Spears
for MSRP		500
1-1/421101A112-012*Contact Spears
for MSRP		23101A112-012*Contact Spears
for MSRP		24101A112-012*Contact Spears
for MSRP		21201A112-012*Contact Spears
for MSRP		23201A112-012*Contact Spears
for MSRP		24201A112-012*Contact Spears
for MSRP		500
1-1/221101A112-015*Contact Spears
for MSRP		23101A112-015*Contact Spears
for MSRP		24101A112-015*Contact Spears
for MSRP		21201A112-015*Contact Spears
for MSRP		23201A112-015*Contact Spears
for MSRP		24201A112-015*Contact Spears
for MSRP		500
221101A112-020*Contact Spears
for MSRP		23101A112-020*Contact Spears
for MSRP		24101A112-020*Contact Spears
for MSRP		21201A112-020*Contact Spears
for MSRP		23201A112-020*Contact Spears
for MSRP		24201A112-020*Contact Spears
for MSRP		500
2-1/221101A112-025*Contact Spears
for MSRP		23101A112-025*Contact Spears
for MSRP		24101A112-025*Contact Spears
for MSRP		21201A112-025*Contact Spears
for MSRP		23201A112-025*Contact Spears
for MSRP		24201A112-025*Contact Spears
for MSRP		500
321101A112-030*Contact Spears
for MSRP		23101A112-030*Contact Spears
for MSRP		24101A112-030*Contact Spears
for MSRP		21201A112-030*Contact Spears
for MSRP		23201A112-030*Contact Spears
for MSRP		24201A112-030*Contact Spears
for MSRP		500
421101A123-040*Contact Spears
for MSRP		23101A123-040*Contact Spears
for MSRP		24101A123-040*Contact Spears
for MSRP		21201A123-040*Contact Spears
for MSRP		23201A123-040*Contact Spears
for MSRP		24201A123-040*Contact Spears
for MSRP		500
621101A126-060*Contact Spears
for MSRP		23101A126-060*Contact Spears
for MSRP		24101A126-060*Contact Spears
for MSRP		21201A126-060*Contact Spears
for MSRP		23201A126-060*Contact Spears
for MSRP		24201A126-060*Contact Spears
for MSRP		500
CPVC
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/221102A112-005*Contact Spears
for MSRP		23102A112-005*Contact Spears
for MSRP		24102A112-005*Contact Spears
for MSRP		21202A112-005*Contact Spears
for MSRP		23202A112-005*Contact Spears
for MSRP		24202A112-005*Contact Spears
for MSRP		502
3/421102A112-007*Contact Spears
for MSRP		23102A112-007*Contact Spears
for MSRP		24102A112-007*Contact Spears
for MSRP		21202A112-007*Contact Spears
for MSRP		23202A112-007*Contact Spears
for MSRP		24202A112-007*Contact Spears
for MSRP		502
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 8
Actuated Valves Product
Premium Actuated True Union 2000 Industrial Ball Valve - Electric & Electric Actuated True Union 2000 Industrial Ball Valve With Accessories
Print this Book
Print this Book

CPVC (continued)
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
121102A112-010*Contact Spears
for MSRP		23102A112-010*Contact Spears
for MSRP		24102A112-010*Contact Spears
for MSRP		21202A112-010*Contact Spears
for MSRP		23202A112-010*Contact Spears
for MSRP		24202A112-010*Contact Spears
for MSRP		502
1-1/421102A112-012*Contact Spears
for MSRP		23102A112-012*Contact Spears
for MSRP		24102A112-012*Contact Spears
for MSRP		21202A112-012*Contact Spears
for MSRP		23202A112-012*Contact Spears
for MSRP		24202A112-012*Contact Spears
for MSRP		502
1-1/221102A112-015*Contact Spears
for MSRP		23102A112-015*Contact Spears
for MSRP		24102A112-015*Contact Spears
for MSRP		21202A112-015*Contact Spears
for MSRP		23202A112-015*Contact Spears
for MSRP		24202A112-015*Contact Spears
for MSRP		502
221102A112-020*Contact Spears
for MSRP		23102A112-020*Contact Spears
for MSRP		24102A112-020*Contact Spears
for MSRP		21202A112-020*Contact Spears
for MSRP		23202A112-020*Contact Spears
for MSRP		24202A112-020*Contact Spears
for MSRP		502
2-1/221102A112-025*Contact Spears
for MSRP		23102A112-025*Contact Spears
for MSRP		24102A112-025*Contact Spears
for MSRP		21202A112-025*Contact Spears
for MSRP		23202A112-025*Contact Spears
for MSRP		24202A112-025*Contact Spears
for MSRP		502
321102A112-030*Contact Spears
for MSRP		23102A112-030*Contact Spears
for MSRP		24102A112-030*Contact Spears
for MSRP		21202A112-030*Contact Spears
for MSRP		23202A112-030*Contact Spears
for MSRP		24202A112-030*Contact Spears
for MSRP		502
421102A123-040*Contact Spears
for MSRP		23102A123-040*Contact Spears
for MSRP		24102A123-040*Contact Spears
for MSRP		21202A123-040*Contact Spears
for MSRP		23202A123-040*Contact Spears
for MSRP		24202A123-040*Contact Spears
for MSRP		502
621102A126-060*Contact Spears
for MSRP		23102A126-060*Contact Spears
for MSRP		24102A126-060*Contact Spears
for MSRP		21202A126-060*Contact Spears
for MSRP		23202A126-060*Contact Spears
for MSRP		24202A126-060*Contact Spears
for MSRP		502
NOTE: "Socket" valves up to 2" size include standard plastic thread end connectors.
For valves with add-on accessories:
When ordered separately, see Electric Actuator Accessories for Ball valves. Valves and Add-on Electric Actuator Accessories are ordered separately. When ordering True Union 2000 Industrial Ball Valves with additional. Add-on Electric Actuator Accessories, use the following Valve Part Numbers to properly accommodate the selected accessories.
PVC Premium Actuated True Union 2000 Industrial Ball Valve
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/221101A1129-005A*Contact Spears
for MSRP		23101A1129-005A*Contact Spears
for MSRP		24101A1129-005A*Contact Spears
for MSRP		21201A1129-005A*Contact Spears
for MSRP		23201A1129-005A*Contact Spears
for MSRP		24201A1129-005A*Contact Spears
for MSRP		500
3/421101A1129-007A*Contact Spears
for MSRP		23101A1129-007A*Contact Spears
for MSRP		24101A1129-007A*Contact Spears
for MSRP		21201A1129-007A*Contact Spears
for MSRP		23201A1129-007A*Contact Spears
for MSRP		24201A1129-007A*Contact Spears
for MSRP		500
121101A1129-010A*Contact Spears
for MSRP		23101A1129-010A*Contact Spears
for MSRP		24101A1129-010A*Contact Spears
for MSRP		21201A1129-010A*Contact Spears
for MSRP		23201A1129-010A*Contact Spears
for MSRP		24201A1129-010A*Contact Spears
for MSRP		500
1-1/421101A1129-012A*Contact Spears
for MSRP		23101A1129-012A*Contact Spears
for MSRP		24101A1129-012A*Contact Spears
for MSRP		21201A1129-012A*Contact Spears
for MSRP		23201A1129-012A*Contact Spears
for MSRP		24201A1129-012A*Contact Spears
for MSRP		500
1-1/221101A1129-015A*Contact Spears
for MSRP		23101A1129-015A*Contact Spears
for MSRP		24101A1129-015A*Contact Spears
for MSRP		21201A1129-015A*Contact Spears
for MSRP		23201A1129-015A*Contact Spears
for MSRP		24201A1129-015A*Contact Spears
for MSRP		500
221101A1129-020A*Contact Spears
for MSRP		23101A1129-020A*Contact Spears
for MSRP		24101A1129-020A*Contact Spears
for MSRP		21201A1129-020A*Contact Spears
for MSRP		23201A1129-020A*Contact Spears
for MSRP		24201A1129-020A*Contact Spears
for MSRP		500
2-1/221101A112-025-A*Contact Spears
for MSRP		23101A112-025-A*Contact Spears
for MSRP		24101A112-025-A*Contact Spears
for MSRP		21201A112-025-A*Contact Spears
for MSRP		23201A112-025-A*Contact Spears
for MSRP		24201A112-025-A*Contact Spears
for MSRP		500
321101A112-030-A*Contact Spears
for MSRP		23101A112-030-A*Contact Spears
for MSRP		24101A112-030-A*Contact Spears
for MSRP		21201A112-030-A*Contact Spears
for MSRP		23201A112-030-A*Contact Spears
for MSRP		24201A112-030-A*Contact Spears
for MSRP		500
421101A123-040-A*Contact Spears
for MSRP		23101A123-040-A*Contact Spears
for MSRP		24101A123-040-A*Contact Spears
for MSRP		21201A123-040-A*Contact Spears
for MSRP		23201A123-040-A*Contact Spears
for MSRP		24201A123-040-A*Contact Spears
for MSRP		500
621101A126-060-A*Contact Spears
for MSRP		23101A126-060-A*Contact Spears
for MSRP		24101A126-060-A*Contact Spears
for MSRP		21201A126-060-A*Contact Spears
for MSRP		23201A126-060-A*Contact Spears
for MSRP		24201A126-060-A*Contact Spears
for MSRP		500
CPVC
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/221102A1129-005A*Contact Spears
for MSRP		23102A1129-005A*Contact Spears
for MSRP		24102A1129-005A*Contact Spears
for MSRP		21202A1129-005A*Contact Spears
for MSRP		23202A1129-005A*Contact Spears
for MSRP		24202A1129-005A*Contact Spears
for MSRP		502
3/421102A1129-007A*Contact Spears
for MSRP		23102A1129-007A*Contact Spears
for MSRP		24102A1129-007A*Contact Spears
for MSRP		21202A1129-007A*Contact Spears
for MSRP		23202A1129-007A*Contact Spears
for MSRP		24202A1129-007A*Contact Spears
for MSRP		502
121102A1129-010A*Contact Spears
for MSRP		23102A1129-010A*Contact Spears
for MSRP		24102A1129-010A*Contact Spears
for MSRP		21202A1129-010A*Contact Spears
for MSRP		23202A1129-010A*Contact Spears
for MSRP		24202A1129-010A*Contact Spears
for MSRP		502
1-1/421102A1129-012A*Contact Spears
for MSRP		23102A1129-012A*Contact Spears
for MSRP		24102A1129-012A*Contact Spears
for MSRP		21202A1129-012A*Contact Spears
for MSRP		23202A1129-012A*Contact Spears
for MSRP		24202A1129-012A*Contact Spears
for MSRP		502
1-1/221102A1129-015A*Contact Spears
for MSRP		23102A1129-015A*Contact Spears
for MSRP		24102A1129-015A*Contact Spears
for MSRP		21202A1129-015A*Contact Spears
for MSRP		23202A1129-015A*Contact Spears
for MSRP		24202A1129-015A*Contact Spears
for MSRP		502
221102A1129-020A*Contact Spears
for MSRP		23102A1129-020A*Contact Spears
for MSRP		24102A1129-020A*Contact Spears
for MSRP		21202A1129-020A*Contact Spears
for MSRP		23202A1129-020A*Contact Spears
for MSRP		24202A1129-020A*Contact Spears
for MSRP		502
2-1/221102A112-025-A*Contact Spears
for MSRP		23102A112-025-A*Contact Spears
for MSRP		24102A112-025-A*Contact Spears
for MSRP		21202A112-025-A*Contact Spears
for MSRP		23202A112-025-A*Contact Spears
for MSRP		24202A112-025-A*Contact Spears
for MSRP		502
321102A112-030-A*Contact Spears
for MSRP		23102A112-030-A*Contact Spears
for MSRP		24102A112-030-A*Contact Spears
for MSRP		21202A112-030-A*Contact Spears
for MSRP		23202A112-030-A*Contact Spears
for MSRP		24202A112-030-A*Contact Spears
for MSRP		502
421102A123-040-A*Contact Spears
for MSRP		23102A123-040-A*Contact Spears
for MSRP		24102A123-040-A*Contact Spears
for MSRP		21202A123-040-A*Contact Spears
for MSRP		23202A123-040-A*Contact Spears
for MSRP		24202A123-040-A*Contact Spears
for MSRP		502
621102A126-060-A*Contact Spears
for MSRP		23102A126-060-A*Contact Spears
for MSRP		24102A126-060-A*Contact Spears
for MSRP		21202A126-060-A*Contact Spears
for MSRP		23202A126-060-A*Contact Spears
for MSRP		24202A126-060-A*Contact Spears
for MSRP		502
Page 9
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Electric Actuator Accessories for Ball Valves
Print this Book
Print this Book

AccessoryDescriptionAccessory
Part Number		Prod
Code
Digital Modulating Board 0-10V/0-5V/1-5V/4-20mA (Specify setting at time of order) 120 VAC DIG HI RES POSITIONING CARD ONLYA-PB01-AA-CD-RF298
Digital Potentiometer FEEDBACK POT 360° CONTINUOUSA-PO45-00-00-RH298
Digital Transmitter 4-20MA TRANSMITTER FOR DHC-100A POS BRDA-TR33-AK-CD-00298
Analog Modulating Board 0-10V/0-5V/4-20mA (Specify setting at time of order) 120V 2A PROPORTIONAL POSITIONING CONTROL for SIZES 1-1/2 - 4A-MC01-AC-CA-RC298
Analog Potentiometer FEEDBACK POT 360° CONTINUOUSA-PO45-00-00-RH298
Analog Transmitter 4-20 MA TRANSMITTER FOR ANALOG FEED BACKA-TR33-AB-CE-RH298
0-10V TRANSMITTER FOR ANALOG FEED BACKA-TR33-AK-CA-RH298
Installation bracket (required for any configuration) MOUNTING KIT FOR 005 ACTUATOR on 1/2"- 3" Ball Valves, 1-1/2"-4" Butterfly ValvesA-PK40-00-00-RA298
MOUNTING BRACKET FOR RCEL004/006/009A-PK41-00-00-RA298
MOUNTING KIT FOR 015/019/028 ACTUATORS on 6" Ball Valves, 6" - 12" Butterfly ValvesA-PK42-00-00-RD298
ID TagType 316 Stainless Steel ID Tag 1-1/2” x 3” (3-lines, 12-characters & spaces)TAG3-015001
Stem Extensions Ball Valve Stem Extension  1 A-BVSE-xxx-000 Call for MSRP
True Union 2000 Ball Valve Stem Extension A-BVSE2-xxx-000
Thermostat Call for Application & MSRP
Speed Control Call for Application & MSRP
"2-Wire" Control Relay Call for Application & MSRP
Torque Sensor Call for Application & MSRP
LED Indicator Lights Call for Application & MSRP
Additional Limit Switch Sets Call for Application & MSRP
Battery Backup Call for Application & MSRP
NOTES:
1 -
Stem Extension Part Numbers: Enter size code for "xxx" in part number. Replace "000" with desired length code in part number; length is from top of valve to bottom of actuator.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 10
Actuated Valves Product
Premium Actuated True Union 2000 Industrial Ball Valve - Pneumatic
Print this Book
Print this Book

Industrial grade True Union design, 1/4-turn shutoff for a wide range of applications. Full-featured actuator can be custom configured with add-on accessories.

  • Blocked Seal Carrier
  • Double O-ring Stem Seal
  • PTFE Seats
  • 1/2" - 4" 235 psi @ 73°F (23°C)
  • 6" and all flanged
    150 psi @ 73°F (23°C)
  • 80 psi Operating Pressure, other options available
  • 2-Position Air-Air or Air-Spring Closed (optional
    spring open)
  • Dual Rack & Pinion with Adjustable Stops
  • Manual Override
  • Position Indicator
See Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves for Add-on Actuator Accessories
NOTE: "Socket" valves up to 2" size include standard plastic thread end connectors. For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
PVC Premium Actuated True Union 2000 Industrial Ball Valve - Pneumatic
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2 Air to Air21101H101-005*Contact Spears
for MSRP		23101H101-005*Contact Spears
for MSRP		24101H101-005*Contact Spears
for MSRP		21201H101-005*Contact Spears
for MSRP		23201H101-005*Contact Spears
for MSRP		24201H101-005*Contact Spears
for MSRP		530
1/2 Air to Spring21101J101-005*Contact Spears
for MSRP		23101J101-005*Contact Spears
for MSRP		24101J101-005*Contact Spears
for MSRP		21201J101-005*Contact Spears
for MSRP		23201J101-005*Contact Spears
for MSRP		24201J101-005*Contact Spears
for MSRP		530
3/4 Air to Air21101H101-007*Contact Spears
for MSRP		23101H101-007*Contact Spears
for MSRP		24101H101-007*Contact Spears
for MSRP		21201H101-007*Contact Spears
for MSRP		23201H101-007*Contact Spears
for MSRP		24201H101-007*Contact Spears
for MSRP		530
3/4 Air to Spring21101J101-007*Contact Spears
for MSRP		23101J101-007*Contact Spears
for MSRP		24101J101-007*Contact Spears
for MSRP		21201J101-007*Contact Spears
for MSRP		23201J101-007*Contact Spears
for MSRP		24201J101-007*Contact Spears
for MSRP		530
1 Air to Air21101H101-010*Contact Spears
for MSRP		23101H101-010*Contact Spears
for MSRP		24101H101-010*Contact Spears
for MSRP		21201H101-010*Contact Spears
for MSRP		23201H101-010*Contact Spears
for MSRP		24201H101-010*Contact Spears
for MSRP		530
1 Air to Spring21101J101-010*Contact Spears
for MSRP		23101J101-010*Contact Spears
for MSRP		24101J101-010*Contact Spears
for MSRP		21201J101-010*Contact Spears
for MSRP		23201J101-010*Contact Spears
for MSRP		24201J101-010*Contact Spears
for MSRP		530
1-1/4 Air to Air21101H101-012*Contact Spears
for MSRP		23101H101-012*Contact Spears
for MSRP		24101H101-012*Contact Spears
for MSRP		21201H101-012*Contact Spears
for MSRP		23201H101-012*Contact Spears
for MSRP		24201H101-012*Contact Spears
for MSRP		530
1-1/4 Air to Spring21101J101-012*Contact Spears
for MSRP		23101J101-012*Contact Spears
for MSRP		24101J101-012*Contact Spears
for MSRP		21201J101-012*Contact Spears
for MSRP		23201J101-012*Contact Spears
for MSRP		24201J101-012*Contact Spears
for MSRP		530
1-1/2 Air to Air21101H101-015*Contact Spears
for MSRP		23101H101-015*Contact Spears
for MSRP		24101H101-015*Contact Spears
for MSRP		21201H101-015*Contact Spears
for MSRP		23201H101-015*Contact Spears
for MSRP		24201H101-015*Contact Spears
for MSRP		530
1-1/2 Air to Spring21101J101-015*Contact Spears
for MSRP		23101J101-015*Contact Spears
for MSRP		24101J101-015*Contact Spears
for MSRP		21201J101-015*Contact Spears
for MSRP		23201J101-015*Contact Spears
for MSRP		24201J101-015*Contact Spears
for MSRP		530
2 Air to Air21101H101-020*Contact Spears
for MSRP		23101H101-020*Contact Spears
for MSRP		24101H101-020*Contact Spears
for MSRP		21201H101-020*Contact Spears
for MSRP		23201H101-020*Contact Spears
for MSRP		24201H101-020*Contact Spears
for MSRP		530
2 Air to Spring21101J101-020*Contact Spears
for MSRP		23101J101-020*Contact Spears
for MSRP		24101J101-020*Contact Spears
for MSRP		21201J101-020*Contact Spears
for MSRP		23201J101-020*Contact Spears
for MSRP		24201J101-020*Contact Spears
for MSRP		530
2-1/2 Air to Air21101H101-025*Contact Spears
for MSRP		23101H101-025*Contact Spears
for MSRP		24101H101-025*Contact Spears
for MSRP		21201H101-025*Contact Spears
for MSRP		23201H101-025*Contact Spears
for MSRP		24201H101-025*Contact Spears
for MSRP		530
2-1/2 Air to Spring21101J101-025*Contact Spears
for MSRP		23101J101-025*Contact Spears
for MSRP		24101J101-025*Contact Spears
for MSRP		21201J101-025*Contact Spears
for MSRP		23201J101-025*Contact Spears
for MSRP		24201J101-025*Contact Spears
for MSRP		530
3 Air to Air21101H101-030*Contact Spears
for MSRP		23101H101-030*Contact Spears
for MSRP		24101H101-030*Contact Spears
for MSRP		21201H101-030*Contact Spears
for MSRP		23201H101-030*Contact Spears
for MSRP		24201H101-030*Contact Spears
for MSRP		530
3 Air to Spring21101J101-030*Contact Spears
for MSRP		23101J101-030*Contact Spears
for MSRP		24101J101-030*Contact Spears
for MSRP		21201J101-030*Contact Spears
for MSRP		23201J101-030*Contact Spears
for MSRP		24201J101-030*Contact Spears
for MSRP		530
4 Air to Air21101H101-040*Contact Spears
for MSRP		23101H101-040*Contact Spears
for MSRP		24101H101-040*Contact Spears
for MSRP		21201H101-040*Contact Spears
for MSRP		23201H101-040*Contact Spears
for MSRP		24201H101-040*Contact Spears
for MSRP		530
4 Air to Spring21101J101-040*Contact Spears
for MSRP		23101J101-040*Contact Spears
for MSRP		24101J101-040*Contact Spears
for MSRP		21201J101-040*Contact Spears
for MSRP		23201J101-040*Contact Spears
for MSRP		24201J101-040*Contact Spears
for MSRP		530
6 Air to Air21101H101-060*Contact Spears
for MSRP		23101H101-060*Contact Spears
for MSRP		24101H101-060*Contact Spears
for MSRP		21201H101-060*Contact Spears
for MSRP		23201H101-060*Contact Spears
for MSRP		24201H101-060*Contact Spears
for MSRP		530
6 Air to Spring21101J101-060*Contact Spears
for MSRP		23101J101-060*Contact Spears
for MSRP		24101J101-060*Contact Spears
for MSRP		21201J101-060*Contact Spears
for MSRP		23201J101-060*Contact Spears
for MSRP		24201J101-060*Contact Spears
for MSRP		530
CPVC
O-ringEPDMFKMProd
Code
JointSocketSR ThreadFlangedSocketSR ThreadFlanged
SizePart #Part #Part #Part #Part #Part #
1/2 Air to Air21102H101-005*Contact Spears
for MSRP		23102H101-005*Contact Spears
for MSRP		24102H101-005*Contact Spears
for MSRP		21202H101-005*Contact Spears
for MSRP		23202H101-005*Contact Spears
for MSRP		24202H101-005*Contact Spears
for MSRP		532
1/2 Air to Spring21102J101-005*Contact Spears
for MSRP		23102J101-005*Contact Spears
for MSRP		24102J101-005*Contact Spears
for MSRP		21202J101-005*Contact Spears
for MSRP		23202J101-005*Contact Spears
for MSRP		24202J101-005*Contact Spears
for MSRP		532
3/4 Air to Air21102H101-007*Contact Spears
for MSRP		23102H101-007*Contact Spears
for MSRP		24102H101-007*Contact Spears
for MSRP		21202H101-007*Contact Spears
for MSRP		23202H101-007*Contact Spears
for MSRP		24202H101-007*Contact Spears
for MSRP		532
3/4 Air to Spring21102J101-007*Contact Spears
for MSRP		23102J101-007*Contact Spears
for MSRP		24102J101-007*Contact Spears
for MSRP		21202J101-007*Contact Spears
for MSRP		23202J101-007*Contact Spears
for MSRP		24202J101-007*Contact Spears
for MSRP		532
1 Air to Air21102H101-010*Contact Spears
for MSRP		23102H101-010*Contact Spears
for MSRP		24102H101-010*Contact Spears
for MSRP		21202H101-010*Contact Spears
for MSRP		23202H101-010*Contact Spears
for MSRP		24202H101-010*Contact Spears
for MSRP		532
1 Air to Spring21102J101-010*Contact Spears
for MSRP		23102J101-010*Contact Spears
for MSRP		24102J101-010*Contact Spears
for MSRP		21202J101-010*Contact Spears
for MSRP		23202J101-010*Contact Spears
for MSRP		24202J101-010*Contact Spears
for MSRP		532
1-1/4 Air to Air21102H101-012*Contact Spears
for MSRP		23102H101-012*Contact Spears
for MSRP		24102H101-012*Contact Spears
for MSRP		21202H101-012*Contact Spears
for MSRP		23202H101-012*Contact Spears
for MSRP		24202H101-012*Contact Spears
for MSRP		532
1-1/4 Air to Spring21102J101-012*Contact Spears
for MSRP		23102J101-012*Contact Spears
for MSRP		24102J101-012*Contact Spears
for MSRP		21202J101-012*Contact Spears
for MSRP		23202J101-012*Contact Spears
for MSRP		24202J101-012*Contact Spears
for MSRP		532
1-1/2 Air to Air21102H101-015*Contact Spears
for MSRP		23102H101-015*Contact Spears
for MSRP		24102H101-015*Contact Spears
for MSRP		21202H101-015*Contact Spears
for MSRP		23202H101-015*Contact Spears
for MSRP		24202H101-015*Contact Spears
for MSRP		532
1-1/2 Air to Spring21102J101-015*Contact Spears
for MSRP		23102J101-015*Contact Spears
for MSRP		24102J101-015*Contact Spears
for MSRP		21202J101-015*Contact Spears
for MSRP		23202J101-015*Contact Spears
for MSRP		24202J101-015*Contact Spears
for MSRP		532
2 Air to Air21102H101-020*Contact Spears
for MSRP		23102H101-020*Contact Spears
for MSRP		24102H101-020*Contact Spears
for MSRP		21202H101-020*Contact Spears
for MSRP		23202H101-020*Contact Spears
for MSRP		24202H101-020*Contact Spears
for MSRP		532
2 Air to Spring21102J101-020*Contact Spears
for MSRP		23102J101-020*Contact Spears
for MSRP		24102J101-020*Contact Spears
for MSRP		21202J101-020*Contact Spears
for MSRP		23202J101-020*Contact Spears
for MSRP		24202J101-020*Contact Spears
for MSRP		532
2-1/2 Air to Air21102H101-025*Contact Spears
for MSRP		23102H101-025*Contact Spears
for MSRP		24102H101-025*Contact Spears
for MSRP		21202H101-025*Contact Spears
for MSRP		23202H101-025*Contact Spears
for MSRP		24202H101-025*Contact Spears
for MSRP		532
2-1/2 Air to Spring21102J101-025*Contact Spears
for MSRP		23102J101-025*Contact Spears
for MSRP		24102J101-025*Contact Spears
for MSRP		21202J101-025*Contact Spears
for MSRP		23202J101-025*Contact Spears
for MSRP		24202J101-025*Contact Spears
for MSRP		532
3 Air to Air21102H101-030*Contact Spears
for MSRP		23102H101-030*Contact Spears
for MSRP		24102H101-030*Contact Spears
for MSRP		21202H101-030*Contact Spears
for MSRP		23202H101-030*Contact Spears
for MSRP		24202H101-030*Contact Spears
for MSRP		532
3 Air to Spring21102J101-030*Contact Spears
for MSRP		23102J101-030*Contact Spears
for MSRP		24102J101-030*Contact Spears
for MSRP		21202J101-030*Contact Spears
for MSRP		23202J101-030*Contact Spears
for MSRP		24202J101-030*Contact Spears
for MSRP		532
4 Air to Air21102H101-040*Contact Spears
for MSRP		23102H101-040*Contact Spears
for MSRP		24102H101-040*Contact Spears
for MSRP		21202H101-040*Contact Spears
for MSRP		23202H101-040*Contact Spears
for MSRP		24202H101-040*Contact Spears
for MSRP		532
4 Air to Spring21102J101-040*Contact Spears
for MSRP		23102J101-040*Contact Spears
for MSRP		24102J101-040*Contact Spears
for MSRP		21202J101-040*Contact Spears
for MSRP		23202J101-040*Contact Spears
for MSRP		24202J101-040*Contact Spears
for MSRP		532
6 Air to Air21102H101-060*Contact Spears
for MSRP		23102H101-060*Contact Spears
for MSRP		24102H101-060*Contact Spears
for MSRP		21202H101-060*Contact Spears
for MSRP		23202H101-060*Contact Spears
for MSRP		24202H101-060*Contact Spears
for MSRP		532
6 Air to Spring21102J101-060*Contact Spears
for MSRP		23102J101-060*Contact Spears
for MSRP		24102J101-060*Contact Spears
for MSRP		21202J101-060*Contact Spears
for MSRP		23202J101-060*Contact Spears
for MSRP		24202J101-060*Contact Spears
for MSRP		532
Page 11
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Standard Butterfly Valve - Electric & Premium Actuated Standard Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated Standard Butterfly Valve - Electric
Industrial grade valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

The following Features are Standard with Electric Actuated Standard Butterfly Valve.

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C) (Thru 12")
  • 14"-100 psi, 16"-85 psi
  • 18"-70 psi, 20"-24"-50 psi
  • 115 VAC standard, optional voltages available
  • 2-Position Operation with 2-SPDT Limit Switches
  • Additional set dry contacts SPDT limit Switches
  • NEMA 4 Enclosure, Powder Coated
  • Basic Manual Override 1-1/2 through 4" (Declutchable Available)
  • Declutchable Manual Override 6" through 12"
  • Illuminated Position Indicator
  • Heater

When ordering Butterfly Valves with additional Actuator Accessories add a "-A" to the end of the basic part number and see Electric Actuator Accessories for Butterfly Valves to order add-on Actuator Accessories separately.

EX: 41101A112-015 add the -A to create 41101A112-015-A.
PVC
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241101A112-015*Contact Spears
for MSRP		41201A112-015*Contact Spears
for MSRP		41301A112-015*Contact Spears
for MSRP		510
241101A112-020*Contact Spears
for MSRP		41201A112-020*Contact Spears
for MSRP		41301A112-020*Contact Spears
for MSRP		510
2-1/241101A112-025*Contact Spears
for MSRP		41201A112-025*Contact Spears
for MSRP		41301A112-025*Contact Spears
for MSRP		510
341101A112-030*Contact Spears
for MSRP		41201A112-030*Contact Spears
for MSRP		41301A112-030*Contact Spears
for MSRP		510
441101A112-040*Contact Spears
for MSRP		41201A112-040*Contact Spears
for MSRP		41301A112-040*Contact Spears
for MSRP		510
641101A126-060*Contact Spears
for MSRP		41201A126-060*Contact Spears
for MSRP		41301A126-060*Contact Spears
for MSRP		510
841101A126-080*Contact Spears
for MSRP		41201A126-080*Contact Spears
for MSRP		41301A126-080*Contact Spears
for MSRP		510
1041101A126-100*Contact Spears
for MSRP		41201A126-100*Contact Spears
for MSRP		41301A126-100*Contact Spears
for MSRP		510
1241101A123-120*Contact Spears
for MSRP		41201A123-120*Contact Spears
for MSRP		41301A123-120*Contact Spears
for MSRP		510
CPVC
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241102A112-015*Contact Spears
for MSRP		41202A112-015*Contact Spears
for MSRP		41302A112-015*Contact Spears
for MSRP		512
241102A112-020*Contact Spears
for MSRP		41202A112-020*Contact Spears
for MSRP		41302A112-020*Contact Spears
for MSRP		512
2-1/241102A112-025*Contact Spears
for MSRP		41202A112-025*Contact Spears
for MSRP		41302A112-025*Contact Spears
for MSRP		512
341102A112-030*Contact Spears
for MSRP		41202A112-030*Contact Spears
for MSRP		41302A112-030*Contact Spears
for MSRP		512
441102A112-040*Contact Spears
for MSRP		41202A112-040*Contact Spears
for MSRP		41302A112-040*Contact Spears
for MSRP		512
641102A126-060*Contact Spears
for MSRP		41202A126-060*Contact Spears
for MSRP		41302A126-060*Contact Spears
for MSRP		512
841102A126-080*Contact Spears
for MSRP		41202A126-080*Contact Spears
for MSRP		41302A126-080*Contact Spears
for MSRP		512
1041102A126-100*Contact Spears
for MSRP		41202A126-100*Contact Spears
for MSRP		41302A126-100*Contact Spears
for MSRP		512
1241102A123-120*Contact Spears
for MSRP		41202A123-120*Contact Spears
for MSRP		41302A123-120*Contact Spears
for MSRP		512
Polypropylene
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241103A112-015*Contact Spears
for MSRP		41203A112-015*Contact Spears
for MSRP		41303A112-015*Contact Spears
for MSRP		514
241103A112-020*Contact Spears
for MSRP		41203A112-020*Contact Spears
for MSRP		41303A112-020*Contact Spears
for MSRP		514
2-1/241103A112-025*Contact Spears
for MSRP		41203A112-025*Contact Spears
for MSRP		41303A112-025*Contact Spears
for MSRP		512

Polypropylene (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
341103A112-030*Contact Spears
for MSRP		41203A112-030*Contact Spears
for MSRP		41303A112-030*Contact Spears
for MSRP		514
441103A112-040*Contact Spears
for MSRP		41203A112-040*Contact Spears
for MSRP		41303A112-040*Contact Spears
for MSRP		514
641103A126-060*Contact Spears
for MSRP		41203A126-060*Contact Spears
for MSRP		41303A126-060*Contact Spears
for MSRP		514
841103A126-080*Contact Spears
for MSRP		41203A126-080*Contact Spears
for MSRP		41303A126-080*Contact Spears
for MSRP		514
1041103A126-100*Contact Spears
for MSRP		41203A126-100*Contact Spears
for MSRP		41303A126-100*Contact Spears
for MSRP		514
1241103A123-120*Contact Spears
for MSRP		41203A123-120*Contact Spears
for MSRP		41303A123-120*Contact Spears
for MSRP		514

14, 16, 18, 20 & 24  -  Varies On Application

NOTE: Due to variations in potential system operating conditions, 14" -24" Actuated Butterfly Valve packages are sized according to application parameters. Please contact Spears® for additional information.
Premium Actuated Standard Butterfly Valve - Pneumatic
Industrial grade valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

The following Features are Standard with Pneumatic Actuated Standard Butterfly Valve.

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C) (Thru 12")
  • 14"-100 psi, 16"- 85 psi,
    18"-70 psi, 20"-24"-50 psi
  • 80 psi Operating Pressure, other options available
  • 2-Position Air-Air or Air-Spring Closed (optional spring open)
  • Dual Rack & Pinion with Adjustable Stops
  • Manual Override
  • Position Indicator

See Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves for Add-on Actuator Accessories
NOTE: Due to variations in potential system operating conditions, 14" -24" Actuated Butterfly Valve packages are sized according to application parameters. Please contact Spears® for additional information.
PVC
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41101H101-015*Contact Spears
for MSRP		41201H101-015*Contact Spears
for MSRP		41301H101-015*Contact Spears
for MSRP		540
1-1/2 Air to Spring41101J101-015*Contact Spears
for MSRP		41201J101-015*Contact Spears
for MSRP		41301J101-015*Contact Spears
for MSRP		540
2 Air to Air41101H101-020*Contact Spears
for MSRP		41201H101-020*Contact Spears
for MSRP		41301H101-020*Contact Spears
for MSRP		540
2 Air to Spring41101J101-020*Contact Spears
for MSRP		41201J101-020*Contact Spears
for MSRP		41301J101-020*Contact Spears
for MSRP		540
2-1/2 Air to Air41101H101-025*Contact Spears
for MSRP		41201H101-025*Contact Spears
for MSRP		41301H101-025*Contact Spears
for MSRP		540
2-1/2 Air to Spring41101J101-025*Contact Spears
for MSRP		41201J101-025*Contact Spears
for MSRP		41301J101-025*Contact Spears
for MSRP		540
3 Air to Air41101H101-030*Contact Spears
for MSRP		41201H101-030*Contact Spears
for MSRP		41301H101-030*Contact Spears
for MSRP		540
3 Air to Spring41101J101-030*Contact Spears
for MSRP		41201J101-030*Contact Spears
for MSRP		41301J101-030*Contact Spears
for MSRP		540
4 Air to Air41101H101-040*Contact Spears
for MSRP		41201H101-040*Contact Spears
for MSRP		41301H101-040*Contact Spears
for MSRP		540
4 Air to Spring41101J101-040*Contact Spears
for MSRP		41201J101-040*Contact Spears
for MSRP		41301J101-040*Contact Spears
for MSRP		540
6 Air to Air41101H101-060*Contact Spears
for MSRP		41201H101-060*Contact Spears
for MSRP		41301H101-060*Contact Spears
for MSRP		540
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 12
Actuated Valves Product
Premium Actuated Standard Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated Standard Butterfly Valve - Pneumatic
PVC (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
6 Air to Spring41101J101-060*Contact Spears
for MSRP		41201J101-060*Contact Spears
for MSRP		41301J101-060*Contact Spears
for MSRP		540
8 Air to Air41101H101-080*Contact Spears
for MSRP		41201H101-080*Contact Spears
for MSRP		41301H101-080*Contact Spears
for MSRP		540
8 Air to Spring41101J101-080*Contact Spears
for MSRP		41201J101-080*Contact Spears
for MSRP		41301J101-080*Contact Spears
for MSRP		540
10 Air to Air41101H101-100*Contact Spears
for MSRP		41201H101-100*Contact Spears
for MSRP		41301H101-100*Contact Spears
for MSRP		540
10 Air to Spring41101J101-100*Contact Spears
for MSRP		41201J101-100*Contact Spears
for MSRP		41301J101-100*Contact Spears
for MSRP		540
12 Air to Air41101H101-120*Contact Spears
for MSRP		41201H101-120*Contact Spears
for MSRP		41301H101-120*Contact Spears
for MSRP		540
12 Air to Spring41101J101-120*Contact Spears
for MSRP		41201J101-120*Contact Spears
for MSRP		41301J101-120*Contact Spears
for MSRP		540
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
CPVC
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41102H101-015*Contact Spears
for MSRP		41202H101-015*Contact Spears
for MSRP		41302H101-015*Contact Spears
for MSRP		542
1-1/2 Air to Spring41102J101-015*Contact Spears
for MSRP		41202J101-015*Contact Spears
for MSRP		41302J101-015*Contact Spears
for MSRP		542
2 Air to Air41102H101-020*Contact Spears
for MSRP		41202H101-020*Contact Spears
for MSRP		41302H101-020*Contact Spears
for MSRP		542
2 Air to Spring41102J101-020*Contact Spears
for MSRP		41202J101-020*Contact Spears
for MSRP		41302J101-020*Contact Spears
for MSRP		542
2-1/2 Air to Air41102H101-025*Contact Spears
for MSRP		41202H101-025*Contact Spears
for MSRP		41302H101-025*Contact Spears
for MSRP		542
2-1/2 Air to Spring41102J101-025*Contact Spears
for MSRP		41202J101-025*Contact Spears
for MSRP		41302J101-025*Contact Spears
for MSRP		542
3 Air to Air41102H101-030*Contact Spears
for MSRP		41202H101-030*Contact Spears
for MSRP		41302H101-030*Contact Spears
for MSRP		542
3 Air to Spring41102J101-030*Contact Spears
for MSRP		41202J101-030*Contact Spears
for MSRP		41302J101-030*Contact Spears
for MSRP		542
4 Air to Air41102H101-040*Contact Spears
for MSRP		41202H101-040*Contact Spears
for MSRP		41302H101-040*Contact Spears
for MSRP		542
4 Air to Spring41102J101-040*Contact Spears
for MSRP		41202J101-040*Contact Spears
for MSRP		41302J101-040*Contact Spears
for MSRP		542
6 Air to Air41102H101-060*Contact Spears
for MSRP		41202H101-060*Contact Spears
for MSRP		41302H101-060*Contact Spears
for MSRP		542
6 Air to Spring41102J101-060*Contact Spears
for MSRP		41202J101-060*Contact Spears
for MSRP		41302J101-060*Contact Spears
for MSRP		542
8 Air to Air41102H101-080*Contact Spears
for MSRP		41202H101-080*Contact Spears
for MSRP		41302H101-080*Contact Spears
for MSRP		542
8 Air to Spring41102J101-080*Contact Spears
for MSRP		41202J101-080*Contact Spears
for MSRP		41302J101-080*Contact Spears
for MSRP		542
10 Air to Air41102H101-100*Contact Spears
for MSRP		41202H101-100*Contact Spears
for MSRP		41302H101-100*Contact Spears
for MSRP		542
10 Air to Spring41102J101-100*Contact Spears
for MSRP		41202J101-100*Contact Spears
for MSRP		41302J101-100*Contact Spears
for MSRP		542
12 Air to Air41102H101-120*Contact Spears
for MSRP		41202H101-120*Contact Spears
for MSRP		41302H101-120*Contact Spears
for MSRP		542
12 Air to Spring41102J101-120*Contact Spears
for MSRP		41202J101-120*Contact Spears
for MSRP		41302J101-120*Contact Spears
for MSRP		542
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
Polypropylene
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41103H101-015*Contact Spears
for MSRP		41203H101-015*Contact Spears
for MSRP		41303H101-015*Contact Spears
for MSRP		544
1-1/2 Air to Spring41103J101-015*Contact Spears
for MSRP		41203J101-015*Contact Spears
for MSRP		41303J101-015*Contact Spears
for MSRP		544
2 Air to Air41103H101-020*Contact Spears
for MSRP		41203H101-020*Contact Spears
for MSRP		41303H101-020*Contact Spears
for MSRP		544

Polypropylene (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
2 Air to Spring41103J101-020*Contact Spears
for MSRP		41203J101-020*Contact Spears
for MSRP		41303J101-020*Contact Spears
for MSRP		544
2-1/2 Air to Air41103H101-025*Contact Spears
for MSRP		41203H101-025*Contact Spears
for MSRP		41303H101-025*Contact Spears
for MSRP		544
2-1/2 Air to Spring41103J101-025*Contact Spears
for MSRP		41203J101-025*Contact Spears
for MSRP		41303J101-025*Contact Spears
for MSRP		544
3 Air to Air41103H101-030*Contact Spears
for MSRP		41203H101-030*Contact Spears
for MSRP		41303H101-030*Contact Spears
for MSRP		544
3 Air to Spring41103J101-030*Contact Spears
for MSRP		41203J101-030*Contact Spears
for MSRP		41303J101-030*Contact Spears
for MSRP		544
4 Air to Air41103H101-040*Contact Spears
for MSRP		41203H101-040*Contact Spears
for MSRP		41303H101-040*Contact Spears
for MSRP		544
4 Air to Spring41103J101-040*Contact Spears
for MSRP		41203J101-040*Contact Spears
for MSRP		41303J101-040*Contact Spears
for MSRP		544
6 Air to Air41103H101-060*Contact Spears
for MSRP		41203H101-060*Contact Spears
for MSRP		41303H101-060*Contact Spears
for MSRP		544
6 Air to Spring41103J101-060*Contact Spears
for MSRP		41203J101-060*Contact Spears
for MSRP		41303J101-060*Contact Spears
for MSRP		544
8 Air to Air41103H101-080*Contact Spears
for MSRP		41203H101-080*Contact Spears
for MSRP		41303H101-080*Contact Spears
for MSRP		544
8 Air to Spring41103J101-080*Contact Spears
for MSRP		41203J101-080*Contact Spears
for MSRP		41303J101-080*Contact Spears
for MSRP		544
10 Air to Air41103H101-100*Contact Spears
for MSRP		41203H101-100*Contact Spears
for MSRP		41303H101-100*Contact Spears
for MSRP		544
10 Air to Spring41103J101-100*Contact Spears
for MSRP		41203J101-100*Contact Spears
for MSRP		41303J101-100*Contact Spears
for MSRP		544
12 Air to Air41103H101-120*Contact Spears
for MSRP		41203H101-120*Contact Spears
for MSRP		41303H101-120*Contact Spears
for MSRP		544
12 Air to Spring41103J101-120*Contact Spears
for MSRP		41203J101-120*Contact Spears
for MSRP		41303J101-120*Contact Spears
for MSRP		544
14, 16, 18, 20 & 24 - Varies On Application
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.


Premium Actuated Lug Insert Butterfly Valve - Electric
Industrial grade valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

The following Features are Standard with Electric Actuated Lug Insert Butterfly Valve.

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C) (Thru 12")
  • 14"-100 psi, 16"-85 psi
  • 18"-70 psi, 20"-24"-50 psi
  • 115 VAC standard, optional voltages available
  • 2-Position Operation with 2-SPDT Limit Switches
  • Additional set dry contacts SPDT limit Switches
  • NEMA 4 Enclosure, Powder Coated
  • Basic Manual Override 1-1/2 through 4" (Declutchable Available)
  • Declutchable Manual Override 6" through 12"
  • Illuminated Position Indicator
  • Heater

When ordering Butterfly Valves with additional Actuator Accessories add a "-A" to the end of the basic part number and see Electric Actuator Accessories for Butterfly Valves to order add-on Actuator Accessories separately.

EX: 41121A112-015 add the -A to create 41121A112-015-A.
(Continued on the next page)
Page 13
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Lug Insert Butterfly Valve - Electric & Premium Actuated Lug Insert Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated Lug Insert Butterfly Valve - Electric
(Continued)
PVC - Stainless Steel Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241121A112-015*Contact Spears
for MSRP		41221A112-015*Contact Spears
for MSRP		41321A112-015*Contact Spears
for MSRP		510
241121A112-020*Contact Spears
for MSRP		41221A112-020*Contact Spears
for MSRP		41321A112-020*Contact Spears
for MSRP		510
2-1/241121A112-025*Contact Spears
for MSRP		41221A112-025*Contact Spears
for MSRP		41321A112-025*Contact Spears
for MSRP		510
341121A112-030*Contact Spears
for MSRP		41221A112-030*Contact Spears
for MSRP		41321A112-030*Contact Spears
for MSRP		510
441121A112-040*Contact Spears
for MSRP		41221A112-040*Contact Spears
for MSRP		41321A112-040*Contact Spears
for MSRP		510
641121A126-060*Contact Spears
for MSRP		41221A126-060*Contact Spears
for MSRP		41321A126-060*Contact Spears
for MSRP		510
841121A126-080*Contact Spears
for MSRP		41221A126-080*Contact Spears
for MSRP		41321A126-080*Contact Spears
for MSRP		510
1041121A126-100*Contact Spears
for MSRP		41221A126-100*Contact Spears
for MSRP		41321A126-100*Contact Spears
for MSRP		510
1241121A123-120*Contact Spears
for MSRP		41221A123-120*Contact Spears
for MSRP		41321A123-120*Contact Spears
for MSRP		510
PVC - Zinc Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241111A112-015*Contact Spears
for MSRP		41211A112-015*Contact Spears
for MSRP		41311A112-015*Contact Spears
for MSRP		510
241111A112-020*Contact Spears
for MSRP		41211A112-020*Contact Spears
for MSRP		41311A112-020*Contact Spears
for MSRP		510
2-1/241111A112-025*Contact Spears
for MSRP		41211A112-025*Contact Spears
for MSRP		41311A112-025*Contact Spears
for MSRP		510
341111A112-030*Contact Spears
for MSRP		41211A112-030*Contact Spears
for MSRP		41311A112-030*Contact Spears
for MSRP		510
441111A112-040*Contact Spears
for MSRP		41211A112-040*Contact Spears
for MSRP		41311A112-040*Contact Spears
for MSRP		510
641111A126-060*Contact Spears
for MSRP		41211A126-060*Contact Spears
for MSRP		41311A126-060*Contact Spears
for MSRP		510
841111A126-080*Contact Spears
for MSRP		41211A126-080*Contact Spears
for MSRP		41311A126-080*Contact Spears
for MSRP		510
1041111A126-100*Contact Spears
for MSRP		41211A126-100*Contact Spears
for MSRP		41311A126-100*Contact Spears
for MSRP		510
1241111A123-120*Contact Spears
for MSRP		41211A123-120*Contact Spears
for MSRP		41311A123-120*Contact Spears
for MSRP		510
CPVC - Stainless Steel Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241122A112-015*Contact Spears
for MSRP		41222A112-015*Contact Spears
for MSRP		41322A112-015*Contact Spears
for MSRP		512
241122A112-020*Contact Spears
for MSRP		41222A112-020*Contact Spears
for MSRP		41322A112-020*Contact Spears
for MSRP		512
2-1/241122A112-025*Contact Spears
for MSRP		41222A112-025*Contact Spears
for MSRP		41322A112-025*Contact Spears
for MSRP		512
341122A112-030*Contact Spears
for MSRP		41222A112-030*Contact Spears
for MSRP		41322A112-030*Contact Spears
for MSRP		512
441122A112-040*Contact Spears
for MSRP		41222A112-040*Contact Spears
for MSRP		41322A112-040*Contact Spears
for MSRP		512
641122A126-060*Contact Spears
for MSRP		41222A126-060*Contact Spears
for MSRP		41322A126-060*Contact Spears
for MSRP		512
841122A126-080*Contact Spears
for MSRP		41222A126-080*Contact Spears
for MSRP		41322A126-080*Contact Spears
for MSRP		512
1041122A126-100*Contact Spears
for MSRP		41222A126-100*Contact Spears
for MSRP		41322A126-100*Contact Spears
for MSRP		512
1241122A123-120*Contact Spears
for MSRP		41222A123-120*Contact Spears
for MSRP		41322A123-120*Contact Spears
for MSRP		512
CPVC - Zinc Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/241112A112-015*Contact Spears
for MSRP		41212A112-015*Contact Spears
for MSRP		41312A112-015*Contact Spears
for MSRP		512
241112A112-020*Contact Spears
for MSRP		41212A112-020*Contact Spears
for MSRP		41312A112-020*Contact Spears
for MSRP		512
2-1/241112A112-025*Contact Spears
for MSRP		41212A112-025*Contact Spears
for MSRP		41312A112-025*Contact Spears
for MSRP		512
341112A112-030*Contact Spears
for MSRP		41212A112-030*Contact Spears
for MSRP		41312A112-030*Contact Spears
for MSRP		512
441112A112-040*Contact Spears
for MSRP		41212A112-040*Contact Spears
for MSRP		41312A112-040*Contact Spears
for MSRP		512
641112A126-060*Contact Spears
for MSRP		41212A126-060*Contact Spears
for MSRP		41312A126-060*Contact Spears
for MSRP		512
841112A126-080*Contact Spears
for MSRP		41212A126-080*Contact Spears
for MSRP		41312A126-080*Contact Spears
for MSRP		512
1041112A126-100*Contact Spears
for MSRP		41212A126-100*Contact Spears
for MSRP		41312A126-100*Contact Spears
for MSRP		512
1241112A123-120*Contact Spears
for MSRP		41212A123-120*Contact Spears
for MSRP		41312A123-120*Contact Spears
for MSRP		512

Premium Actuated Lug Insert Butterfly Valve - Pneumatic
Industrial grade valve with factory assembled lug inserts. Patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C)
  • Zinc or SS Lug Inserts
  • 80 psi Operating Pressure, other options available
  • 2-Position Air-Air or Air-Spring Closed (optional spring open)
  • Dual Rack & Pinion with Adjustable Stops
  • Manual Override
  • Position Indicator
See Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves for Add-on Actuator Accessories
PVC - Stainless Steel Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41121H101-015*Contact Spears
for MSRP		41221H101-015*Contact Spears
for MSRP		41321H101-015*Contact Spears
for MSRP		540
1-1/2 Air to Spring41121J101-015*Contact Spears
for MSRP		41221J101-015*Contact Spears
for MSRP		41321J101-015*Contact Spears
for MSRP		540
2 Air to Air41121H101-020*Contact Spears
for MSRP		41221H101-020*Contact Spears
for MSRP		41321H101-020*Contact Spears
for MSRP		540
2 Air to Spring41121J101-020*Contact Spears
for MSRP		41221J101-020*Contact Spears
for MSRP		41321J101-020*Contact Spears
for MSRP		540
2-1/2 Air to Air41121H101-025*Contact Spears
for MSRP		41221H101-025*Contact Spears
for MSRP		41321H101-025*Contact Spears
for MSRP		540
2-1/2 Air to Spring41121J101-025*Contact Spears
for MSRP		41221J101-025*Contact Spears
for MSRP		41321J101-025*Contact Spears
for MSRP		540
3 Air to Air41121H101-030*Contact Spears
for MSRP		41221H101-030*Contact Spears
for MSRP		41321H101-030*Contact Spears
for MSRP		540
3 Air to Spring41121J101-030*Contact Spears
for MSRP		41221J101-030*Contact Spears
for MSRP		41321J101-030*Contact Spears
for MSRP		540
4 Air to Air41121H101-040*Contact Spears
for MSRP		41221H101-040*Contact Spears
for MSRP		41321H101-040*Contact Spears
for MSRP		540
4 Air to Spring41121J101-040*Contact Spears
for MSRP		41221J101-040*Contact Spears
for MSRP		41321J101-040*Contact Spears
for MSRP		540
6 Air to Air41121H101-060*Contact Spears
for MSRP		41221H101-060*Contact Spears
for MSRP		41321H101-060*Contact Spears
for MSRP		540
6 Air to Spring41121J101-060*Contact Spears
for MSRP		41221J101-060*Contact Spears
for MSRP		41321J101-060*Contact Spears
for MSRP		540
8 Air to Air41121H101-080*Contact Spears
for MSRP		41221H101-080*Contact Spears
for MSRP		41321H101-080*Contact Spears
for MSRP		540
8 Air to Spring41121J101-080*Contact Spears
for MSRP		41221J101-080*Contact Spears
for MSRP		41321J101-080*Contact Spears
for MSRP		540
10 Air to Air41121H101-100*Contact Spears
for MSRP		41221H101-100*Contact Spears
for MSRP		41321H101-100*Contact Spears
for MSRP		540
10 Air to Spring41121J101-100*Contact Spears
for MSRP		41221J101-100*Contact Spears
for MSRP		41321J101-100*Contact Spears
for MSRP		540
12 Air to Air41121H101-120*Contact Spears
for MSRP		41221H101-120*Contact Spears
for MSRP		41321H101-120*Contact Spears
for MSRP		540
12 Air to Spring41121J101-120*Contact Spears
for MSRP		41221J101-120*Contact Spears
for MSRP		41321J101-120*Contact Spears
for MSRP		540
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 14
Actuated Valves Product
Premium Actuated Lug Insert Butterfly Valve - Pneumatic & Premium Actuated Lug Insert Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated Lug Insert Butterfly Valve - Pneumatic
PVC - Stainless Steel Lug Inserts (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code

NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
PVC - Zinc Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41111H101-015*Contact Spears
for MSRP		41211H101-015*Contact Spears
for MSRP		41311H101-015*Contact Spears
for MSRP		540
1-1/2 Air to Spring41111J101-015*Contact Spears
for MSRP		41211J101-015*Contact Spears
for MSRP		41311J101-015*Contact Spears
for MSRP		540
2 Air to Air41111H101-020*Contact Spears
for MSRP		41211H101-020*Contact Spears
for MSRP		41311H101-020*Contact Spears
for MSRP		540
2 Air to Spring41111J101-020*Contact Spears
for MSRP		41211J101-020*Contact Spears
for MSRP		41311J101-020*Contact Spears
for MSRP		540
2-1/2 Air to Air41111H101-025*Contact Spears
for MSRP		41211H101-025*Contact Spears
for MSRP		41311H101-025*Contact Spears
for MSRP		540
2-1/2 Air to Spring41111J101-025*Contact Spears
for MSRP		41211J101-025*Contact Spears
for MSRP		41311J101-025*Contact Spears
for MSRP		540
3 Air to Air41111H101-030*Contact Spears
for MSRP		41211H101-030*Contact Spears
for MSRP		41311H101-030*Contact Spears
for MSRP		540
3 Air to Spring41111J101-030*Contact Spears
for MSRP		41211J101-030*Contact Spears
for MSRP		41311J101-030*Contact Spears
for MSRP		540
4 Air to Air41111H101-040*Contact Spears
for MSRP		41211H101-040*Contact Spears
for MSRP		41311H101-040*Contact Spears
for MSRP		540
4 Air to Spring41111J101-040*Contact Spears
for MSRP		41211J101-040*Contact Spears
for MSRP		41311J101-040*Contact Spears
for MSRP		540
6 Air to Air41111H101-060*Contact Spears
for MSRP		41211H101-060*Contact Spears
for MSRP		41311H101-060*Contact Spears
for MSRP		540
6 Air to Spring41111J101-060*Contact Spears
for MSRP		41211J101-060*Contact Spears
for MSRP		41311J101-060*Contact Spears
for MSRP		540
8 Air to Air41111H101-080*Contact Spears
for MSRP		41211H101-080*Contact Spears
for MSRP		41311H101-080*Contact Spears
for MSRP		540
8 Air to Spring41111J101-080*Contact Spears
for MSRP		41211J101-080*Contact Spears
for MSRP		41311J101-080*Contact Spears
for MSRP		540
10 Air to Air41111H101-100*Contact Spears
for MSRP		41211H101-100*Contact Spears
for MSRP		41311H101-100*Contact Spears
for MSRP		540
10 Air to Spring41111J101-100*Contact Spears
for MSRP		41211J101-100*Contact Spears
for MSRP		41311J101-100*Contact Spears
for MSRP		540
12 Air to Air41111H101-120*Contact Spears
for MSRP		41211H101-120*Contact Spears
for MSRP		41311H101-120*Contact Spears
for MSRP		540
12 Air to Spring41111J101-120*Contact Spears
for MSRP		41211J101-120*Contact Spears
for MSRP		41311J101-120*Contact Spears
for MSRP		540

NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
CPVC - Stainless Steel Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41122H101-015*Contact Spears
for MSRP		41222H101-015*Contact Spears
for MSRP		41322H101-015*Contact Spears
for MSRP		542
1-1/2 Air to Spring41122J101-015*Contact Spears
for MSRP		41222J101-015*Contact Spears
for MSRP		41322J101-015*Contact Spears
for MSRP		542
2 Air to Air41122H101-020*Contact Spears
for MSRP		41222H101-020*Contact Spears
for MSRP		41322H101-020*Contact Spears
for MSRP		542
2 Air to Spring41122J101-020*Contact Spears
for MSRP		41222J101-020*Contact Spears
for MSRP		41322J101-020*Contact Spears
for MSRP		542
2-1/2 Air to Air41122H101-025*Contact Spears
for MSRP		41222H101-025*Contact Spears
for MSRP		41322H101-025*Contact Spears
for MSRP		542
2-1/2 Air to Spring41122J101-025*Contact Spears
for MSRP		41222J101-025*Contact Spears
for MSRP		41322J101-025*Contact Spears
for MSRP		542
3 Air to Air41122H101-030*Contact Spears
for MSRP		41222H101-030*Contact Spears
for MSRP		41322H101-030*Contact Spears
for MSRP		542

CPVC - Stainless Steel Lug Inserts (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
3 Air to Spring41122J101-030*Contact Spears
for MSRP		41222J101-030*Contact Spears
for MSRP		41322J101-030*Contact Spears
for MSRP		542
4 Air to Air41122H101-040*Contact Spears
for MSRP		41222H101-040*Contact Spears
for MSRP		41322H101-040*Contact Spears
for MSRP		542
4 Air to Spring41122J101-040*Contact Spears
for MSRP		41222J101-040*Contact Spears
for MSRP		41322J101-040*Contact Spears
for MSRP		542
6 Air to Air41122H101-060*Contact Spears
for MSRP		41222H101-060*Contact Spears
for MSRP		41322H101-060*Contact Spears
for MSRP		542
6 Air to Spring41122J101-060*Contact Spears
for MSRP		41222J101-060*Contact Spears
for MSRP		41322J101-060*Contact Spears
for MSRP		542
8 Air to Air41122H101-080*Contact Spears
for MSRP		41222H101-080*Contact Spears
for MSRP		41322H101-080*Contact Spears
for MSRP		542
8 Air to Spring41122J101-080*Contact Spears
for MSRP		41222J101-080*Contact Spears
for MSRP		41322J101-080*Contact Spears
for MSRP		542
10 Air to Air41122H101-100*Contact Spears
for MSRP		41222H101-100*Contact Spears
for MSRP		41322H101-100*Contact Spears
for MSRP		542
10 Air to Spring41122J101-100*Contact Spears
for MSRP		41222J101-100*Contact Spears
for MSRP		41322J101-100*Contact Spears
for MSRP		542
12 Air to Air41122H101-120*Contact Spears
for MSRP		41222H101-120*Contact Spears
for MSRP		41322H101-120*Contact Spears
for MSRP		542
12 Air to Spring41122J101-120*Contact Spears
for MSRP		41222J101-120*Contact Spears
for MSRP		41322J101-120*Contact Spears
for MSRP		542

NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
CPVC - Zinc Lug Inserts
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air41112H101-015*Contact Spears
for MSRP		41212H101-015*Contact Spears
for MSRP		41312H101-015*Contact Spears
for MSRP		542
1-1/2 Air to Spring41112J101-015*Contact Spears
for MSRP		41212J101-015*Contact Spears
for MSRP		41312J101-015*Contact Spears
for MSRP		542
2 Air to Air41112H101-020*Contact Spears
for MSRP		41212H101-020*Contact Spears
for MSRP		41312H101-020*Contact Spears
for MSRP		542
2 Air to Spring41112J101-020*Contact Spears
for MSRP		41212J101-020*Contact Spears
for MSRP		41312J101-020*Contact Spears
for MSRP		542
2-1/2 Air to Air41112H101-025*Contact Spears
for MSRP		41212H101-025*Contact Spears
for MSRP		41312H101-025*Contact Spears
for MSRP		542
2-1/2 Air to Spring41112J101-025*Contact Spears
for MSRP		41212J101-025*Contact Spears
for MSRP		41312J101-025*Contact Spears
for MSRP		542
3 Air to Air41112H101-030*Contact Spears
for MSRP		41212H101-030*Contact Spears
for MSRP		41312H101-030*Contact Spears
for MSRP		542
3 Air to Spring41112J101-030*Contact Spears
for MSRP		41212J101-030*Contact Spears
for MSRP		41312J101-030*Contact Spears
for MSRP		542
4 Air to Air41112H101-040*Contact Spears
for MSRP		41212H101-040*Contact Spears
for MSRP		41312H101-040*Contact Spears
for MSRP		542
4 Air to Spring41112J101-040*Contact Spears
for MSRP		41212J101-040*Contact Spears
for MSRP		41312J101-040*Contact Spears
for MSRP		542
6 Air to Air41112H101-060*Contact Spears
for MSRP		41212H101-060*Contact Spears
for MSRP		41312H101-060*Contact Spears
for MSRP		542
6 Air to Spring41112J101-060*Contact Spears
for MSRP		41212J101-060*Contact Spears
for MSRP		41312J101-060*Contact Spears
for MSRP		542
8 Air to Air41112H101-080*Contact Spears
for MSRP		41212H101-080*Contact Spears
for MSRP		41312H101-080*Contact Spears
for MSRP		542
8 Air to Spring41112J101-080*Contact Spears
for MSRP		41212J101-080*Contact Spears
for MSRP		41312J101-080*Contact Spears
for MSRP		542
10 Air to Air41112H101-100*Contact Spears
for MSRP		41212H101-100*Contact Spears
for MSRP		41312H101-100*Contact Spears
for MSRP		542
10 Air to Spring41112J101-100*Contact Spears
for MSRP		41212J101-100*Contact Spears
for MSRP		41312J101-100*Contact Spears
for MSRP		542
12 Air to Air41112H101-120*Contact Spears
for MSRP		41212H101-120*Contact Spears
for MSRP		41312H101-120*Contact Spears
for MSRP		542
12 Air to Spring41112J101-120*Contact Spears
for MSRP		41212J101-120*Contact Spears
for MSRP		41312J101-120*Contact Spears
for MSRP		542

NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
Page 15
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated True Lug Butterfly Valve - Electric & Premium Actuated True Lug Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated True Lug Butterfly Valve - Electric
Industrial grade valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

The following Features are Standard with Electric Actuated True Lug Butterfly Valve

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C) (Thru 12")
  • 14"-100 psi, 16"-85 psi
  • 18"-70 psi, 20"-24"-50 psi
  • 115 VAC standard, optional voltages available
  • 2-Position Operation with 2-SPDT Limit Switches
  • Additional set dry contacts SPDT limit Switches
  • NEMA 4 Enclosure, Powder Coated
  • Basic Manual Override 1-1/2 through 4"
    (Declutchable Available)
  • Declutchable Manual Override 6" through 12"
  • Illuminated Position Indicator
  • Heater
When ordering Butterfly Valves with additional Actuator Accessories add a "-A" to the end of the basic part number and see Electric Actuator Accessories for Butterfly Valves to order add-on Actuator Accessories separately.

EX: 51121A112-015 add the -A to create 51121A112-015-A.
PVC - Stainless Steel Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/251121A112-015*Contact Spears
for MSRP		51221A112-015*Contact Spears
for MSRP		51321A112-015*Contact Spears
for MSRP		510
251121A112-020*Contact Spears
for MSRP		51221A112-020*Contact Spears
for MSRP		51321A112-020*Contact Spears
for MSRP		510
2-1/251121A112-025*Contact Spears
for MSRP		51221A112-025*Contact Spears
for MSRP		51321A112-025*Contact Spears
for MSRP		510
351121A112-030*Contact Spears
for MSRP		51221A112-030*Contact Spears
for MSRP		51321A112-030*Contact Spears
for MSRP		510
451121A112-040*Contact Spears
for MSRP		51221A112-040*Contact Spears
for MSRP		51321A112-040*Contact Spears
for MSRP		510
651111A126-060*Contact Spears
for MSRP		51221A126-060*Contact Spears
for MSRP		51321A126-060*Contact Spears
for MSRP		510
851111A126-080*Contact Spears
for MSRP		51221A126-080*Contact Spears
for MSRP		51321A126-080*Contact Spears
for MSRP		510
1051111A126-100*Contact Spears
for MSRP		51221A126-100*Contact Spears
for MSRP		51321A126-100*Contact Spears
for MSRP		510
1251121A123-120*Contact Spears
for MSRP		51221A123-120*Contact Spears
for MSRP		51321A123-120*Contact Spears
for MSRP		510
PVC - Zinc Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/251111A112-015*Contact Spears
for MSRP		51211A112-015*Contact Spears
for MSRP		51311A112-015*Contact Spears
for MSRP		510
251111A112-020*Contact Spears
for MSRP		51211A112-020*Contact Spears
for MSRP		51311A112-020*Contact Spears
for MSRP		510
2-1/251111A112-025*Contact Spears
for MSRP		51211A112-025*Contact Spears
for MSRP		51311A112-025*Contact Spears
for MSRP		510
351111A112-030*Contact Spears
for MSRP		51211A112-030*Contact Spears
for MSRP		51311A112-030*Contact Spears
for MSRP		510
451111A112-040*Contact Spears
for MSRP		51211A112-040*Contact Spears
for MSRP		51311A112-040*Contact Spears
for MSRP		510
651111A126-060*Contact Spears
for MSRP		51211A126-060*Contact Spears
for MSRP		51311A126-060*Contact Spears
for MSRP		510
851111A126-080*Contact Spears
for MSRP		51211A126-080*Contact Spears
for MSRP		51311A126-080*Contact Spears
for MSRP		510
1051111A126-100*Contact Spears
for MSRP		51211A126-100*Contact Spears
for MSRP		51311A126-100*Contact Spears
for MSRP		510
1251111A123-120*Contact Spears
for MSRP		51211A123-120*Contact Spears
for MSRP		51311A123-120*Contact Spears
for MSRP		510
CPVC - Stainless Steel Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/251122A112-015*Contact Spears
for MSRP		51222A112-015*Contact Spears
for MSRP		51322A112-015*Contact Spears
for MSRP		512
251122A112-020*Contact Spears
for MSRP		51222A112-020*Contact Spears
for MSRP		51322A112-020*Contact Spears
for MSRP		512
2-1/251122A112-025*Contact Spears
for MSRP		51222A112-025*Contact Spears
for MSRP		51322A112-025*Contact Spears
for MSRP		512

CPVC - Stainless Steel Lugs (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
351122A112-030*Contact Spears
for MSRP		51222A112-030*Contact Spears
for MSRP		51322A112-030*Contact Spears
for MSRP		512
451122A112-040*Contact Spears
for MSRP		51222A112-040*Contact Spears
for MSRP		51322A112-040*Contact Spears
for MSRP		512
651122A126-060*Contact Spears
for MSRP		51222A126-060*Contact Spears
for MSRP		51322A126-060*Contact Spears
for MSRP		512
851122A126-080*Contact Spears
for MSRP		51222A126-080*Contact Spears
for MSRP		51322A126-080*Contact Spears
for MSRP		512
1051122A126-100*Contact Spears
for MSRP		51222A126-100*Contact Spears
for MSRP		51322A126-100*Contact Spears
for MSRP		512
1251122A123-120*Contact Spears
for MSRP		51222A123-120*Contact Spears
for MSRP		51322A123-120*Contact Spears
for MSRP		512
CPVC - Zinc Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/251112A112-015*Contact Spears
for MSRP		51212A112-015*Contact Spears
for MSRP		51312A112-015*Contact Spears
for MSRP		512
251112A112-020*Contact Spears
for MSRP		51212A112-020*Contact Spears
for MSRP		51312A112-020*Contact Spears
for MSRP		512
2-1/251112A112-025*Contact Spears
for MSRP		51212A112-025*Contact Spears
for MSRP		51312A112-025*Contact Spears
for MSRP		512
351112A112-030*Contact Spears
for MSRP		51212A112-030*Contact Spears
for MSRP		51312A112-030*Contact Spears
for MSRP		512
451112A112-040*Contact Spears
for MSRP		51212A112-040*Contact Spears
for MSRP		51312A112-040*Contact Spears
for MSRP		512
651112A126-060*Contact Spears
for MSRP		51212A126-060*Contact Spears
for MSRP		51312A126-060*Contact Spears
for MSRP		512
851112A126-080*Contact Spears
for MSRP		51212A126-080*Contact Spears
for MSRP		51312A126-080*Contact Spears
for MSRP		512
1051112A126-100*Contact Spears
for MSRP		51212A126-100*Contact Spears
for MSRP		51312A126-100*Contact Spears
for MSRP		512
1251112A123-120*Contact Spears
for MSRP		51212A123-120*Contact Spears
for MSRP		51312A123-120*Contact Spears
for MSRP		512
Premium Actuated True Lug Butterfly Valve - Pneumatic
Industrial grade lug style valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.

  • Solid SS316L Stem
  • ANSI Class 150 Bolt Pattern
  • 150 psi @ 73°F (23°C)
  • Zinc or SS Lugs
  • 80 psi Operating Pressure, other options available
  • 2-Position Air-Air or Air-Spring Closed (optional spring open)
  • Dual Rack & Pinion with Adjustable Stops
  • Manual Override
  • Position Indicator
See Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves for Add-on Actuator Accessories
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
PVC - Stainless Steel Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air51121H101-015*Contact Spears
for MSRP		51221H101-015*Contact Spears
for MSRP		51321H101-015*Contact Spears
for MSRP		540
1-1/2 Air to Spring51121J101-015*Contact Spears
for MSRP		51221J101-015*Contact Spears
for MSRP		51321J101-015*Contact Spears
for MSRP		540
2 Air to Air51121H101-020*Contact Spears
for MSRP		51221H101-020*Contact Spears
for MSRP		51321H101-020*Contact Spears
for MSRP		540
2 Air to Spring51121J101-020*Contact Spears
for MSRP		51221J101-020*Contact Spears
for MSRP		51321J101-020*Contact Spears
for MSRP		540
2-1/2 Air to Air51121H101-025*Contact Spears
for MSRP		51221H101-025*Contact Spears
for MSRP		51321H101-025*Contact Spears
for MSRP		540
2-1/2 Air to Spring51121J101-025*Contact Spears
for MSRP		51221J101-025*Contact Spears
for MSRP		51321J101-025*Contact Spears
for MSRP		540
3 Air to Air51121H101-030*Contact Spears
for MSRP		51221H101-030*Contact Spears
for MSRP		51321H101-030*Contact Spears
for MSRP		540
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 16
Actuated Valves Product
Premium Actuated True Lug Butterfly Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated True Lug Butterfly Valve - Pneumatic
PVC - Stainless Steel Lugs (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
3 Air to Spring51121J101-030*Contact Spears
for MSRP		51221J101-030*Contact Spears
for MSRP		51321J101-030*Contact Spears
for MSRP		540
4 Air to Air51121H101-040*Contact Spears
for MSRP		51221H101-040*Contact Spears
for MSRP		51321H101-040*Contact Spears
for MSRP		540
4 Air to Spring51121J101-040*Contact Spears
for MSRP		51221J101-040*Contact Spears
for MSRP		51321J101-040*Contact Spears
for MSRP		540
6 Air to Air51121H101-060*Contact Spears
for MSRP		51221H101-060*Contact Spears
for MSRP		51321H101-060*Contact Spears
for MSRP		540
6 Air to Spring51121J101-060*Contact Spears
for MSRP		51221J101-060*Contact Spears
for MSRP		51321J101-060*Contact Spears
for MSRP		540
8 Air to Air51121H101-080*Contact Spears
for MSRP		51221H101-080*Contact Spears
for MSRP		51321H101-080*Contact Spears
for MSRP		540
8 Air to Spring51121J101-080*Contact Spears
for MSRP		51221J101-080*Contact Spears
for MSRP		51321J101-080*Contact Spears
for MSRP		540
10 Air to Air51121H101-100*Contact Spears
for MSRP		51221H101-100*Contact Spears
for MSRP		51321H101-100*Contact Spears
for MSRP		540
10 Air to Spring51121J101-100*Contact Spears
for MSRP		51221J101-100*Contact Spears
for MSRP		51321J101-100*Contact Spears
for MSRP		540
12 Air to Air51121H101-120*Contact Spears
for MSRP		51221H101-120*Contact Spears
for MSRP		51321H101-120*Contact Spears
for MSRP		540
12 Air to Spring51121J101-120*Contact Spears
for MSRP		51221J101-120*Contact Spears
for MSRP		51321J101-120*Contact Spears
for MSRP		540
PVC - Zinc Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air51111H101-015*Contact Spears
for MSRP		51211H101-015*Contact Spears
for MSRP		51311H101-015*Contact Spears
for MSRP		540
1-1/2 Air to Spring51111J101-015*Contact Spears
for MSRP		51211J101-015*Contact Spears
for MSRP		51311J101-015*Contact Spears
for MSRP		540
2 Air to Air51111H101-020*Contact Spears
for MSRP		51211H101-020*Contact Spears
for MSRP		51311H101-020*Contact Spears
for MSRP		540
2 Air to Spring51111J101-020*Contact Spears
for MSRP		51211J101-020*Contact Spears
for MSRP		51311J101-020*Contact Spears
for MSRP		540
2-1/2 Air to Air51111H101-025*Contact Spears
for MSRP		51211H101-025*Contact Spears
for MSRP		51311H101-025*Contact Spears
for MSRP		540
2-1/2 Air to Spring51111J101-025*Contact Spears
for MSRP		51211J101-025*Contact Spears
for MSRP		51311J101-025*Contact Spears
for MSRP		540
3 Air to Air51111H101-030*Contact Spears
for MSRP		51211H101-030*Contact Spears
for MSRP		51311H101-030*Contact Spears
for MSRP		540
3 Air to Spring51111J101-030*Contact Spears
for MSRP		51211J101-030*Contact Spears
for MSRP		51311J101-030*Contact Spears
for MSRP		540
4 Air to Air51111H101-040*Contact Spears
for MSRP		51211H101-040*Contact Spears
for MSRP		51311H101-040*Contact Spears
for MSRP		540
4 Air to Spring51111J101-040*Contact Spears
for MSRP		51211J101-040*Contact Spears
for MSRP		51311J101-040*Contact Spears
for MSRP		540
6 Air to Air51111H101-060*Contact Spears
for MSRP		51211H101-060*Contact Spears
for MSRP		51311H101-060*Contact Spears
for MSRP		540
6 Air to Spring51111J101-060*Contact Spears
for MSRP		51211J101-060*Contact Spears
for MSRP		51311J101-060*Contact Spears
for MSRP		540
8 Air to Air51111H101-080*Contact Spears
for MSRP		51211H101-080*Contact Spears
for MSRP		51311H101-080*Contact Spears
for MSRP		540
8 Air to Spring51111J101-080*Contact Spears
for MSRP		51211J101-080*Contact Spears
for MSRP		51311J101-080*Contact Spears
for MSRP		540
10 Air to Air51111H101-100*Contact Spears
for MSRP		51211H101-100*Contact Spears
for MSRP		51311H101-100*Contact Spears
for MSRP		540
10 Air to Spring51111J101-100*Contact Spears
for MSRP		51211J101-100*Contact Spears
for MSRP		51311J101-100*Contact Spears
for MSRP		540
12 Air to Air51111H101-120*Contact Spears
for MSRP		51211H101-120*Contact Spears
for MSRP		51311H101-120*Contact Spears
for MSRP		540
12 Air to Spring51111J101-120*Contact Spears
for MSRP		51211J101-120*Contact Spears
for MSRP		51311J101-120*Contact Spears
for MSRP		540
CPVC - Stainless Steel Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air51122H101-015*Contact Spears
for MSRP		51222H101-015*Contact Spears
for MSRP		51322H101-015*Contact Spears
for MSRP		542

CPVC - Stainless Steel Lugs (continued)
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Spring51122J101-015*Contact Spears
for MSRP		51222J101-015*Contact Spears
for MSRP		51322J101-015*Contact Spears
for MSRP		542
2 Air to Air51122H101-020*Contact Spears
for MSRP		51222H101-020*Contact Spears
for MSRP		51322H101-020*Contact Spears
for MSRP		542
2 Air to Spring51122J101-020*Contact Spears
for MSRP		51222J101-020*Contact Spears
for MSRP		51322J101-020*Contact Spears
for MSRP		542
2-1/2 Air to Air51122H101-025*Contact Spears
for MSRP		51222H101-025*Contact Spears
for MSRP		51322H101-025*Contact Spears
for MSRP		542
2-1/2 Air to Spring51122J101-025*Contact Spears
for MSRP		51222J101-025*Contact Spears
for MSRP		51322J101-025*Contact Spears
for MSRP		542
3 Air to Air51122H101-030*Contact Spears
for MSRP		51222H101-030*Contact Spears
for MSRP		51322H101-030*Contact Spears
for MSRP		542
3 Air to Spring51122J101-030*Contact Spears
for MSRP		51222J101-030*Contact Spears
for MSRP		51322J101-030*Contact Spears
for MSRP		542
4 Air to Air51122H101-040*Contact Spears
for MSRP		51222H101-040*Contact Spears
for MSRP		51322H101-040*Contact Spears
for MSRP		542
4 Air to Spring51122J101-040*Contact Spears
for MSRP		51222J101-040*Contact Spears
for MSRP		51322J101-040*Contact Spears
for MSRP		542
6 Air to Air51122H101-060*Contact Spears
for MSRP		51222H101-060*Contact Spears
for MSRP		51322H101-060*Contact Spears
for MSRP		542
6 Air to Spring51122J101-060*Contact Spears
for MSRP		51222J101-060*Contact Spears
for MSRP		51322J101-060*Contact Spears
for MSRP		542
8 Air to Air51122H101-080*Contact Spears
for MSRP		51222H101-080*Contact Spears
for MSRP		51322H101-080*Contact Spears
for MSRP		542
8 Air to Spring51122J101-080*Contact Spears
for MSRP		51222J101-080*Contact Spears
for MSRP		51322J101-080*Contact Spears
for MSRP		542
10 Air to Air51122H101-100*Contact Spears
for MSRP		51222H101-100*Contact Spears
for MSRP		51322H101-100*Contact Spears
for MSRP		542
10 Air to Spring51122J101-100*Contact Spears
for MSRP		51222J101-100*Contact Spears
for MSRP		51322J101-100*Contact Spears
for MSRP		542
12 Air to Air51122H101-120*Contact Spears
for MSRP		51222H101-120*Contact Spears
for MSRP		51322H101-120*Contact Spears
for MSRP		542
12 Air to Spring51122J101-120*Contact Spears
for MSRP		51222J101-120*Contact Spears
for MSRP		51322J101-120*Contact Spears
for MSRP		542
CPVC - Zinc Lugs
SizeBuna-N O-ringEPDM O-ringFKM O-ringProd
Code
1-1/2 Air to Air51112H101-015*Contact Spears
for MSRP		51212H101-015*Contact Spears
for MSRP		51312H101-015*Contact Spears
for MSRP		542
1-1/2 Air to Spring51112J101-015*Contact Spears
for MSRP		51212J101-015*Contact Spears
for MSRP		51312J101-015*Contact Spears
for MSRP		542
2 Air to Air51112H101-020*Contact Spears
for MSRP		51212H101-020*Contact Spears
for MSRP		51312H101-020*Contact Spears
for MSRP		542
2 Air to Spring51112J101-020*Contact Spears
for MSRP		51212J101-020*Contact Spears
for MSRP		51312J101-020*Contact Spears
for MSRP		542
2-1/2 Air to Air51112H101-025*Contact Spears
for MSRP		51212H101-025*Contact Spears
for MSRP		51312H101-025*Contact Spears
for MSRP		542
2-1/2 Air to Spring51112J101-025*Contact Spears
for MSRP		51212J101-025*Contact Spears
for MSRP		51312J101-025*Contact Spears
for MSRP		542
3 Air to Air51112H101-030*Contact Spears
for MSRP		51212H101-030*Contact Spears
for MSRP		51312H101-030*Contact Spears
for MSRP		542
3 Air to Spring51112J101-030*Contact Spears
for MSRP		51212J101-030*Contact Spears
for MSRP		51312J101-030*Contact Spears
for MSRP		542
4 Air to Air51112H101-040*Contact Spears
for MSRP		51212H101-040*Contact Spears
for MSRP		51312H101-040*Contact Spears
for MSRP		542
4 Air to Spring51112J101-040*Contact Spears
for MSRP		51212J101-040*Contact Spears
for MSRP		51312J101-040*Contact Spears
for MSRP		542
6 Air to Air51112H101-060*Contact Spears
for MSRP		51212H101-060*Contact Spears
for MSRP		51312H101-060*Contact Spears
for MSRP		542
6 Air to Spring51112J101-060*Contact Spears
for MSRP		51212J101-060*Contact Spears
for MSRP		51312J101-060*Contact Spears
for MSRP		542
8 Air to Air51112H101-080*Contact Spears
for MSRP		51212H101-080*Contact Spears
for MSRP		51312H101-080*Contact Spears
for MSRP		542
8 Air to Spring51112J101-080*Contact Spears
for MSRP		51212J101-080*Contact Spears
for MSRP		51312J101-080*Contact Spears
for MSRP		542
10 Air to Air51112H101-100*Contact Spears
for MSRP		51212H101-100*Contact Spears
for MSRP		51312H101-100*Contact Spears
for MSRP		542
10 Air to Spring51112J101-100*Contact Spears
for MSRP		51212J101-100*Contact Spears
for MSRP		51312J101-100*Contact Spears
for MSRP		542
12 Air to Air51112H101-120*Contact Spears
for MSRP		51212H101-120*Contact Spears
for MSRP		51312H101-120*Contact Spears
for MSRP		542
12 Air to Spring51112J101-120*Contact Spears
for MSRP		51212J101-120*Contact Spears
for MSRP		51312J101-120*Contact Spears
for MSRP		542
Page 17
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Electric Actuator Accessories for Butterfly Valves
Print this Book
Print this Book

AccessoryDescriptionAccessory
Part Number		Prod
Code
Digital Modulating Board 0-10V/0-5V/1-5V/4-20mA (Specify setting at time of order) 120 VAC DIG HI RES POSITIONING CARD ONLYA-PB01-AA-CD-RF298
Digital Potentiometer FEEDBACK POT 360° CONTINUOUSA-PO45-00-00-RH298
Digital Transmitter 4-20MA TRANSMITTER FOR DHC-100A POS BRDA-TR33-AK-CD-00298
Analog Modulating Board 0-10V/0-5V/4-20mA (Specify setting at time of order) 120V 2A PROPORTIONAL POSITIONING CONTROL for SIZES 1-1/2 - 4A-MC01-AC-CA-RC298
120V 5A PROPORTIONAL POSITIONING CONTROL for SIZES 6 - 12A-MC01-AC-CA-RD298
Analog Potentiometer FEEDBACK POT 360° CONTINUOUSA-PO45-00-00-RH298
Analog Transmitter 4-20mA 4-20 MA TRANSMITTER FOR ANALOG FEED BACKA-TR33-AB-CE-RH298
Analog Transmitter 0-5V/0-10V 0-10V TRANSMITTER FOR ANALOG FEED BACKA-TR33-AK-CA-RH298
Installation bracket (required for any configuration) MOUNTING KIT FOR 005 ACTUATOR on 1/2"- 3" Ball Valves, 1-1/2"-4" Butterfly ValvesA-PK40-00-00-RA298
MOUNTING KIT FOR 015/019/028 ACTUATORS on 6" Ball Valves, 6" - 12" Butterfly ValvesA-PK42-00-00-RD298
ID TagType 316 Stainless Steel ID Tag 1-1/2” x 3” (3-lines, 12-characters & spaces)TAG3-015001
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 18
Actuated Valves Product
Tandem Actuated Butterfly Valves
Print this Book
Print this Book

Tandem Actuated Butterfly Valves
Custom configured and produced to order, Spears® Tandem Actuated Butterfly Valves are available in multiple configurations to meet variety of operational needs. Tandem Actuated Butterfly Valves utilize a Tee-Style configuration for 3-way or diverting operation where two (2) valves are operated from one (1) actuator.
Multi-Featured Options:
  • Tandem 3-Way: two valves operated from one actuator, both closing or both opening at the same time.
  • Tandem Diverting: two valves operated from one actuator, one opening while the other closes.
  • Variable Valve Orientation Available
  • Multi Seat Material Options including EPDM, FKM, Buna-N, and PTFE Sleeved Seats.
  • Multi Flanged Connection Options including Standard, Lug-Insert or True-Lug Style Valves
  • Multi Actuation Option, including Electric or Pneumatic with a host of Actuation Accessories for each
    • (see Electric or Pneumatic Actuator Accessories for Butterfly Valves)


Pressure Rating @ 73°F (23°C), Water
  • 150 psi for Sizes through 12"
  • (Larger Sizes Available)


Maximum Service Temperature
  • PVC = 140°F (60°C)
  • CPVC = 200°F (93°C)
  • Temperature/Pressure De-ratings Apply

CONTACT SPEARS® FOR SELECTION ASSISTANCE & MSRP
Page 19
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Diaphragm Valve - Electric
Print this Book
Print this Book


Industrial grade Weir-type design, excellent for throttling and use with viscous fluids. Full-featured actuator can be custom configured with add-on accessories.

Stainless Steel Hardware

235 psi @ 73°F (23°C) - sizes 1/2"- 2" (flanged & PTFE diaphragm-150 psi), 2-1/2"- 4"-150 psi

115 VAC standard, optional voltages available

Multi-turn Operation with 2-SPDT Limit Switches

NEMA 4 Enclosure, Powder Coated

See Electric Actuator Accessories for Add-on Actuator Accessories

NOTE: "Socket" valves up to 2" size include standard plastic thread end connectors.


PVC - EPDM and FKM Diaphragms
MaterialEPDM O-ring & EPDM DiaphragmFKM O-ring & FKM DiaphragmProd
Code
JointSocketSR ThreadedSpigotFlangedSocketSR ThreadSpigotFlanged
SizePart #Part #Part #Part #Part #Part #Part #Part #
1/291121A101-005*Contact Spears
for MSRP		93121A101-005*Contact Spears
for MSRP		94021A101-005*Contact Spears
for MSRP		95021A101-005*Contact Spears
for MSRP		91231A101-005*Contact Spears
for MSRP		93231A101-005*Contact Spears
for MSRP		94031A101-005*Contact Spears
for MSRP		95031A101-005*Contact Spears
for MSRP		520
3/491121A101-007*Contact Spears
for MSRP		93121A101-007*Contact Spears
for MSRP		94021A101-007*Contact Spears
for MSRP		95021A101-007*Contact Spears
for MSRP		91231A101-007*Contact Spears
for MSRP		93231A101-007*Contact Spears
for MSRP		94031A101-007*Contact Spears
for MSRP		95031A101-007*Contact Spears
for MSRP		520
191121A101-010*Contact Spears
for MSRP		93121A101-010*Contact Spears
for MSRP		94021A101-010*Contact Spears
for MSRP		95021A101-010*Contact Spears
for MSRP		91231A101-010*Contact Spears
for MSRP		93231A101-010*Contact Spears
for MSRP		94031A101-010*Contact Spears
for MSRP		95031A101-010*Contact Spears
for MSRP		520
1-1/491121A101-012*Contact Spears
for MSRP		93121A101-012*Contact Spears
for MSRP		94021A101-012*Contact Spears
for MSRP		95021A101-012*Contact Spears
for MSRP		91231A101-012*Contact Spears
for MSRP		93231A101-012*Contact Spears
for MSRP		94031A101-012*Contact Spears
for MSRP		95031A101-012*Contact Spears
for MSRP		520
1-1/291121A101-015*Contact Spears
for MSRP		93121A101-015*Contact Spears
for MSRP		94021A101-015*Contact Spears
for MSRP		95021A101-015*Contact Spears
for MSRP		91231A101-015*Contact Spears
for MSRP		93231A101-015*Contact Spears
for MSRP		94031A101-015*Contact Spears
for MSRP		95031A101-015*Contact Spears
for MSRP		520
291121A101-020*Contact Spears
for MSRP		93121A101-020*Contact Spears
for MSRP		94021A101-020*Contact Spears
for MSRP		95021A101-020*Contact Spears
for MSRP		91231A101-020*Contact Spears
for MSRP		93231A101-020*Contact Spears
for MSRP		94031A101-020*Contact Spears
for MSRP		95031A101-020*Contact Spears
for MSRP		520
2-1/295021A101-025*Contact Spears
for MSRP		95031A101-025*Contact Spears
for MSRP		520
395021A101-030*Contact Spears
for MSRP		95031A101-030*Contact Spears
for MSRP		520
495021A101-040*Contact Spears
for MSRP		95031A101-040*Contact Spears
for MSRP		520
PVC - Elastomer Backed Diaphragms
MaterialEPDM O-ring & EPDM Backed PTFE DiaphragmFKM O-ring & EPDM Backed PTFE DiaphragmProd
Code
JointSocketSR ThreadSpigotFlangedSocketSR ThreadSpigotFlanged
SizePart #Part #Part #Part #Part #Part #Part #Part #
1/291151A101-005*Contact Spears
for MSRP		93151A101-005*Contact Spears
for MSRP		94051A101-005*Contact Spears
for MSRP		95051A101-005*Contact Spears
for MSRP		91251A101-005*Contact Spears
for MSRP		93251A101-005*Contact Spears
for MSRP		520
3/491151A101-007*Contact Spears
for MSRP		93151A101-007*Contact Spears
for MSRP		94051A101-007*Contact Spears
for MSRP		95051A101-007*Contact Spears
for MSRP		91251A101-007*Contact Spears
for MSRP		93251A101-007*Contact Spears
for MSRP		520
191151A101-010*Contact Spears
for MSRP		93151A101-010*Contact Spears
for MSRP		94051A101-010*Contact Spears
for MSRP		95051A101-010*Contact Spears
for MSRP		91251A101-010*Contact Spears
for MSRP		93251A101-010*Contact Spears
for MSRP		520
1-1/491151A101-012*Contact Spears
for MSRP		93151A101-012*Contact Spears
for MSRP		94051A101-012*Contact Spears
for MSRP		95051A101-012*Contact Spears
for MSRP		91251A101-012*Contact Spears
for MSRP		93251A101-012*Contact Spears
for MSRP		520
1-1/291151A101-015*Contact Spears
for MSRP		93151A101-015*Contact Spears
for MSRP		94051A101-015*Contact Spears
for MSRP		95051A101-015*Contact Spears
for MSRP		91251A101-015*Contact Spears
for MSRP		93251A101-015*Contact Spears
for MSRP		520
291151A101-020*Contact Spears
for MSRP		93151A101-020*Contact Spears
for MSRP		94051A101-020*Contact Spears
for MSRP		95051A101-020*Contact Spears
for MSRP		91251A101-020*Contact Spears
for MSRP		93251A101-020*Contact Spears
for MSRP		520
2-1/295051A101-025*Contact Spears
for MSRP		520
395051A101-030*Contact Spears
for MSRP		520
495051A101-040*Contact Spears
for MSRP		520
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 20
Actuated Valves Product
Premium Actuated Diaphragm Valve - Electric
Print this Book
Print this Book

CPVC - EPDM and FKM Diaphragms
MaterialEPDM O-ring & EPDM DiaphragmFKM O-ring & FKM DiaphragmProd
Code
JointSocketSR ThreadSpigotFlangedSocketSR ThreadSpigotFlanged
SizePart #Part #Part #Part #Part #Part #Part #Part #
1/291122A101-005*Contact Spears
for MSRP		93122A101-005*Contact Spears
for MSRP		94022A101-005*Contact Spears
for MSRP		95022A101-005*Contact Spears
for MSRP		91232A101-005*Contact Spears
for MSRP		93232A101-005*Contact Spears
for MSRP		94032A101-005*Contact Spears
for MSRP		95032A101-005*Contact Spears
for MSRP		522
3/491122A101-007*Contact Spears
for MSRP		93122A101-007*Contact Spears
for MSRP		94022A101-007*Contact Spears
for MSRP		95022A101-007*Contact Spears
for MSRP		91232A101-007*Contact Spears
for MSRP		93232A101-007*Contact Spears
for MSRP		94032A101-007*Contact Spears
for MSRP		95032A101-007*Contact Spears
for MSRP		522
191122A101-010*Contact Spears
for MSRP		93122A101-010*Contact Spears
for MSRP		94022A101-010*Contact Spears
for MSRP		95022A101-010*Contact Spears
for MSRP		91232A101-010*Contact Spears
for MSRP		93232A101-010*Contact Spears
for MSRP		94032A101-010*Contact Spears
for MSRP		95032A101-010*Contact Spears
for MSRP		522
1-1/491122A101-012*Contact Spears
for MSRP		93122A101-012*Contact Spears
for MSRP		94022A101-012*Contact Spears
for MSRP		95022A101-012*Contact Spears
for MSRP		91232A101-012*Contact Spears
for MSRP		93232A101-012*Contact Spears
for MSRP		94032A101-012*Contact Spears
for MSRP		95032A101-012*Contact Spears
for MSRP		522
1-1/291122A101-015*Contact Spears
for MSRP		93122A101-015*Contact Spears
for MSRP		94022A101-015*Contact Spears
for MSRP		95022A101-015*Contact Spears
for MSRP		91232A101-015*Contact Spears
for MSRP		93232A101-015*Contact Spears
for MSRP		94032A101-015*Contact Spears
for MSRP		95032A101-015*Contact Spears
for MSRP		522
291122A101-020*Contact Spears
for MSRP		93122A101-020*Contact Spears
for MSRP		94022A101-020*Contact Spears
for MSRP		95022A101-020*Contact Spears
for MSRP		91232A101-020*Contact Spears
for MSRP		93232A101-020*Contact Spears
for MSRP		94032A101-020*Contact Spears
for MSRP		95032A101-020*Contact Spears
for MSRP		522
2-1/295022A101-025*Contact Spears
for MSRP		95032A101-025*Contact Spears
for MSRP		522
395022A101-030*Contact Spears
for MSRP		95032A101-030*Contact Spears
for MSRP		522
495022A101-040*Contact Spears
for MSRP		95032A101-040*Contact Spears
for MSRP		522
CPVC Premium Actuated Diaphragm Valves -Electric
MaterialEPDM O-ring & EPDM Backed PTFE DiaphragmFKM O-ring & EPDM Backed PTFE DiaphragmProd
Code
JointSocketSR ThreadSpigotFlangedSocketSR ThreadSpigotFlanged
SizePart #Part #Part #Part #Part #Part #Part #Part #
1/291152A101-005*Contact Spears
for MSRP		93152A101-005*Contact Spears
for MSRP		94052A101-005*Contact Spears
for MSRP		95052A101-005*Contact Spears
for MSRP		91252A101-005*Contact Spears
for MSRP		93252A101-005*Contact Spears
for MSRP		522
3/491152A101-007*Contact Spears
for MSRP		93152A101-007*Contact Spears
for MSRP		94052A101-007*Contact Spears
for MSRP		95052A101-007*Contact Spears
for MSRP		91252A101-007*Contact Spears
for MSRP		93252A101-007*Contact Spears
for MSRP		522
191152A101-010*Contact Spears
for MSRP		93152A101-010*Contact Spears
for MSRP		94052A101-010*Contact Spears
for MSRP		95052A101-010*Contact Spears
for MSRP		91252A101-010*Contact Spears
for MSRP		93252A101-010*Contact Spears
for MSRP		522
1-1/491152A101-012*Contact Spears
for MSRP		93152A101-012*Contact Spears
for MSRP		94052A101-012*Contact Spears
for MSRP		95052A101-012*Contact Spears
for MSRP		91252A101-012*Contact Spears
for MSRP		93252A101-012*Contact Spears
for MSRP		522
1-1/291152A101-015*Contact Spears
for MSRP		93152A101-015*Contact Spears
for MSRP		94052A101-015*Contact Spears
for MSRP		95052A101-015*Contact Spears
for MSRP		91252A101-015*Contact Spears
for MSRP		93252A101-015*Contact Spears
for MSRP		522
291152A101-020*Contact Spears
for MSRP		93152A101-020*Contact Spears
for MSRP		94052A101-020*Contact Spears
for MSRP		95052A101-020*Contact Spears
for MSRP		91252A101-020*Contact Spears
for MSRP		93252A101-020*Contact Spears
for MSRP		522
2-1/295052A101-025*Contact Spears
for MSRP		522
395052A101-030*Contact Spears
for MSRP		522
495052A101-040*Contact Spears
for MSRP		522
Page 21
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Diaphragm Valve - Electric
Print this Book
Print this Book

Premium Actuated Diaphragm Valve - Electric
Polypropylene - EPDM O-ring and EPDM Diaphragm
SizeSR ThreadFlangedProd
Code
1/293123A101-005*Contact Spears
for MSRP		524
3/493123A101-007*Contact Spears
for MSRP		524
193123A101-010*Contact Spears
for MSRP		524
1-1/493123A101-012*Contact Spears
for MSRP		524
1-1/293123A101-015*Contact Spears
for MSRP		524
293123A101-020*Contact Spears
for MSRP		524
2-1/295023A101-025*Contact Spears
for MSRP		524
395023A101-030*Contact Spears
for MSRP		524

    NOTE: O-rings used on SR Thread End Connectors only.

Polypropylene - FKM O-ring and FKM Diaphragm
SizeSR ThreadFlangedProd
Code
1/293233A101-005*Contact Spears
for MSRP		524
3/493233A101-007*Contact Spears
for MSRP		524
193233A101-010*Contact Spears
for MSRP		524
1-1/493233A101-012*Contact Spears
for MSRP		524
1-1/293233A101-015*Contact Spears
for MSRP		524
293233A101-020*Contact Spears
for MSRP		524
2-1/295033A101-025*Contact Spears
for MSRP		524
395033A101-030*Contact Spears
for MSRP		524
495033A101-040*Contact Spears
for MSRP		524

    NOTE: O-rings used on SR Thread End Connectors only.

Polypropylene - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSR ThreadFlangedProd
Code
1/293153A101-005*Contact Spears
for MSRP		524
3/493153A101-007*Contact Spears
for MSRP		524
193153A101-010*Contact Spears
for MSRP		524
1-1/493153A101-012*Contact Spears
for MSRP		524
1-1/293153A101-015*Contact Spears
for MSRP		524
293153A101-020*Contact Spears
for MSRP		524
2-1/295053A101-025*Contact Spears
for MSRP		524
395053A101-030*Contact Spears
for MSRP		524
495053A101-040*Contact Spears
for MSRP		524

    NOTE: O-rings used on SR Thread End Connectors only.

Polypropylene Premium Actuated Diaphragm Valves -Electric
SizeSR ThreadFlangedProd
Code
1/293253A101-005*Contact Spears
for MSRP		524
3/493253A101-007*Contact Spears
for MSRP		524
193253A101-010*Contact Spears
for MSRP		524
1-1/493253A101-012*Contact Spears
for MSRP		524
1-1/293253A101-015*Contact Spears
for MSRP		524
293253A101-020*Contact Spears
for MSRP		524

Polypropylene Premium Actuated Diaphragm Valves -Electric (continued)
SizeSR ThreadFlangedProd
Code

    NOTE: O-rings used on SR Thread End Connectors only.

Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 22
Actuated Valves Product
Unitized Actuated Diaphragm Valve - Pneumatic with Plastic Housing
Print this Book
Print this Book

Industrial grade Weir-type design, excellent for throttling and use with viscous fluids or slurries.

  • Compact, Light Weight Design
  • True Union Socket/Thread, SR Thread, or Spigot End Connections - sizes 1/2"-2" Pressure Rated to 235 psi @ 73°F (23°C)
  • Flanged Ends (& PTFE diaphragms) - sizes 1/2" - 2" Pressure Rated to 150 psi @ 73°F (23°C)
  • Corrosion Resistant Plastic Housing
  • Stainless Steel Hardware
  • 90 psi Operating Pressure
  • Max Pressure 120 psi Do Not Exceed
  • Linear Action Operation with Preset Stops
  • Air-Air, Air-Spring Closed, or Optional Air-Spring Open
NOTE:  "Socket" valves include standard plastic thread end connectors.
PVC - EPDM O-ring and EPDM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91121H850-005*Contact Spears
for MSRP		93121H850-005*Contact Spears
for MSRP		94021H850-005*Contact Spears
for MSRP		95021H850-005*Contact Spears
for MSRP		550
3/4 Air to Air91121H850-007*Contact Spears
for MSRP		93121H850-007*Contact Spears
for MSRP		94021H850-007*Contact Spears
for MSRP		95021H850-007*Contact Spears
for MSRP		550
1 Air to Air91121H850-010*Contact Spears
for MSRP		93121H850-010*Contact Spears
for MSRP		94021H850-010*Contact Spears
for MSRP		95021H850-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91121H850-012*Contact Spears
for MSRP		93121H850-012*Contact Spears
for MSRP		94021H850-012*Contact Spears
for MSRP		95021H850-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91121H850-015*Contact Spears
for MSRP		93121H850-015*Contact Spears
for MSRP		94021H850-015*Contact Spears
for MSRP		95021H850-015*Contact Spears
for MSRP		550
2 Air to Air91121H850-020*Contact Spears
for MSRP		93121H850-020*Contact Spears
for MSRP		94021H850-020*Contact Spears
for MSRP		95021H850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Close91121J850-005*Contact Spears
for MSRP		93121J850-005*Contact Spears
for MSRP		94021J850-005*Contact Spears
for MSRP		95021J850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Close91121J850-007*Contact Spears
for MSRP		93121J850-007*Contact Spears
for MSRP		94021J850-007*Contact Spears
for MSRP		95021J850-007*Contact Spears
for MSRP		550
1 Air to Spring Close91121J850-010*Contact Spears
for MSRP		93121J850-010*Contact Spears
for MSRP		94021J850-010*Contact Spears
for MSRP		95021J850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Close91121J850-012*Contact Spears
for MSRP		93121J850-012*Contact Spears
for MSRP		94021J850-012*Contact Spears
for MSRP		95021J850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Close91121J850-015*Contact Spears
for MSRP		93121J850-015*Contact Spears
for MSRP		94021J850-015*Contact Spears
for MSRP		95021J850-015*Contact Spears
for MSRP		550
2 Air to Spring Close91121J850-020*Contact Spears
for MSRP		93121J850-020*Contact Spears
for MSRP		94021J850-020*Contact Spears
for MSRP		95021J850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Open91121K850-005*Contact Spears
for MSRP		93121K850-005*Contact Spears
for MSRP		94021K850-005*Contact Spears
for MSRP		95021K850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Open91121K850-007*Contact Spears
for MSRP		93121K850-007*Contact Spears
for MSRP		94021K850-007*Contact Spears
for MSRP		95021K850-007*Contact Spears
for MSRP		550
1 Air to Spring Open91121K850-010*Contact Spears
for MSRP		93121K850-010*Contact Spears
for MSRP		94021K850-010*Contact Spears
for MSRP		95021K850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Open91121K850-012*Contact Spears
for MSRP		93121K850-012*Contact Spears
for MSRP		94021K850-012*Contact Spears
for MSRP		95021K850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Open91121K850-015*Contact Spears
for MSRP		93121K850-015*Contact Spears
for MSRP		94021K850-015*Contact Spears
for MSRP		95021K850-015*Contact Spears
for MSRP		550
2 Air to Spring Open91121K850-020*Contact Spears
for MSRP		93121K850-020*Contact Spears
for MSRP		94021K850-020*Contact Spears
for MSRP		95021K850-020*Contact Spears
for MSRP		550
PVC - FKM O-ring and FKM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91231H850-005*Contact Spears
for MSRP		93231H850-005*Contact Spears
for MSRP		94031H850-005*Contact Spears
for MSRP		95031H850-005*Contact Spears
for MSRP		550
3/4 Air to Air91231H850-007*Contact Spears
for MSRP		93231H850-007*Contact Spears
for MSRP		94031H850-007*Contact Spears
for MSRP		95031H850-007*Contact Spears
for MSRP		550
1 Air to Air91231H850-010*Contact Spears
for MSRP		93231H850-010*Contact Spears
for MSRP		94031H850-010*Contact Spears
for MSRP		95031H850-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91231H850-012*Contact Spears
for MSRP		93231H850-012*Contact Spears
for MSRP		94031H850-012*Contact Spears
for MSRP		95031H850-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91231H850-015*Contact Spears
for MSRP		93231H850-015*Contact Spears
for MSRP		94031H850-015*Contact Spears
for MSRP		95031H850-015*Contact Spears
for MSRP		550
2 Air to Air91231H850-020*Contact Spears
for MSRP		93231H850-020*Contact Spears
for MSRP		94031H850-020*Contact Spears
for MSRP		95031H850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Close91231J850-005*Contact Spears
for MSRP		93231J850-005*Contact Spears
for MSRP		94031J850-005*Contact Spears
for MSRP		95031J850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Close91231J850-007*Contact Spears
for MSRP		93231J850-007*Contact Spears
for MSRP		94031J850-007*Contact Spears
for MSRP		95031J850-007*Contact Spears
for MSRP		550
1 Air to Spring Close91231J850-010*Contact Spears
for MSRP		93231J850-010*Contact Spears
for MSRP		94031J850-010*Contact Spears
for MSRP		95031J850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Close91231J850-012*Contact Spears
for MSRP		93231J850-012*Contact Spears
for MSRP		94031J850-012*Contact Spears
for MSRP		95031J850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Close91231J850-015*Contact Spears
for MSRP		93231J850-015*Contact Spears
for MSRP		94031J850-015*Contact Spears
for MSRP		95031J850-015*Contact Spears
for MSRP		550
2 Air to Spring Close91231J850-020*Contact Spears
for MSRP		93231J850-020*Contact Spears
for MSRP		94031J850-020*Contact Spears
for MSRP		95031J850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Open91231K850-005*Contact Spears
for MSRP		93231K850-005*Contact Spears
for MSRP		94031K850-005*Contact Spears
for MSRP		95031K850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Open91231K850-007*Contact Spears
for MSRP		93231K850-007*Contact Spears
for MSRP		94031K850-007*Contact Spears
for MSRP		95031K850-007*Contact Spears
for MSRP		550
1 Air to Spring Open91231K850-010*Contact Spears
for MSRP		93231K850-010*Contact Spears
for MSRP		94031K850-010*Contact Spears
for MSRP		95031K850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Open91231K850-012*Contact Spears
for MSRP		93231K850-012*Contact Spears
for MSRP		94031K850-012*Contact Spears
for MSRP		95031K850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Open91231K850-015*Contact Spears
for MSRP		93231K850-015*Contact Spears
for MSRP		94031K850-015*Contact Spears
for MSRP		95031K850-015*Contact Spears
for MSRP		550
2 Air to Spring Open91231K850-020*Contact Spears
for MSRP		93231K850-020*Contact Spears
for MSRP		94031K850-020*Contact Spears
for MSRP		95031K850-020*Contact Spears
for MSRP		550
Page 23
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Unitized Actuated Diaphragm Valve - Pneumatic with Plastic Housing
Print this Book
Print this Book

PVC - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91151H850-005*Contact Spears
for MSRP		93151H850-005*Contact Spears
for MSRP		94051H850-005*Contact Spears
for MSRP		95051H850-005*Contact Spears
for MSRP		550
3/4 Air to Air91151H850-007*Contact Spears
for MSRP		93151H850-007*Contact Spears
for MSRP		94051H850-007*Contact Spears
for MSRP		95051H850-007*Contact Spears
for MSRP		550
1 Air to Air91151H850-010*Contact Spears
for MSRP		93151H850-010*Contact Spears
for MSRP		94051H850-010*Contact Spears
for MSRP		95051H850-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91151H850-012*Contact Spears
for MSRP		93151H850-012*Contact Spears
for MSRP		94051H850-012*Contact Spears
for MSRP		95051H850-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91151H850-015*Contact Spears
for MSRP		93151H850-015*Contact Spears
for MSRP		94051H850-015*Contact Spears
for MSRP		95051H850-015*Contact Spears
for MSRP		550
2 Air to Air91151H850-020*Contact Spears
for MSRP		93151H850-020*Contact Spears
for MSRP		94051H850-020*Contact Spears
for MSRP		95051H850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Close91151J850-005*Contact Spears
for MSRP		93151J850-005*Contact Spears
for MSRP		94051J850-005*Contact Spears
for MSRP		95051J850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Close91151J850-007*Contact Spears
for MSRP		93151J850-007*Contact Spears
for MSRP		94051J850-007*Contact Spears
for MSRP		95051J850-007*Contact Spears
for MSRP		550
1 Air to Spring Close91151J850-010*Contact Spears
for MSRP		93151J850-010*Contact Spears
for MSRP		94051J850-010*Contact Spears
for MSRP		95051J850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Close91151J850-012*Contact Spears
for MSRP		93151J850-012*Contact Spears
for MSRP		94051J850-012*Contact Spears
for MSRP		95051J850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Close91151J850-015*Contact Spears
for MSRP		93151J850-015*Contact Spears
for MSRP		94051J850-015*Contact Spears
for MSRP		95051J850-015*Contact Spears
for MSRP		550
2 Air to Spring Close91151J850-020*Contact Spears
for MSRP		93151J850-020*Contact Spears
for MSRP		94051J850-020*Contact Spears
for MSRP		95051J850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Open91151K850-005*Contact Spears
for MSRP		93151K850-005*Contact Spears
for MSRP		94051K850-005*Contact Spears
for MSRP		95051K850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Open91151K850-007*Contact Spears
for MSRP		93151K850-007*Contact Spears
for MSRP		94051K850-007*Contact Spears
for MSRP		95051K850-007*Contact Spears
for MSRP		550
1 Air to Spring Open91151K850-010*Contact Spears
for MSRP		93151K850-010*Contact Spears
for MSRP		94051K850-010*Contact Spears
for MSRP		95051K850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Open91151K850-012*Contact Spears
for MSRP		93151K850-012*Contact Spears
for MSRP		94051K850-012*Contact Spears
for MSRP		95051K850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Open91151K850-015*Contact Spears
for MSRP		93151K850-015*Contact Spears
for MSRP		94051K850-015*Contact Spears
for MSRP		95051K850-015*Contact Spears
for MSRP		550
2 Air to Spring Open91151K850-020*Contact Spears
for MSRP		93151K850-020*Contact Spears
for MSRP		94051K850-020*Contact Spears
for MSRP		95051K850-020*Contact Spears
for MSRP		550
PVC - FKM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadFlangedSpigotProd
Code
1/2 Air to Air91251H850-005*Contact Spears
for MSRP		93251H850-005*Contact Spears
for MSRP		550
3/4 Air to Air91251H850-007*Contact Spears
for MSRP		93251H850-007*Contact Spears
for MSRP		550
1 Air to Air91251H850-010*Contact Spears
for MSRP		93251H850-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91251H850-012*Contact Spears
for MSRP		93251H850-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91251H850-015*Contact Spears
for MSRP		93251H850-015*Contact Spears
for MSRP		550
2 Air to Air91251H850-020*Contact Spears
for MSRP		93251H850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Close91251J850-005*Contact Spears
for MSRP		93251J850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Close91251J850-007*Contact Spears
for MSRP		93251J850-007*Contact Spears
for MSRP		550
1 Air to Spring Close91251J850-010*Contact Spears
for MSRP		93251J850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Close91251J850-012*Contact Spears
for MSRP		93251J850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Close91251J850-015*Contact Spears
for MSRP		93251J850-015*Contact Spears
for MSRP		550
2 Air to Spring Close91251J850-020*Contact Spears
for MSRP		93251J850-020*Contact Spears
for MSRP		550
1/2 Air to Spring Open91251K850-005*Contact Spears
for MSRP		93251K850-005*Contact Spears
for MSRP		550
3/4 Air to Spring Open91251K850-007*Contact Spears
for MSRP		93251K850-007*Contact Spears
for MSRP		550
1 Air to Spring Open91251K850-010*Contact Spears
for MSRP		93251K850-010*Contact Spears
for MSRP		550
1-1/4 Air to Spring Open91251K850-012*Contact Spears
for MSRP		93251K850-012*Contact Spears
for MSRP		550
1-1/2 Air to Spring Open91251K850-015*Contact Spears
for MSRP		93251K850-015*Contact Spears
for MSRP		550
2 Air to Spring Open91251K850-020*Contact Spears
for MSRP		93251K850-020*Contact Spears
for MSRP		550
CPVC - EPDM O-ring and EPDM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91122H850-005*Contact Spears
for MSRP		93122H850-005*Contact Spears
for MSRP		94022H850-005*Contact Spears
for MSRP		95022H850-005*Contact Spears
for MSRP		552
3/4 Air to Air91122H850-007*Contact Spears
for MSRP		93122H850-007*Contact Spears
for MSRP		94022H850-007*Contact Spears
for MSRP		95022H850-007*Contact Spears
for MSRP		552
1 Air to Air91122H850-010*Contact Spears
for MSRP		93122H850-010*Contact Spears
for MSRP		94022H850-010*Contact Spears
for MSRP		95022H850-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91122H850-012*Contact Spears
for MSRP		93122H850-012*Contact Spears
for MSRP		94022H850-012*Contact Spears
for MSRP		95022H850-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91122H850-015*Contact Spears
for MSRP		93122H850-015*Contact Spears
for MSRP		94022H850-015*Contact Spears
for MSRP		95022H850-015*Contact Spears
for MSRP		552
2 Air to Air91122H850-020*Contact Spears
for MSRP		93122H850-020*Contact Spears
for MSRP		94022H850-020*Contact Spears
for MSRP		95022H850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Close91122J850-005*Contact Spears
for MSRP		93122J850-005*Contact Spears
for MSRP		94022J850-005*Contact Spears
for MSRP		95022J850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Close91122J850-007*Contact Spears
for MSRP		93122J850-007*Contact Spears
for MSRP		94022J850-007*Contact Spears
for MSRP		95022J850-007*Contact Spears
for MSRP		552
1 Air to Spring Close91122J850-010*Contact Spears
for MSRP		93122J850-010*Contact Spears
for MSRP		94022J850-010*Contact Spears
for MSRP		95022J850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Close91122J850-012*Contact Spears
for MSRP		93122J850-012*Contact Spears
for MSRP		94022J850-012*Contact Spears
for MSRP		95022J850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Close91122J850-015*Contact Spears
for MSRP		93122J850-015*Contact Spears
for MSRP		94022J850-015*Contact Spears
for MSRP		95022J850-015*Contact Spears
for MSRP		552
2 Air to Spring Close91122J850-020*Contact Spears
for MSRP		93122J850-020*Contact Spears
for MSRP		94022J850-020*Contact Spears
for MSRP		95022J850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Open91122K850-005*Contact Spears
for MSRP		93122K850-005*Contact Spears
for MSRP		94022K850-005*Contact Spears
for MSRP		95022K850-005*Contact Spears
for MSRP		552
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 24
Actuated Valves Product
Unitized Actuated Diaphragm Valve - Pneumatic with Plastic Housing
Print this Book
Print this Book

CPVC - EPDM O-ring and EPDM Diaphragm (continued)
SizeSocketSR ThreadSpigotFlangedProd
Code
3/4 Air to Spring Open91122K850-007*Contact Spears
for MSRP		93122K850-007*Contact Spears
for MSRP		94022K850-007*Contact Spears
for MSRP		95022K850-007*Contact Spears
for MSRP		552
1 Air to Spring Open91122K850-010*Contact Spears
for MSRP		93122K850-010*Contact Spears
for MSRP		94022K850-010*Contact Spears
for MSRP		95022K850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Open91122K850-012*Contact Spears
for MSRP		93122K850-012*Contact Spears
for MSRP		94022K850-012*Contact Spears
for MSRP		95022K850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Open91122K850-015*Contact Spears
for MSRP		93122K850-015*Contact Spears
for MSRP		94022K850-015*Contact Spears
for MSRP		95022K850-015*Contact Spears
for MSRP		552
2 Air to Spring Open91122K850-020*Contact Spears
for MSRP		93122K850-020*Contact Spears
for MSRP		94022K850-020*Contact Spears
for MSRP		95022K850-020*Contact Spears
for MSRP		552
CPVC - FKM O-ring and FKM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91232H850-005*Contact Spears
for MSRP		93232H850-005*Contact Spears
for MSRP		94032H850-005*Contact Spears
for MSRP		95032H850-005*Contact Spears
for MSRP		552
3/4 Air to Air91232H850-007*Contact Spears
for MSRP		93232H850-007*Contact Spears
for MSRP		94032H850-007*Contact Spears
for MSRP		95032H850-007*Contact Spears
for MSRP		552
1 Air to Air91232H850-010*Contact Spears
for MSRP		93232H850-010*Contact Spears
for MSRP		94032H850-010*Contact Spears
for MSRP		95032H850-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91232H850-012*Contact Spears
for MSRP		93232H850-012*Contact Spears
for MSRP		94032H850-012*Contact Spears
for MSRP		95032H850-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91232H850-015*Contact Spears
for MSRP		93232H850-015*Contact Spears
for MSRP		94032H850-015*Contact Spears
for MSRP		95032H850-015*Contact Spears
for MSRP		552
2 Air to Air91232H850-020*Contact Spears
for MSRP		93232H850-020*Contact Spears
for MSRP		94032H850-020*Contact Spears
for MSRP		95032H850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Close91232J850-005*Contact Spears
for MSRP		93232J850-005*Contact Spears
for MSRP		94032J850-005*Contact Spears
for MSRP		95032J850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Close91232J850-007*Contact Spears
for MSRP		93232J850-007*Contact Spears
for MSRP		94032J850-007*Contact Spears
for MSRP		95032J850-007*Contact Spears
for MSRP		552
1 Air to Spring Close91232J850-010*Contact Spears
for MSRP		93232J850-010*Contact Spears
for MSRP		94032J850-010*Contact Spears
for MSRP		95032J850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Close91232J850-012*Contact Spears
for MSRP		93232J850-012*Contact Spears
for MSRP		94032J850-012*Contact Spears
for MSRP		95032J850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Close91232J850-015*Contact Spears
for MSRP		93232J850-015*Contact Spears
for MSRP		94032J850-015*Contact Spears
for MSRP		95032J850-015*Contact Spears
for MSRP		552
2 Air to Spring Close91232J850-020*Contact Spears
for MSRP		93232J850-020*Contact Spears
for MSRP		94032J850-020*Contact Spears
for MSRP		95032J850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Open91232K850-005*Contact Spears
for MSRP		93232K850-005*Contact Spears
for MSRP		94032K850-005*Contact Spears
for MSRP		95032K850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Open91232K850-007*Contact Spears
for MSRP		93232K850-007*Contact Spears
for MSRP		94032K850-007*Contact Spears
for MSRP		95032K850-007*Contact Spears
for MSRP		552
1 Air to Spring Open91232K850-010*Contact Spears
for MSRP		93232K850-010*Contact Spears
for MSRP		94032K850-010*Contact Spears
for MSRP		95032K850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Open91232K850-012*Contact Spears
for MSRP		93232K850-012*Contact Spears
for MSRP		94032K850-012*Contact Spears
for MSRP		95032K850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Open91232K850-015*Contact Spears
for MSRP		93232K850-015*Contact Spears
for MSRP		94032K850-015*Contact Spears
for MSRP		95032K850-015*Contact Spears
for MSRP		552
2 Air to Spring Open91232K850-020*Contact Spears
for MSRP		93232K850-020*Contact Spears
for MSRP		94032K850-020*Contact Spears
for MSRP		95032K850-020*Contact Spears
for MSRP		552
CPVC - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91152H850-005*Contact Spears
for MSRP		93152H850-005*Contact Spears
for MSRP		94052H850-005*Contact Spears
for MSRP		95052H850-005*Contact Spears
for MSRP		552
3/4 Air to Air91152H850-007*Contact Spears
for MSRP		93152H850-007*Contact Spears
for MSRP		94052H850-007*Contact Spears
for MSRP		95052H850-007*Contact Spears
for MSRP		552
1 Air to Air91152H850-010*Contact Spears
for MSRP		93152H850-010*Contact Spears
for MSRP		94052H850-010*Contact Spears
for MSRP		95052H850-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91152H850-012*Contact Spears
for MSRP		93152H850-012*Contact Spears
for MSRP		94052H850-012*Contact Spears
for MSRP		95052H850-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91152H850-015*Contact Spears
for MSRP		93152H850-015*Contact Spears
for MSRP		94052H850-015*Contact Spears
for MSRP		95052H850-015*Contact Spears
for MSRP		552
2 Air to Air91152H850-020*Contact Spears
for MSRP		93152H850-020*Contact Spears
for MSRP		94052H850-020*Contact Spears
for MSRP		95052H850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Close91152J850-005*Contact Spears
for MSRP		93152J850-005*Contact Spears
for MSRP		94052J850-005*Contact Spears
for MSRP		95052J850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Close91152J850-007*Contact Spears
for MSRP		93152J850-007*Contact Spears
for MSRP		94052J850-007*Contact Spears
for MSRP		95052J850-007*Contact Spears
for MSRP		552
1 Air to Spring Close91152J850-010*Contact Spears
for MSRP		93152J850-010*Contact Spears
for MSRP		94052J850-010*Contact Spears
for MSRP		95052J850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Close91152J850-012*Contact Spears
for MSRP		93152J850-012*Contact Spears
for MSRP		94052J850-012*Contact Spears
for MSRP		95052J850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Close91152J850-015*Contact Spears
for MSRP		93152J850-015*Contact Spears
for MSRP		94052J850-015*Contact Spears
for MSRP		95052J850-015*Contact Spears
for MSRP		552
2 Air to Spring Close91152J850-020*Contact Spears
for MSRP		93152J850-020*Contact Spears
for MSRP		94052J850-020*Contact Spears
for MSRP		95052J850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Open91152K850-005*Contact Spears
for MSRP		93152K850-005*Contact Spears
for MSRP		94052K850-005*Contact Spears
for MSRP		95052K850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Open91152K850-007*Contact Spears
for MSRP		93152K850-007*Contact Spears
for MSRP		94052K850-007*Contact Spears
for MSRP		95052K850-007*Contact Spears
for MSRP		552
1 Air to Spring Open91152K850-010*Contact Spears
for MSRP		93152K850-010*Contact Spears
for MSRP		94052K850-010*Contact Spears
for MSRP		95052K850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Open91152K850-012*Contact Spears
for MSRP		93152K850-012*Contact Spears
for MSRP		94052K850-012*Contact Spears
for MSRP		95052K850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Open91152K850-015*Contact Spears
for MSRP		93152K850-015*Contact Spears
for MSRP		94052K850-015*Contact Spears
for MSRP		95052K850-015*Contact Spears
for MSRP		552
2 Air to Spring Open91152K850-020*Contact Spears
for MSRP		93152K850-020*Contact Spears
for MSRP		94052K850-020*Contact Spears
for MSRP		95052K850-020*Contact Spears
for MSRP		552
Page 25
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Unitized Actuated Diaphragm Valve - Pneumatic with Plastic Housing
Print this Book
Print this Book

Unitized Actuated Diaphragm Valve - Pneumatic with Plastic Housing
CPVC - FKM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadProd
Code
1/2 Air to Air91252H850-005*Contact Spears
for MSRP		93252H850-005*Contact Spears
for MSRP		552
3/4 Air to Air91252H850-007*Contact Spears
for MSRP		93252H850-007*Contact Spears
for MSRP		552
1 Air to Air91252H850-010*Contact Spears
for MSRP		93252H850-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91252H850-012*Contact Spears
for MSRP		93252H850-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91252H850-015*Contact Spears
for MSRP		93252H850-015*Contact Spears
for MSRP		552
2 Air to Air91252H850-020*Contact Spears
for MSRP		93252H850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Close91252J850-005*Contact Spears
for MSRP		93252J850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Close91252J850-007*Contact Spears
for MSRP		93252J850-007*Contact Spears
for MSRP		552
1 Air to Spring Close91252J850-010*Contact Spears
for MSRP		93252J850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Close91252J850-012*Contact Spears
for MSRP		93252J850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Close91252J850-015*Contact Spears
for MSRP		93252J850-015*Contact Spears
for MSRP		552
2 Air to Spring Close91252J850-020*Contact Spears
for MSRP		93252J850-020*Contact Spears
for MSRP		552
1/2 Air to Spring Open91252K850-005*Contact Spears
for MSRP		93252K850-005*Contact Spears
for MSRP		552
3/4 Air to Spring Open91252K850-007*Contact Spears
for MSRP		93252K850-007*Contact Spears
for MSRP		552
1 Air to Spring Open91252K850-010*Contact Spears
for MSRP		93252K850-010*Contact Spears
for MSRP		552
1-1/4 Air to Spring Open91252K850-012*Contact Spears
for MSRP		93252K850-012*Contact Spears
for MSRP		552
1-1/2 Air to Spring Open91252K850-015*Contact Spears
for MSRP		93252K850-015*Contact Spears
for MSRP		552
2 Air to Spring Open91252K850-020*Contact Spears
for MSRP		93252K850-020*Contact Spears
for MSRP		552
Polypropylene - EPDM O-ring and EPDM Diaphragm SR Thread
SizeSocketSR ThreadProd
Code
1/2 Air to Air93123H850-005*Contact Spears
for MSRP		554
3/4 Air to Air93123H850-007*Contact Spears
for MSRP		554
1 Air to Air93123H850-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93123H850-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93123H850-015*Contact Spears
for MSRP		554
2 Air to Air93123H850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Close93123J850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Close93123J850-007*Contact Spears
for MSRP		554
1 Air to Spring Close93123J850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Close93123J850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring93123J850-015*Contact Spears
for MSRP		554
2 Air to Spring Close93123J850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Open93123K850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Open93123K850-007*Contact Spears
for MSRP		554
1 Air to Spring Open93123K850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Open93123K850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Open93123K850-015*Contact Spears
for MSRP		554
2 Air to Spring Open93123K850-020*Contact Spears
for MSRP		554
Polypropylene - FKM O-ring and FKM Diaphragm SR Thread
SizeSocketSR ThreadProd
Code
1/2 Air to Air93233H850-005*Contact Spears
for MSRP		554
3/4 Air to Air93233H850-007*Contact Spears
for MSRP		554
1 Air to Air93233H850-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93233H850-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93233H850-015*Contact Spears
for MSRP		554
2 Air to Air93233H850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Close93233J850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Close93233J850-007*Contact Spears
for MSRP		554
1 Air to Spring Close93233J850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Close93233J850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Close93233J850-015*Contact Spears
for MSRP		554

Polypropylene - FKM O-ring and FKM Diaphragm SR Thread (continued)
SizeSocketSR ThreadProd
Code
2 Air to Spring Close93233J850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Open93233K850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Open93233K850-007*Contact Spears
for MSRP		554
1 Air to Spring Open93233K850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Open93233K850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Open93233K850-015*Contact Spears
for MSRP		554
2 Air to Spring Open93233K850-020*Contact Spears
for MSRP		554
Polypropylene - EPDM O-ring and EPDM Backed PTFE Diaphragm SR Thread
SizeSocketSR ThreadProd
Code
1/2 Air to Air93153H850-005*Contact Spears
for MSRP		554
3/4 Air to Air93153H850-007*Contact Spears
for MSRP		554
1 Air to Air93153H850-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93153H850-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93153H850-015*Contact Spears
for MSRP		554
2 Air to Air93153H850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Close93153J850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Close93153J850-007*Contact Spears
for MSRP		554
1 Air to Spring Close93153J850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Close93153J850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Close93153J850-015*Contact Spears
for MSRP		554
2 Air to Spring Close93153J850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Open93153K850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Open93153K850-007*Contact Spears
for MSRP		554
1 Air to Spring Open93153K850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Open93153K850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Open93153K850-015*Contact Spears
for MSRP		554
2 Air to Spring Open93153K850-020*Contact Spears
for MSRP		554
Polypropylene - FKM O-ring and EPDM Backed PTFE Diaphragm SR Thread
SizeSocketSR ThreadProd
Code
1/2 Air to Air93253H850-005*Contact Spears
for MSRP		554
3/4 Air to Air93253H850-007*Contact Spears
for MSRP		554
1 Air to Air93253H850-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93253H850-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93253H850-015*Contact Spears
for MSRP		554
2 Air to Air93253H850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Close93253J850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Close93253J850-007*Contact Spears
for MSRP		554
1 Air to Spring Close93253J850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Close93253J850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Close93253J850-015*Contact Spears
for MSRP		554
2 Air to Spring Close93253J850-020*Contact Spears
for MSRP		554
1/2 Air to Spring Open93253K850-005*Contact Spears
for MSRP		554
3/4 Air to Spring Open93253K850-007*Contact Spears
for MSRP		554
1 Air to Spring Open93253K850-010*Contact Spears
for MSRP		554
1-1/4 Air to Spring Open93253K850-012*Contact Spears
for MSRP		554
1-1/2 Air to Spring Open93253K850-015*Contact Spears
for MSRP		554
2 Air to Spring Open93253K850-020*Contact Spears
for MSRP		554
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 26
Actuated Valves Product
Premium Actuated Diaphragm Valve - Pneumatic
Print this Book
Print this Book

Industrial grade Weir-type design, excellent for throttling and use with viscous fluids. Full-featured actuator can be custom configured with add-on accessories.

  • Stainless Steel Hardware
  • 235 psi @ 73°F (23°C) - sizes 1/2"- 2"
    (flanged & PTFE diaphragm-150 psi),
    2-1/2"- 4"-150 psi

  • 80 psi Operating Pressure
  • Linear Action Operation with Preset Stops
  • Air-Air or Air-Spring Closed (optional spring open)


See Pneumatic Actuator Accessories for Diaphragm Valves for Add-on Actuator Accessories

NOTE: "Socket" valves up to 2" size include standard plastic thread end connectors. For Air to Spring OPEN, change letter "J" to letter " K" in listed part number. O-rings used on Socket and SR Thread End Connectors only.

PVC - EPDM O-ring and EPDM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91121H100-005*Contact Spears
for MSRP		93121H100-005*Contact Spears
for MSRP		94021H100-005*Contact Spears
for MSRP		95021H100-005*Contact Spears
for MSRP		550
1/2 Air to Spring91121J100-005*Contact Spears
for MSRP		93121J100-005*Contact Spears
for MSRP		94021J100-005*Contact Spears
for MSRP		95021J100-005*Contact Spears
for MSRP		550
3/4 Air to Air91121H100-007*Contact Spears
for MSRP		93121H100-007*Contact Spears
for MSRP		94021H100-007*Contact Spears
for MSRP		95021H100-007*Contact Spears
for MSRP		550
3/4 Air to Spring91121J100-007*Contact Spears
for MSRP		93121J100-007*Contact Spears
for MSRP		94021J100-007*Contact Spears
for MSRP		95021J100-007*Contact Spears
for MSRP		550
1 Air to Air91121H100-010*Contact Spears
for MSRP		93121H100-010*Contact Spears
for MSRP		94021H100-010*Contact Spears
for MSRP		95021H100-010*Contact Spears
for MSRP		550
1 Air to Spring91121J100-010*Contact Spears
for MSRP		93121J100-010*Contact Spears
for MSRP		94021J100-010*Contact Spears
for MSRP		95021J100-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91121H100-012*Contact Spears
for MSRP		93121H100-012*Contact Spears
for MSRP		94021H100-012*Contact Spears
for MSRP		95021H100-012*Contact Spears
for MSRP		550
1-1/4 Air to Spring91121J100-012*Contact Spears
for MSRP		93121J100-012*Contact Spears
for MSRP		94021J100-012*Contact Spears
for MSRP		95021J100-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91121H100-015*Contact Spears
for MSRP		93121H100-015*Contact Spears
for MSRP		94021H100-015*Contact Spears
for MSRP		95021H100-015*Contact Spears
for MSRP		550
1-1/2 Air to Spring91121J100-015*Contact Spears
for MSRP		93121J100-015*Contact Spears
for MSRP		94021J100-015*Contact Spears
for MSRP		95021J100-015*Contact Spears
for MSRP		550
2 Air to Air91121H100-020*Contact Spears
for MSRP		93121H100-020*Contact Spears
for MSRP		94021H100-020*Contact Spears
for MSRP		95021H100-020*Contact Spears
for MSRP		550
2 Air to Spring91121J100-020*Contact Spears
for MSRP		93121J100-020*Contact Spears
for MSRP		94021J100-020*Contact Spears
for MSRP		95021J100-020*Contact Spears
for MSRP		550
2-1/2 Air to Air95021H100-025*Contact Spears
for MSRP		550
2-1/2 Air to Spring95021J100-025*Contact Spears
for MSRP		550
3 Air to Air95021H100-030*Contact Spears
for MSRP		550
3 Air to Spring95021J100-030*Contact Spears
for MSRP		550
4 Air to Air95021H100-040*Contact Spears
for MSRP		550
4 Air to Spring95021J100-040*Contact Spears
for MSRP		550
6 Air to Spring95021J100-060*Contact Spears
for MSRP		550
PVC - FKM O-ring and FKM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91231H100-005*Contact Spears
for MSRP		93231H100-005*Contact Spears
for MSRP		94031H100-005*Contact Spears
for MSRP		95031H100-005*Contact Spears
for MSRP		550
1/2 Air to Spring91231J100-005*Contact Spears
for MSRP		93231J100-005*Contact Spears
for MSRP		94031J100-005*Contact Spears
for MSRP		95031J100-005*Contact Spears
for MSRP		550
3/4 Air to Air91231H100-007*Contact Spears
for MSRP		93231H100-007*Contact Spears
for MSRP		94031H100-007*Contact Spears
for MSRP		95031H100-007*Contact Spears
for MSRP		550
3/4 Air to Spring91231J100-007*Contact Spears
for MSRP		93231J100-007*Contact Spears
for MSRP		94031J100-007*Contact Spears
for MSRP		95031J100-007*Contact Spears
for MSRP		550
1 Air to Air91231H100-010*Contact Spears
for MSRP		93231H100-010*Contact Spears
for MSRP		94031H100-010*Contact Spears
for MSRP		95031H100-010*Contact Spears
for MSRP		550
1 Air to Spring91231J100-010*Contact Spears
for MSRP		93231J100-010*Contact Spears
for MSRP		94031J100-010*Contact Spears
for MSRP		95031J100-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91231H100-012*Contact Spears
for MSRP		93231H100-012*Contact Spears
for MSRP		94031H100-012*Contact Spears
for MSRP		95031H100-012*Contact Spears
for MSRP		550
1-1/4 Air to Spring91231J100-012*Contact Spears
for MSRP		93231J100-012*Contact Spears
for MSRP		94031J100-012*Contact Spears
for MSRP		95031J100-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91231H100-015*Contact Spears
for MSRP		93231H100-015*Contact Spears
for MSRP		94031H100-015*Contact Spears
for MSRP		95031H100-015*Contact Spears
for MSRP		550
1-1/2 Air to Spring91231J100-015*Contact Spears
for MSRP		93231J100-015*Contact Spears
for MSRP		94031J100-015*Contact Spears
for MSRP		95031J100-015*Contact Spears
for MSRP		550
2 Air to Air91231H100-020*Contact Spears
for MSRP		93231H100-020*Contact Spears
for MSRP		94031H100-020*Contact Spears
for MSRP		95031H100-020*Contact Spears
for MSRP		550
2 Air to Spring91231J100-020*Contact Spears
for MSRP		93231J100-020*Contact Spears
for MSRP		94031J100-020*Contact Spears
for MSRP		95031J100-020*Contact Spears
for MSRP		550
2-1/2 Air to Air95031H100-025*Contact Spears
for MSRP		550
2-1/2 Air to Spring95031J100-025*Contact Spears
for MSRP		550
3 Air to Air95031H100-030*Contact Spears
for MSRP		550
3 Air to Spring95031J100-030*Contact Spears
for MSRP		550
Page 27
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Diaphragm Valve - Pneumatic
Print this Book
Print this Book

PVC - FKM O-ring and FKM Diaphragm (continued)
SizeSocketSR ThreadSpigotFlangedProd
Code
4 Air to Air95031H100-040*Contact Spears
for MSRP		550
4 Air to Spring95031J100-040*Contact Spears
for MSRP		550
PVC - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91151H100-005*Contact Spears
for MSRP		93151H100-005*Contact Spears
for MSRP		94051H100-005*Contact Spears
for MSRP		95051H100-005*Contact Spears
for MSRP		550
1/2 Air to Spring91151J100-005*Contact Spears
for MSRP		93151J100-005*Contact Spears
for MSRP		94051J100-005*Contact Spears
for MSRP		95051J100-005*Contact Spears
for MSRP		550
3/4 Air to Air91151H100-007*Contact Spears
for MSRP		93151H100-007*Contact Spears
for MSRP		94051H100-007*Contact Spears
for MSRP		95051H100-007*Contact Spears
for MSRP		550
3/4 Air to Spring91151J100-007*Contact Spears
for MSRP		93151J100-007*Contact Spears
for MSRP		94051J100-007*Contact Spears
for MSRP		95051J100-007*Contact Spears
for MSRP		550
1 Air to Air91151H100-010*Contact Spears
for MSRP		93151H100-010*Contact Spears
for MSRP		94051H100-010*Contact Spears
for MSRP		95051H100-010*Contact Spears
for MSRP		550
1 Air to Spring91151J100-010*Contact Spears
for MSRP		93151J100-010*Contact Spears
for MSRP		94051J100-010*Contact Spears
for MSRP		95051J100-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91151H100-012*Contact Spears
for MSRP		93151H100-012*Contact Spears
for MSRP		94051H100-012*Contact Spears
for MSRP		95051H100-012*Contact Spears
for MSRP		550
1-1/4 Air to Spring91151J100-012*Contact Spears
for MSRP		93151J100-012*Contact Spears
for MSRP		94051J100-012*Contact Spears
for MSRP		95051J100-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91151H100-015*Contact Spears
for MSRP		93151H100-015*Contact Spears
for MSRP		94051H100-015*Contact Spears
for MSRP		95051H100-015*Contact Spears
for MSRP		550
1-1/2 Air to Spring91151J100-015*Contact Spears
for MSRP		93151J100-015*Contact Spears
for MSRP		94051J100-015*Contact Spears
for MSRP		95051J100-015*Contact Spears
for MSRP		550
2 Air to Air91151H100-020*Contact Spears
for MSRP		93151H100-020*Contact Spears
for MSRP		94051H100-020*Contact Spears
for MSRP		95051H100-020*Contact Spears
for MSRP		550
2 Air to Spring91151J100-020*Contact Spears
for MSRP		93151J100-020*Contact Spears
for MSRP		94051J100-020*Contact Spears
for MSRP		95051J100-020*Contact Spears
for MSRP		550
2-1/2 Air to Air95051H100-025*Contact Spears
for MSRP		550
2-1/2 Air to Spring95051J100-025*Contact Spears
for MSRP		550
3 Air to Air95051H100-030*Contact Spears
for MSRP		550
3 Air to Spring95051J100-030*Contact Spears
for MSRP		550
4 Air to Air95051H100-040*Contact Spears
for MSRP		550
4 Air to Spring95051J100-040*Contact Spears
for MSRP		550
PVC - FKM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91251H100-005*Contact Spears
for MSRP		93251H100-005*Contact Spears
for MSRP		550
1/2 Air to Spring91251J100-005*Contact Spears
for MSRP		93251J100-005*Contact Spears
for MSRP		550
3/4 Air to Air91251H100-007*Contact Spears
for MSRP		93251H100-007*Contact Spears
for MSRP		550
3/4 Air to Spring91251J100-007*Contact Spears
for MSRP		93251J100-007*Contact Spears
for MSRP		550
1 Air to Air91251H100-010*Contact Spears
for MSRP		93251H100-010*Contact Spears
for MSRP		550
1 Air to Spring91251J100-010*Contact Spears
for MSRP		93251J100-010*Contact Spears
for MSRP		550
1-1/4 Air to Air91251H100-012*Contact Spears
for MSRP		93251H100-012*Contact Spears
for MSRP		550
1-1/4 Air to Spring91251J100-012*Contact Spears
for MSRP		93251J100-012*Contact Spears
for MSRP		550
1-1/2 Air to Air91251H100-015*Contact Spears
for MSRP		93251H100-015*Contact Spears
for MSRP		550
1-1/2 Air to Spring91251J100-015*Contact Spears
for MSRP		93251J100-015*Contact Spears
for MSRP		550
2 Air to Air91251H100-020*Contact Spears
for MSRP		93251H100-020*Contact Spears
for MSRP		550
2 Air to Spring91251J100-020*Contact Spears
for MSRP		93251J100-020*Contact Spears
for MSRP		550
CPVC - EPDM O-ring and EPDM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91122H100-005*Contact Spears
for MSRP		93122H100-005*Contact Spears
for MSRP		94022H100-005*Contact Spears
for MSRP		95022H100-005*Contact Spears
for MSRP		552
1/2 Air to Spring91122J100-005*Contact Spears
for MSRP		93122J100-005*Contact Spears
for MSRP		94022J100-005*Contact Spears
for MSRP		95022J100-005*Contact Spears
for MSRP		552
3/4 Air to Air91122H100-007*Contact Spears
for MSRP		93122H100-007*Contact Spears
for MSRP		94022H100-007*Contact Spears
for MSRP		95022H100-007*Contact Spears
for MSRP		552
3/4 Air to Spring91122J100-007*Contact Spears
for MSRP		93122J100-007*Contact Spears
for MSRP		94022J100-007*Contact Spears
for MSRP		95022J100-007*Contact Spears
for MSRP		552
1 Air to Air91122H100-010*Contact Spears
for MSRP		93122H100-010*Contact Spears
for MSRP		94022H100-010*Contact Spears
for MSRP		95022H100-010*Contact Spears
for MSRP		552
1 Air to Spring91122J100-010*Contact Spears
for MSRP		93122J100-010*Contact Spears
for MSRP		94022J100-010*Contact Spears
for MSRP		95022J100-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91122H100-012*Contact Spears
for MSRP		93122H100-012*Contact Spears
for MSRP		94022H100-012*Contact Spears
for MSRP		95022H100-012*Contact Spears
for MSRP		552
1-1/4 Air to Spring91122J100-012*Contact Spears
for MSRP		93122J100-012*Contact Spears
for MSRP		94022J100-012*Contact Spears
for MSRP		95022J100-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91122H100-015*Contact Spears
for MSRP		93122H100-015*Contact Spears
for MSRP		94022H100-015*Contact Spears
for MSRP		95022H100-015*Contact Spears
for MSRP		552
1-1/2 Air to Spring91122J100-015*Contact Spears
for MSRP		93122J100-015*Contact Spears
for MSRP		94022J100-015*Contact Spears
for MSRP		95022J100-015*Contact Spears
for MSRP		552
2 Air to Air91122H100-020*Contact Spears
for MSRP		93122H100-020*Contact Spears
for MSRP		94022H100-020*Contact Spears
for MSRP		95022H100-020*Contact Spears
for MSRP		552
2 Air to Spring91122J100-020*Contact Spears
for MSRP		93122J100-020*Contact Spears
for MSRP		94022J100-020*Contact Spears
for MSRP		95022J100-020*Contact Spears
for MSRP		552
2-1/2 Air to Air95022H100-025*Contact Spears
for MSRP		552
2-1/2 Air to Spring95022J100-025*Contact Spears
for MSRP		552
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 28
Actuated Valves Product
Premium Actuated Diaphragm Valve - Pneumatic
Print this Book
Print this Book

CPVC - EPDM O-ring and EPDM Diaphragm (continued)
SizeSocketSR ThreadSpigotFlangedProd
Code
3 Air to Air95022H100-030*Contact Spears
for MSRP		552
3 Air to Spring95022J100-030*Contact Spears
for MSRP		552
4 Air to Air95022H100-040*Contact Spears
for MSRP		552
4 Air to Spring95022J100-040*Contact Spears
for MSRP		552
CPVC - FKM O-ring and FKM Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91232H100-005*Contact Spears
for MSRP		93232H100-005*Contact Spears
for MSRP		94032H100-005*Contact Spears
for MSRP		95032H100-005*Contact Spears
for MSRP		552
1/2 Air to Spring91232J100-005*Contact Spears
for MSRP		93232J100-005*Contact Spears
for MSRP		94032J100-005*Contact Spears
for MSRP		95032J100-005*Contact Spears
for MSRP		552
3/4 Air to Air91232H100-007*Contact Spears
for MSRP		93232H100-007*Contact Spears
for MSRP		94032H100-007*Contact Spears
for MSRP		95032H100-007*Contact Spears
for MSRP		552
3/4 Air to Spring91232J100-007*Contact Spears
for MSRP		93232J100-007*Contact Spears
for MSRP		94032J100-007*Contact Spears
for MSRP		95032J100-007*Contact Spears
for MSRP		552
1 Air to Air91232H100-010*Contact Spears
for MSRP		93232H100-010*Contact Spears
for MSRP		94032H100-010*Contact Spears
for MSRP		95032H100-010*Contact Spears
for MSRP		552
1 Air to Spring91232J100-010*Contact Spears
for MSRP		93232J100-010*Contact Spears
for MSRP		94032J100-010*Contact Spears
for MSRP		95032J100-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91232H100-012*Contact Spears
for MSRP		93232H100-012*Contact Spears
for MSRP		94032H100-012*Contact Spears
for MSRP		95032H100-012*Contact Spears
for MSRP		552
1-1/4 Air to Spring91232J100-012*Contact Spears
for MSRP		93232J100-012*Contact Spears
for MSRP		94032J100-012*Contact Spears
for MSRP		95032J100-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91232H100-015*Contact Spears
for MSRP		93232H100-015*Contact Spears
for MSRP		94032H100-015*Contact Spears
for MSRP		95032H100-015*Contact Spears
for MSRP		552
1-1/2 Air to Spring91232J100-015*Contact Spears
for MSRP		93232J100-015*Contact Spears
for MSRP		94032J100-015*Contact Spears
for MSRP		95032J100-015*Contact Spears
for MSRP		552
2 Air to Air91232H100-020*Contact Spears
for MSRP		93232H100-020*Contact Spears
for MSRP		94032H100-020*Contact Spears
for MSRP		95032H100-020*Contact Spears
for MSRP		552
2 Air to Spring91232J100-020*Contact Spears
for MSRP		93232J100-020*Contact Spears
for MSRP		94032J100-020*Contact Spears
for MSRP		95032J100-020*Contact Spears
for MSRP		552
2-1/2 Air to Air95032H100-025*Contact Spears
for MSRP		552
2-1/2 Air to Spring95032J100-025*Contact Spears
for MSRP		552
3 Air to Air95032H100-030*Contact Spears
for MSRP		552
3 Air to Spring95032J100-030*Contact Spears
for MSRP		552
4 Air to Air95032H100-040*Contact Spears
for MSRP		552
4 Air to Spring95032J100-040*Contact Spears
for MSRP		552
CPVC - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadSpigotFlangedProd
Code
1/2 Air to Air91152H100-005*Contact Spears
for MSRP		93152H100-005*Contact Spears
for MSRP		94052H100-005*Contact Spears
for MSRP		95052H100-005*Contact Spears
for MSRP		552
1/2 Air to Spring91152J100-005*Contact Spears
for MSRP		93152J100-005*Contact Spears
for MSRP		94052J100-005*Contact Spears
for MSRP		95052J100-005*Contact Spears
for MSRP		552
3/4 Air to Air91152H100-007*Contact Spears
for MSRP		93152H100-007*Contact Spears
for MSRP		94052H100-007*Contact Spears
for MSRP		95052H100-007*Contact Spears
for MSRP		552
3/4 Air to Spring91152J100-007*Contact Spears
for MSRP		93152J100-007*Contact Spears
for MSRP		94052J100-007*Contact Spears
for MSRP		95052J100-007*Contact Spears
for MSRP		552
1 Air to Air91152H100-010*Contact Spears
for MSRP		93152H100-010*Contact Spears
for MSRP		94052H100-010*Contact Spears
for MSRP		95052H100-010*Contact Spears
for MSRP		552
1 Air to Spring91152J100-010*Contact Spears
for MSRP		93152J100-010*Contact Spears
for MSRP		94052J100-010*Contact Spears
for MSRP		95052J100-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91152H100-012*Contact Spears
for MSRP		93152H100-012*Contact Spears
for MSRP		94052H100-012*Contact Spears
for MSRP		95052H100-012*Contact Spears
for MSRP		552
1-1/4 Air to Spring91152J100-012*Contact Spears
for MSRP		93152J100-012*Contact Spears
for MSRP		94052J100-012*Contact Spears
for MSRP		95052J100-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91152H100-015*Contact Spears
for MSRP		93152H100-015*Contact Spears
for MSRP		94052H100-015*Contact Spears
for MSRP		95052H100-015*Contact Spears
for MSRP		552
1-1/2 Air to Spring91152J100-015*Contact Spears
for MSRP		93152J100-015*Contact Spears
for MSRP		94052J100-015*Contact Spears
for MSRP		95052J100-015*Contact Spears
for MSRP		552
2 Air to Air91152H100-020*Contact Spears
for MSRP		93152H100-020*Contact Spears
for MSRP		94052H100-020*Contact Spears
for MSRP		95052H100-020*Contact Spears
for MSRP		552
2 Air to Spring91152J100-020*Contact Spears
for MSRP		93152J100-020*Contact Spears
for MSRP		94052J100-020*Contact Spears
for MSRP		95052J100-020*Contact Spears
for MSRP		552
2-1/2 Air to Air95052H100-025*Contact Spears
for MSRP		552
2-1/2 Air to Spring95052J100-025*Contact Spears
for MSRP		552
3 Air to Air95052H100-030*Contact Spears
for MSRP		552
3 Air to Spring95052J100-030*Contact Spears
for MSRP		552
4 Air to Air95052H100-040*Contact Spears
for MSRP		552
4 Air to Spring95052J100-040*Contact Spears
for MSRP		552
Page 29
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Premium Actuated Diaphragm Valve - Pneumatic
Print this Book
Print this Book

Premium Actuated Diaphragm Valve - Pneumatic
CPVC - FKM O-ring and EPDM Backed PTFE Diaphragm
SizeSocketSR ThreadProd
Code
1/2 Air to Air91252H100-005*Contact Spears
for MSRP		93252H100-005*Contact Spears
for MSRP		552
1/2 Air to Spring91252J100-005*Contact Spears
for MSRP		93252J100-005*Contact Spears
for MSRP		552
3/4 Air to Air91252H100-007*Contact Spears
for MSRP		93252H100-007*Contact Spears
for MSRP		552
3/4 Air to Spring91252J100-007*Contact Spears
for MSRP		93252J100-007*Contact Spears
for MSRP		552
1 Air to Air91252H100-010*Contact Spears
for MSRP		93252H100-010*Contact Spears
for MSRP		552
1 Air to Spring91252J100-010*Contact Spears
for MSRP		93252J100-010*Contact Spears
for MSRP		552
1-1/4 Air to Air91252H100-012*Contact Spears
for MSRP		93252H100-012*Contact Spears
for MSRP		552
1-1/4 Air to Spring91252J100-012*Contact Spears
for MSRP		93252J100-012*Contact Spears
for MSRP		552
1-1/2 Air to Air91252H100-015*Contact Spears
for MSRP		93252H100-015*Contact Spears
for MSRP		552
1-1/2 Air to Spring91252J100-015*Contact Spears
for MSRP		93252J100-015*Contact Spears
for MSRP		552
2 Air to Air91252H100-020*Contact Spears
for MSRP		93252H100-020*Contact Spears
for MSRP		552
2 Air to Spring91252J100-020*Contact Spears
for MSRP		93252J100-020*Contact Spears
for MSRP		552
NOTE: "Socket" valves up to 2" size include standard plastic thread end connectors. For Air to Spring OPEN, change letter "J" to letter " K" in listed part number. O-rings used on Socket and SR Thread End Connectors only.
Polypropylene - EPDM O-ring and EPDM Diaphragm
SizeSR ThreadFlangedProd
Code
1/2 Air to Air93123H100-005*Contact Spears
for MSRP		554
1/2 Air to Spring93123J100-005*Contact Spears
for MSRP		554
3/4 Air to Air93123H100-007*Contact Spears
for MSRP		554
3/4 Air to Spring93123J100-007*Contact Spears
for MSRP		554
1 Air to Air93123H100-010*Contact Spears
for MSRP		554
1 Air to Spring93123J100-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93123H100-012*Contact Spears
for MSRP		554
1-1/4 Air to Spring93123J100-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93123H100-015*Contact Spears
for MSRP		554
1-1/2 Air to Spring93123J100-015*Contact Spears
for MSRP		554
2 Air to Air93123H100-020*Contact Spears
for MSRP		554
2 Air to Spring93123J100-020*Contact Spears
for MSRP		554
2-1/2 Air to Air95023H100-025*Contact Spears
for MSRP		554
2-1/2 Air to Spring95023J100-025*Contact Spears
for MSRP		554
3 Air to Air95023H100-030*Contact Spears
for MSRP		554
3 Air to Spring95023J100-030*Contact Spears
for MSRP		554
4 Air to Air95023H100-040*Contact Spears
for MSRP		554
4 Air to Spring95023J100-040*Contact Spears
for MSRP		554
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
Polypropylene - FKM O-ring and EPDM Diaphragm
SizeSR ThreadFlangedProd
Code
1/2 Air to Air93233H100-005*Contact Spears
for MSRP		554
1/2 Air to Spring93233J100-005*Contact Spears
for MSRP		554
3/4 Air to Air93233H100-007*Contact Spears
for MSRP		554
3/4 Air to Spring93233J100-007*Contact Spears
for MSRP		554
1 Air to Air93233H100-010*Contact Spears
for MSRP		554
1 Air to Spring93233J100-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93233H100-012*Contact Spears
for MSRP		554
1-1/4 Air to Spring93233J100-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93233H100-015*Contact Spears
for MSRP		554
1-1/2 Air to Spring93233J100-015*Contact Spears
for MSRP		554
2 Air to Air93233H100-020*Contact Spears
for MSRP		554
2 Air to Spring93233J100-020*Contact Spears
for MSRP		554

Polypropylene - FKM O-ring and EPDM Diaphragm (continued)
SizeSR ThreadFlangedProd
Code
2-1/2 Air to Air95033H100-025*Contact Spears
for MSRP		554
2-1/2 Air to Spring95033J100-025*Contact Spears
for MSRP		554
3 Air to Air95033H100-030*Contact Spears
for MSRP		554
3 Air to Spring95033J100-030*Contact Spears
for MSRP		554
4 Air to Air95033H100-040*Contact Spears
for MSRP		554
4 Air to Spring95033J100-040*Contact Spears
for MSRP		554
NOTE: For Air to Spring OPEN, change letter "J" to letter "K" in listed part number.
Polypropylene - EPDM O-ring and EPDM Backed PTFE Diaphragm
SizeSR ThreadFlangedProd
Code
1/2 Air to Air93153H100-005*Contact Spears
for MSRP		554
1/2 Air to Spring93153J100-005*Contact Spears
for MSRP		554
3/4 Air to Air93153H100-007*Contact Spears
for MSRP		554
3/4 Air to Spring93153J100-007*Contact Spears
for MSRP		554
1 Air to Air93153H100-010*Contact Spears
for MSRP		554
1 Air to Spring93153J100-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93153H100-012*Contact Spears
for MSRP		554
1-1/4 Air to Spring93153J100-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93153H100-015*Contact Spears
for MSRP		554
1-1/2 Air to Spring93153J100-015*Contact Spears
for MSRP		554
2 Air to Air93153H100-020*Contact Spears
for MSRP		554
2 Air to Spring93153J100-020*Contact Spears
for MSRP		554
2-1/2 Air to Air95053H100-025*Contact Spears
for MSRP		554
2-1/2 Air to Spring95053J100-025*Contact Spears
for MSRP		554
3 Air to Air95053H100-030*Contact Spears
for MSRP		554
3 Air to Spring95053J100-030*Contact Spears
for MSRP		554
4 Air to Air95053H100-040*Contact Spears
for MSRP		554
4 Air to Spring95053J100-040*Contact Spears
for MSRP		554
Polypropylene - FKM O-ring and EPDM Backed PTFE Diaphragm SR Thread
SizeSR ThreadFlangedProd
Code
1/2 Air to Air93253H100-005*Contact Spears
for MSRP		554
1/2 Air to Spring93253J100-005*Contact Spears
for MSRP		554
3/4 Air to Air93253H100-007*Contact Spears
for MSRP		554
3/4 Air to Spring93253J100-007*Contact Spears
for MSRP		554
1 Air to Air93253H100-010*Contact Spears
for MSRP		554
1 Air to Spring93253J100-010*Contact Spears
for MSRP		554
1-1/4 Air to Air93253H100-012*Contact Spears
for MSRP		554
1-1/4 Air to Spring93253J100-012*Contact Spears
for MSRP		554
1-1/2 Air to Air93253H100-015*Contact Spears
for MSRP		554
1-1/2 Air to Spring93253J100-015*Contact Spears
for MSRP		554
2 Air to Air93253H100-020*Contact Spears
for MSRP		554
2 Air to Spring93253J100-020*Contact Spears
for MSRP		554
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 30
Actuated Valves Product
Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves
Print this Book
Print this Book


The following accessories are for use on Spears® pneumatic actuated Ball Valves and Butterfly Valves. See separate listing for pneumatic Diaphragm Valve accessories. Accessories are individually ordered separately and factory assembled with the selected Premium Actuated Valve Package. See important ordering instructions, Ordering Premium Valve Packages with Accessory Add-ons.

AccessoryDescriptionAccessory
Part Number		Prod
Code
Pneumatic Positioners3-15 psi NEMA 4 Flat-Top Indicator 1A-PP1298
3-15 psi NEMA 4 Dome Indicator 1A-PP2298
3-15 psi NEMA 4 Dome Indicator Integrated 2-SPDT Mech. Switches 1A-PP3298
Electro Pneumatic Positioners with Indicator4-20mA NEMA 4 Flat-Top Indicator 1A-EP1298
4-20mA NEMA 4 Dome Indicator 1A-EP2298
4-20 mA NEMA 4 Dome Indicator Integrated 2-SPDT Mech. Switches 1A-EP3298
4-20mA NEMA 7 Flat-Top Indicator 1A-EP4298
4-20mA Intrinsically Safe (CSA/UL) Flat-Top Indicator 1A-EP5298
4-20mA NEMA 7 Dome Indicator 1A-EP6298
4-20mA Intrinsically Safe w/2-SPST Proximity Switches 1A-EP22298
Solenoid Valves3 & 4-way 115 VAC NEMA 4/4xA-SV1298
3 & 4-way 230 VAC NEMA 4/4xA-SV2298
3 & 4-way 24 VAC NEMA 4/4xA-SV3298
3 & 4-way 12 VDC NEMA 4/4xA-SV4298
3 & 4-way 24 VDC NEMA 4/4xA-SV5298
3 & 4-way 115 VAC NEMA 4/4x/7/9A-SV6298
3 & 4-way 230 VAC NEMA 4/4x/7/9A-SV7298
3 & 4-way 24 VAC NEMA 4/4x/7/9A-SV8298
3 & 4-way 12 VDC NEMA 4/4x/7/9A-SV9298
3 & 4-way 24 VDC NEMA 4/4x/7/9A-SV10298
Dual Coil 3 & 4-way 115 VAC NEMA 4/4xA-SV11298
Dual Coil 3 & 4-way 230 VAC NEMA 4/4xA-SV12298
Dual Coil 3 & 4-way 24 VAC NEMA 4/4xA-SV13298
Dual Coil 3 & 4-way 12 VDC NEMA 4/4xA-SV14298
Dual Coil 3 & 4-way 24 VDC NEMA 4/4xA-SV15298
Dual Coil 3 & 4-way 115 VAC NEMA 7/9A-SV16298
Dual Coil 3 & 4-way 230 VAC NEMA 7/9A-SV17298
Dual Coil 3 & 4-way 24 VAC NEMA 7/9A-SV18298
Dual Coil 3 & 4-way 12 VDC NEMA 7/9A-SV19298
Dual Coil 3 & 4-way 24 VDC NEMA 7/9A-SV20298
Stainless Steel 3 & 4-way 115 VAC NEMA 4/4xA-SV21298
3-Way 24 VDC Hi Temperature (Class H) NEMA 4xA-SV22298
3 & 4-way 230 VAC NEMA 4/4x 1/2” NPT Din ConnectorA-SV23298
Limit Switch & Transmitter Combination4-20mA 2-SPDT NEMA 4/4x/7/9A-LS20298
4-20mA 2-SPDT NEMA 4/4x/7/9 w/ Visual IndicatorA-LS21298
4-20mA 2-DPDT NEMA 4/4x/7/9A-LS22298
4-20mA 2-DPDT NEMA 4/4x/7/9 w/ Visual IndicatorA-LS23298
4-20mA 2-Proximity NEMA 4/4x/7/9A-LS24298
4-20mA 2-Proximity NEMA 4/4x/7/9 w/ Visual IndicatorA-LS25298
Limit Switches2-SPDT NEMA 4/4xA-LS40298
2-SPDT NEMA 4/4x w/ Visual IndicatorA-LS41298
2-SPDT NEMA 4/4x w/ Green/Red Dome IndicatorA-LS41D298
NEMA 4/4x w/ Low Profile IndicatorA-LS41L298
2-DPDT NEMA 4/4xA-LS42298
2-DPDT NEMA 4/4x w/ Visual IndicatorA-LS43OBS
2-Proximity NEMA 4/4xA-LS44298
2-Proximity NEMA 4/4x w/ Low Profile Indicator (source power requires intrinsic safety barrier or amplifier).A-LS44L298
Page 31
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves
Print this Book
Print this Book


The following accessories are for use on Spears® pneumatic actuated Ball Valves and Butterfly Valves. See separate listing for pneumatic Diaphragm Valve accessories. Accessories are individually ordered separately and factory assembled with the selected Premium Actuated Valve Package. See important ordering instructions, Ordering Premium Valve Packages with Accessory Add-ons.

AccessoryDescriptionAccessory
Part Number		Prod
Code
Limit Switches2-Proximity NEMA 4/4x w/ Visual IndicatorA-LS45298
2-Proximity NEMA 7/9A-LS46298
2-Proximity NEMA 7/9 w/ Visual IndicatorA-LS47298
2-Proximity NEMA 7/9 w/ Low Profile IndicatorA-LS47L298
2-SPDT NEMA 4/4x/7/9A-LS48298
2-SPDT NEMA 4/4x/7/9 w/ Visual IndicatorA-LS49298
2-DPDT NEMA 4/4x/7/9A-LS50298
2-DPDT NEMA 4/4x/7/9 w/ Visual IndicatorA-LS51298
4-SPDT NEMA 4/4x w/ 180° IndicatorA-LS52298
Transmitter4-20mA Output TransmitterA-PT1298
IndicatorDome IndicatorA-V2298
Pressure Gauge SetStainless steel case, 3-gauge set for use with positioners: 1 - input pressure gauge 0-30 psi, 2 - output gauges 0-160 psiA-G1298
Plastic case, 3-gauge set for use with positioners: 1 - input pressure gauge 0-30 psi, 2 - output gauges 0-160 psiA-G2298
Air MufflersStandard Sintered Bronze, 40 Micron, 18" NPTA-M18298
Standard Sintered Bronze, 40 Micron, 1/4" NPTA-M14298
Speed Control Muffler (Adjustable Air Flow) 1/8" NPTA-M2V18298
Speed Control Muffler (Adjustable Air Flow) 1/4" NPTA-M2V14298
ID TagType 316 Stainless Steel ID Tag 1-1/2” x 3” (3-lines, 12-characters & spaces)TAG3-015001
Stem Extensions Ball Valve Stem Extension  2 A-BVSE-xxx-000 Call for MSRP
True Union 2000 Ball Valve Stem Extension  2 A-BVSE2-xxx-000
Butterfly Valve Stem Extension  2 A-BFSE-xxx-000

NOTES: 1 - Pneumatic and Electro-Pneumatic positioners include brass gauges: 1 input gauge @ 0-30 psi and 2 output gauges @ 0-160 psi. Stainless steel gauges may be ordered separately.

2 -
Stem Extension Part Numbers: Enter size code for "xxx" in part number. Replace "000" with desired length code in part number; length is from top of valve to bottom of actuator.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 32
Actuated Valves Product
Electric Actuator Accessories for Diaphragm Valves
Print this Book
Print this Book

Contact Spears® for any desired accessories or functions not specified in the Accessory Selection Tables
The following accessories are for use on Spears® electric actuated Diaphragm Valves. Accessories are individually ordered separately and factory assembled with the selected Premium Actuated Valve Package. See important ordering instructions, Ordering Premium Valve Packages with Accessory Add-ons.

AccessoryDescriptionAccessory
Part Number		Prod
Code
HeaterHeater/Thermostat - On 41°F, Off 60.8°FA-H1298
Heater/Thermostat - On 62.6°F, Off 80.6°FA-H2OBS
Auxiliary Limit Switches2-SPDT Limit Switch Set (1/2" shaft cam)A-LS1298
Position IndicatorsLED Indicator LightsA-P2298
Modulating Positioner Boards115 VAC 4-20 mAA-PB1298
115 VAC 0-5 VDCA-PB2298
115 VAC 0-10 VDCA-PB3298
230 VAC 4-20 mAA-PB4298
230 VAC 0-5 VDCA-PB5298
230 VAC 0-10 VDCA-PB6298
 24 VAC 4-20 mAA-PB7298
 24 VAC 0-5 VDCA-PB8298
 24 VAC 0-10 VDCA-PB9298
 24 VDC 4-20 mAA-PB10298
 24 VDC 0-5 VDCA-PB11298
 24 VDC 0-10 VDCA-PB12298
Transmitter4-20mAA-T1298
Torque SensorsAdjustable Electronic Torque SensorA-TS1298
Speed ControllerVariable Speed ControllerA-SC1298
Lockout SwitchPower disconnect switch activated when manual override is in useA-LK1298
Battery Backup115VAC 7 AMP BATTERY BACK UPA-BB4298
ID TagType 316 Stainless Steel ID Tag 1-1/2” x 3” (3-lines, 12-characters & spaces)TAG3-015001
Stem Extensions Diaphragm Valve Stem Extension  1 A-DESE-xxx-000 Call for MSRP
NOTES:
1 -
Stem Extension Part Numbers: Enter size code for "xxx" in part number. Replace "000" with desired length code in part number; length is from top of valve to bottom of actuator.
Page 33
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Pneumatic Actuator Accessories for Diaphragm Valves
Print this Book
Print this Book


The following accessories are for use on Spears® pneumatic actuated Diaphragm Valves only. See separate listing for Ball Valve and Butterfly Valve pneumatic accessories. Accessories are individually ordered separately and factory assembled with the selected Premium Actuated Valve Package. See important ordering instructions, Ordering Premium Valve Packages with Accessory Add-ons
.
AccessoryDescriptionAccessory
Part Number		Prod
Code
Pneumatic Positioners3-15 psi NEMA 4x w/ Visual Indicator Top Loading (no gauge)A-DPP1298
3-15 psi NEMA 4x w/ Visual Indicator Top Loading w/ gauges (3)A-DPP2298
3-15 psi NEMA 4x w/ Visual Indicator Bottom Loading (no gauge)A-DPP3298
3-15 psi NEMA 4x w/ Visual Indicator Bottom Loading w/ gauges (3)A-DPP4298
Electro Pneumatic Positioners4-20mA (3-15 psi) NEMA 4x w/Visual Indicator (up to 2")A-DEP1298
4-20mA (3-15 psi) NEMA 4x w/Visual Indicator w/SS Gauges (up to 2")A-DEP2298
4-20mA (3-15 psi) NEMA 4x w/Visual Indicator (2-1/2" & up)A-DEP3298
4-20mA (3-15 psi) NEMA 4x w/Visual Indicator w/SS Gauges (2-1/2" & up)A-DEP4298
3-Way Solenoid Valves115 VAC NEMA 4/4xA-DSV1298
230 VAC NEMA 4/4xA-DSV2298
 24 VAC NEMA 4/4xA-DSV3298
 12 VDC NEMA 4/4xA-DSV4298
 24 VDC NEMA 4/4xA-DSV5298
115 VAC NEMA 4/4x/7/9A-DSV6298
230 VAC NEMA 4/4x/7/9A-DSV7298
 24 VAC NEMA 4/4x/7/9A-DSV8298
 12 VDC NEMA 4/4x/7/9A-DSV9298
 24 VDC NEMA 4/4x/7/9A-DSV10298
4-Way Solenoid Valves115 VAC NEMA 4/4xA-DSV11298
230 VAC NEMA 4/4xA-DSV12298
 24 VAC NEMA 4/4xA-DSV13298
 12 VDC NEMA 4/4xA-DSV14298
 24 VDC NEMA 4/4xA-DSV15298
115 VAC NEMA 4/4x/7/9A-DSV16298
230 VAC NEMA 4/4x/7/9A-DSV17298
 24 VAC NEMA 4/4x/7/9A-DSV18298
 12 VDC NEMA 4/4x/7/9A-DSV19298
 24 VDC NEMA 4/4x/7/9A-DSV20298
Micro Limit Switches2-SPDT NEMA 4 w/ 180° Visual Indicator 1A-DLS20298
2-SPDT NEMA 7/9 w/ 180° Visual Indicator 1A-DLS25298
Proximity Limit Switches2-SPDT NEMA 4/4XA-DLS23298
Limit Switches2-SPDT NEMA 4  2A-DLS24298
Speed ControllerVariable Speed ControllerA-DPSC1298
ID TagType 316 Stainless Steel ID Tag 1-1/2” x 3” (3-lines, 12-characters & spaces)TAG3-015001
Stem Extensions Diaphragm Valve Stem Extension  1 A-DPSE-xxx-000 Call for MSRP
NOTES:
1 -
Micro Limit Switches used on valve sizes ½" through 2".
2 -
Limit Switches used on valve sizes 2-1/2" & larger.
3 -
Stem Extension Part Numbers: Enter size code for "xxx" in part number. Replace "000" with desired length code in part number; length is from top of valve to bottom of actuator.
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 34
Actuated Valves Product
Valve Actuation Questionnaire Checklist Ball Valves
Print this Book
Print this Book

Contact Name: Date: Business Name: City: State: Country: Phone: Fax: E-mail: Project Name: Ball Valves: System Media Pressure (Required) Nominal Size Valve Quantity Each psi kPa Bar in mm cm Ball Valve Type : True Union Industrial True Union Standard True Union Tee Style Compact Other Valve Type Three Way Full Port Three Way Regular Tandem Three Way (Tandem Diverter Orientation Questionnaire Required) (See 3-way orientation box below) (See 3-way orientation box below) Body Material: PVC CPVC LE PVC O-ring Seals : EPDM FKM Other (If Other Explain) End Connector : JIS BSP(Thread) DIN Metric SR Threaded Spigot Threaded Flange Socket Vertical 3- Way Orientation Single L Port Double L Port Triple L Port T Port T Port Mixing Double Port Mixing Horizontal 3- Way Orientation T Port L Port T Port-Mixing Double Port Pneumatic Not all combinations may be available. FailSafe Type - (Position to which valve cycles upon air loss) Double Acting (No FailSafe. Stays in last activated position) Spring Return - Close (FailSafe in closed position upon air loss) Spring Return - Open (FailSafe in open position upon air loss) Operating Air Pressure (psi) - (Compressed air supply required to operate actuator) 80-150 Override Type - (Override used to cycle valve upon air loss) Declutchable Basic Aux. Limit Switches- Additional mechanical switches to operate external lights, alarms etc. (set of 2) SPDT- Mechanical SPDT - Proximity DPDT - Mechanical Voltage Signal Type Visual Indicator - (Provides local visual valve position indication) No Indicator Dome Low Profile Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle). Pneumatic Positioner (Air supply required to operate valve) Electro-Pneumatic Positioner (Air and voltage supply required to operate) Signal Voltage Input With Transmitter - (Sends output signal to PLC to provide valve position) Transmitter Output NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids, solids and gases ) Solenoid Valve - (Regulates actuator intake/exhaust air supply) Dual Coil (Double Acting Actuators only) Solenoid Valve Voltage NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids and solids) Other Options: Electric Not all combinations may be available. Basic Two Position (90 Degree Travel Standard) 3 Position 90 180 FailSafe Position (if required) Fail Open - FailSafe in open position upon power loss Fail Close - FailSafe in closed position upon power loss Note: On "Fail Safe" Options Two Positions ONLY Override Not Recommended. Voltage Supply Power: 115 VAC Frequency Phase Override Type - (Override used to cycle valve upon power loss) Duty Cycle (Amount of work valve can accomplish before requiring rest) NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids and solids) Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle) Positioner with Transmitter Transmitter - (Sends output signal to PLC to provide valve position) Positioner - NO Transmitter Auxiliary Limit Switches (Additional mechanical switches to operate external lights, alarms etc.) Standard Accessories - All options not available in all actuator combinations Other Options: 4 3 & 4 Way Basic 4x Specify Voltage: 4-20mA 4-20mA 0-10 VDC ) 4 4x 4-20mA 0-10 VDC Signal Output Declutchable 4 4x Other: 50 Hertz Single 60 Hertz Three 75% 25% 2 4 Torque Sensor Battery Backup Speed Control 2 Wire Control Relay Self-Regulating Heater (standard) Rev. A 2016 LED Indicating Lights (red /green) Signal Pressure - (Air pressure required to position the valve) Other: 3-15 psi Other: 0-10 VDC Other: Other: (Set of 2 each) Other: Other/Min. Requirement : Other: Other: Other: Other: Other: Other: Other: 0-10 VDC 4-20mA Signal Input Other: 0-10 VDC 4-20mA Signal Input Other: 230 VAC 230 VAC Other: 115 VAC
Page 35
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Actuated Valves Product
Valve Actuation Questionnaire Checklist Butterfly Valves
Print this Book
Print this Book

Contact Name: Business Name: City: Country: Phone: Project Name: Date: State: E-mail: Fax: Butterfly Valves: System Media Pressure (Required) Nominal Size Valve Quantity Each psi kPa Bar in mm cm Butterfly Valve Type : Standard True Lug Pool Valve Wafer Tandem Diverting PVC CPVC Polypropylene EPDM Body Material : O-ring Seals : Tandem Three Way (Tandem 3-Way Orientation Document Required) Pneumatic Electric Double Acting (No FailSafe. Stays in last activated position) Spring Return - Close (FailSafe in closed position upon air loss) Spring Return - Open (FailSafe in open position upon air loss) Operating Air Pressure (psi) - (Compressed air supply required to operate actuator) 80-150 Override Type - (Override used to cycle valve upon air loss) Declutchable SPDT- Mechanical With Transmitter - (Sends output signal to PLC to provide valve position) 4 3 & 4 Way Basic Aux. Limit Switches- (Additional mechanical switches to operate external lights, alarms etc. (set of 2) DPDT - Mechanical SPDT - Proximity Voltage Signal Type 4x Specify Voltage: Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle). Pneumatic Positioner (Air supply required to operate valve) Electro-Pneumatic Positioner (Air and voltage supply required to operate) 4-20mA 4-20mA 0-10 VDC NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids, solids and gases) Signal Voltage Input Solenoid Valve - (Regulates actuator intake/exhaust air supply) Dual Coil (Double Acting Actuators only) 115 VAC 230 VAC 4 4x NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids and solids) Basic Two Position Fail Open - Open (FailSafe in open position upon power loss) Fail Close - Close (FailSafe in closed position upon power loss) (90 Degree Travel Standard) Note: On "Fail Safe" options two positions ONLY Override Not Recommended. Positioner with Transmitter Positioner - NO Transmitter 4-20mA 0-10 VDC Signal Output 115 VAC Declutchable Basic 4 4x NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids and solids) Voltage Supply Power: 230 VAC Frequency Phase Override Type - (Override used to cycle valve upon power loss) 50 Hertz Single 60 Hertz Three 75% 25% Duty Cycle (Amount of work valve can accomplish before requiring rest) 2 4 Auxiliary Limit Switches (Additional mechanical switches to operate external lights, alarms etc.) Standard Accessories - All options not available in all actuator combinations Torque Sensor Battery Backup Speed Control 2 Wire Control Relay Self-Regulating Heater (standard) Rev. A 2010 Other: LED Indicating Lights (red /green) Signal Pressure - (Air pressure required to position the valve) Other: 3-15 psi FailSafe Type - (Position to which valve cycles upon air loss) Transmitter Output 0-10 VDC Other: Other: Solenoid Valve Voltage Not all combinations may be available. Other Options: Other Valve Type Zinc SS316 Lug Materials : Not all combinations may be available. FailSafe Position (if required) Other: Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle) Transmitter - (Sends output signal to PLC to provide valve position) Other: (Set of 2 each) Other: Other/Min. Requirement: Other: Other: Other: Other: Other: Other Options: Other: Other: Other: 0-10 VDC 4-20mA Signal Input Other: 0-10 VDC 4-20mA Signal Input Buna - N Other Information: (If Other Explain) Visual Indicator - ( Provides local visual valve position indication ) Dome Low Profile Other FKM
Made in the U.S.A.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas

See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Page 36
Actuated Valves Product
Valve Actuation Questionnaire Checklist Diaphragm Valves
Print this Book
Print this Book

Contact Name: Business Name: City: Country: Phone: Project Name: Date: State: E-mail: Fax: Diaphragm Valves: System Media Pressure (Required) Nominal Size Valve Quantity Each psi kPa Bar in mm cm Diaphragm Valve Type : EPDM PTFE/EPDM PVC CPVC Low-Extractable PVC EPDM Other Body Material : End Connector O-rings 1/2" - 2": (If Other Explain) Pneumatic Electric Multi Turn Double Acting (No FailSafe. Stays in last activated position) Spring Return - Close (FailSafe in closed position upon air loss) Spring Return - Open (FailSafe in open position upon air loss) Operating Air Pressure (psi) - (Compressed air supply required to operate actuator) Override Type - (Override used to cycle valve upon air loss. Not available in sizes 1/2" -2") With Transmitter - (Sends output signal to PLC to provide valve position) Aux. Limit Switches - (Additional mechanical switches to operate external lights, alarms etc. (set of 2) SPDT- Mechanical DPDT - Mechanical SPDT - Proximity Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle). Pneumatic Positioner (Air supply required to operate valve) Electro-Pneumatic Positioner (Air and voltage supply required to operate) NEMA Rating - (Enclosure rating indicates level of housing ingress protection from fluids and solids ) Solenoid Valve - (Regulates actuator intake/exhaust air supply) NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids, solids and gases ) Voltage Signal Type: Specify Voltage: Positioner with Transmitter Positioner - NO Transmitter 4-20mA 0-10 VDC Signal Output 115 VAC Declutchable Basic 4 4x NEMA Rating - (Enclosure rating indicates level of ingress protection from fluids and solids) Voltage Supply Power: 230 VAC Frequency Phase Override Type - (Override used to cycle valve upon power loss) 50 Hertz Single 60 Hertz Three 75% 25% Duty Cycle (Amount of work valve can accomplish before requiring rest) Standard Accessories -All options not available in all actuator combinations Torque Sensor Speed Control 2 Wire Control Relay Rev. A 2010 Other: Battery Backup LED Indicating Lights (red /green) Signal Pressure - (Air pressure required to position the valve) FailSafe Type - (Position to which valve cycles upon air loss) 4-20mA 0-10 VDC Input Other: 4-20mA Transmitter Output 0-10 VDC Other: Solenoid Valve Voltage Not all combinations may be available. Other Options: Other Valve Type SR Threaded Spigot Flange Socket End Connector : Not all combinations may be available. Other: Positioner Type - (Positioner accepts an input signal from PLC to control valve cycle) Transmitter- (Sends output signal to PLC to provide valve position) Other: 2 4 Auxiliary Limit Switches (Additional mechanical switches to operate external lights, alarms etc.) (Set of 2 each) 80-116 Other: Other: Other: 3 way (Air-to-Spring) 4 way (Double Acting Actuators only) Other: 115 VAC 230 VAC Other: 4 4x Other: 4 4x Other: Other Options: Other: Declutchable Basic Other: Other: 0-10 VDC 4-20mA Signal Input Other: 0-10 VDC 4-20mA Signal Input Polypropylene Other information: Other: 3-15 psi PTFE/EPDM Dome Low Profile Visual Indicator - (Provides local visual valve position indication ) Self-Regulating Heater (standard)   FKM PTFE/FKM FKM PTFE/FKM
Page 37
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
Spears® Manufacturing Company
See Spears® On-line Catalog @ www.spearsmfg.com for Pricing
Spears Super Sourcebook prints best when the margins are set to our specifications and the headers and footers are turned off.
The Spears Product Price Schedules will print on standard 8.5 x 11 paper with the following changes to your browsers page setup.

For Microsoft Internet Explorer Version 8 & 9:
  1. Select File/Page Setup
  2. Set Orientation to Portrait.
  3. Check “Print Background Colors and Images.”
  4. Set the Margins as follows:
  5. Select “-Empty-” in all the Header and Footer dropdown boxes.
  6. Click OK.
